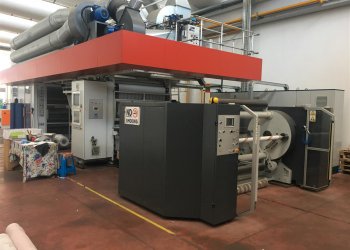

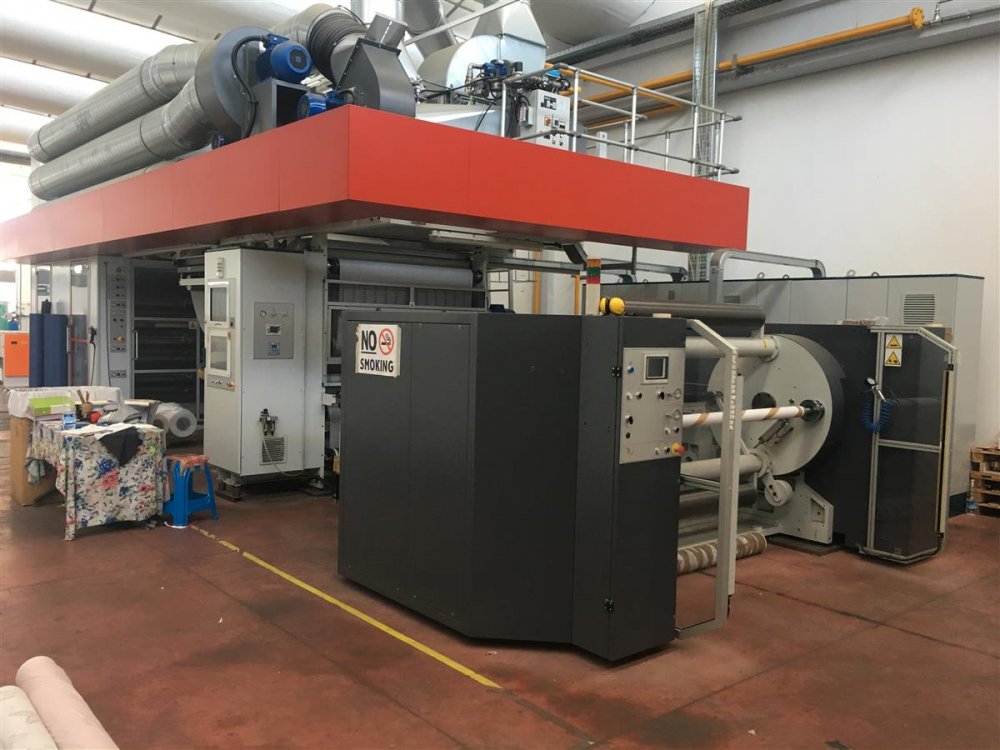

UTECO TOPAZ 608 GL MOD 160 flexographic printing machine 6 colors

** SOLD **

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Ask more informations
about a similar one
Machine Code
FL732
Manufacturer
UTECO
Modello
TOPAZ 608 GL MOD 160
Year
2014
Number of colors
6
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1650
Print width (mm)
1600
Min print repeat (mm)
450
Max print repeat (mm)
850
Unwinder type
Single
Max reel diameter unwinder (mm)
1500
Rewinder type
Turret
Max reel diameter rewinder (mm)
1000
Drying
Gas burners. Tunnel 4 mt long. Motorized air recirculation system with LEL system
Videocamera
Grafikscan 2200 with Click & Drag
Web guides
OPG at web infeed . Spreader roll MINK type
Washing system
Yes
Inking system
6 closed chamber doctor blades; 6 ink pumps; solvent based and water based inks
Anilox
6
Print Sleeves
500
Note
Machine installed end of 2014 and started in beginning 2015 Mechanical speed :up to 300 m/min max Material:paper 50-150 g/m2 Single shaft unwinder “SAC-N-U-1500” Rewinder type TAR-N-1000 Spreader rollers MINK type
Machine Code FL732
Manufacturer UTECO
Modello TOPAZ 608 GL MOD 160
Year 2014
Number of colors 6
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1650
Print width (mm) 1600
Min print repeat (mm) 450
Max print repeat (mm) 850
Unwinder type Single
Max reel diameter unwinder (mm) 1500
Rewinder type Turret
Max reel diameter rewinder (mm) 1000
Drying Gas burners. Tunnel 4 mt long. Motorized air recirculation system with LEL system
Videocamera Grafikscan 2200 with Click & Drag
Web guides OPG at web infeed . Spreader roll MINK type
Washing system Yes
Inking system 6 closed chamber doctor blades; 6 ink pumps; solvent based and water based inks
Anilox 6
Print Sleeves 500
Note Machine installed end of 2014 and started in beginning 2015 Mechanical speed :up to 300 m/min max Material:paper 50-150 g/m2 Single shaft unwinder “SAC-N-U-1500” Rewinder type TAR-N-1000 Spreader rollers MINK type
