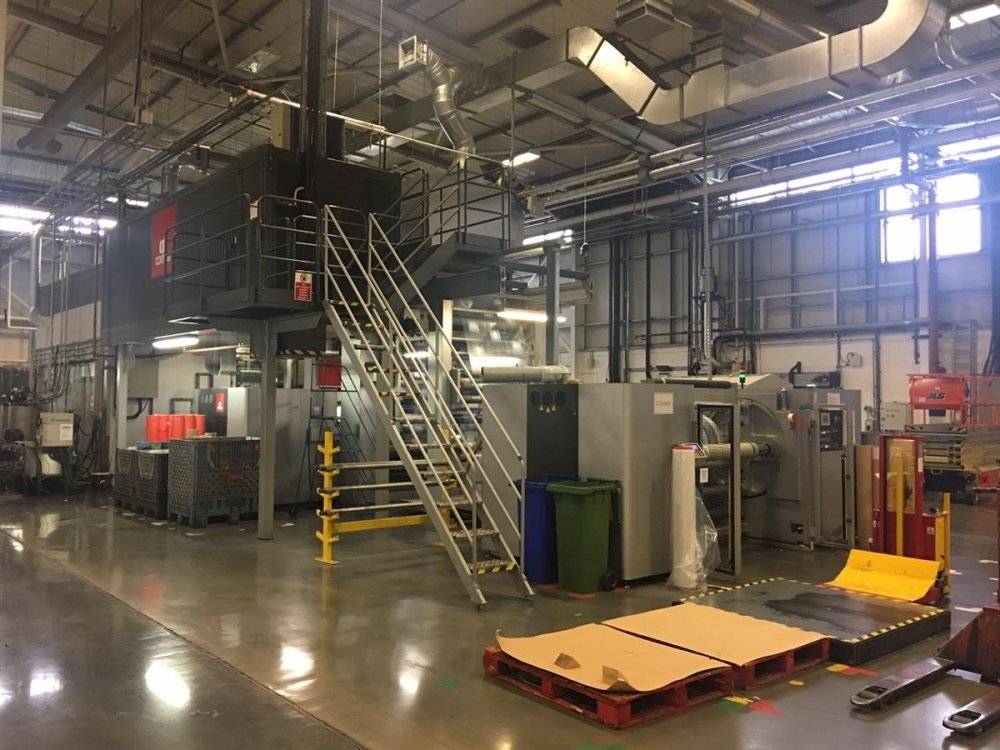

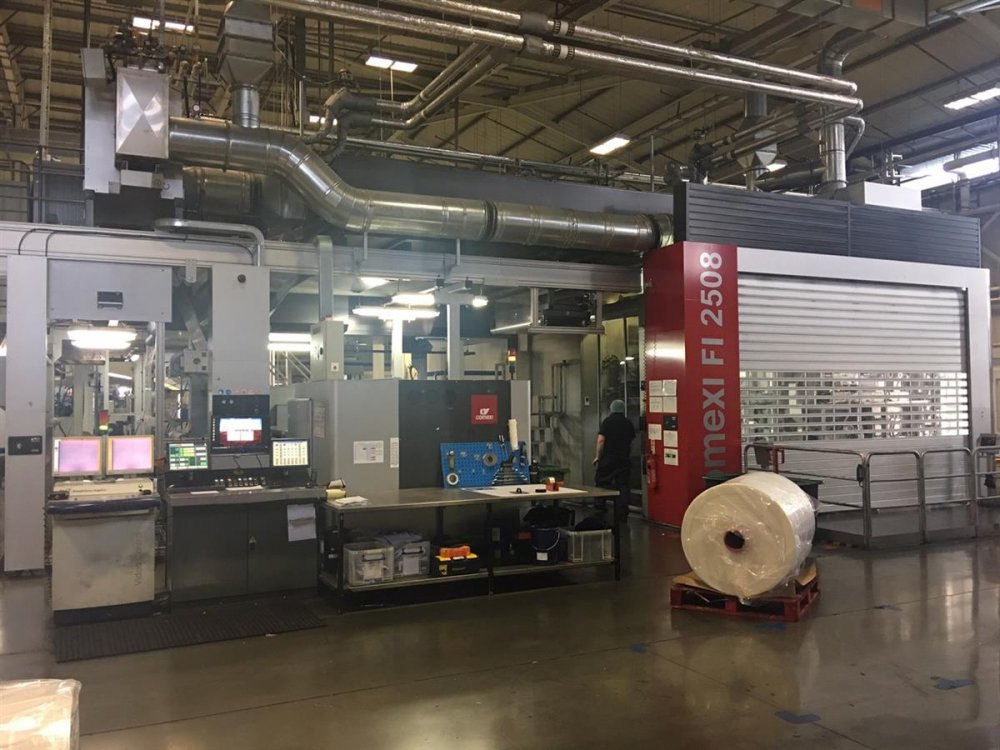

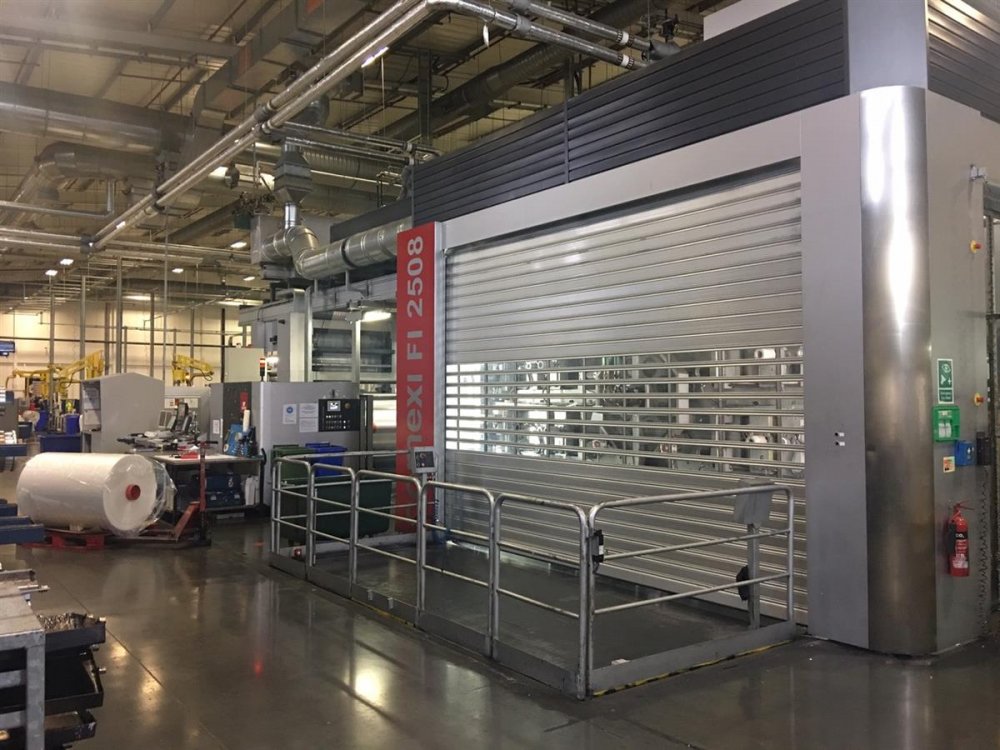

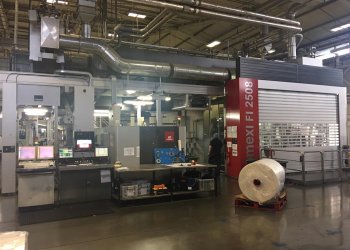

COMEXI FI2508 Flexo printer 8 colors ** SOLD ** Ask more informations about a similar one

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Machine Code FL716
Manufacturer COMEXI
Model FI2508
Year 2006
Number of colors 8
Gearless Yes
Fast sleeve change Yes
Web width (mm) 1470
Print width (mm) 1420
Max reel diameter unwinder (mm) 1000

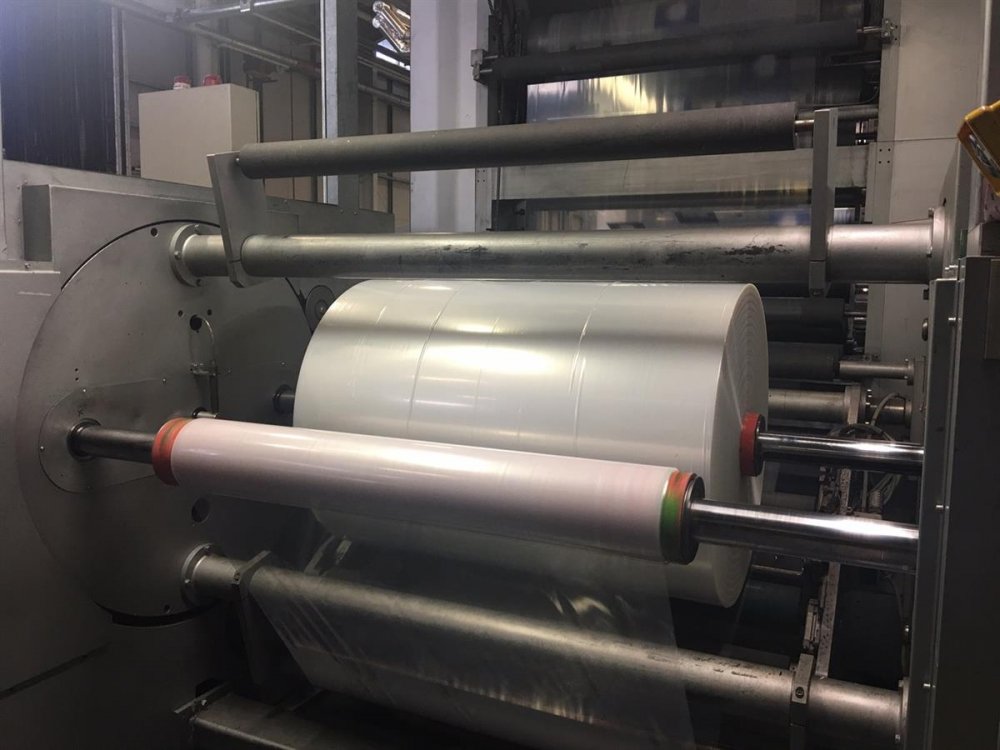

Rewinder type AUTOMATIC TURRET
Drying Thermaoil( central system) and gas
Videocamera AVT Jupiter
Corona treatment yes Softal
Web guides 2
Inking system closed chamber doctor blades
Anilox 26 ceramic anilox sleeves as follows 1x 65 l/ cm-HVP vol.14 cm3/m2 ;1x 100 l/cm,-vol.10,2 cm3/m2 ; 5 x 140 l/ cm Vol 8,05 cm3/m2 ; 2 x 140 L/cm,- vol 8,2 ; 1X 160 L/CM hvp VOL.14,0 ; 3 x 215 ll/cm- vol.6,0 ; 1 X 140 L/CM-VOL.6,0; 2 x 215 l/ cm- vol.6,3 ; 8 x 300 l/ cm -vol.4,,2 ;,6 x 360 l/cm.
Print Sleeves TOTALLY 64 SLEEVES 15x 400 mm, 7x 410 , 8x 440 , 8x 460 ; 7x 520 ; 1x 540 ; 1x 610 ; 8x 800
Print cylinders Carbon fiber Carriers 8x 480mm; 8x 580mm; 8x680 ; 8x 880 ; 8x 980 ; 8 x 1180 .
Additional information temperature control unit for CI 4 spare chamber doctor blades spare ink tanks and lids ink pumps div. sleeves div. anilox rollers Longitudinal and side register motorized Automatic register control Electr. container

** SOLD **


You may also be interested in:

25385 - INTERFACE

INTERFACE

Category: Printing machines

Subcategory: Flexo CI

Print width (mm): 1400

Year: 2004

25059 - WINDMOLLER & HOLSCHER  ASTRAFLEX

WINDMOLLER & HOLSCHER ASTRAFLEX

Category: Printing machines

Subcategory: Flexo CI

Print width (mm): 1570

Year: 2000

114716 - UTECO CORAL 675

UTECO CORAL 675

Category: Printing machines

Subcategory: Flexo CI

Print width (mm): 1200

Year: 2003

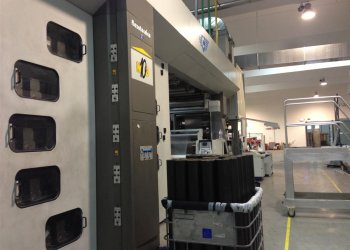

131905 - FLEXOTECNICA 10 NG (GEARLESS)
