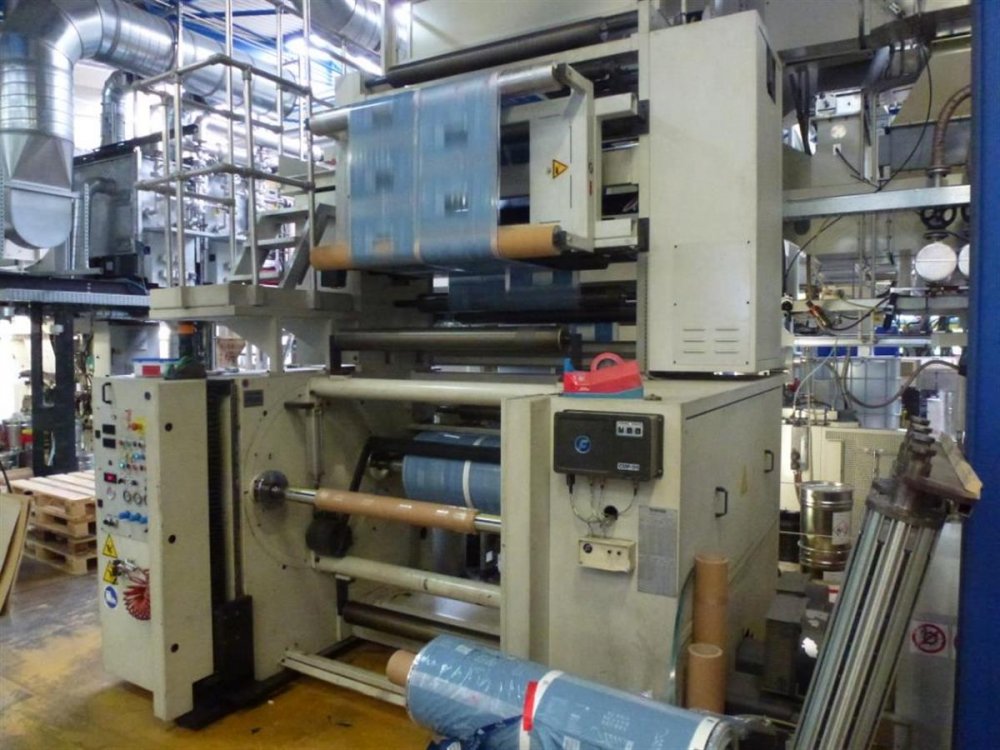

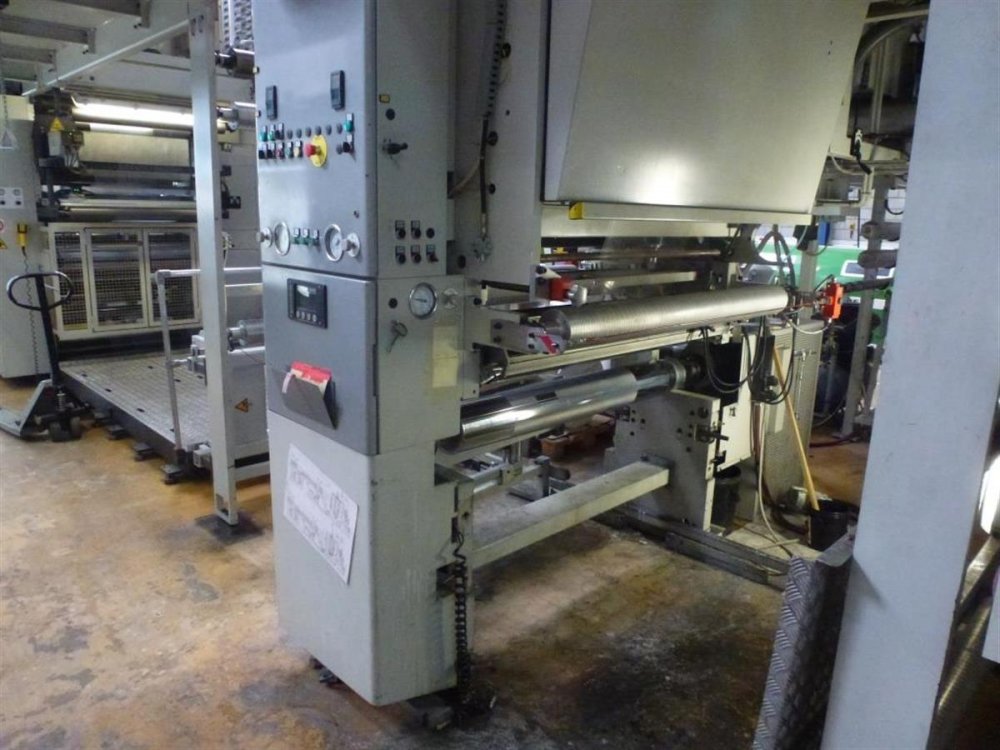

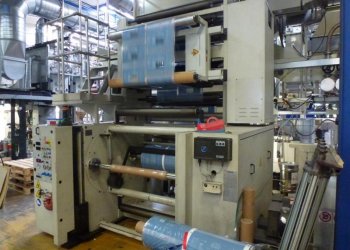

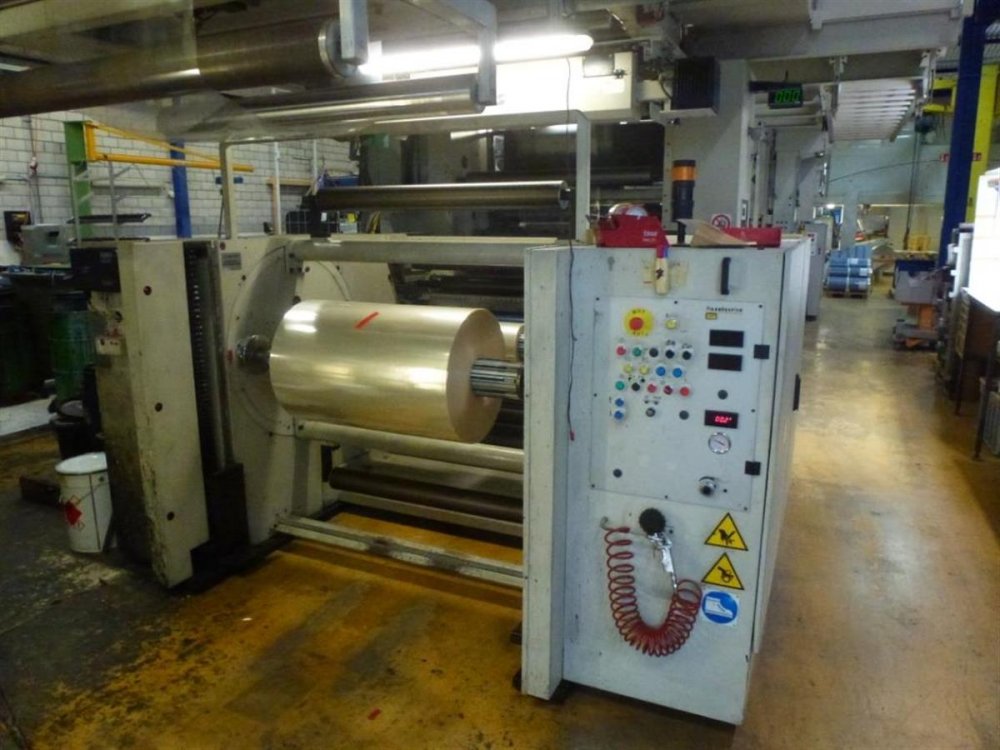

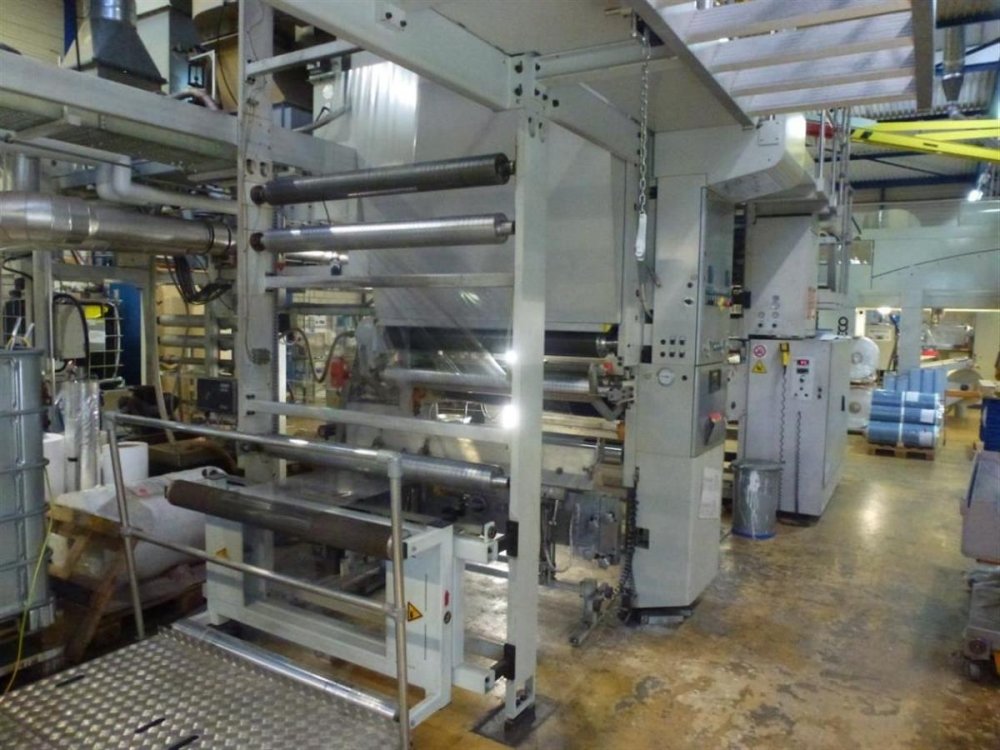

FLEXOTECNICA TACHIS Flexo central drum printing press 9 colors ** SOLD ** Ask more informations about a similar one
Flexo CI presses use a central drum which is common to all colours as counter impression roll.
| Machine Code | FL707 |
| Manufacturer | FLEXOTECNICA |
| Model | TACHIS |
| Year | 2000 |
| Number of colors | 9 |
| Print possibilities | 8 flexo + 1 gravure downstream |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 650 |
| Unwinder type | Turret automtic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones 2 thermo oil heat exchangers |
| Videocamera | Yes Eltromat |
| Corona treatment | Yes AFS |
| Web guides | yes in and out |
| Vyscosity control | Yes New Celio |
| Inking system | Closed chamber Doctor blades |
| Anilox | 12 ceramic anilox sleeves |
| Print Sleeves | 248 print sleeves, 8 for each repeat 300 , 310, 320, 325, 330, 340, 350, 360, 370,375, 380, 390,400,410,420,430, 440,450,460,470,480,490,500,520,530,540,550,560,570,580, 600 |
| Print cylinders | 2 sets of carriers |
| Additional information | Gravure coating unit in line |
** SOLD **
