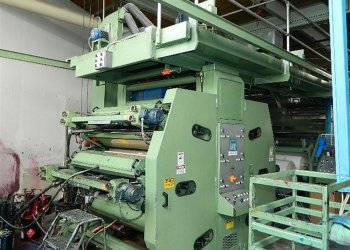

UTECO CORAL 675 Flexo central drum printing press 6 colors

** SOLD **

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Ask more informations
about a similar one
Machine Code
FL677
Manufacturer
UTECO
Model
CORAL 675
Year
2002
Number of colors
6
Print possibilityes
6+0
Gearless
No
Fast sleeve change
No
4 motor per deck CNC position system
No
Computer supervision
Yes
Web width (mm)
1050
Print width (mm)
1000
Min print repeat (mm)
300
Max print repeat (mm)
800
Unwinder type
Turret Automatic
Max reel diameter unwinder (mm)
800
Rewinder type
Turret Automatic
Max reel diameter rewinder (mm)
800
Drying
2 zones - 4 fans - 1 gas burner
Videocamera
Scana web-r rotating mirrors stroboscope
Web guides
yes in and out
Inking system
closed chamber doctor blades and ceramic anilox rollers
Print cylinders
7 sets of 6 print cylinders
Additional information
Motorized print stations positioning Motorized longitudinal registers remote controlled Pre register set up with repeat preset
Machine Code FL677
Manufacturer UTECO
Model CORAL 675
Year 2002
Number of colors 6
Print possibilityes 6+0
Gearless No
Fast sleeve change No
4 motor per deck CNC position system No
Computer supervision Yes
Web width (mm) 1050
Print width (mm) 1000
Min print repeat (mm) 300
Max print repeat (mm) 800
Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones - 4 fans - 1 gas burner
Videocamera Scana web-r rotating mirrors stroboscope
Web guides yes in and out
Inking system closed chamber doctor blades and ceramic anilox rollers
Print cylinders 7 sets of 6 print cylinders
Additional information Motorized print stations positioning Motorized longitudinal registers remote controlled Pre register set up with repeat preset
