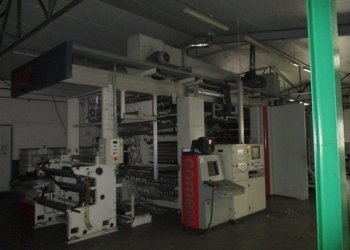

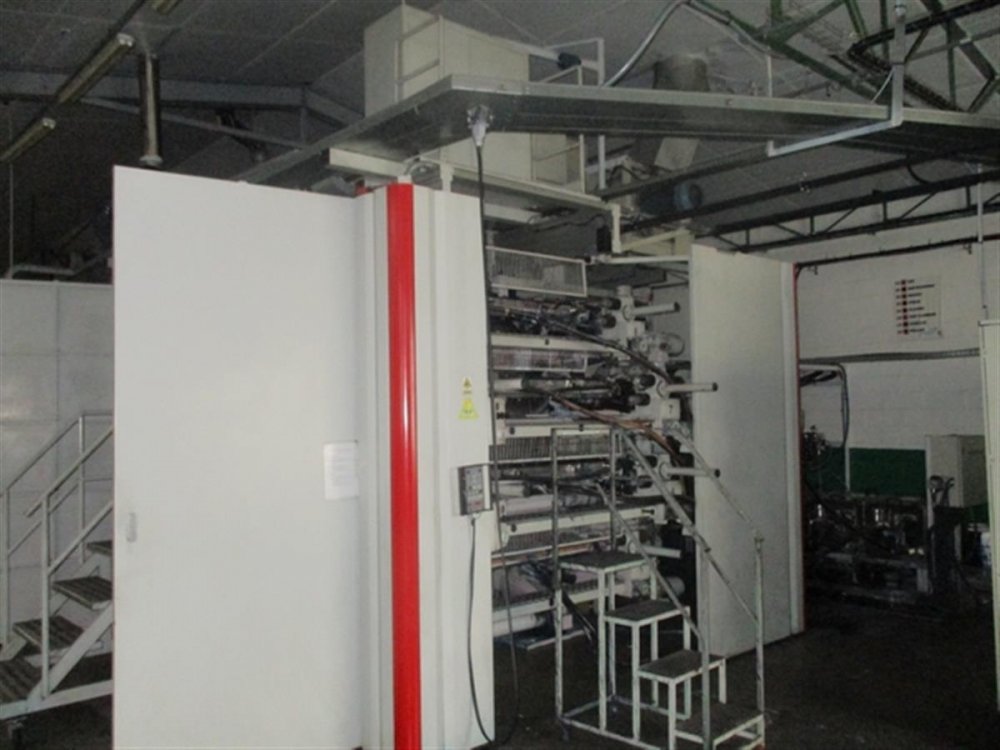

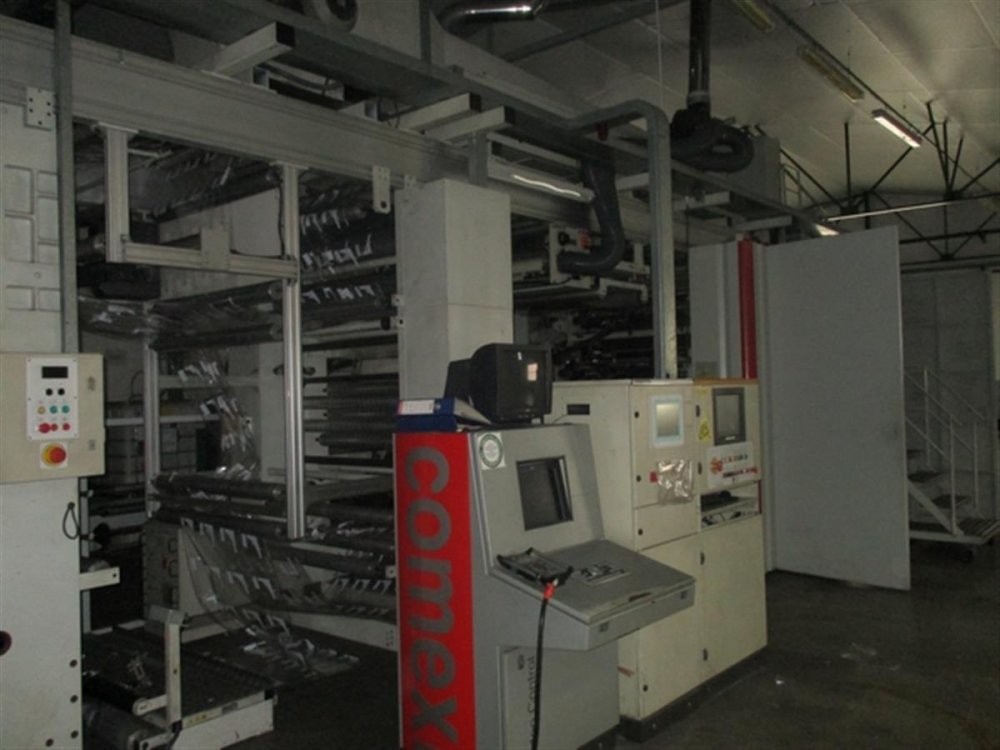

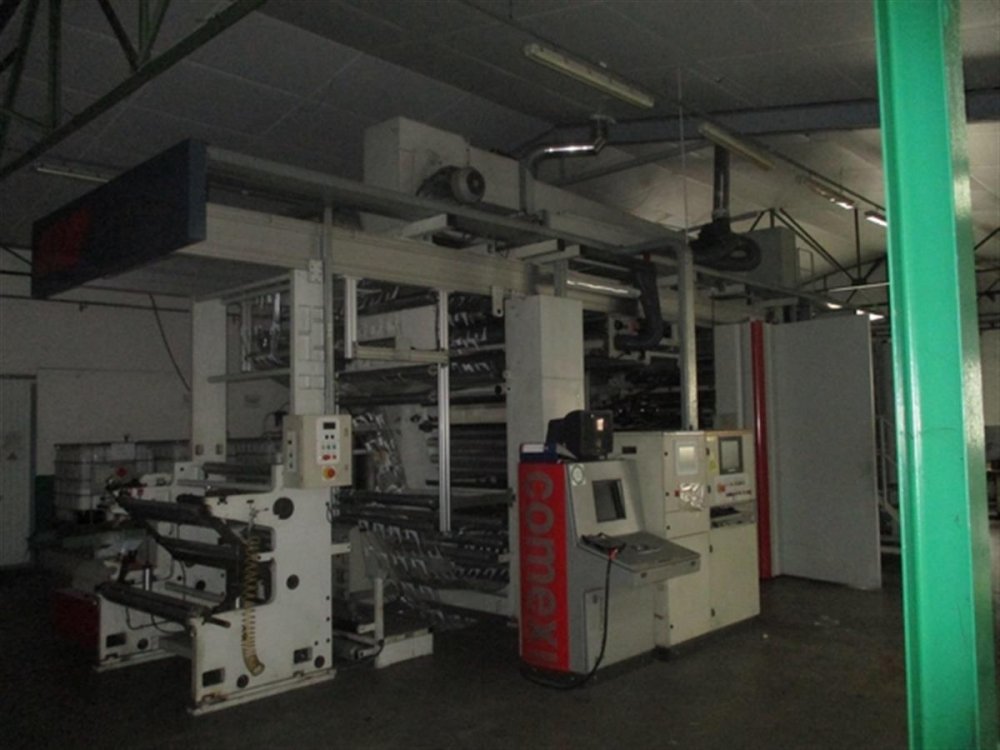

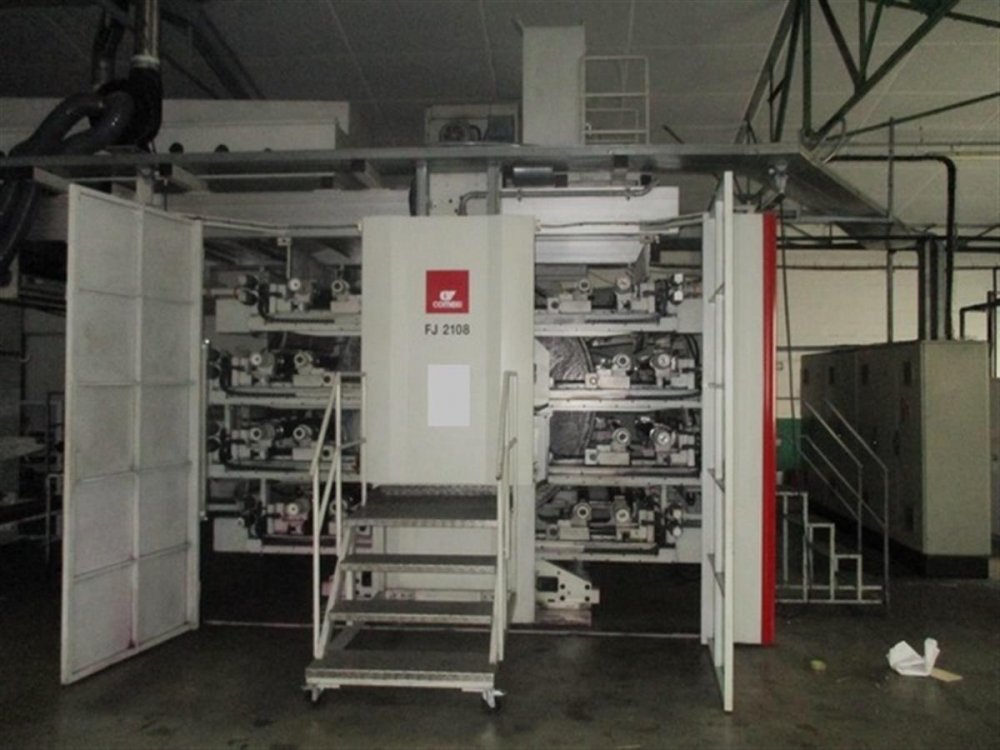

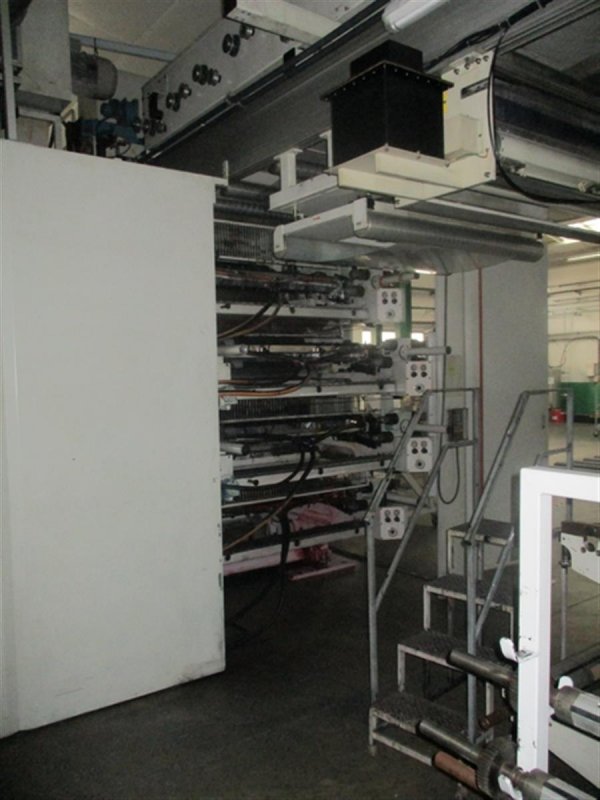

COMEXI FJ2108 CNC Flexo printer 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL664
Manufacturer
COMEXI
Model
FJ2108 CNC
Year
2001
Number of colors
8
Print possibilityes
8+0
Gearless
No
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Web width (mm)
1270
Print width (mm)
1220
Min print repeat (mm)
350
Max print repeat (mm)
800
Unwinder type
Double bracket
Max reel diameter unwinder (mm)
800
Rewinder type
Double bracket
Max reel diameter rewinder (mm)
800
Corona treatment
Yes
Web guides
Yes before printing and rewinding brand BST type OPG
Vyscosity control
Yes
Washing system
Yes
Inking system
8 pneumatic ink pumps, chamber doctor blades
Anilox
10 anilox
Print Sleeves
Yes
Additional information
10 mm gear pitch motorized longitudinal /side register Speed 300 m/min Materials : LDPE, PP, OPP Unwinder : marriage roll, dancing roller, tension control, pneuamtic shaft 3" and 6" Rewinder : pneuamtic shaft 3" and 6" Sleeve machine for anilox and cylinders plates, slow rotation with electrical motors; through off system, meshing system Sets of gears Conditionig system for the central drum
Machine Code FL664
Manufacturer COMEXI
Model FJ2108 CNC
Year 2001
Number of colors 8
Print possibilityes 8+0
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Web width (mm) 1270
Print width (mm) 1220
Min print repeat (mm) 350
Max print repeat (mm) 800
Unwinder type Double bracket
Max reel diameter unwinder (mm) 800
Rewinder type Double bracket
Max reel diameter rewinder (mm) 800
Corona treatment Yes
Web guides Yes before printing and rewinding brand BST type OPG
Vyscosity control Yes
Washing system Yes
Inking system 8 pneumatic ink pumps, chamber doctor blades
Anilox 10 anilox
Print Sleeves Yes
Additional information 10 mm gear pitch motorized longitudinal /side register Speed 300 m/min Materials : LDPE, PP, OPP Unwinder : marriage roll, dancing roller, tension control, pneuamtic shaft 3" and 6" Rewinder : pneuamtic shaft 3" and 6" Sleeve machine for anilox and cylinders plates, slow rotation with electrical motors; through off system, meshing system Sets of gears Conditionig system for the central drum
