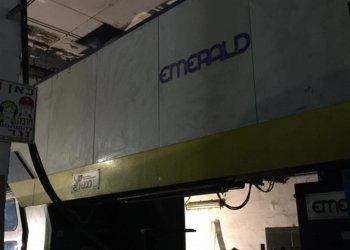

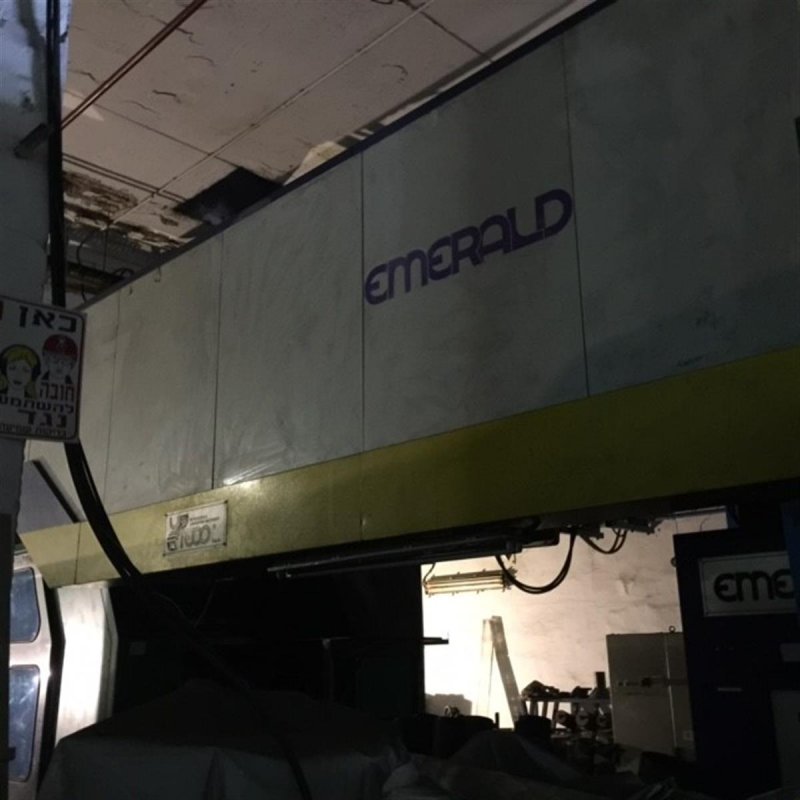

UTECO EMERALD flexo press 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL658
Manufacturer
UTECO
Model
EMERALD
Year
2000
Number of colors
8
Gearless
No
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1250
Print width (mm)
1200
Min print repeat (mm)
330
Max print repeat (mm)
750
Unwinder type
Two position drop splice
Max reel diameter unwinder (mm)
800
Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
800
Drying
2 zones 4 fans , 4mt tunnel
Inking system
Solvent based
Additional information
Pitch 10mm Total plate thickness 2.84 + 0.38 mm Materials to be printed: HDPE 30my ,width500mm ; Pet 12my, width 550mm; BOPP, CAST PP, PP, MEt, Cellophan, Paper
Machine Code FL658
Manufacturer UTECO
Model EMERALD
Year 2000
Number of colors 8
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 330
Max print repeat (mm) 750
Unwinder type Two position drop splice
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones 4 fans , 4mt tunnel
Inking system Solvent based
Additional information Pitch 10mm Total plate thickness 2.84 + 0.38 mm Materials to be printed: HDPE 30my ,width500mm ; Pet 12my, width 550mm; BOPP, CAST PP, PP, MEt, Cellophan, Paper
