** SOLD **
Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Ask more informations
about a similar one
- Machine Code
- FL644
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello

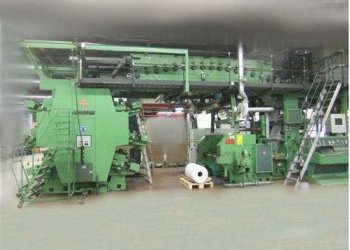

- OLYMPIA 746 SMV
- Year
- 1989
- Number of colors
- 6
- Gearless
- No
- Fast sleeve change
- No
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 950
- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Thermo oil
- Videocamera
- Yes
- Web guides
- Yes
- Vyscosity control
- Yes
- Inking system
- Chamber doctor blade. Ink tanks. Ink pumps.
- Anilox
- Ceramic anilox 5x80 l/cm - 15 cm3/m2; 1x100 l/cm - 14 cm3/m2; 2x220 l/4cm3/m2; 4x120L/cm-10 cm3/m2; 2x60 l/cm - 20 cm3/m2.
- Print cylinders
- 6 pcs 380 mm
- Note
- Mechanical speed 300m/min Temperature control unit for CI Spare parts available Materials PP, PE, Paper
| Machine Code | FL644 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | OLYMPIA 746 SMV |
| Year | 1989 |
| Number of colors | 6 |
| Gearless | No |
| Fast sleeve change | No |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 950 |
| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Thermo oil |
| Videocamera | Yes |
| Web guides | Yes |
| Vyscosity control | Yes |
| Inking system | Chamber doctor blade. Ink tanks. Ink pumps. |
| Anilox | Ceramic anilox 5x80 l/cm - 15 cm3/m2; 1x100 l/cm - 14 cm3/m2; 2x220 l/4cm3/m2; 4x120L/cm-10 cm3/m2; 2x60 l/cm - 20 cm3/m2. |
| Print cylinders | 6 pcs 380 mm |
| Note | Mechanical speed 300m/min Temperature control unit for CI Spare parts available Materials PP, PE, Paper |
