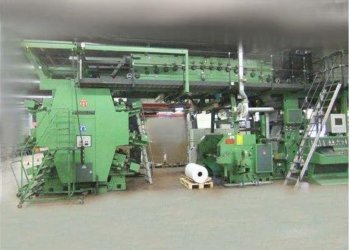

WINDMÖLLER & HÖLSCHER OLYMPIA 746 SMV flexographic printing machine 6 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Photo Gallery

Ask more informations

about a similar one

Machine Code: FL644
Manufacturer: WINDMÖLLER & HÖLSCHER
Modello: OLYMPIA 746 SMV
Year: 1989
Number of colors: 6
Gearless: No
Fast sleeve change: No
Web width (mm): 1320
Print width (mm): 1270
Min print repeat (mm): 300
Max print repeat (mm): 950
Unwinder type: Turret
Max reel diameter unwinder (mm): 1000
Rewinder type: Turret
Max reel diameter rewinder (mm): 1000
Drying: Thermo oil
Videocamera: Yes
Web guides: Yes
Vyscosity control: Yes
Inking system: Chamber doctor blade. Ink tanks. Ink pumps.
Anilox: Ceramic anilox 5x80 l/cm - 15 cm3/m2; 1x100 l/cm - 14 cm3/m2; 2x220 l/4cm3/m2; 4x120L/cm-10 cm3/m2; 2x60 l/cm - 20 cm3/m2.
Print cylinders: 6 pcs 380 mm
Note: Mechanical speed 300m/min Temperature control unit for CI Spare parts available Materials PP, PE, Paper

Machine Code	FL644
Manufacturer	WINDMÖLLER & HÖLSCHER
Modello	OLYMPIA 746 SMV
Year	1989
Number of colors	6
Gearless	No
Fast sleeve change	No
Web width (mm)	1320
Print width (mm)	1270
Min print repeat (mm)	300
Max print repeat (mm)	950
Unwinder type	Turret
Max reel diameter unwinder (mm)	1000
Rewinder type	Turret
Max reel diameter rewinder (mm)	1000
Drying	Thermo oil
Videocamera	Yes
Web guides	Yes
Vyscosity control	Yes
Inking system	Chamber doctor blade. Ink tanks. Ink pumps.
Anilox	Ceramic anilox 5x80 l/cm - 15 cm3/m2; 1x100 l/cm - 14 cm3/m2; 2x220 l/4cm3/m2; 4x120L/cm-10 cm3/m2; 2x60 l/cm - 20 cm3/m2.
Print cylinders	6 pcs 380 mm
Note	Mechanical speed 300m/min Temperature control unit for CI Spare parts available Materials PP, PE, Paper

** SOLD **
