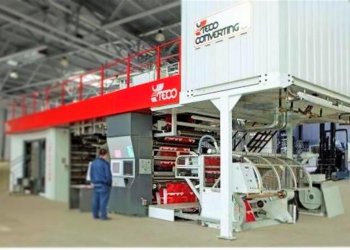

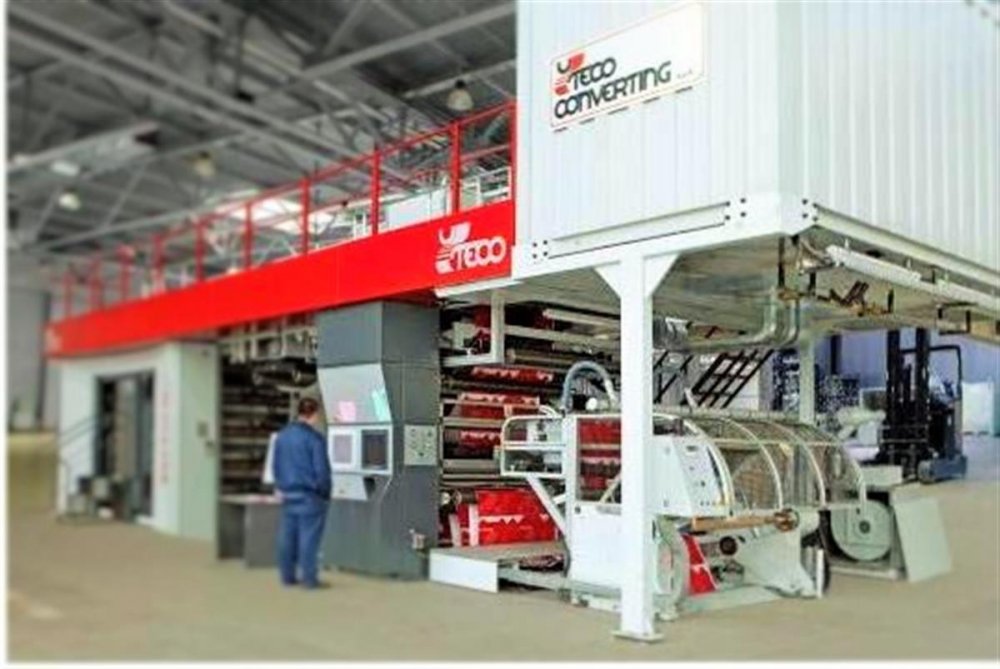

UTECO ONYX 808 (GEARLESS) Flexo printer 8 colors ** SOLD ** Ask more informations about a similar one

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Machine Code FL641
Manufacturer UTECO
Model ONYX 808 (GEARLESS)
Year 2013
Number of colors 8
Gearless Yes

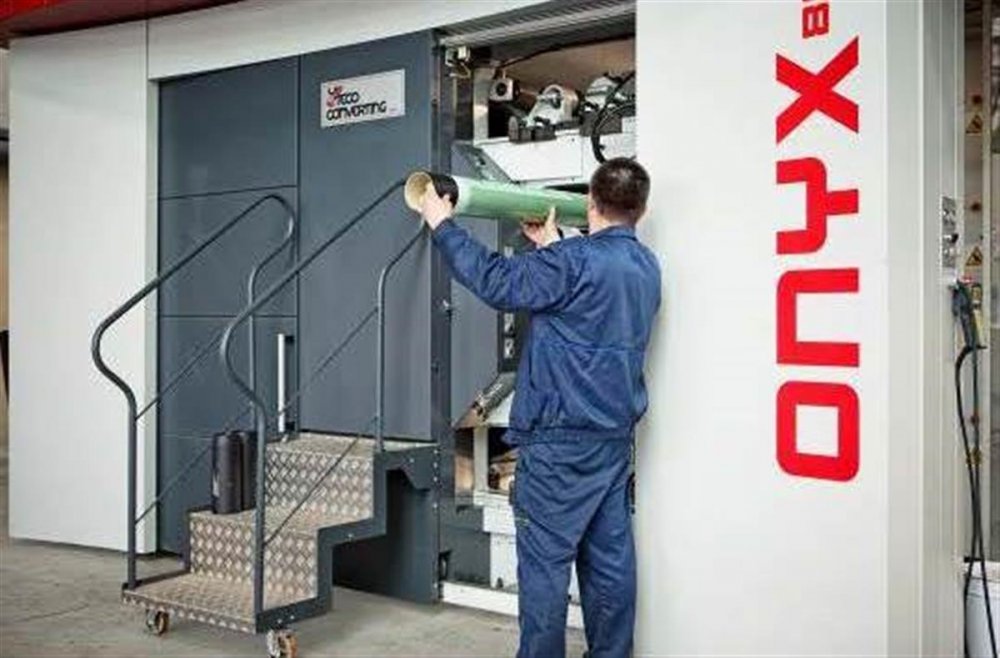

Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1550
Print width (mm) 1500
Min print repeat (mm) 400
Max print repeat (mm) 800
Unwinder type SINGLE
Max reel diameter unwinder (mm) 1270
Rewinder type SINGLE
Max reel diameter rewinder (mm) 1270
Drying Electric heaters . Lenght of tunnerl 4 meters.
Videocamera Grafikiscan System 2100 for the print visualization , brand Grafikontrol
Web guides Yes
Vyscosity control 8
Washing system Washing system for anilox rolls and doctor blades N.8 modules. Washing system for anilox rolls and doctor blades - functioning with waterbased inks.
Inking system Water based . 8 closed chamber doctor blade. 16 pumps. 8 lids for ink tank. 8 ink tray.
Anilox 100 lpc - 12 cm3/m2 ; 120 lpc - 10 cm3/m2 ; 160 lpc - 9 cm3/m2 (2 pcs) 140 lpc - 9 cm3|m2 - 1 piece ; 285 lpc - 6cm3|m2 - 1 ; 320 lpc - 5 cm3|m2 - 2 ; 340 lpc - 4.5 cm3|m2 - 2 ; 360 lpc - 4cm3\m2 - 1

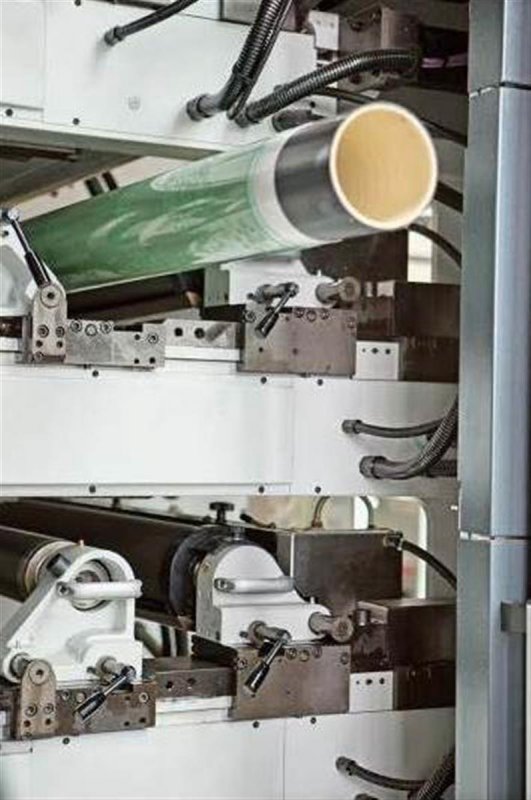

Print Sleeves 400mm ; 410mm; 430mm; 480mm ; 500mm; 560mm; 600mm; 660mm; 720mm
Additional information Printing speed min 30 m/min -max 400m/min ( depends on type of material; repeat of printing cylinders and clichè ; inks , solvents; etc) Materials paper 40-200gsm Total plate thickness 1.14mm Safety devices. Web tension control Pneumatic dancing roller 1 shaft rotating chucks brand Svecom Web infeed group. Aluminium idle rolls, dynamically balanced. Web cleaning system Edge guide OPG electromechanial type Remote control panels (pendants) Side and longitudinal registers Automatic printi -to-print register pre-set type G (gearlss) 9 printing speeve cylinders. 8 plate cylinder sleeves. 9 reinforced slot for printing sleeve- 9 carriers max diam about 148mm for sleeves of min printing repeat 500mm 1 lubrification of printing mndrels bearings Anilox sleeve 8 . Splash guards 8. Exhaust fan. 2 Thermoregulation for gas burner 2 air recirculation Out-feed nip roller.Web outfeed unit. Interactiv register (Click and Drag ) Kiss & Go system P2P automatic system printing pressure

** SOLD **
