** SOLD **

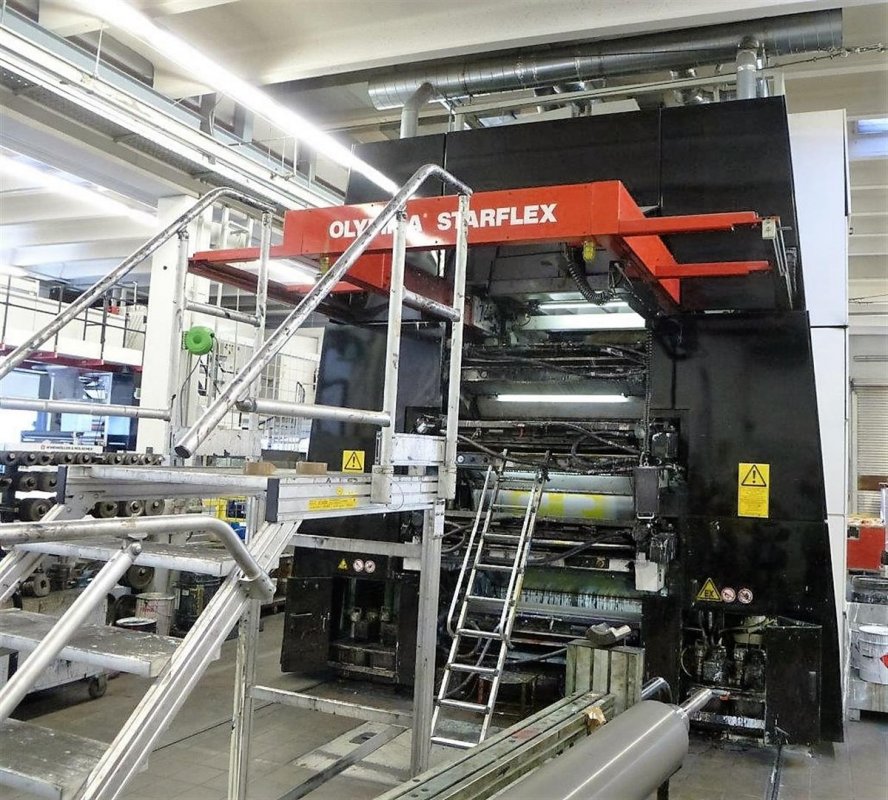

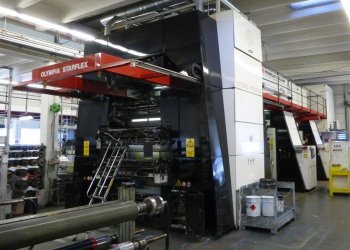

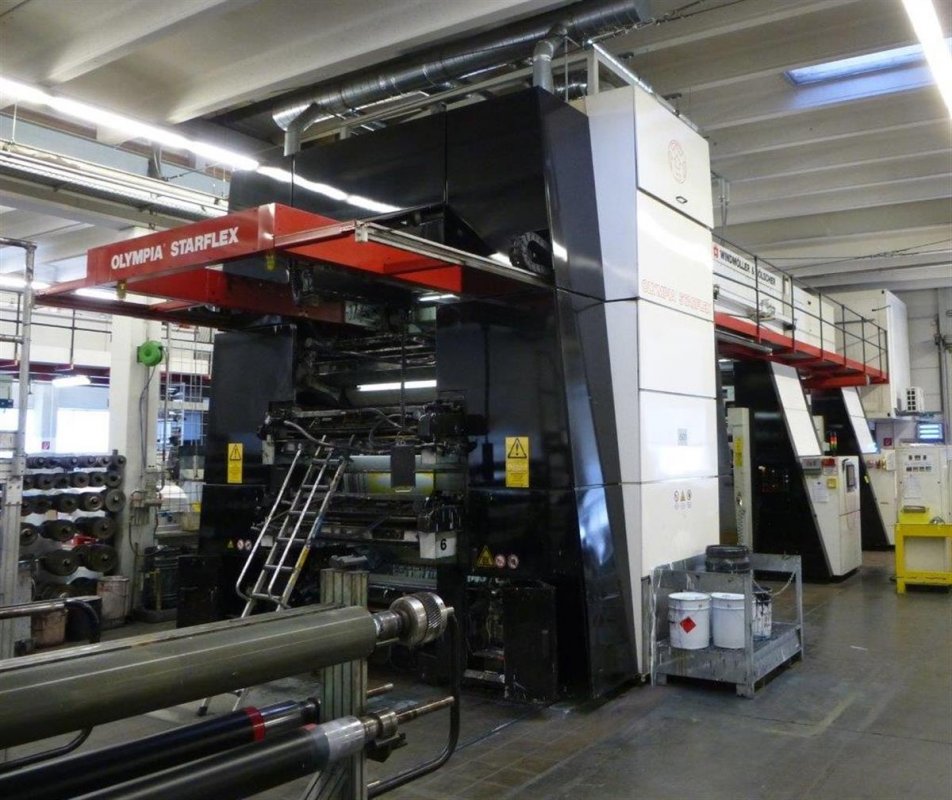

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- FL639
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- STARFLEX
- Year
- 1990
- Number of colors
- 8
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1620
- Print width (mm)
- 1560
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 1170
- Unwinder type
- Turret
- Rewinder type
- Turret
- Drying
- Diathermic oil
- Print Sleeves
- 8x390;4x400;8+7x420;16+7+4x440;7x460;8+4x470;8+9x490;7x500;4x510;4+4x520;8+4x540;8+4x560;4+4x570,4x590;8+4+4x600;8x610;7x630;1x640;8+4x660;8+16x700;3+5x750;8x780;8x820;8x840;2x900;11x940;8+8x1000;2+8+8x1050;6+6x1070mm
- Print cylinders
- 4x1000mm
- Note
- Mechanical speed 300m/min
| Machine Code | FL639 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | STARFLEX |
| Year | 1990 |
| Number of colors | 8 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1620 |
| Print width (mm) | 1560 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 1170 |
| Unwinder type | Turret |
| Rewinder type | Turret |
| Drying | Diathermic oil |
| Print Sleeves | 8x390;4x400;8+7x420;16+7+4x440;7x460;8+4x470;8+9x490;7x500;4x510;4+4x520;8+4x540;8+4x560;4+4x570,4x590;8+4+4x600;8x610;7x630;1x640;8+4x660;8+16x700;3+5x750;8x780;8x820;8x840;2x900;11x940;8+8x1000;2+8+8x1050;6+6x1070mm |
| Print cylinders | 4x1000mm |
| Note | Mechanical speed 300m/min |
