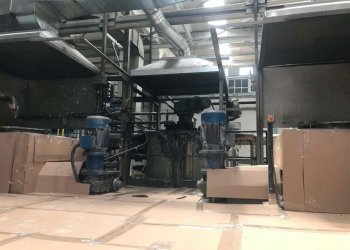

GHEZZI & ANNONI HOTMELT Accoppiatore / spalmatrice Hot melt // Laminators and coaters // Converting machines // Macchine Flexo Usate // Tecno Converting 2000 S.r.l.

** SOLD **

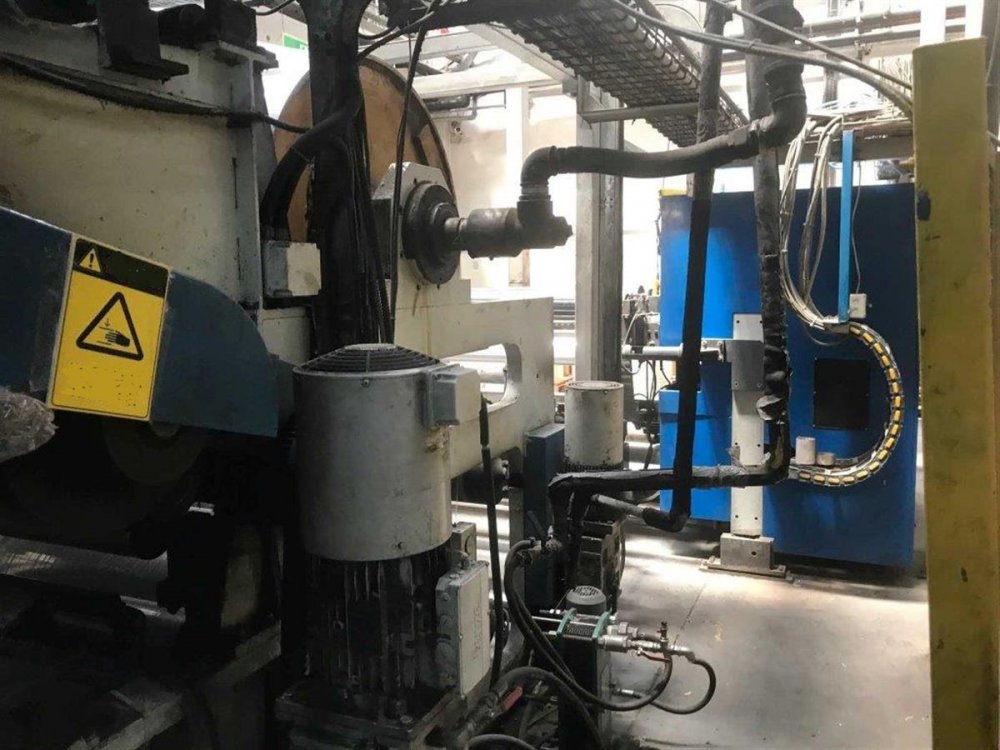

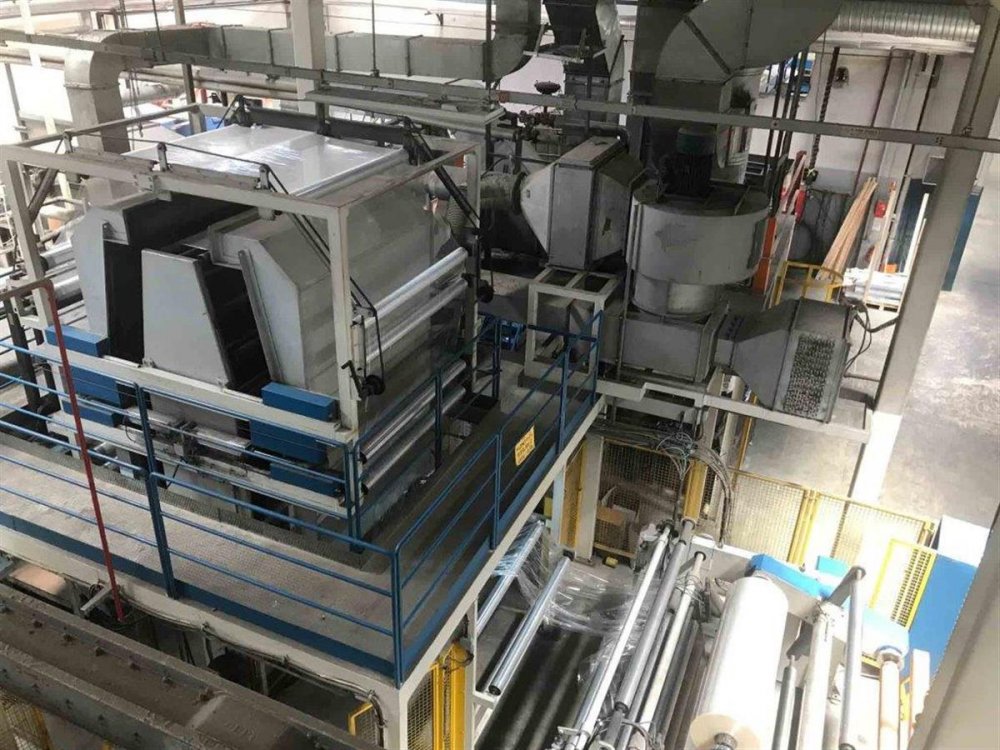

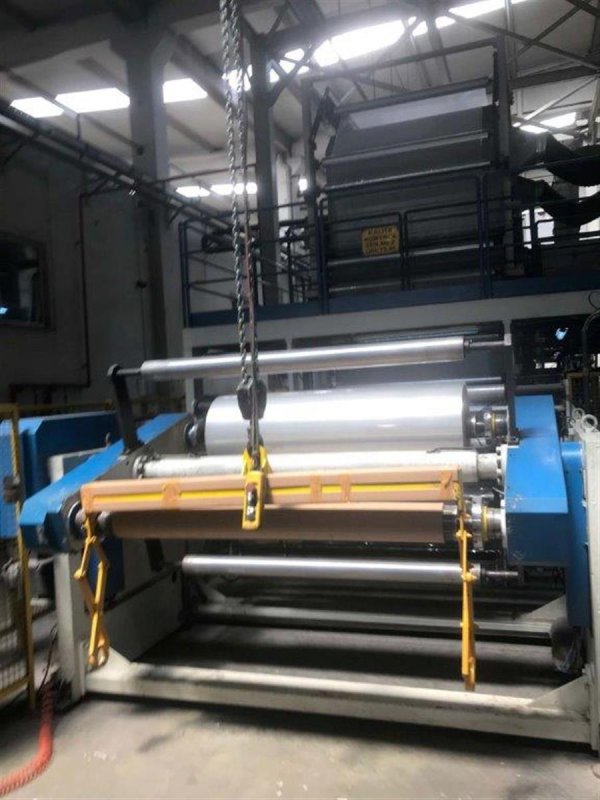

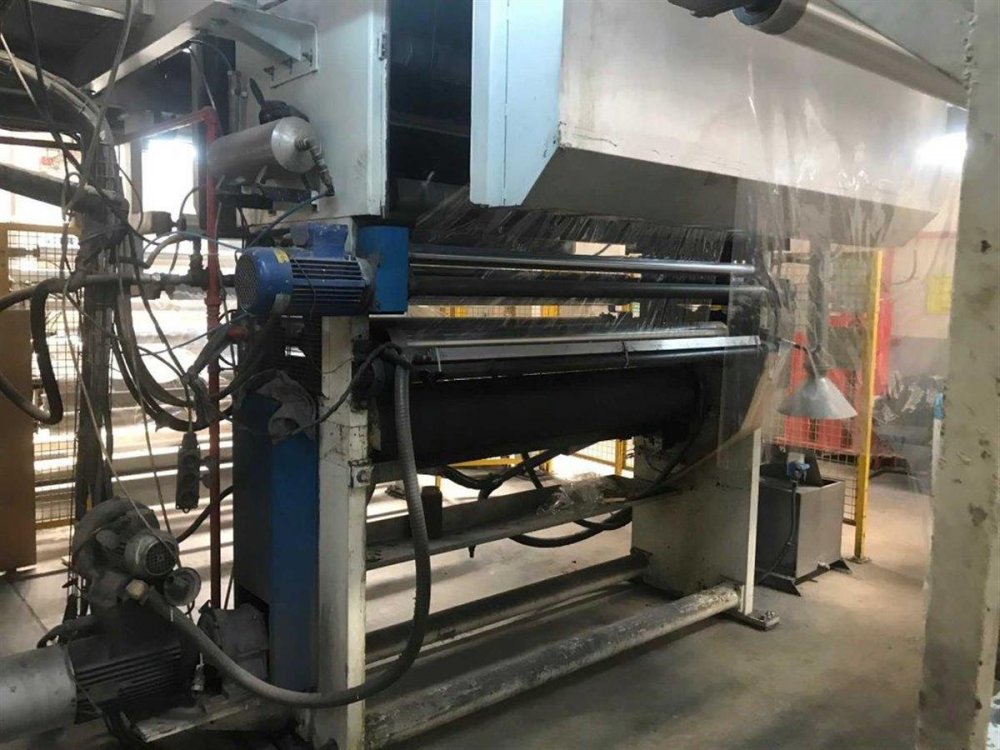

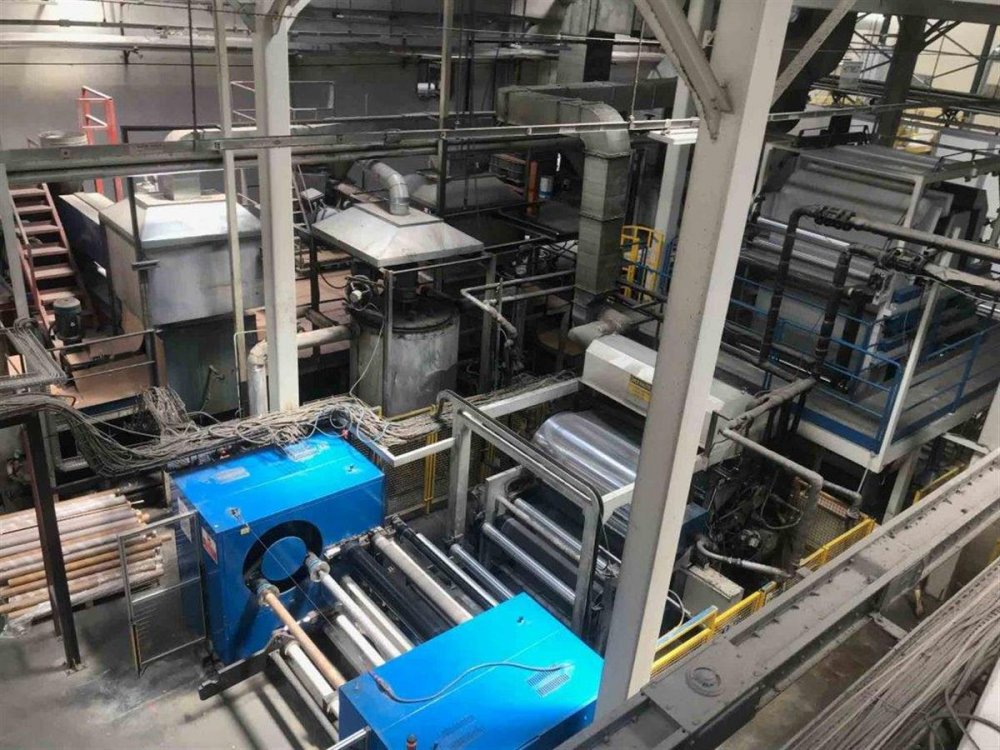

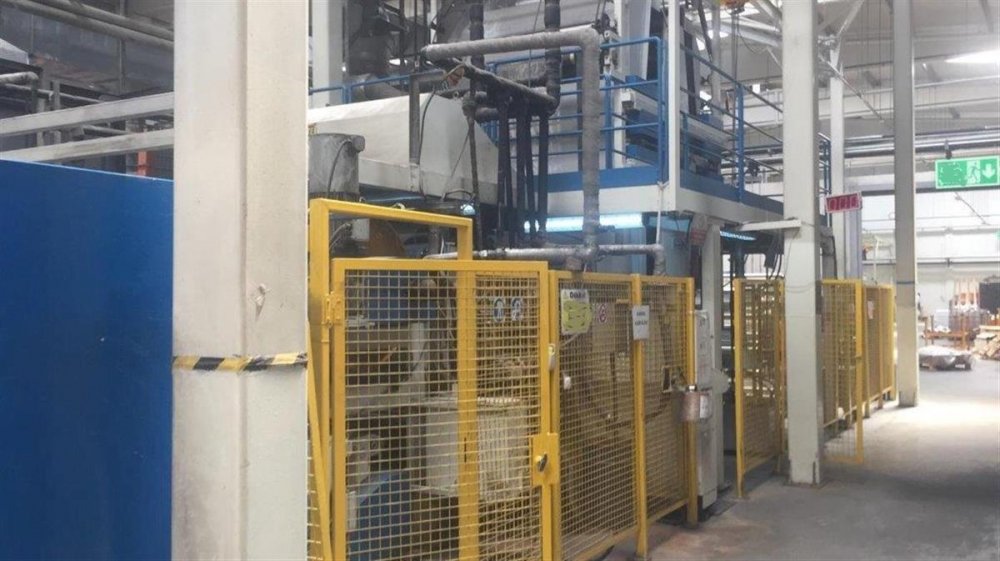

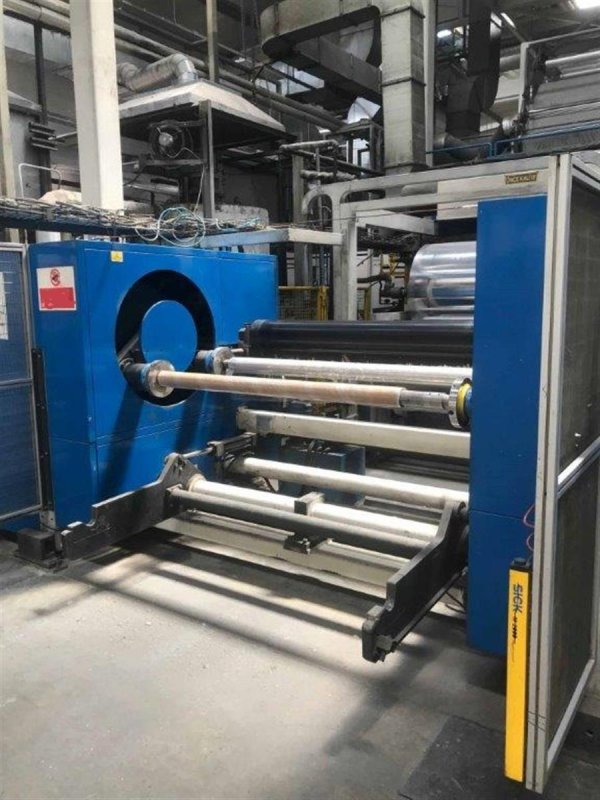

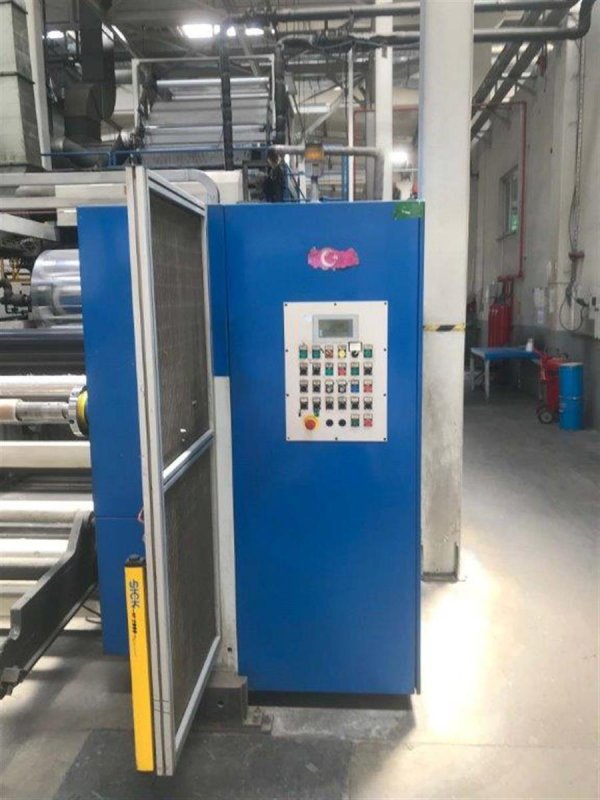

Photo Gallery

Codice Macchina: LA302
Manufacturer: GHEZZI & ANNONI
Modello: HOTMELT
Year: 2002
Applicazione: Coating
Tipo di accoppiamento/spalmatura: Hot melt
Larghezza lavoro (mm): 1650
Materiali: BOPP, Celofan, Masking tape, Polythene Strapping, Reinforced
Velocità: Mechanical speed : 350 m/min Machine running speed: 300 m/min (18g/m2 adhesive)
Tipo svolgitore primario: Jumbo
Diametro massimo bobina svolgitore: 1000
Rewinder type: Jumbo
Diametro massimo bobina avvolgitore: 1000
Unità di spalmatura: 1 by Mayer bar
Seconda unità di spalmatura: 2 extruders
Essiccazione: Thermic oil - Electric for die

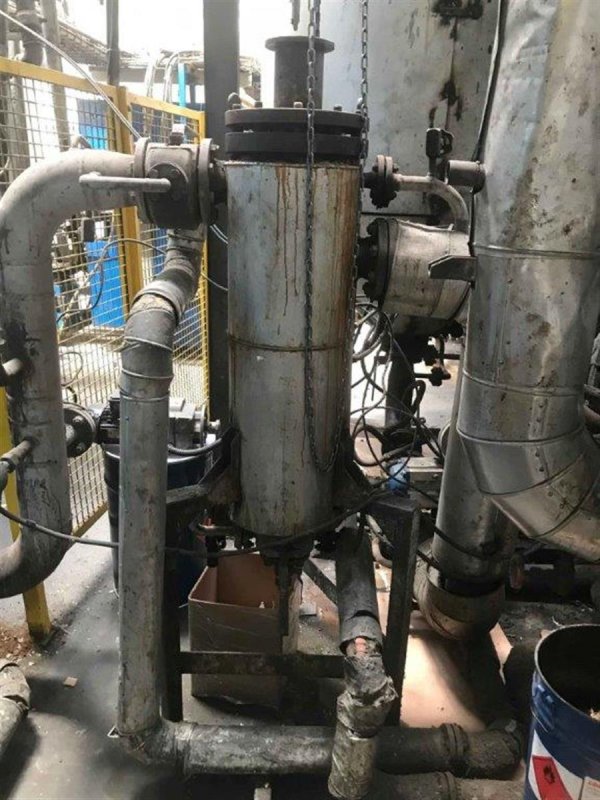

Ulteriori informazioni: Winder was replaced in 2007 with a newer one scrapless. Automatic duplex Unwinder auto splice Release Unit completed with TRESU closed Dr Blade Adhesive coating die ( Simplas ) Adhesive preparation Unit Automatic duplex Rewinder auto splice LEL System + LEL Alert Hotmelt Adhesive filter : mahle system Edge guide unit : 1-before coating die 1-before rewinder Hotmelt adhesive: 12g/m2 – 120 g/m2 Temperature: Between 100-200°C Adhesive : Mixed with SIS rubber and SBS Viscosity: Between 10,000 – 100,000 CPS Release Drying Tunnels; 1 Oven with a total heating power 350.000Kcal/h Total Air flow: 18,000m3/h Max working temperature: 120°C Entrance temperature: 20°C Air absorption capacity: 14,000Nm3/h approx.
