- Codice Macchina
- EC43
- Manufacturer
- ROTOMEC
- Year
- 1980
- Rinnovo

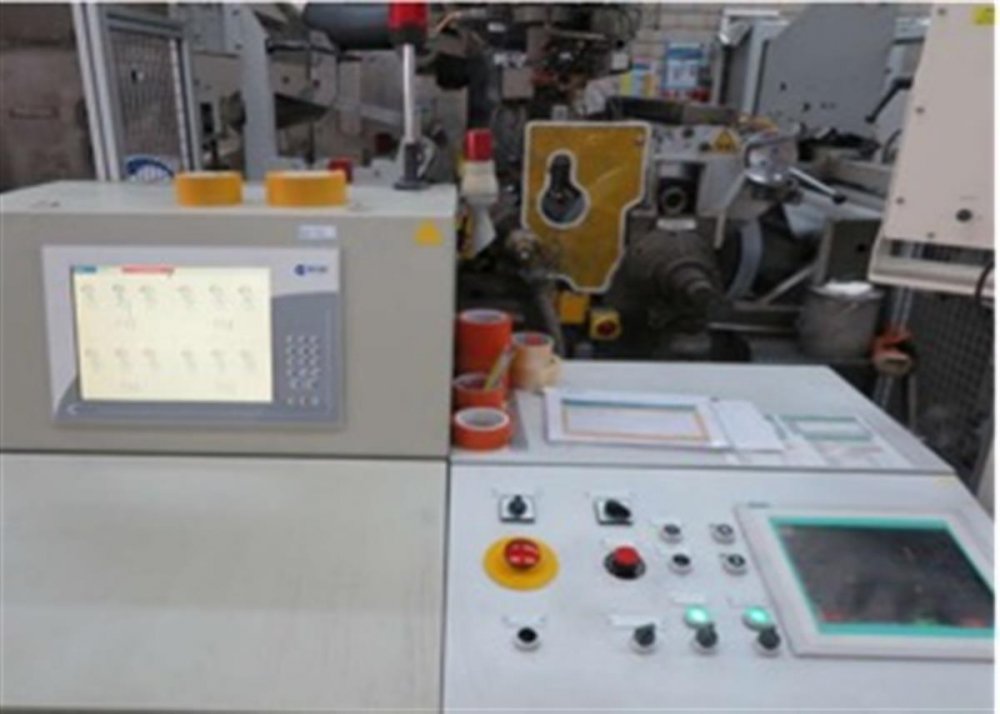

- Renovation of machine's supervision and controls in 2007 with upgrade to SSIEMENS S7 PLC and Siemens HMI with touch panles, NDC thickness gauge in 2014, Colortronic dosing system in 2010,
- Larghezza (mm)
- 1100
- Unità di spalmatura / accoppiamento
- 2
- Unita di spalmatura / accoppiamento 1
- Roto coating unit with horizontal dryier Thermal tunnel : 2 hoods (temp 70-150) 2 x hoods (140-240 C), 4 independent heaters 85.000 Kcal/h " x cooling calanders after drying diam 500mm Drying up to 250 deg NOTE: ROTOGRAVURE COATING UNIT PART IS MISSING PARTS. Drying is still in use
- Unita di spalmatura / accoppiamento 2

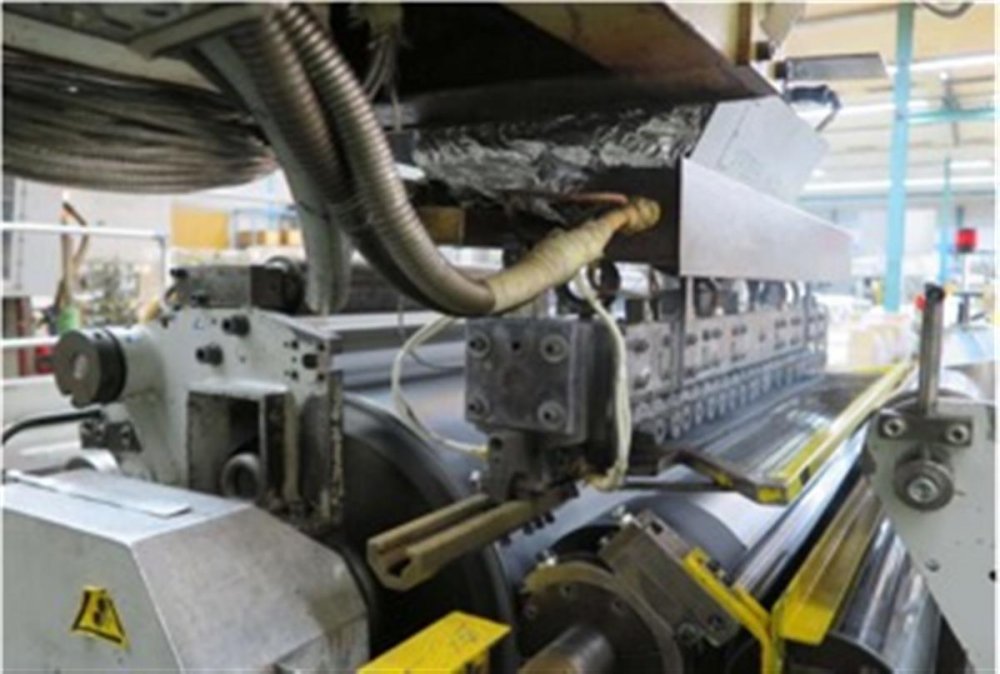

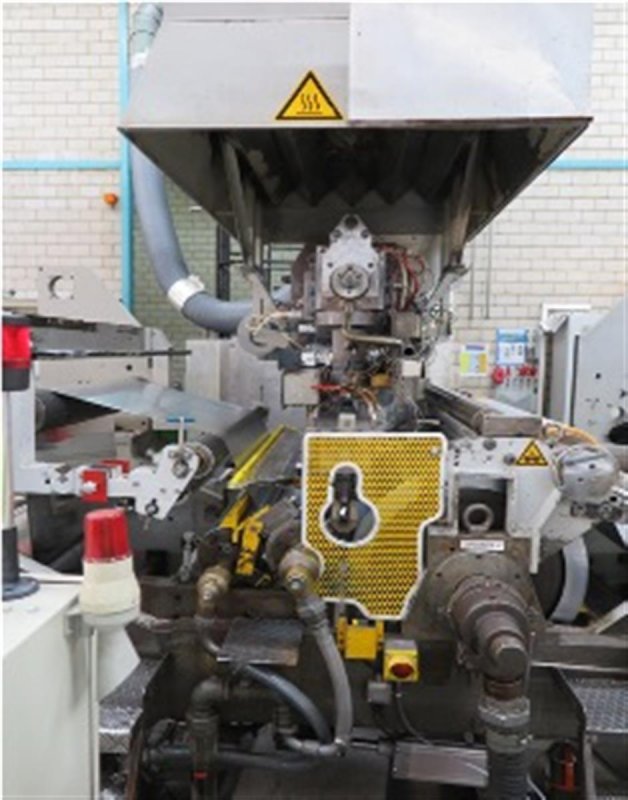

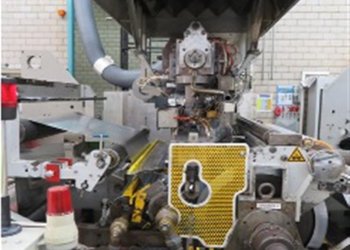

- Extrusion coating unit Extruder Dolci, single layer screw diam 120mm, max 450 Kg/h, Dosing system Colordtonic 4 components year 2010 Chill roll unit, chill roll diam 800mm, laminaion nip, In line edge slitting with circular knives Thickness gauge NDC IR type 1 x spare screw available, 3 x chill rollers spare available Secondary unwinder for lamination was removed, currently machine is used for extrusion coating
- Descrizione svolgitore primario

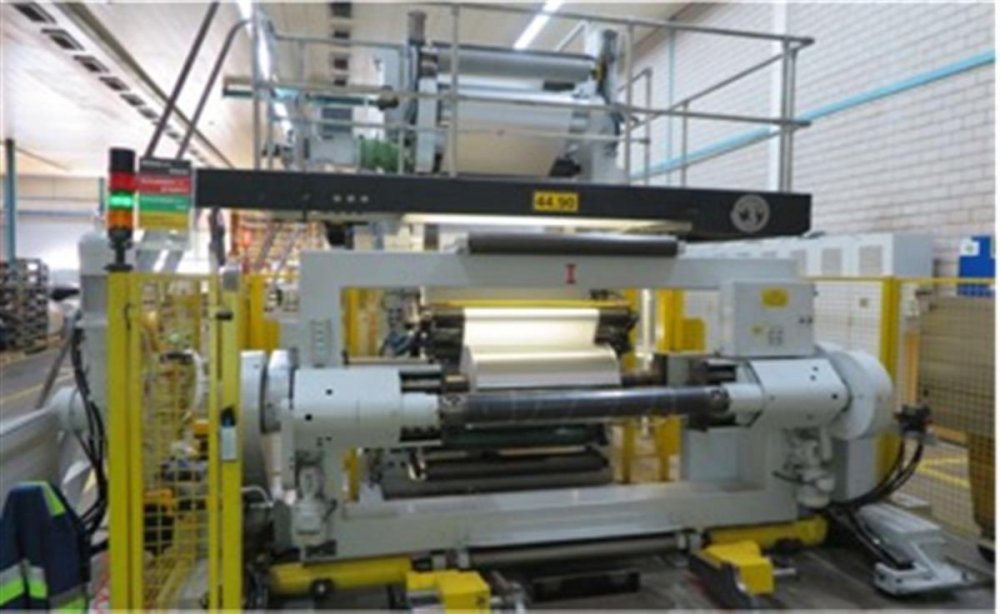

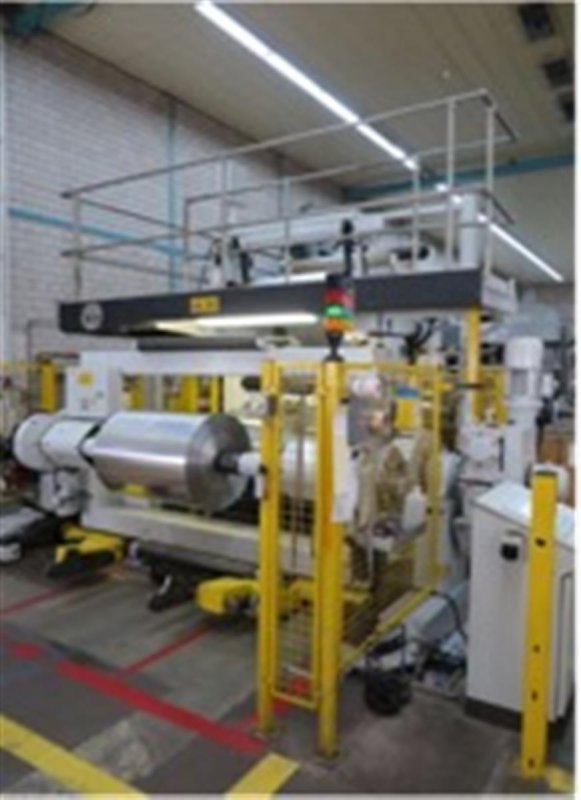

- Turret max diam 1000mm . Width up to 1200mm Make Polytype
- Descrizione avvolgitore
- Turret max diam 1000mm . Width up to 1200mm Make Polytype
- Velocità
- 250m/min
- Ulteriori informazioni
- Primary Substrate material: up to 500 GSM paper, 20-200my alufoil Lamination material Alu foil from 8 my up, Paper, Film
| Codice Macchina | EC43 |
| Manufacturer | ROTOMEC |
| Year | 1980 |
| Rinnovo | Renovation of machine's supervision and controls in 2007 with upgrade to SSIEMENS S7 PLC and Siemens HMI with touch panles, NDC thickness gauge in 2014, Colortronic dosing system in 2010, |
| Larghezza (mm) | 1100 |
| Unità di spalmatura / accoppiamento | 2 |
| Unita di spalmatura / accoppiamento 1 | Roto coating unit with horizontal dryier Thermal tunnel : 2 hoods (temp 70-150) 2 x hoods (140-240 C), 4 independent heaters 85.000 Kcal/h " x cooling calanders after drying diam 500mm Drying up to 250 deg NOTE: ROTOGRAVURE COATING UNIT PART IS MISSING PARTS. Drying is still in use |
| Unita di spalmatura / accoppiamento 2 | Extrusion coating unit Extruder Dolci, single layer screw diam 120mm, max 450 Kg/h, Dosing system Colordtonic 4 components year 2010 Chill roll unit, chill roll diam 800mm, laminaion nip, In line edge slitting with circular knives Thickness gauge NDC IR type 1 x spare screw available, 3 x chill rollers spare available Secondary unwinder for lamination was removed, currently machine is used for extrusion coating |
| Descrizione svolgitore primario | Turret max diam 1000mm . Width up to 1200mm Make Polytype |
| Descrizione avvolgitore | Turret max diam 1000mm . Width up to 1200mm Make Polytype |
| Velocità | 250m/min |
| Ulteriori informazioni | Primary Substrate material: up to 500 GSM paper, 20-200my alufoil Lamination material Alu foil from 8 my up, Paper, Film |
