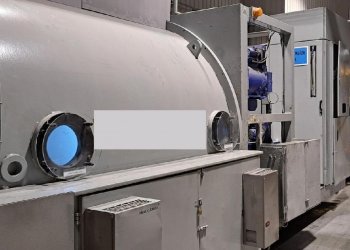

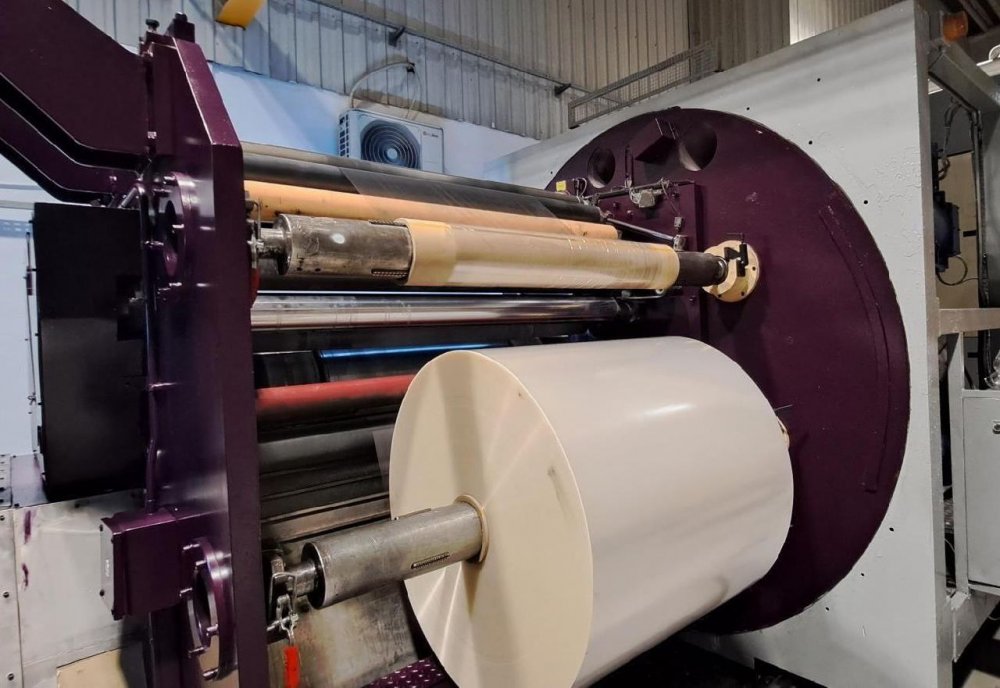

- Código Máquina
- ME103
- Constructor
- GENERAL VACUUM EQUIPMENT
- Modello
- EHF 1650
- Año
- 1994
- Working width (mm)
- 1650
- Speed
- 720m/min
- Max diameter reel rewinder
- 1000mm
- Pumping system

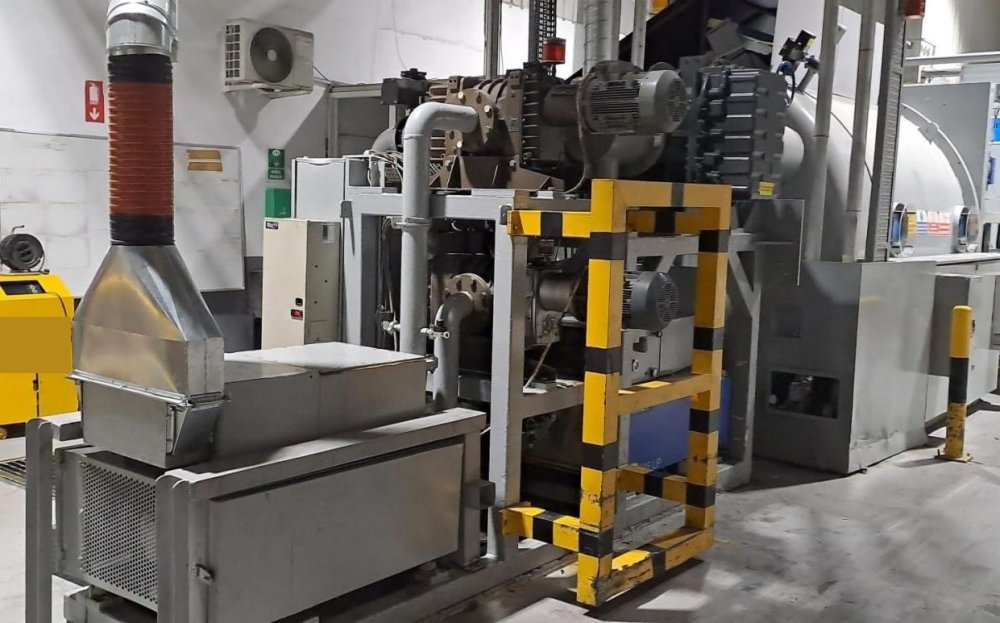

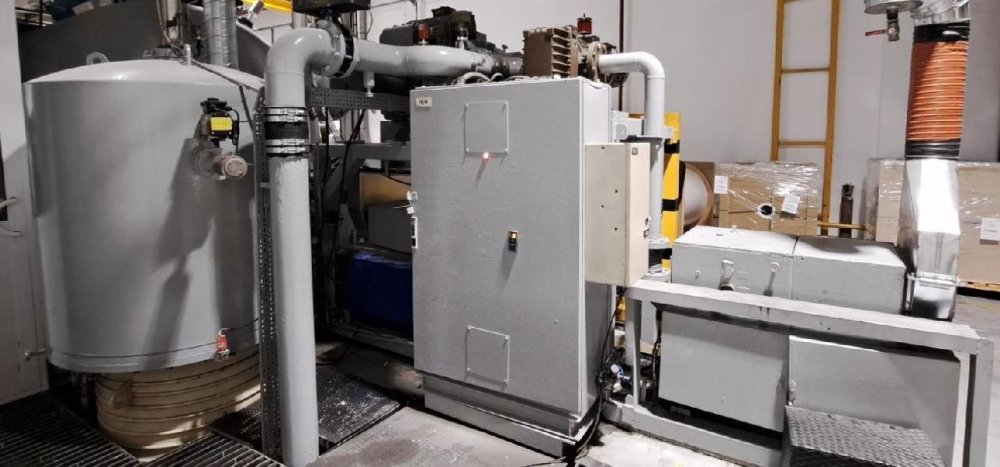

- 2 Rotary pumps- Kinnet KT 404 LP 3 Booster Pumps- 2 TMM Helical Lobe blower and 1 Aerzen GM 8000 1 Diffusion Pump- VARiAn NHS-35, pumping speed 1x10^5,pump power 24Kw
- Note

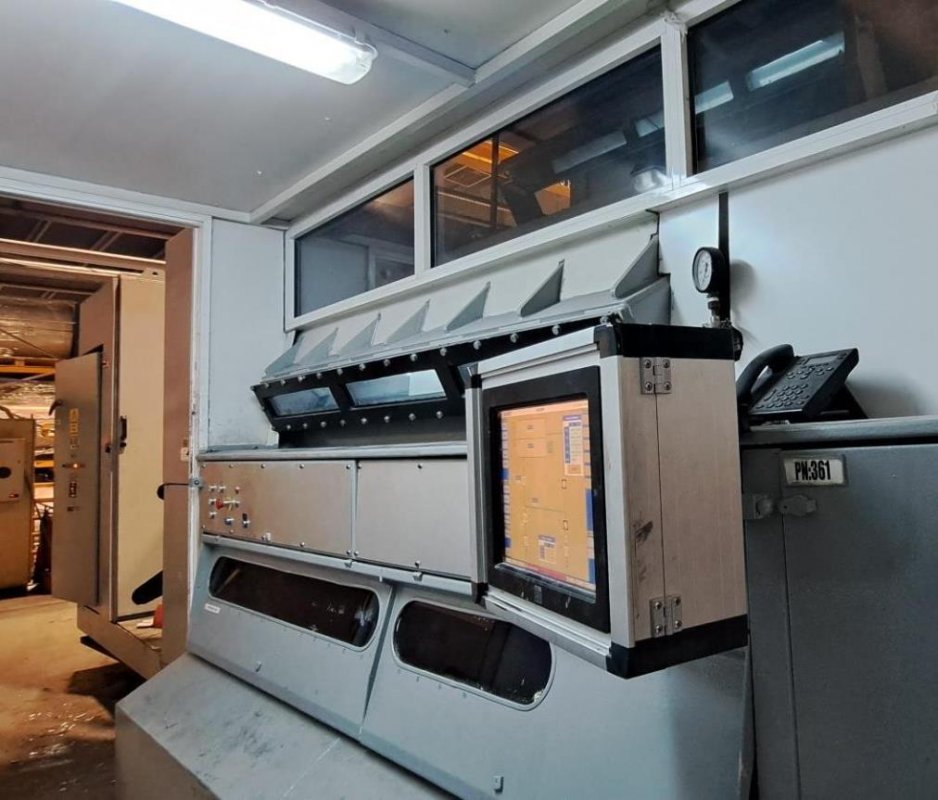

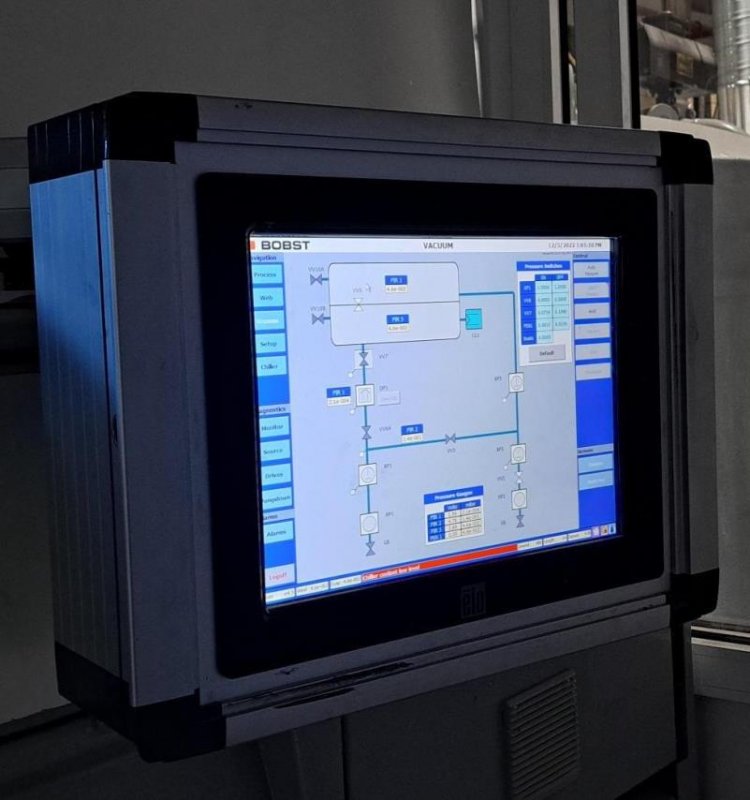

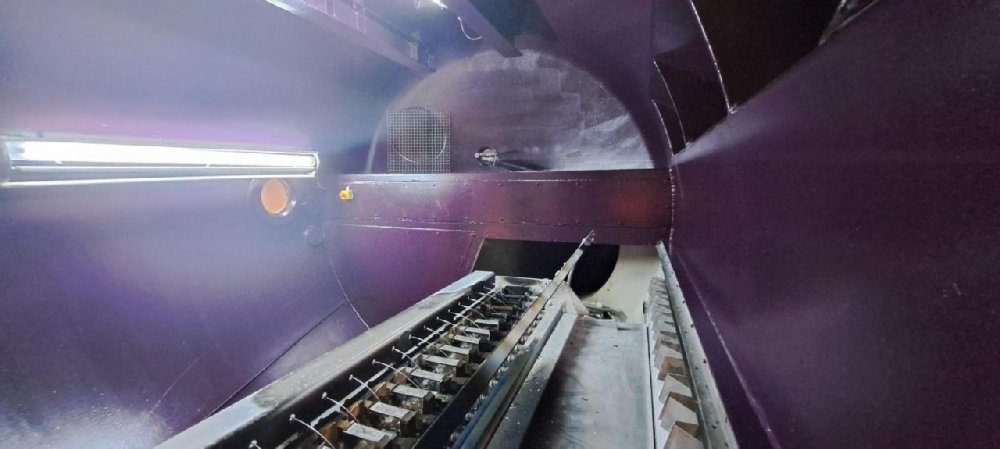

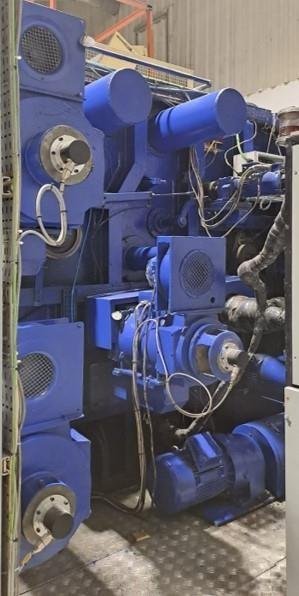

- -All surfaces and sight glasses were painted -Air conditioner which climate the wire feed modules and thyristors were renewed -Chiller unit’s maintenance operations were completed, compressor and pipeline of chiller system were renewed -Rotary, booster and diffusion pumps were controlled and completed the maintenance operations -Control panel, windows-based computer renewed -All reduction gear and motor surfaces (DTR, Unwind, Rewind, Lay-arm, Drum) were painted -All encoders were renewed (DTR, Unwind, Rewind, Lay-arm, Drum) -All drives (DTR, Unwind, Rewind, Lay-arm, Drum ) were renewed -All thyristors (18 boats) were renewed
| Código Máquina | ME103 |
| Constructor | GENERAL VACUUM EQUIPMENT |
| Modello | EHF 1650 |
| Año | 1994 |
| Working width (mm) | 1650 |
| Speed | 720m/min |
| Max diameter reel rewinder | 1000mm |
| Pumping system | 2 Rotary pumps- Kinnet KT 404 LP 3 Booster Pumps- 2 TMM Helical Lobe blower and 1 Aerzen GM 8000 1 Diffusion Pump- VARiAn NHS-35, pumping speed 1x10^5,pump power 24Kw |
| Note | -All surfaces and sight glasses were painted -Air conditioner which climate the wire feed modules and thyristors were renewed -Chiller unit’s maintenance operations were completed, compressor and pipeline of chiller system were renewed -Rotary, booster and diffusion pumps were controlled and completed the maintenance operations -Control panel, windows-based computer renewed -All reduction gear and motor surfaces (DTR, Unwind, Rewind, Lay-arm, Drum) were painted -All encoders were renewed (DTR, Unwind, Rewind, Lay-arm, Drum) -All drives (DTR, Unwind, Rewind, Lay-arm, Drum ) were renewed -All thyristors (18 boats) were renewed |
