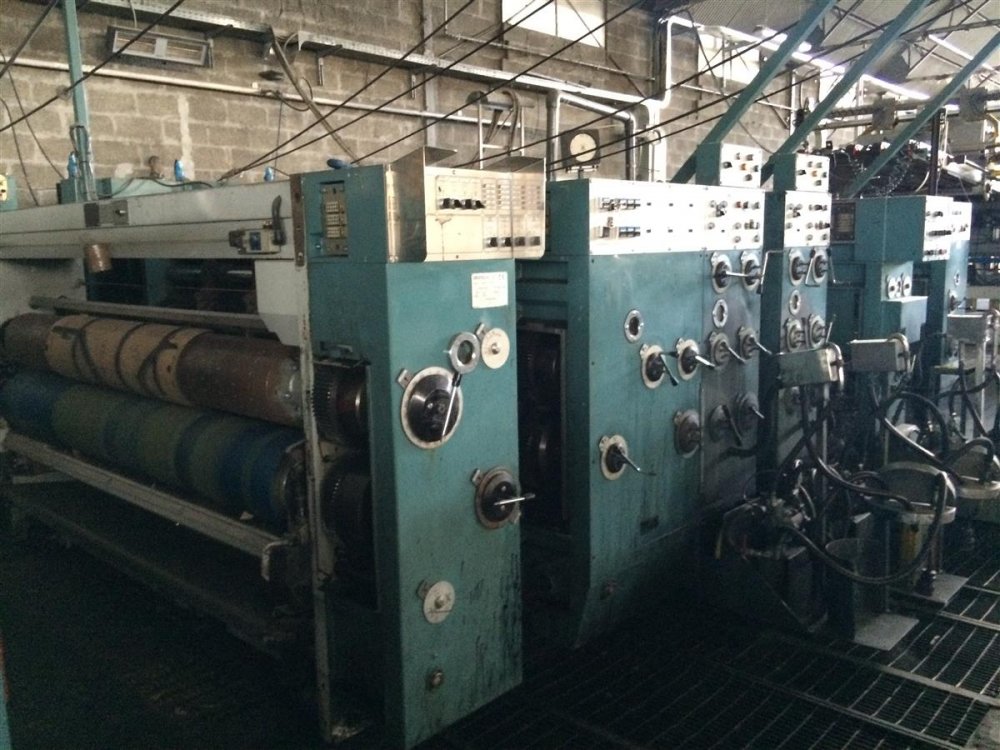

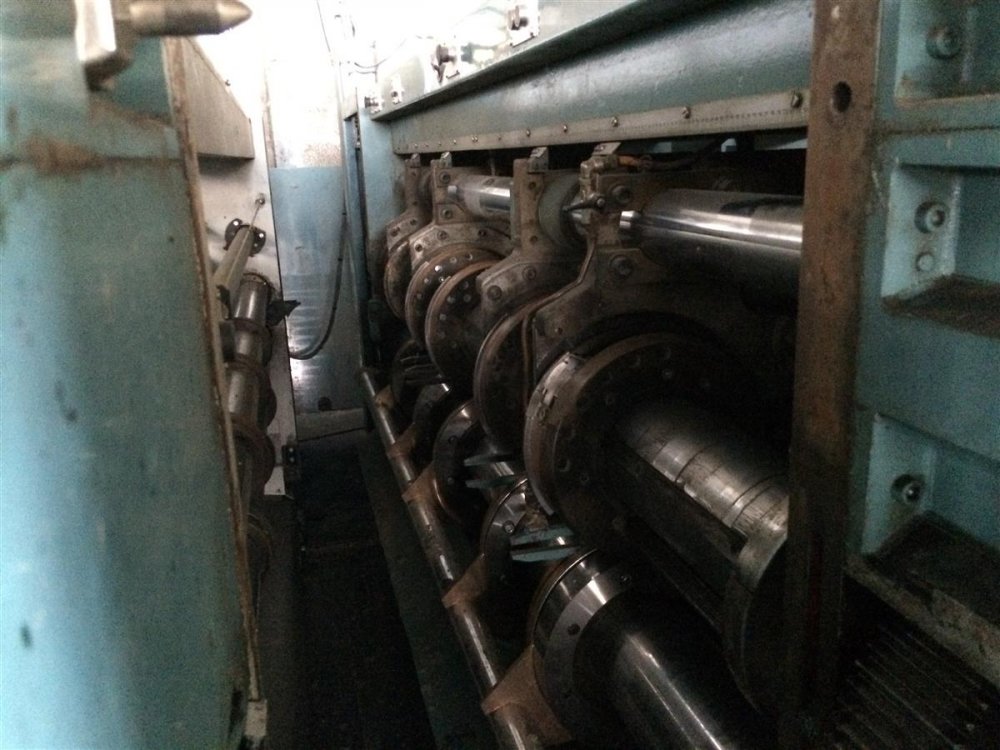

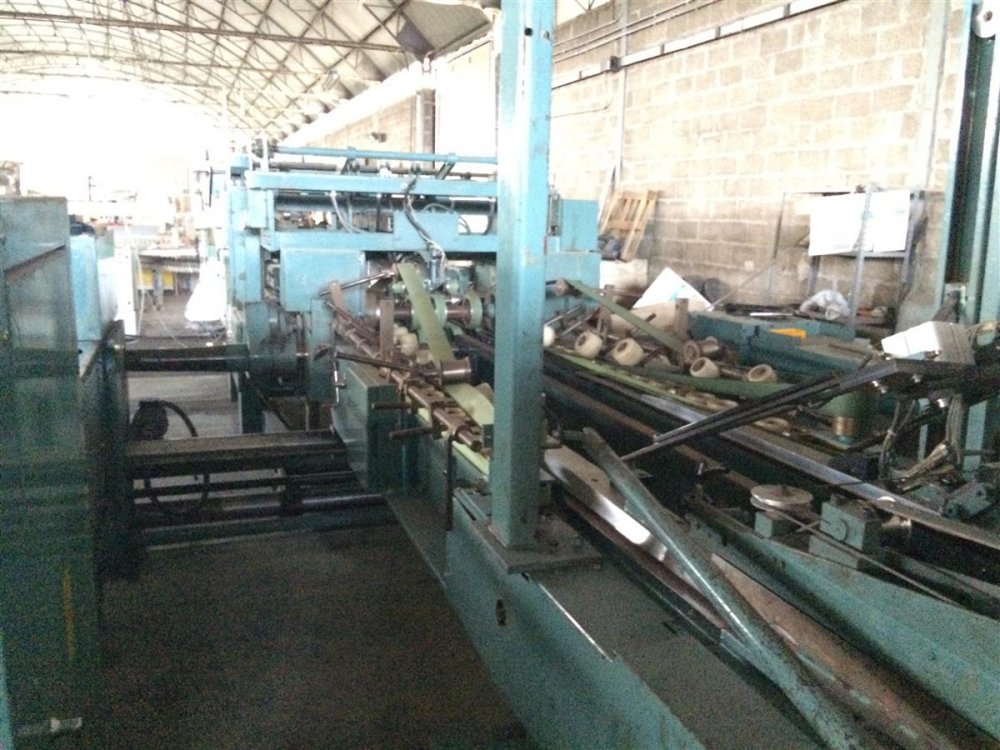

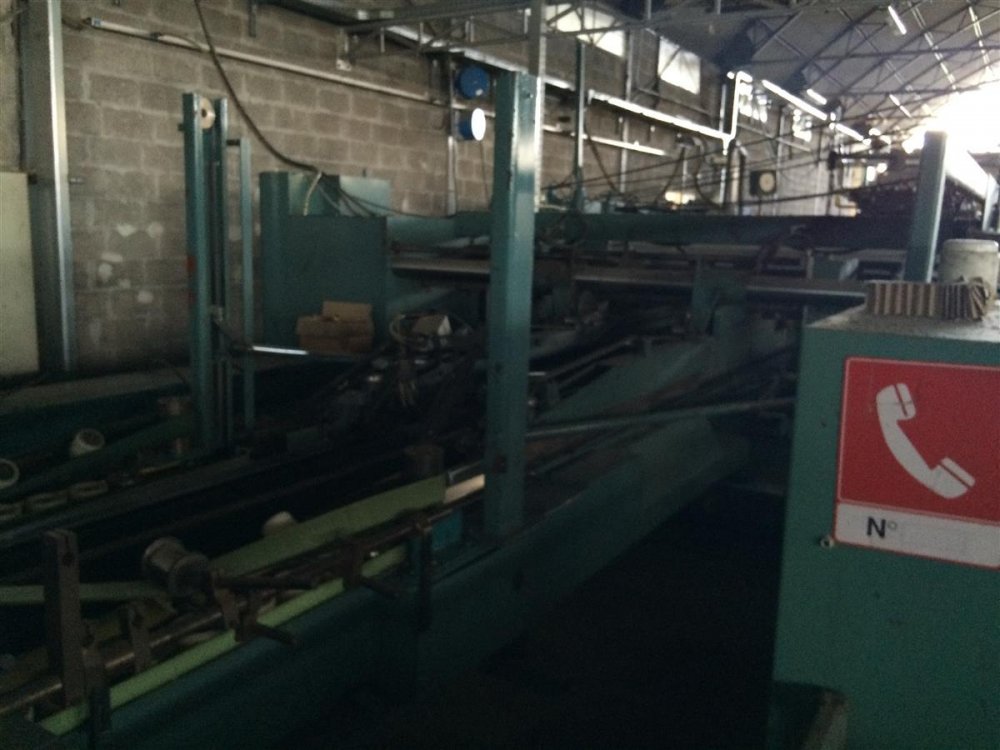

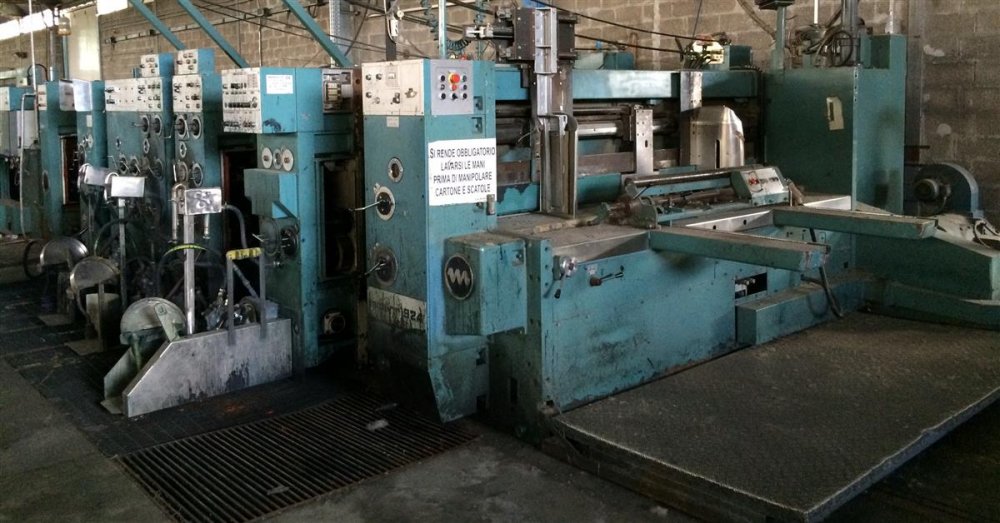

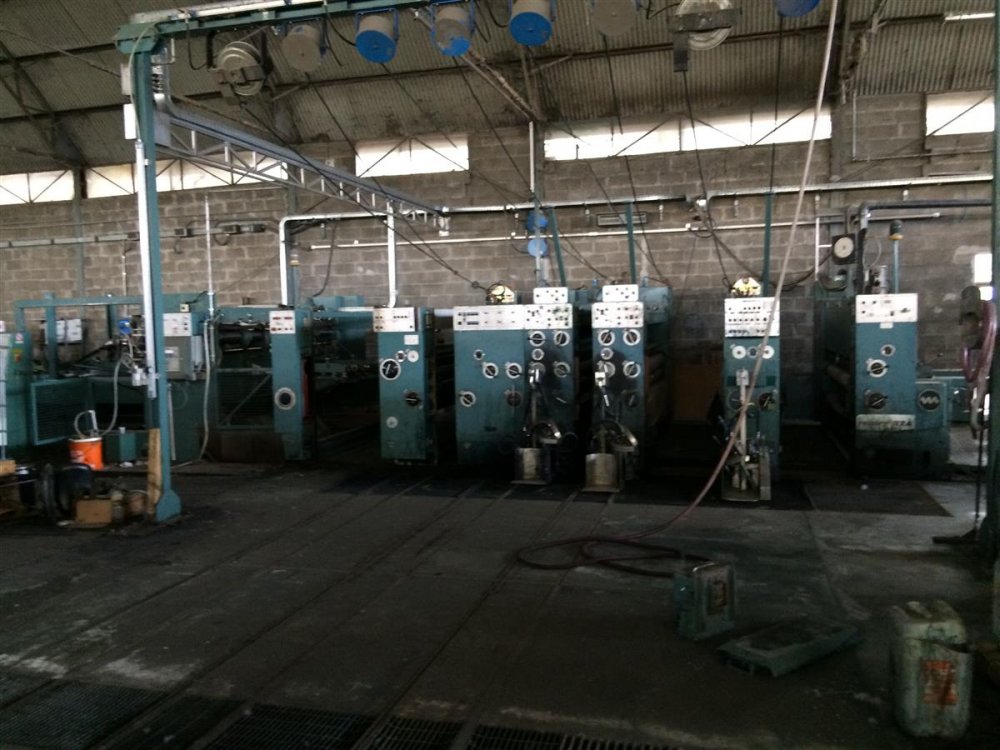

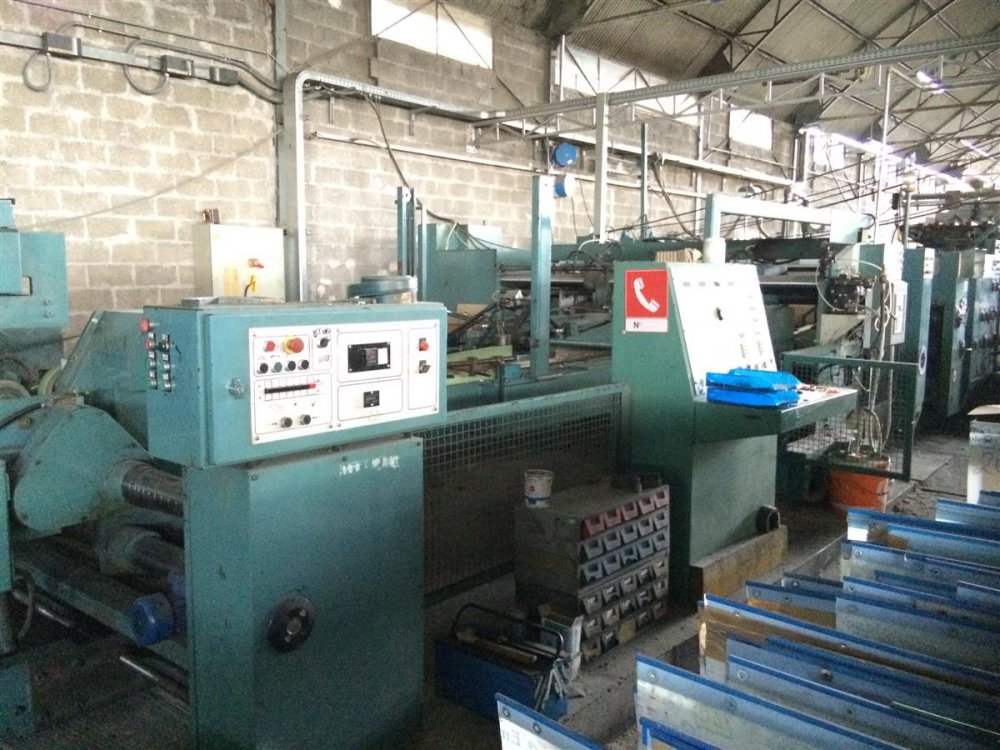

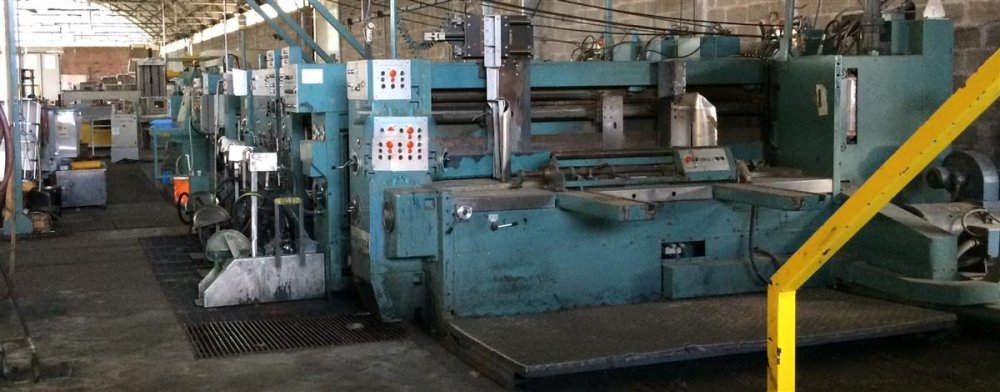

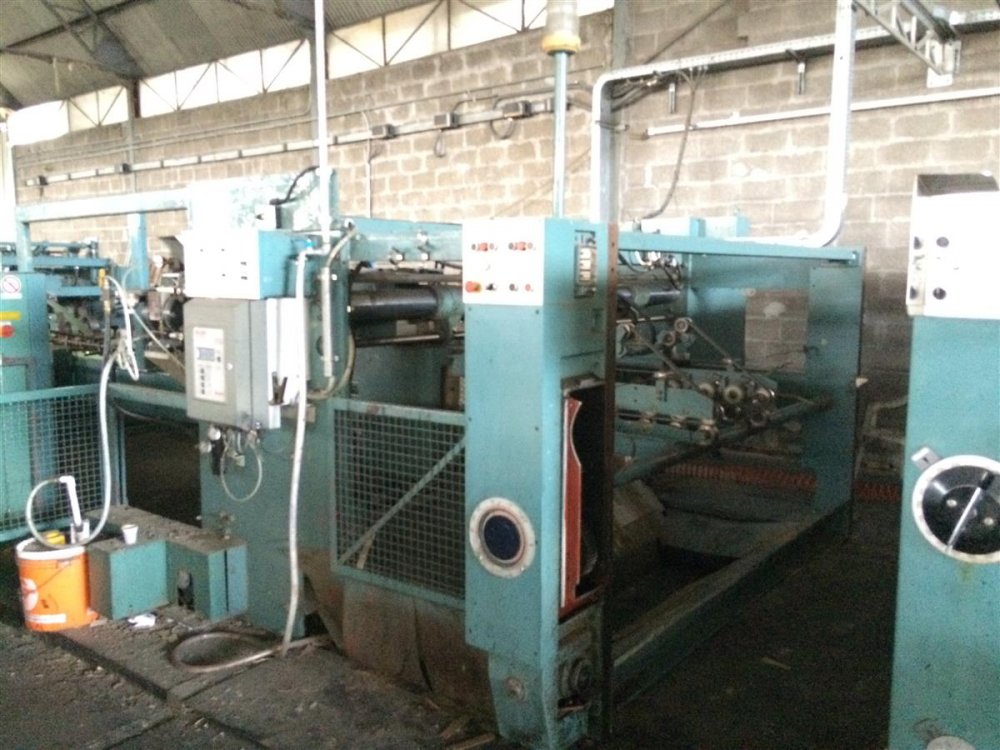

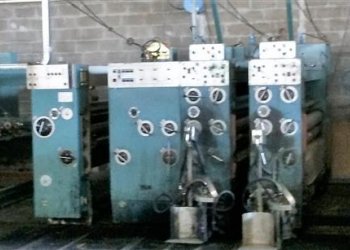

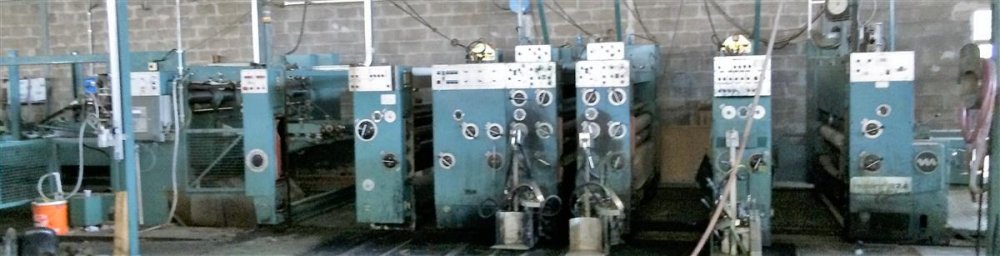

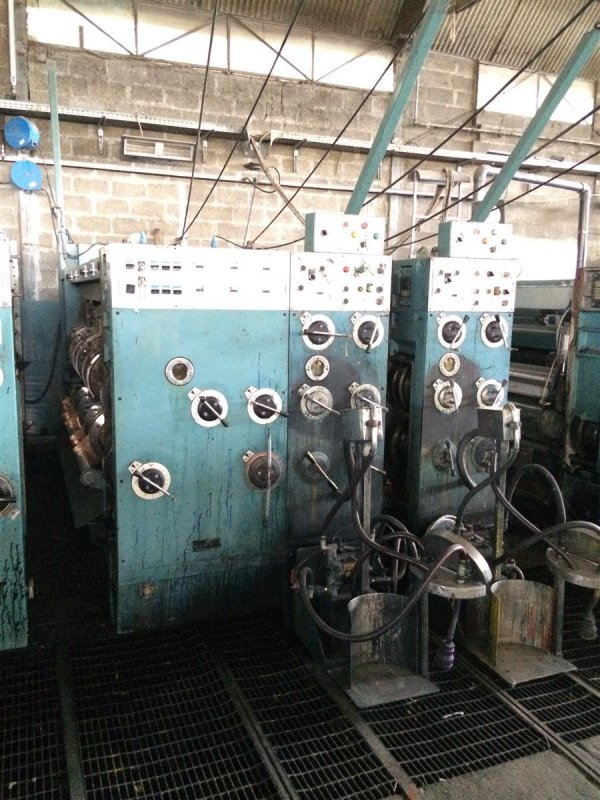

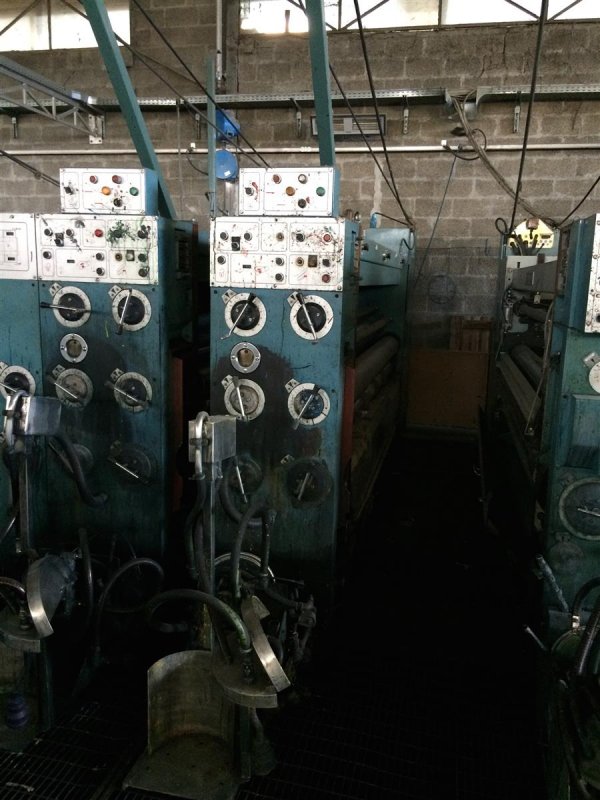

Casemakers first print in flexo each colour required by the design. Cut of case's shape is performed in a rotary die cutter, which comprises a cylinder mounted with a cutting plate and an anvil cylinder. The anvil acts as a cutting plate, allowing cutting knives to penetrate the corrugated substrate and the creasing rules to create well defined creases. Waste is then stripped and finally a case ia formed in the folder gluer section.
Ask more informations
about a similar one
- Machine Code
- CB-CM13
- Manufacturer
- MARTIN
- Modello
- FFG 924 MIDLINE
- Year
- 2001
- Nominal Width (mm)
- 2400
- Max sheet width (mm)
- 2400
- Max sheet lenght (mm)
- 900
- Gearless
- No
- Max board thickness (mm)
- 10 mm
- Speed (box/hour)
- 18000
- Set up system
- 1 rapid set
- Printer
- Yes
- Num of colours
- 3
- Inking system
- pump
- Slotter unit
- yes
- Die cutting unit
- yes
- Folder gluer unit
- yes
- Strapping unit
- yes
- Counter ejector
- yes
- Note

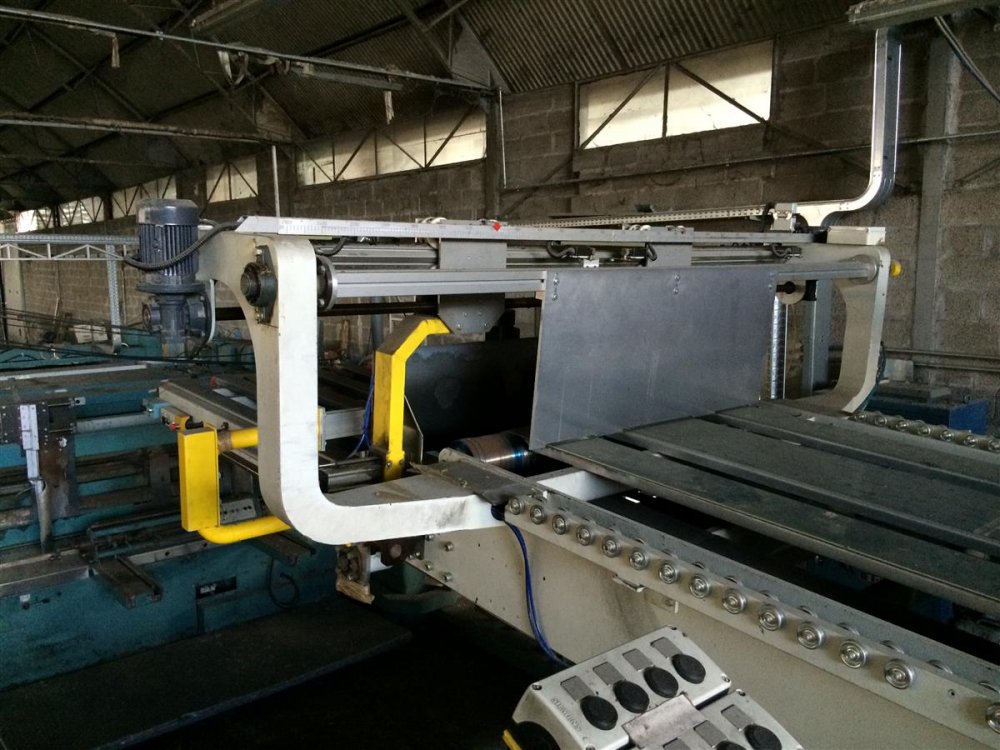

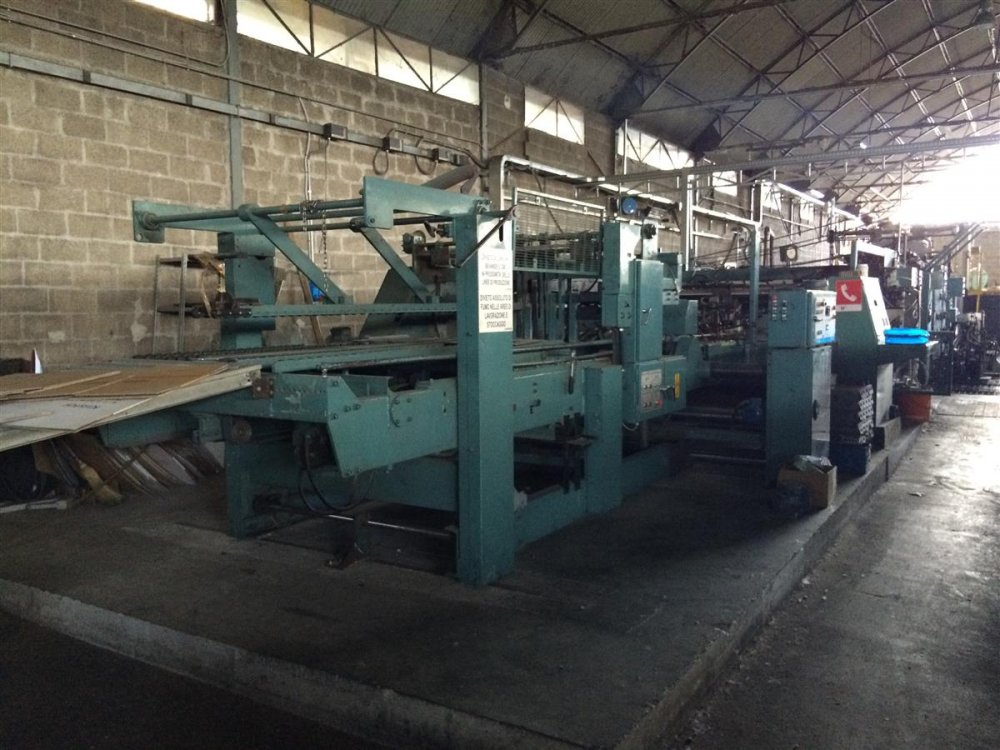

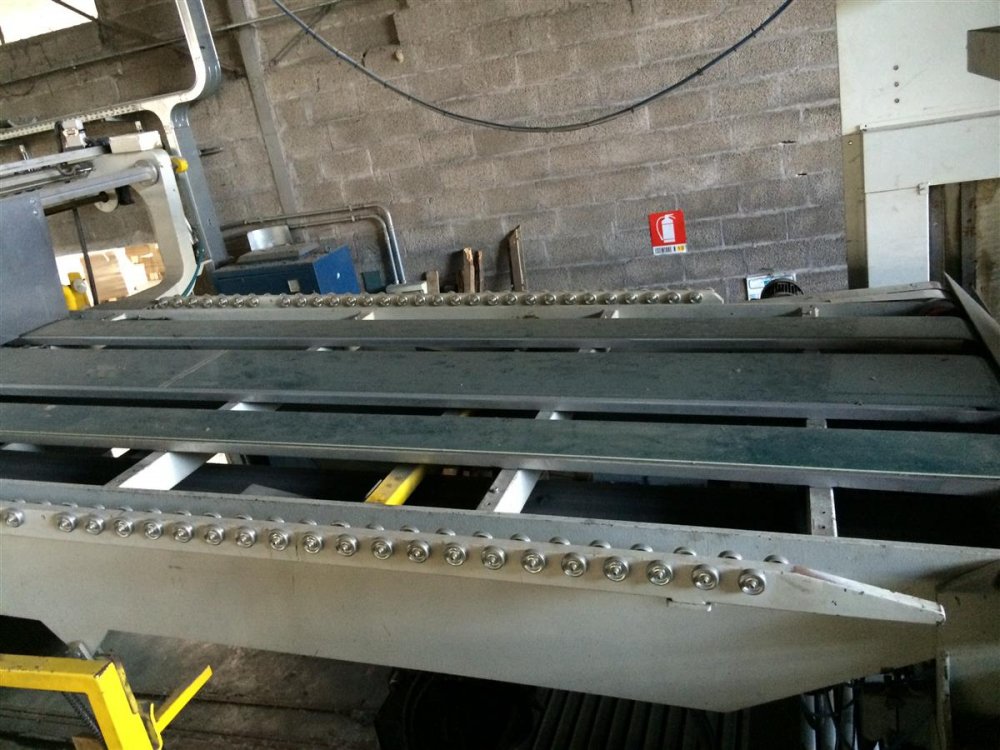

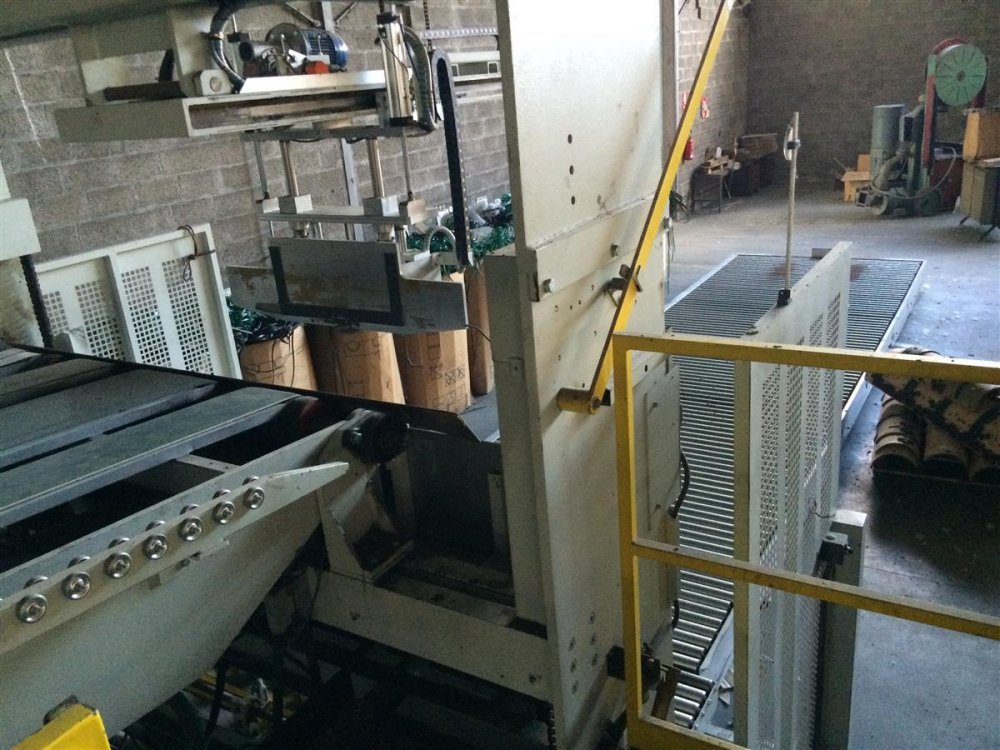

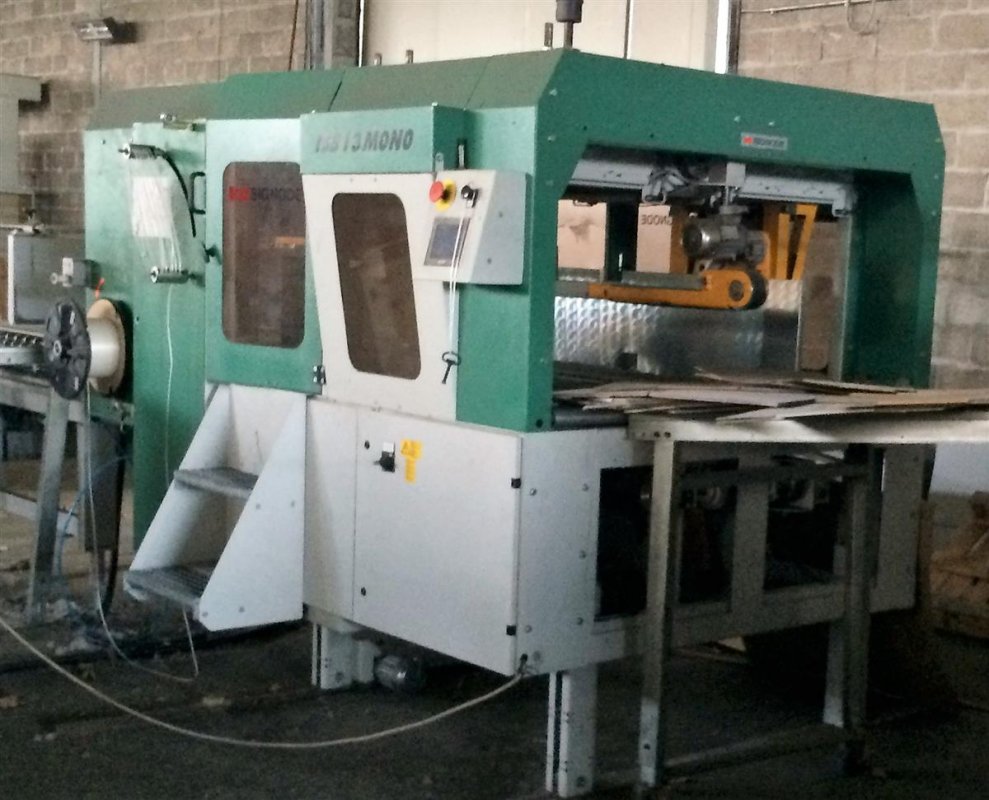

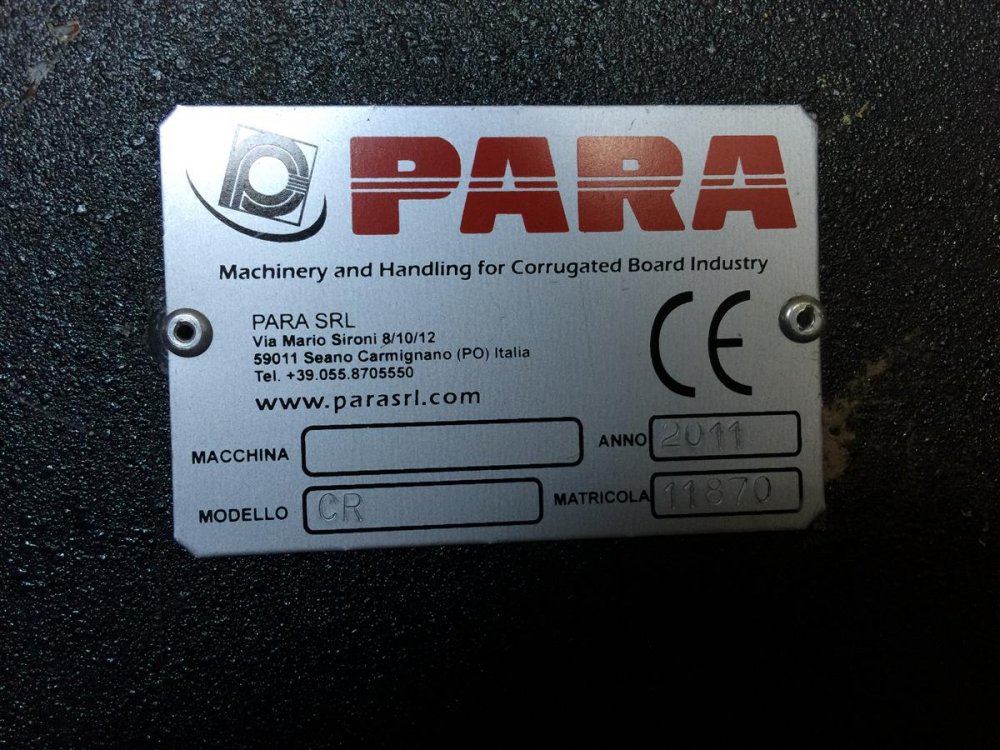

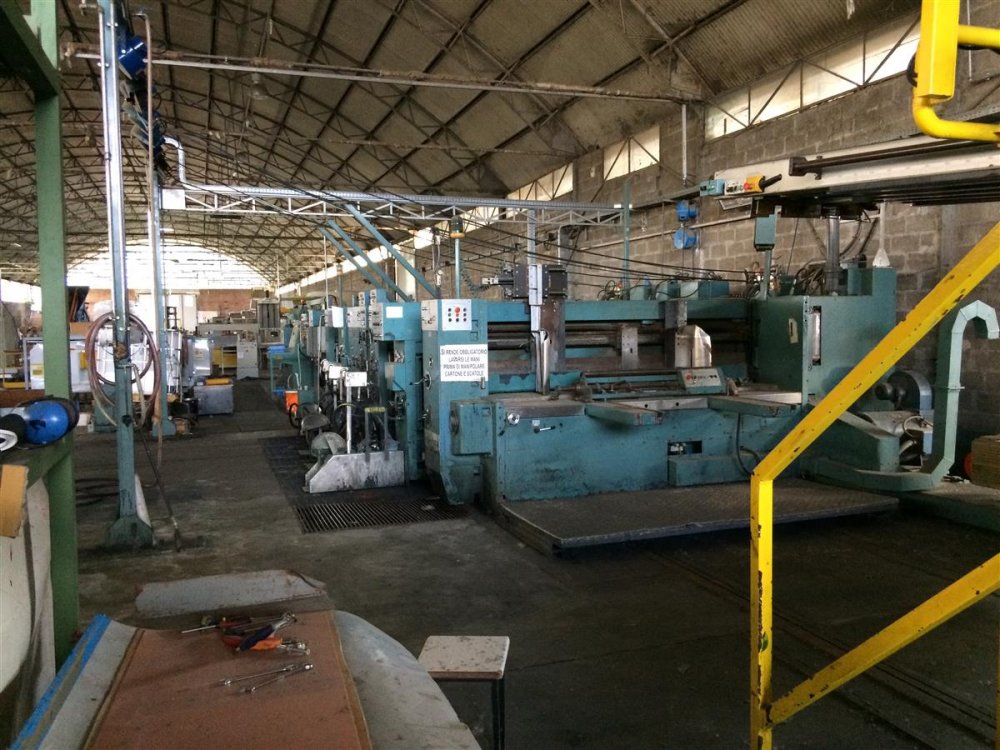

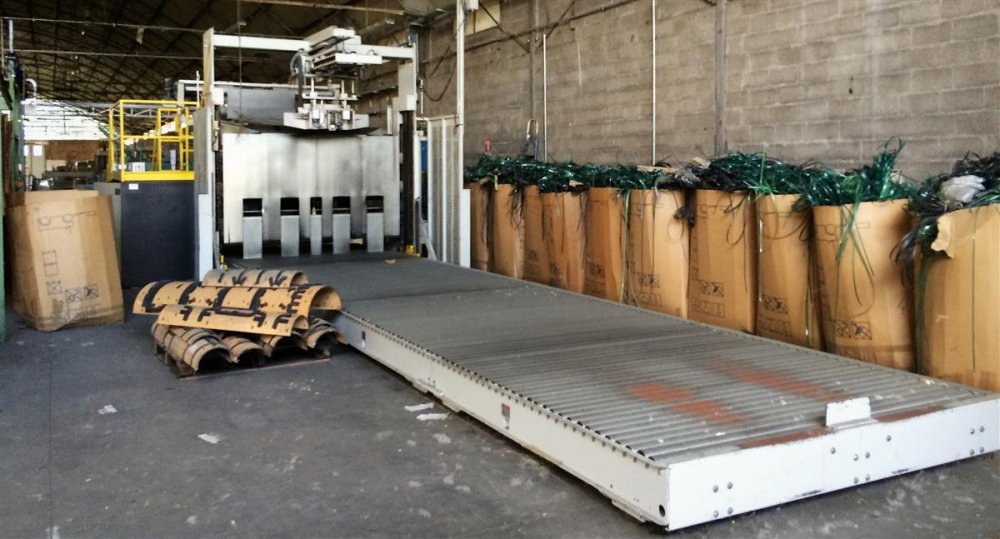

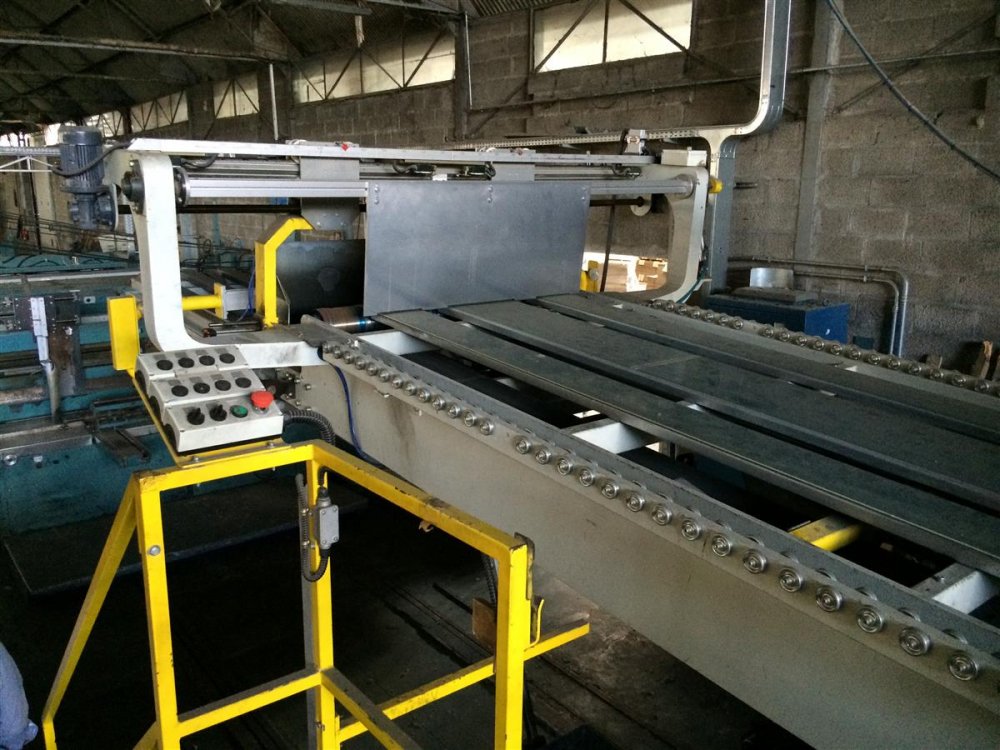

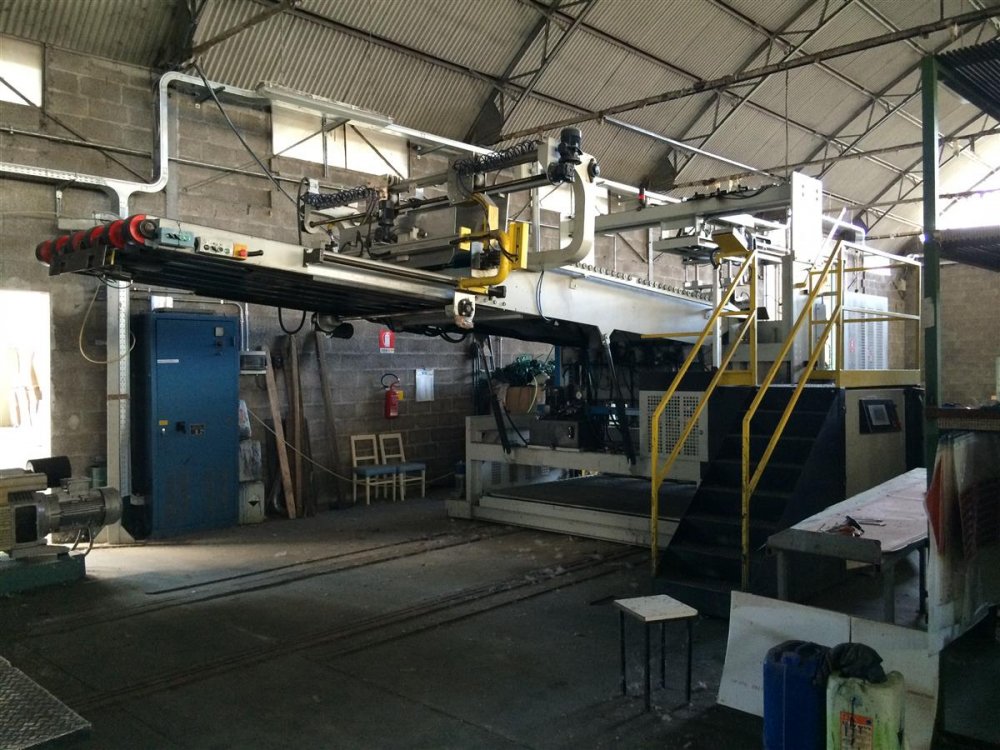

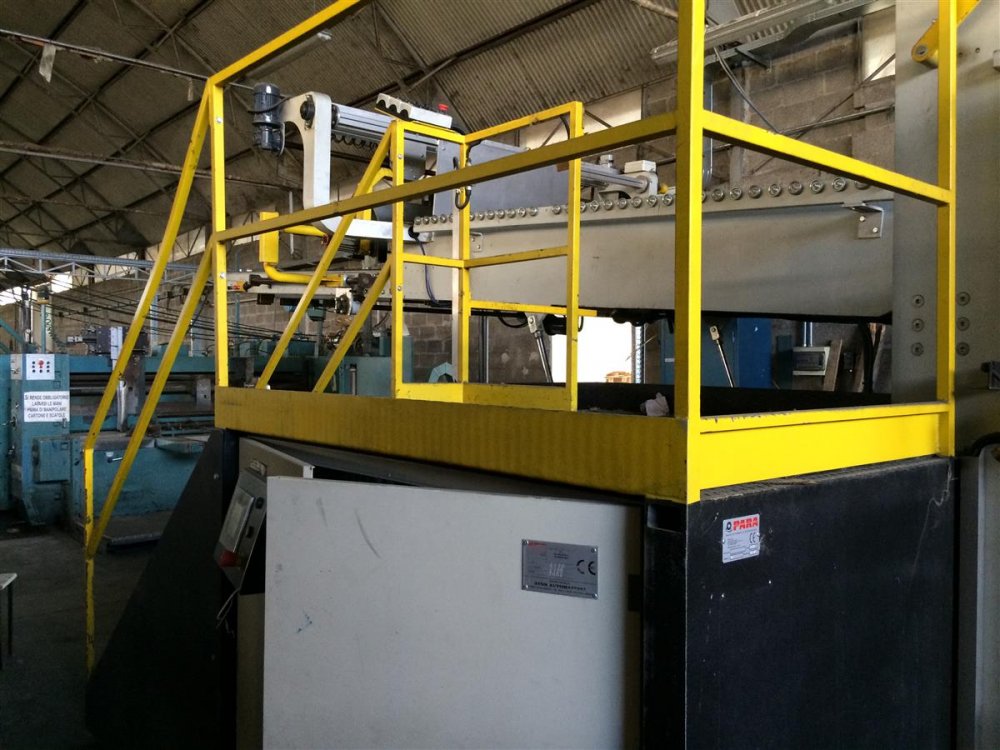

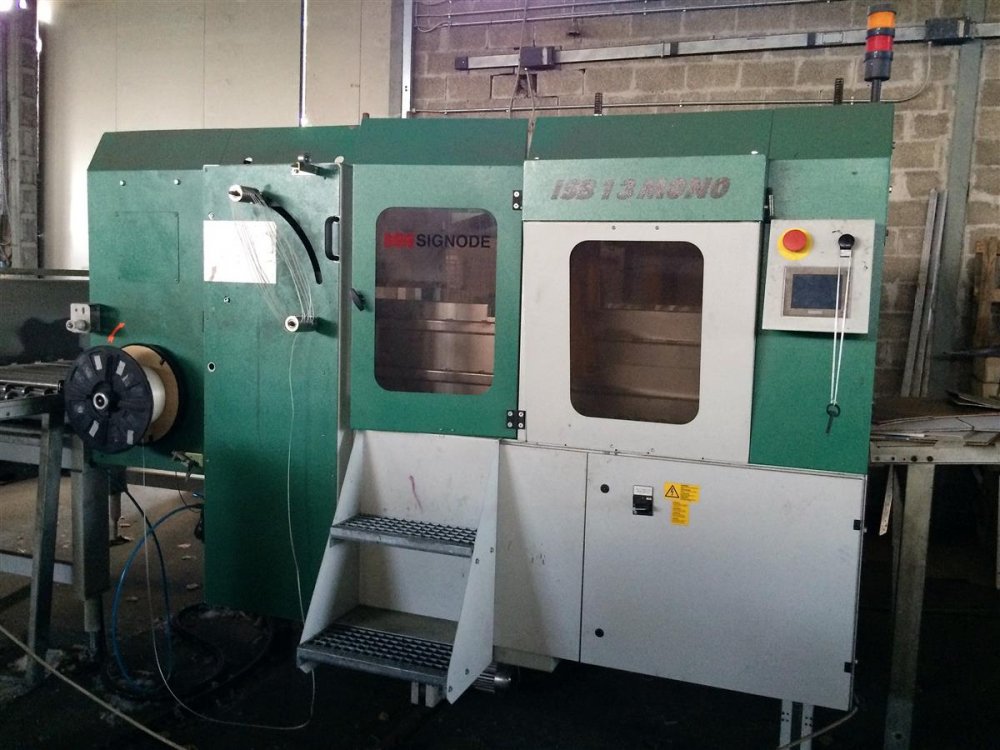

- Complete line composed by Loader + casemacker +Binding pack Available immediatly. Not in production. FFG 924Midline 3 color . Loader Para (2011) 2400mm. Binding Pack Signode ISB 13Mono.
| Machine Code | CB-CM13 |
| Manufacturer | MARTIN |
| Modello | FFG 924 MIDLINE |
| Year | 2001 |
| Nominal Width (mm) | 2400 |
| Max sheet width (mm) | 2400 |
| Max sheet lenght (mm) | 900 |
| Gearless | No |
| Max board thickness (mm) | 10 mm |
| Speed (box/hour) | 18000 |
| Set up system | 1 rapid set |
| Printer | Yes |
| Num of colours | 3 |
| Inking system | pump |
| Slotter unit | yes |
| Die cutting unit | yes |
| Folder gluer unit | yes |
| Strapping unit | yes |
| Counter ejector | yes |
| Note | Complete line composed by Loader + casemacker +Binding pack Available immediatly. Not in production. FFG 924Midline 3 color . Loader Para (2011) 2400mm. Binding Pack Signode ISB 13Mono. |
