** SOLD **
In Printer slotters each colour is printed on a flexo printing unit, put in line one to the other. Cut of case’s shape is performed in a rotary die cutter, which comprises a cylinder mounted with a cutting plate, and an anvil cylinder. The anvil acts as a cutting plate allowing cutting knives to penetrate the corrugated substrate and the creasing rules to create well defined creases. Waste is then stripped.
Ask more informations
about a similar one
- Machine Code
- CB-PS10
- Manufacturer
- GENCO-WARD
- Modello
- DRO 3 color 1600mm
- Year
- 1974
- Nominal Width (mm)
- 1600
- Max sheet width (mm)
- 1600
- Gearless
- No
- Max board thickness (mm)
- 9 mm
- Speed (sheet/hour)
- 4500
- Set up system
- manual
- Pre feeder
- yes
- Printer
- Yes
- Num of colours
- 3
- Inking system
- rubber rollers
- Rotary die cutter
- Yes
- Slotter unit
- no
- Note

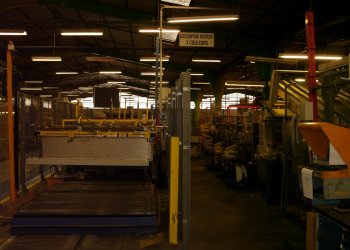

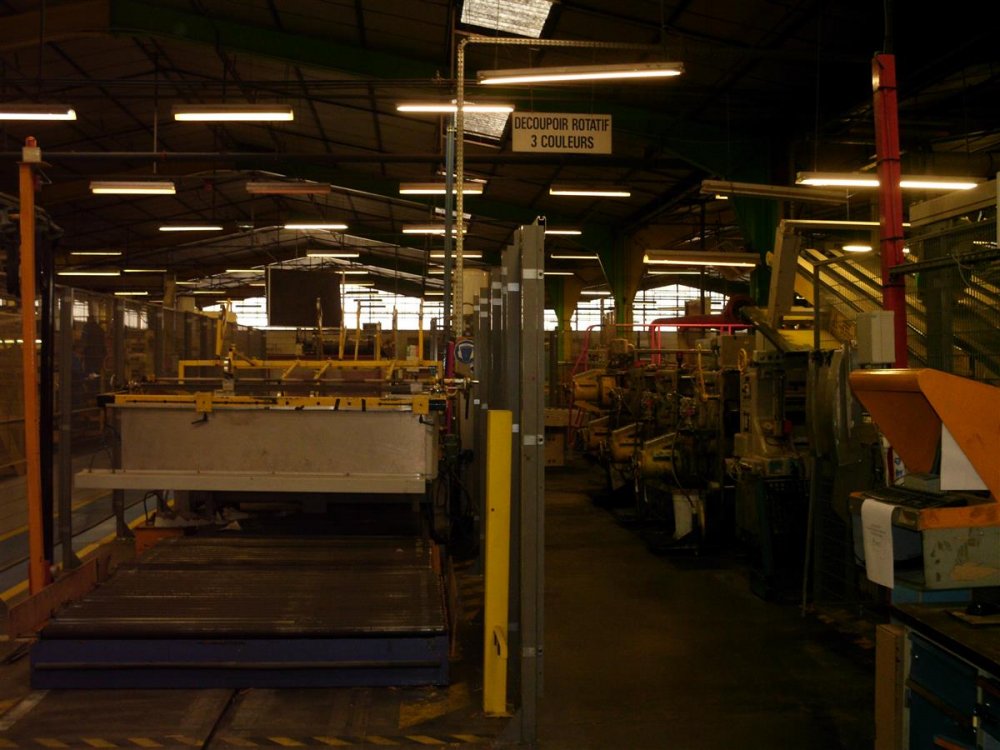

- Available immediatly. Not in production. It is composed of the following: -Loader - Feeder - 3 Flexo printing units. - Rotary Cutter - Sheller vibration - Intermediate conveyors - Transfer Module - Plates stacking module
| Machine Code | CB-PS10 |
| Manufacturer | GENCO-WARD |
| Modello | DRO 3 color 1600mm |
| Year | 1974 |
| Nominal Width (mm) | 1600 |
| Max sheet width (mm) | 1600 |
| Gearless | No |
| Max board thickness (mm) | 9 mm |
| Speed (sheet/hour) | 4500 |
| Set up system | manual |
| Pre feeder | yes |
| Printer | Yes |
| Num of colours | 3 |
| Inking system | rubber rollers |
| Rotary die cutter | Yes |
| Slotter unit | no |
| Note | Available immediatly. Not in production. It is composed of the following: -Loader - Feeder - 3 Flexo printing units. - Rotary Cutter - Sheller vibration - Intermediate conveyors - Transfer Module - Plates stacking module |
