** SOLD **
Machines may have different constructions depending on: the type of material, its dimensions and the key performances required.
Ask more informations
about a similar one
- Machine Code
- SR310
- Manufacturer

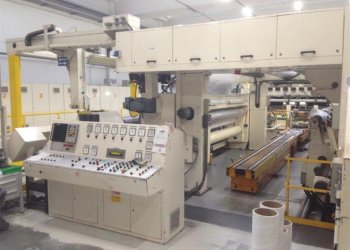

- GOEBEL
- Modello
- MONOSLIT
- Year
- 1990
- Overhaul/renovation
- 2010
- Working width (mm)
- 4150
- Materials
- 15 - 70 µm BOPP ; 15 - 50 µm BOPLA ; BOPET
- Speed
- 800m/min

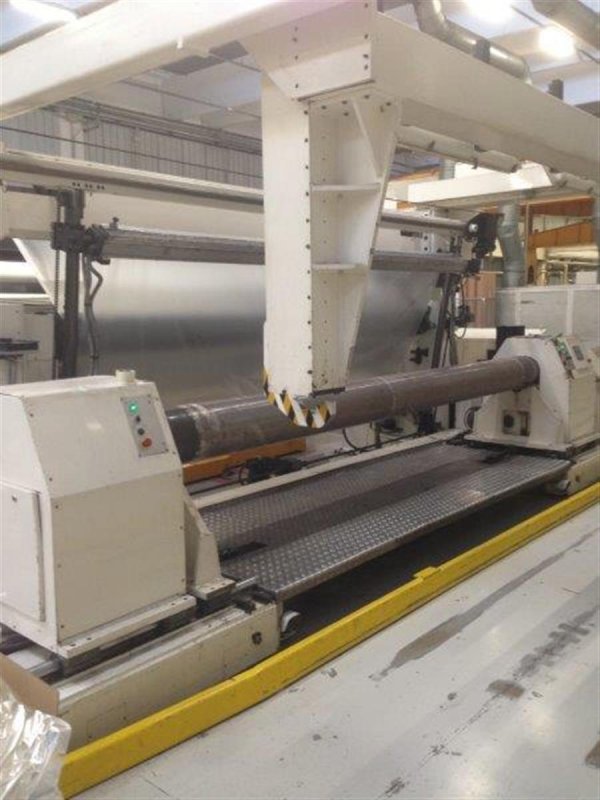

- Unwinder type
- Single shaft
- Max diameter reel unwinder
- 1000

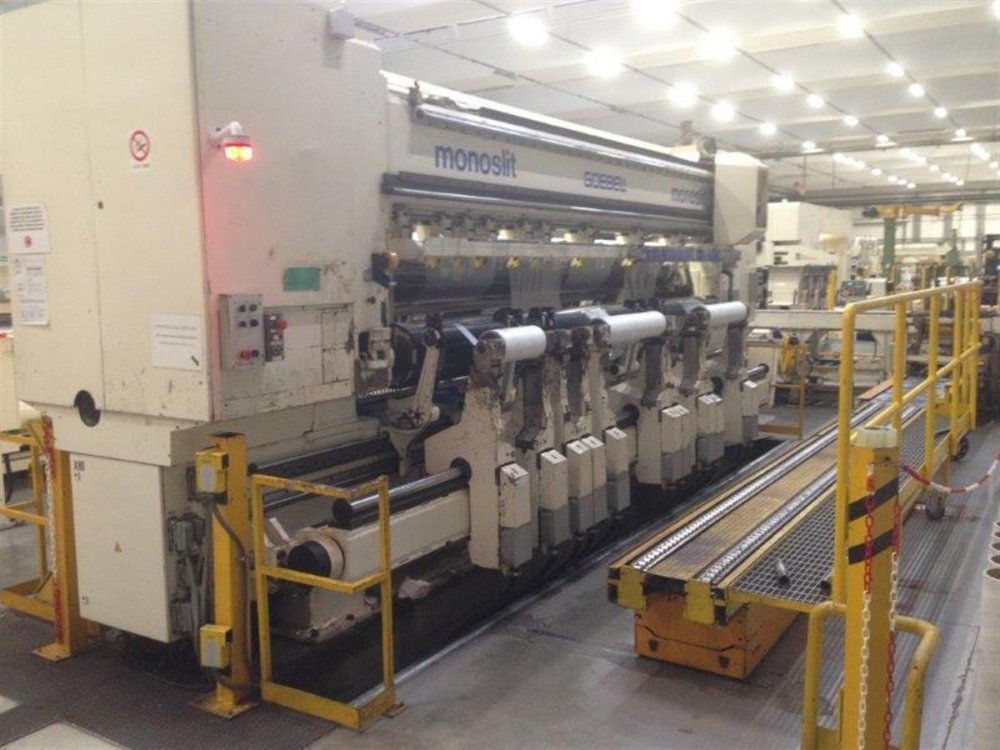

- Rewinder type
- Center driven with independent arms
- Max diameter reel rewinder
- 920

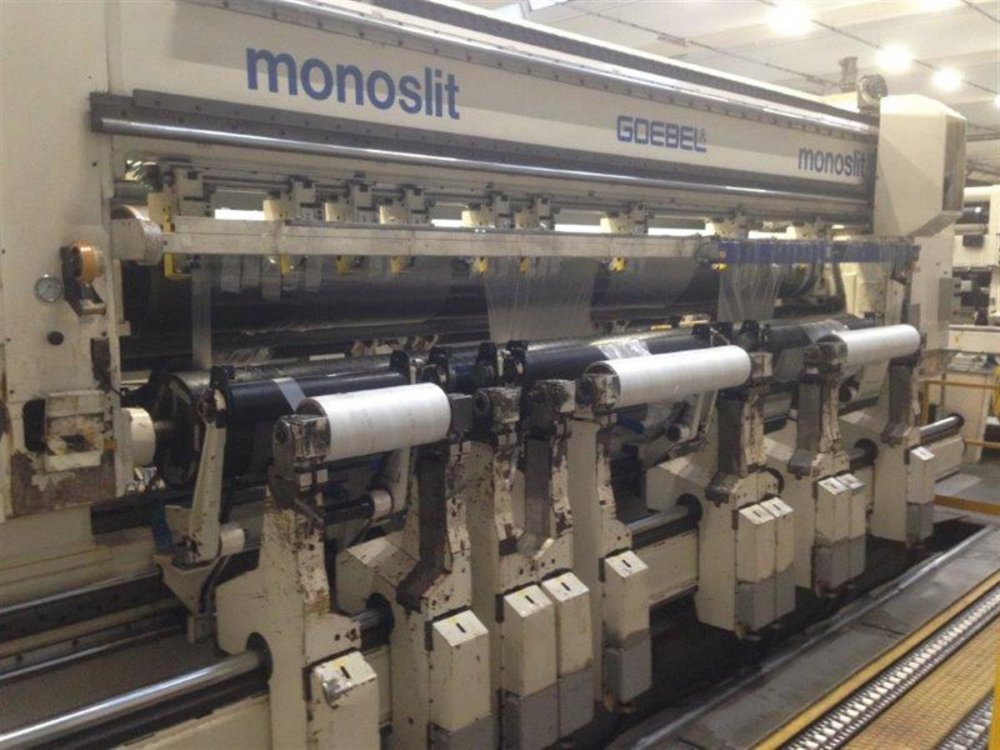

- Rewinder description
- Rewind stations:10; Cores:3" and 6" for cardboard cores;Positioning:automatic
- Min slit width
- 300mm
- Knives
- 9 Razor Blades
- Note

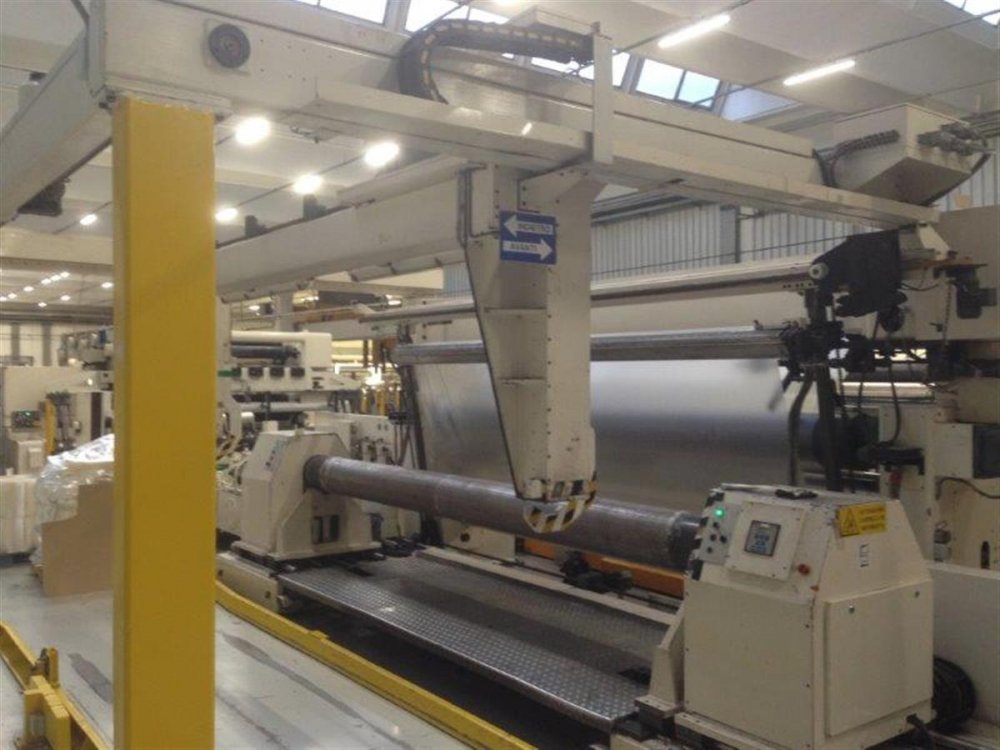

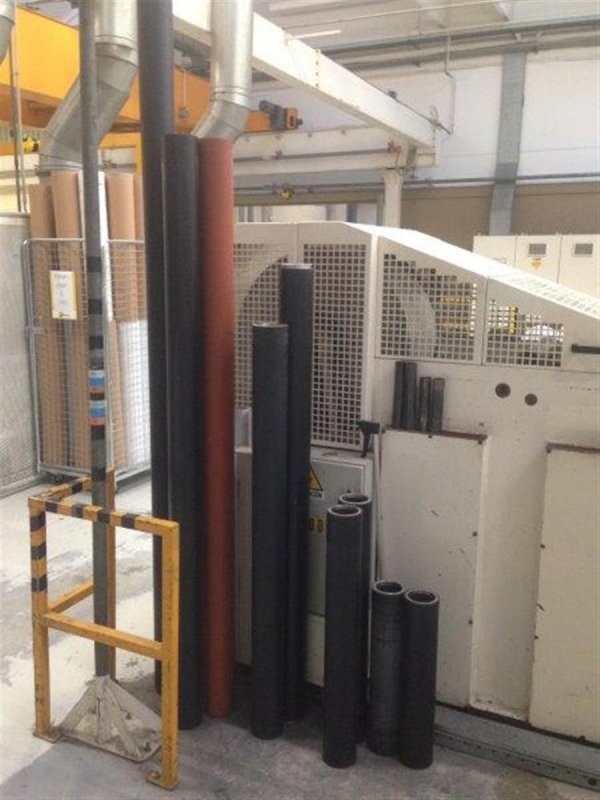

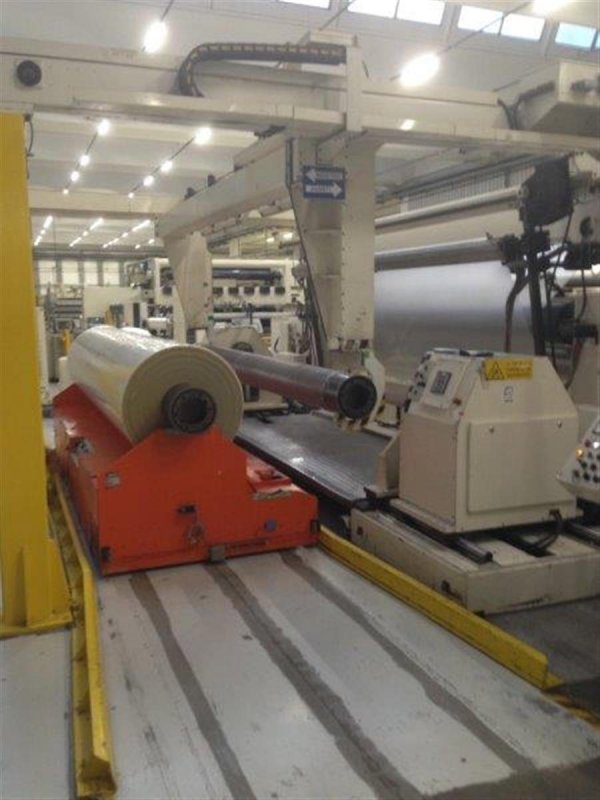

- Unwinding station: Loading and Unloading:Automatic integrated crane Parent roll cores:steel cores 320mm OD - 4610mm Splice Table:Splice table above the parent roll PLC:Siemens S5 Motors and main drives:Siemens Pneumatic system of contact rolls:Festo Edge guide control:FIFE Edge control and oscillation : active upgraded on 2013 with FIFE system; Spreader rolls:Manual installed above the steel grooved knife shaft Spreader rolls:Manual installed above the steel grooved knife shaft Edge trim winder:Single trim winder on the side of the machine Slitting Section Slitting system:razor blade cut in groove 2mm pitch Positioning:automatic Slitting width: max 2500 mm Contact roll section contact roll units:10 Contact rolls: 10 x 350mm 120mm OD; 10 x 600mm 120mm OD; 6 x 900mm 120mm OD; 1 x 1060mm 120mm OD; 4 x 1200mm 120mm OD; 3 x 1500mm 120mm OD; 1 x 1670mm 120mm OD ;2 x 2100mm 120mm OD; 1 x 2570mm 120mm OD
| Machine Code | SR310 |
| Manufacturer | GOEBEL |
| Modello | MONOSLIT |
| Year | 1990 |
| Overhaul/renovation | 2010 |
| Working width (mm) | 4150 |
| Materials | 15 - 70 µm BOPP ; 15 - 50 µm BOPLA ; BOPET |
| Speed | 800m/min |
| Unwinder type | Single shaft |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Center driven with independent arms |
| Max diameter reel rewinder | 920 |
| Rewinder description | Rewind stations:10; Cores:3" and 6" for cardboard cores;Positioning:automatic |
| Min slit width | 300mm |
| Knives | 9 Razor Blades |
| Note | Unwinding station: Loading and Unloading:Automatic integrated crane Parent roll cores:steel cores 320mm OD - 4610mm Splice Table:Splice table above the parent roll PLC:Siemens S5 Motors and main drives:Siemens Pneumatic system of contact rolls:Festo Edge guide control:FIFE Edge control and oscillation : active upgraded on 2013 with FIFE system; Spreader rolls:Manual installed above the steel grooved knife shaft Spreader rolls:Manual installed above the steel grooved knife shaft Edge trim winder:Single trim winder on the side of the machine Slitting Section Slitting system:razor blade cut in groove 2mm pitch Positioning:automatic Slitting width: max 2500 mm Contact roll section contact roll units:10 Contact rolls: 10 x 350mm 120mm OD; 10 x 600mm 120mm OD; 6 x 900mm 120mm OD; 1 x 1060mm 120mm OD; 4 x 1200mm 120mm OD; 3 x 1500mm 120mm OD; 1 x 1670mm 120mm OD ;2 x 2100mm 120mm OD; 1 x 2570mm 120mm OD |
