Machines may have different constructions depending on: the type of material, its dimensions and the key performances required.
Ask more informations

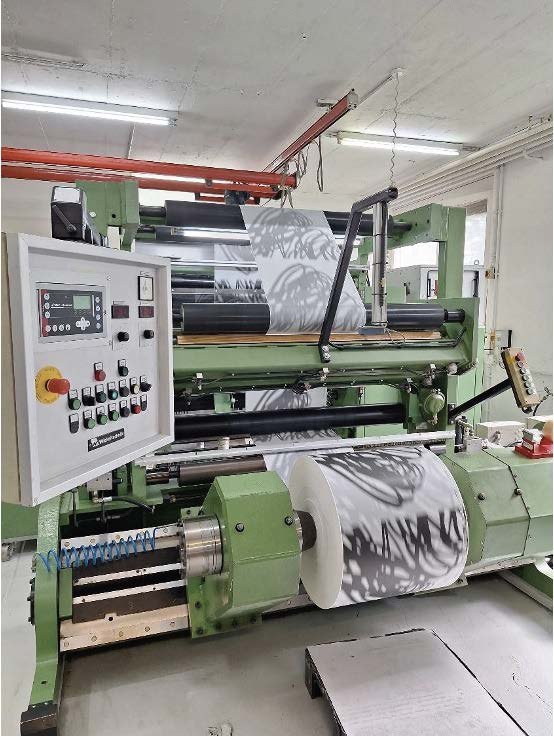

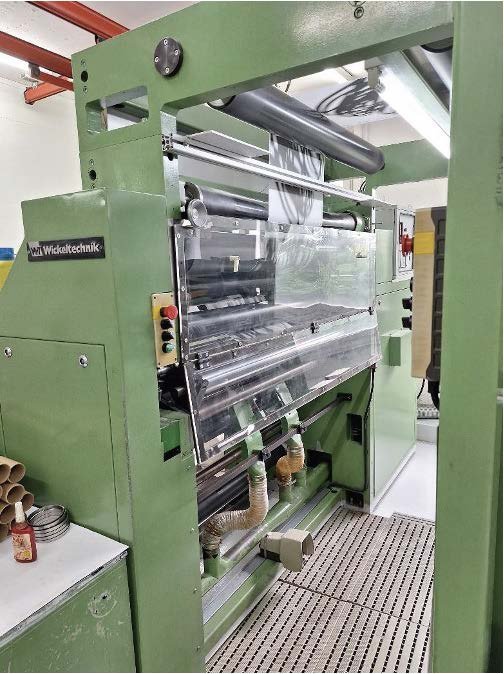

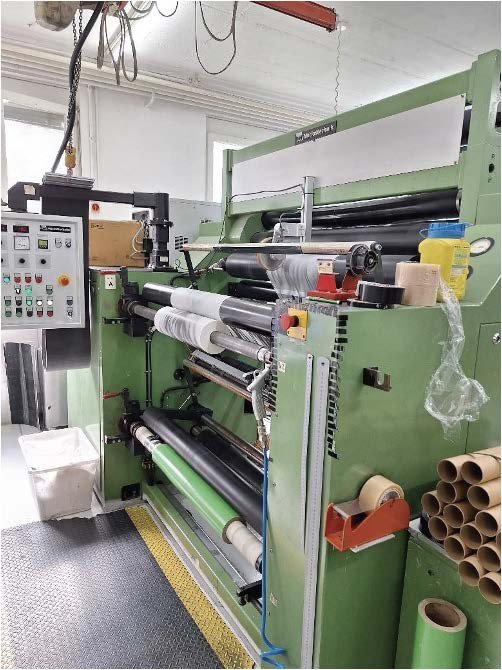

- Machine Code
- SR623
- Manufacturer
- WICKELTECHNIK
- Modello
- WFZ 60
- Year
- 1991
- Working width (mm)
- 1400
- Materials
- flexible packaging materials and paper
- Speed
- 300 m/min
- Unwinder type
- Shaftless
- Max diameter reel unwinder
- 1000
- Rewinder type
- Double shaft center driven
- Max diameter reel rewinder
- 600
- Rewinder description
- Pneumatic and friction shafts with lay on roll
- Min slit width
- 50 mm
- Knives
- Shear cut
- Note
- Nozzle for trim exhaust Bridge for over web path Unwind : Shaftless, pivoting arms, lifting from the floor with hydraulic pump. Tension control. Core diameter 3" and 6". Rewind : Pneumatic and friction shafts with lay on roll Web guide system : Shifting web guide system Additional information : Nozzle for trim exhaust Bridge for over web path
| Machine Code | SR623 |
| Manufacturer | WICKELTECHNIK |
| Modello | WFZ 60 |
| Year | 1991 |
| Working width (mm) | 1400 |
| Materials | flexible packaging materials and paper |
| Speed | 300 m/min |
| Unwinder type | Shaftless |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Double shaft center driven |
| Max diameter reel rewinder | 600 |
| Rewinder description | Pneumatic and friction shafts with lay on roll |
| Min slit width | 50 mm |
| Knives | Shear cut |
| Note | Nozzle for trim exhaust Bridge for over web path Unwind : Shaftless, pivoting arms, lifting from the floor with hydraulic pump. Tension control. Core diameter 3" and 6". Rewind : Pneumatic and friction shafts with lay on roll Web guide system : Shifting web guide system Additional information : Nozzle for trim exhaust Bridge for over web path |
ATLAS CW 960 AP
-
Machine Code: SR390
-
Year: 1992
-
Working width (mm): 6000
BIMEC
-
Machine Code: SR534
-
Year: 2010
-
Working width (mm): 1300
STANFORD 252 FW
-
Machine Code: SR537
-
Year: 1996
-
Working width (mm): 1500
LAEM SYSTEM
-
Machine Code: SR551
-
Year: 2002
-
Working width (mm): 2500

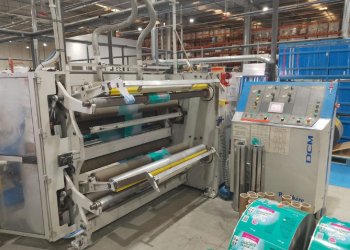

DCM Panthere 3
-
