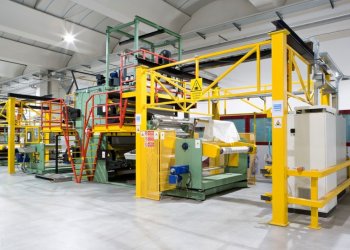

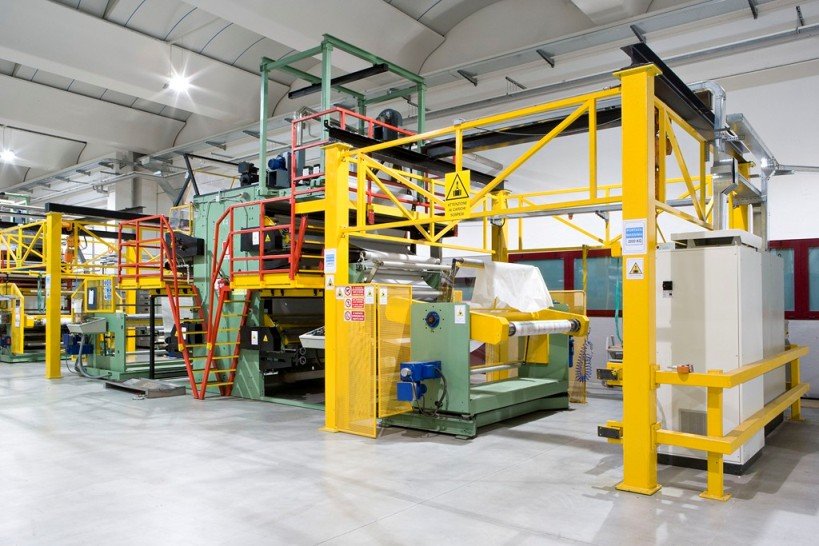

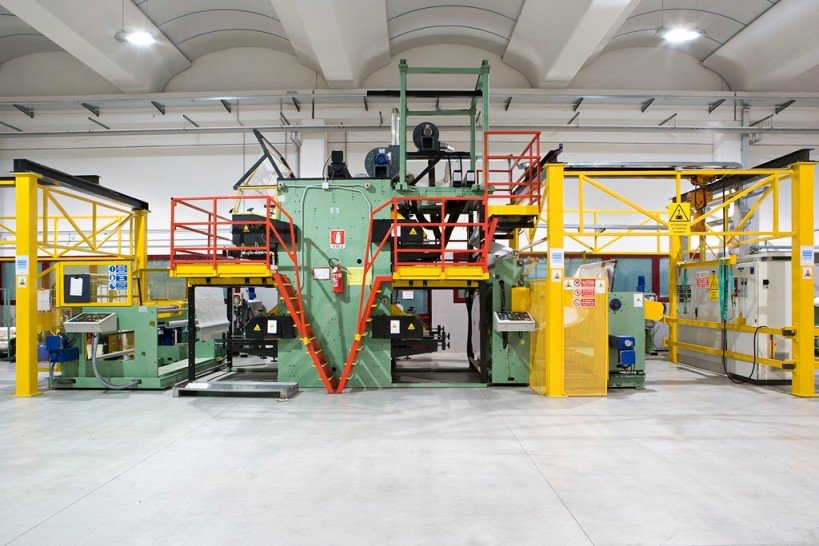

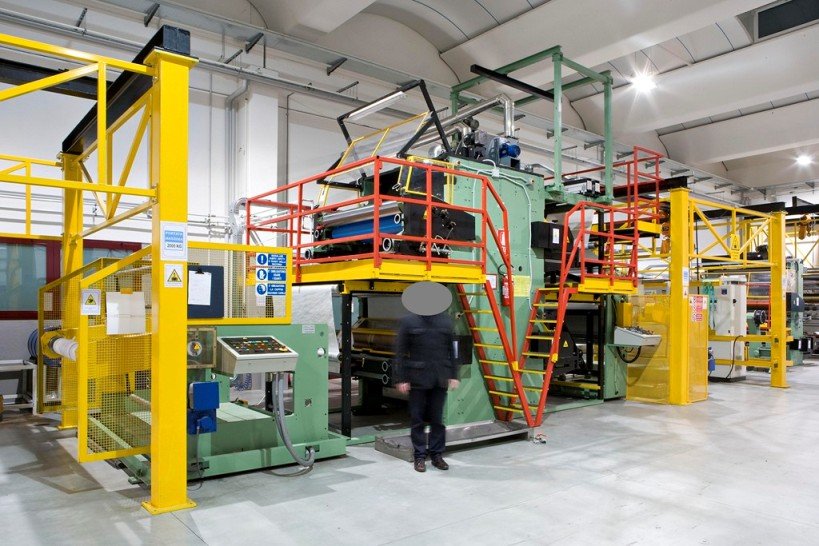

CUSTOM MADE SILICONE COATING MACHINE Laminator / coating machine SILICON COATING ** SOLD ** Ask more informations about a similar one
A duplex laminator will joins 2 layer of web, a triplex lamination machine will join 3 layers together in 1 pass. Coating machines are used to apply a layer of coated material onto a web (support).
| Machine Code | LA121 |
| Manufacturer | CUSTOM MADE |
| Model | SILICONE COATING MACHINE |
| Year | 1993 |
| Application | Coating |
| Type of lamination/coating | SILICON COATING |
| Working width (mm) | 1700 |
| Speed | neutral products: 160 m/min; printed 105 m/min. |
| Max diameter reel unwinder | 1700 |
| Max diameter reel rewinder | 1000 |
| Coating unit | dimensions coating head: machine trim 1700 mm, cylinders 1570 mm |
| Drying | UV curing |
| Additional information | flexo printing unit up to 3 colours (usable with printing sleeves or cliches). Cationic UV curing, manufacturer : VTI, power: 120 W /cm2, 2 lamps |
** SOLD **
