Coatings used in packaging industry are various. Cold and hot seal coating are common. Also, cold and hot seal coatings are commonly used, as well as hot melt and wax coatings. Silicon, Pvdc coating, ant mist and many others are employed. Materials which can be coated with a certain machine depends highly on the type of coating unit(s) available, on machine's construction and equipment.
Ask more informations
- Machine Code
- LA407
- Manufacturer
- UTECO TECHNOLAMI
- Modello
- MISTRAL
- Year
- 2011
- Application
- Duplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 1320
- Materials
- BOPP, PET , CPP , LDPE paper , Al Foil
- First unwinder type
- Shaftless driven
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- Shaftless driven
- Max diameter reel unwinder
- 1000
- Rewinder type
- Shaftless driven
- Max diameter reel rewinder
- 1000
- Coating unit
- Solventless trolley and gravure trolley
- Drying
- 2 zones , 4 fans , 2 x 3mt tunnel total length 6 mt , 2 gas burners
- Register controll
- Yes for cold seal
- pumping mixing unit
- VEA Matrix
- Corona treatment
- yes
- Note
- Sleeve change system for counter im pression nip roller Sleeve change system on transfer roller for solventless trolley
| Machine Code | LA407 |
| Manufacturer | UTECO TECHNOLAMI |
| Modello | MISTRAL |
| Year | 2011 |
| Application | Duplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 1320 |
| Materials | BOPP, PET , CPP , LDPE paper , Al Foil |
| First unwinder type | Shaftless driven |
| Max diameter reel unwinder | 1000 |
| Secondary unwinder type | Shaftless driven |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Shaftless driven |
| Max diameter reel rewinder | 1000 |
| Coating unit | Solventless trolley and gravure trolley |
| Drying | 2 zones , 4 fans , 2 x 3mt tunnel total length 6 mt , 2 gas burners |
| Register controll | Yes for cold seal |
| pumping mixing unit | VEA Matrix |
| Corona treatment | yes |
| Note | Sleeve change system for counter im pression nip roller Sleeve change system on transfer roller for solventless trolley |

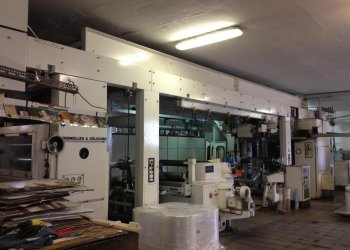

WINDMÖLLER & HÖLSCHER VARICOATER 6400
-
