REIFENHAUSER PMMA plastic sheet extrusion machine ** SOLD ** Ask more informations about a similar one

Machine Code PC16
Manufacturer REIFENHAUSER
Model PMMA
Year 1993
Number of layers 1
Material PMMA
Sheet width (mm) 1800
Screw diam 150mm

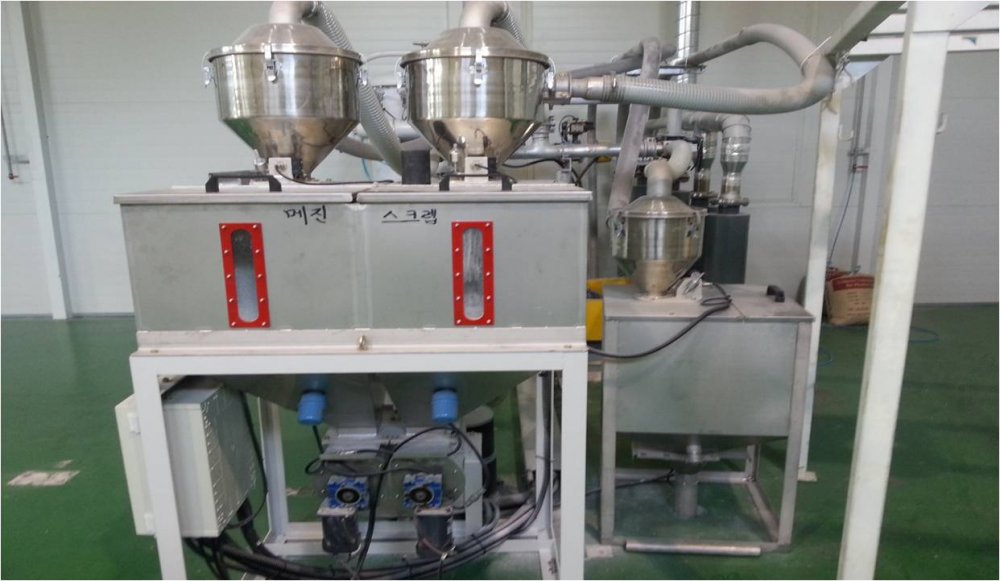

Description L/D33D . Speed0-64 rpm. Output max500kg/hr . Type PMMA. Motor 180 KW. Dosing system with 4 components hopper ( 70mm diam of feeding screw, 70mm diam of feeding screw, 70mm diam of feeding screw, 30mm diam of feeding screw). Screen changer unit.
Head description Lip gap range 2.5 -12mm
Die width (mm) 1650mm

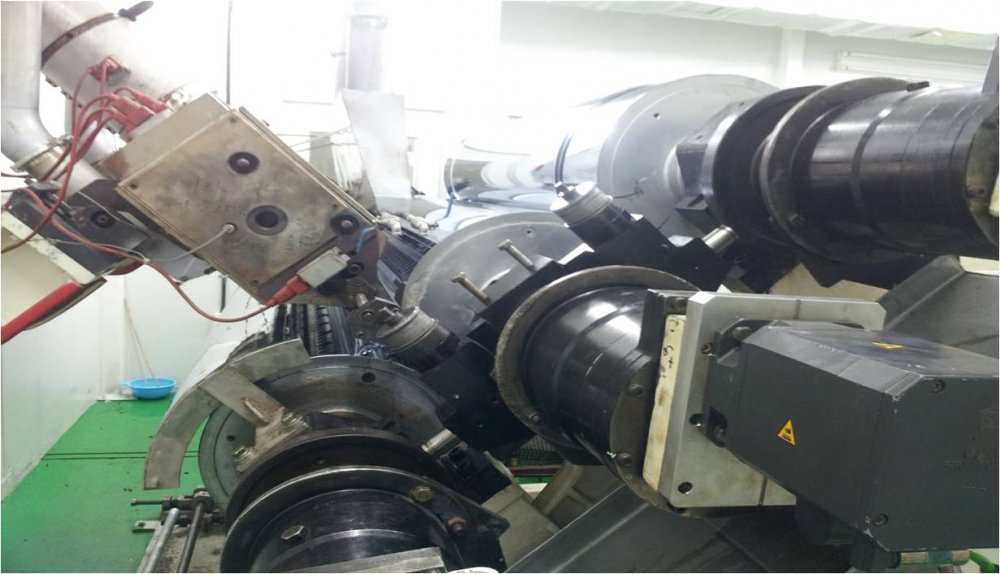

Polishing stack/ calender lines unit Polishing roll: 490mm diameter.Width 1800mm. Roll gap max 10mm.Max roll temperature 130C°. Cal.roll unit : type 45 degree inclined 3 roll arrangemenet. Roll diam 490mm. Roll width 1800mm. roll gap 0-10mm. Line speed 0.1-4.0m/min. Max operation pressure 6 bar. Drive of call.roll 5kw and 3000rpm (0-6m/min)

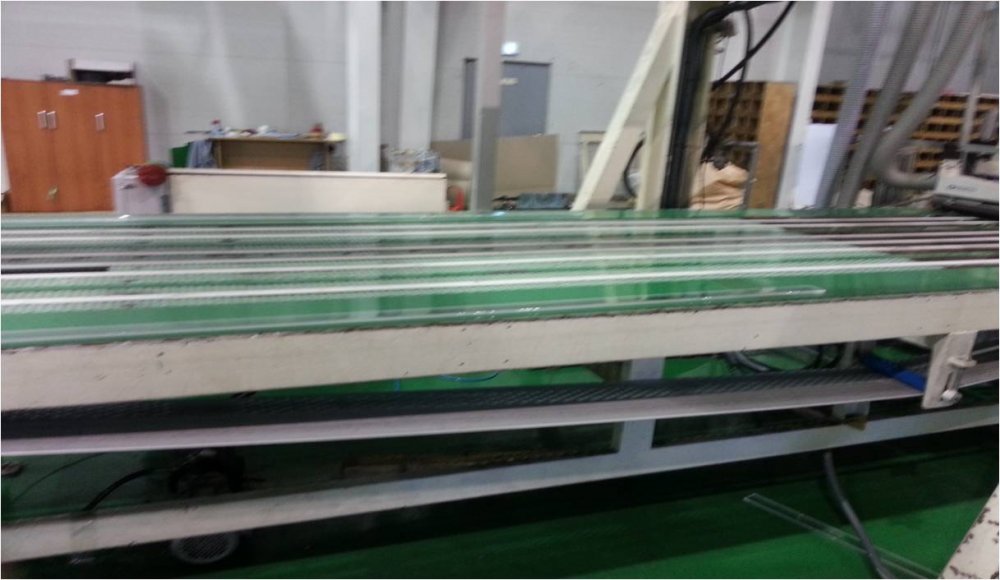

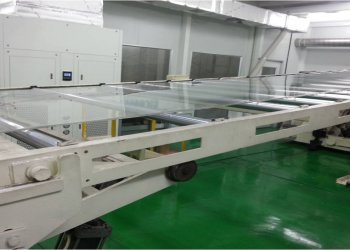

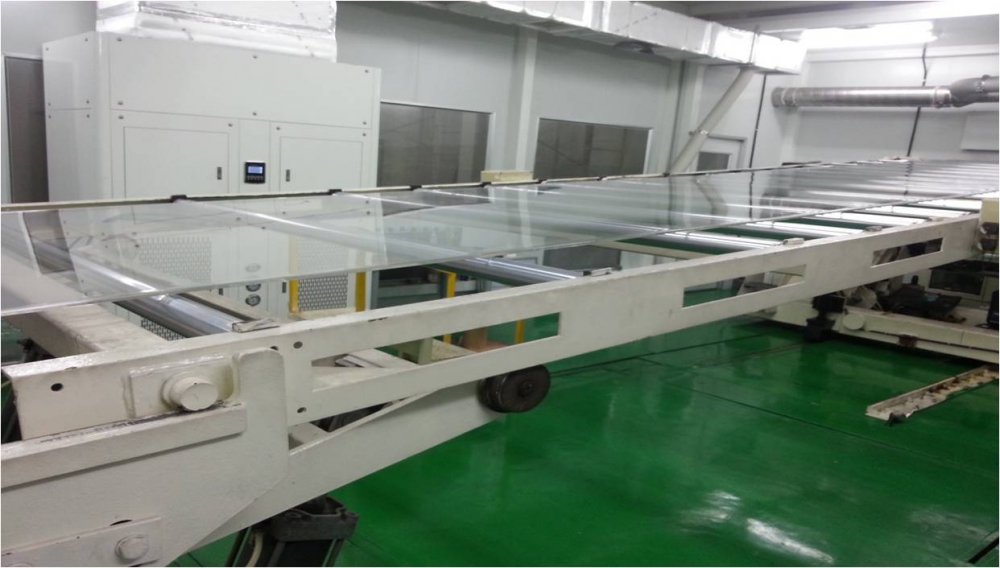

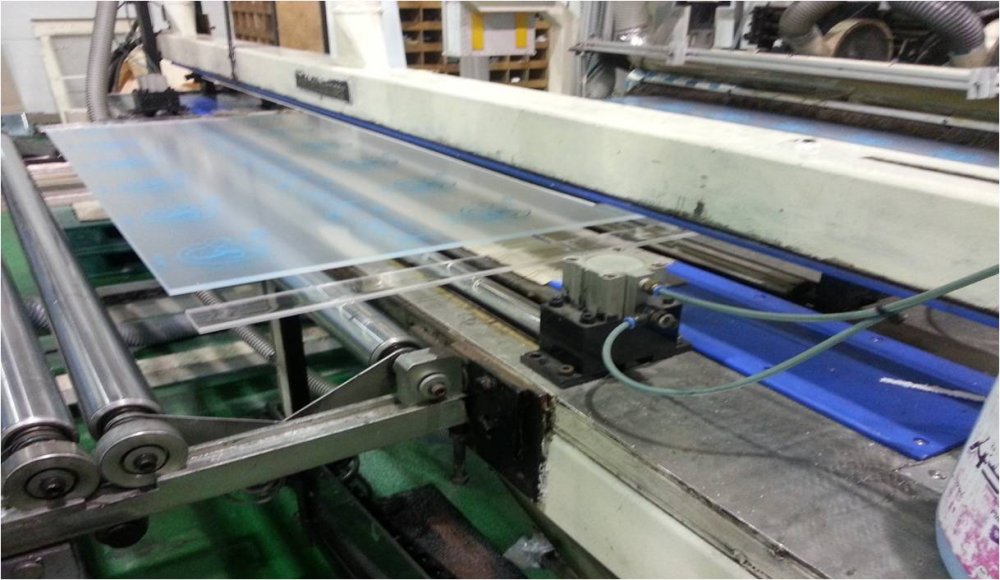

Additional information Haul off roll : diam 200mm .Width 1800mm. Material EPDM. Hardness(shore)-65-70. Two rubber rolls. Gap between rolls 80mm max. Drive 1.6 kw DC motor. air pressure 6 bar. Production : product grade : clear, white, emboss.. Thickness 1.8-10mm. Width 900-1550mm. Lenght 1200-4300mm. Masking type paper, film. PMMA crusher. PC crusher. Gear pump (dosing pump) type T-die : die width 2150mm. Connection Piece.Static mixer Heating and cooling unit for call roll : circulation and cooling medium :water. temperature range 25-130C. Heating capacity 3x27kw. Cooling capacity : 3x87kw at 80 C forward temperature and 20C cooling water. Cooling tale /roller table) Edge cutting unit. Cross cutting unit - operating width 2200mm; saw blade dimension 300mm-30mm; DC motor with cyclogearing; saw carriage drive. saw blade drive. Height 1050mm(adjustable) Dust collector (exhauster) for two lines Suction head stacking unit

** SOLD **


You may also be interested in:

114440 - COMERIO/MILTEX/DOLCI

COMERIO/MILTEX/DOLCI

Category: Film extrusion lines

Subcategory: Polishing and Calenders

Sheet width (mm): 1600

Year: 1976

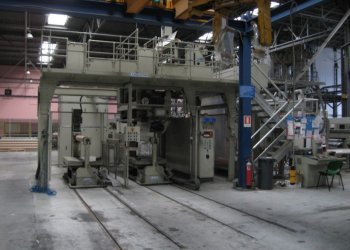

24831 - REIFENHAUSER

REIFENHAUSER

Category: Film extrusion lines

Subcategory: Polishing and Calenders

Sheet width (mm): 1000

Year: 1991

133920 - COMERIO

COMERIO

Category: Film extrusion lines

Subcategory: Polishing and Calenders

Sheet width (mm): 1800

Year: 1980

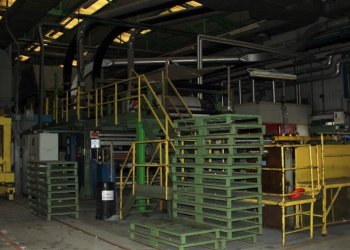

114446 - COMERIO/BUSS/CAVALLERI/TCE
