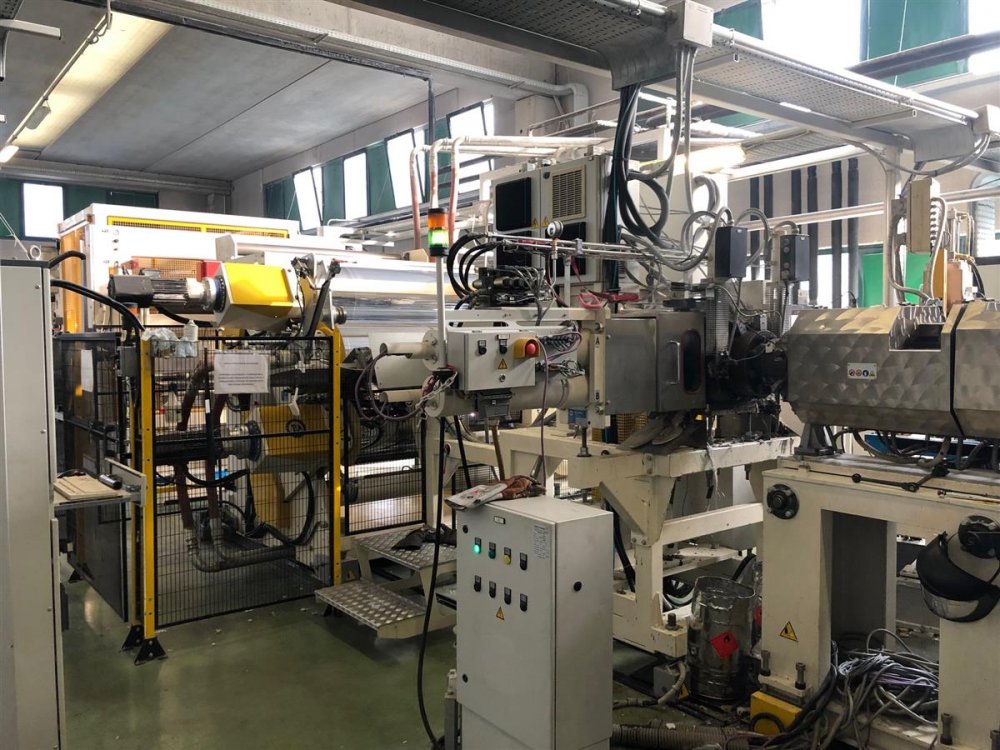

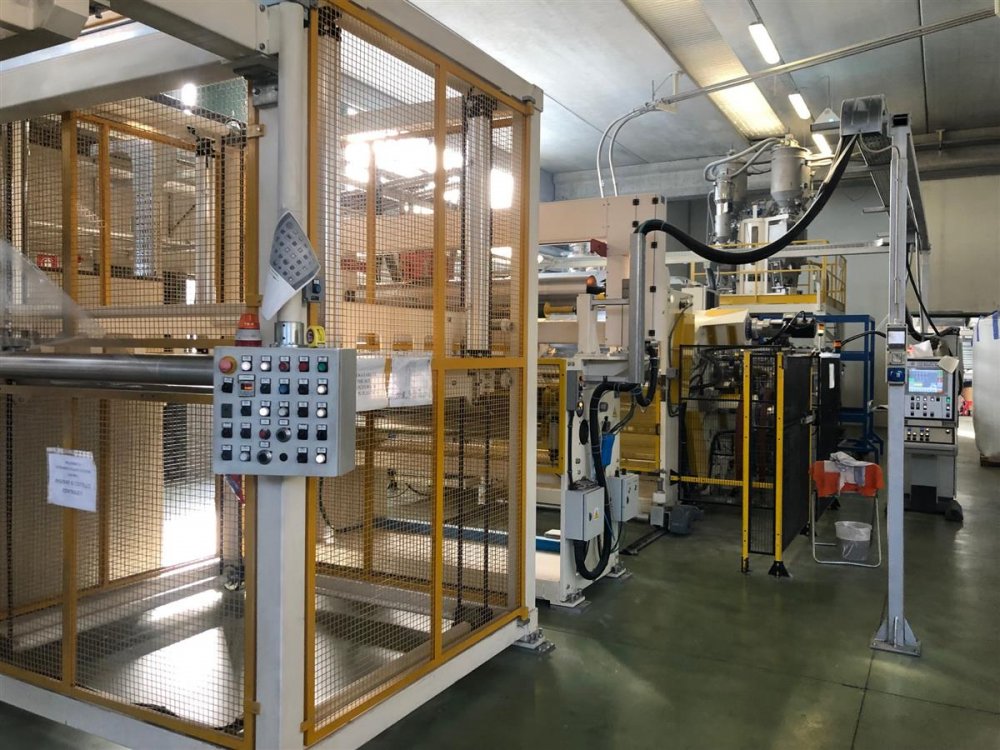

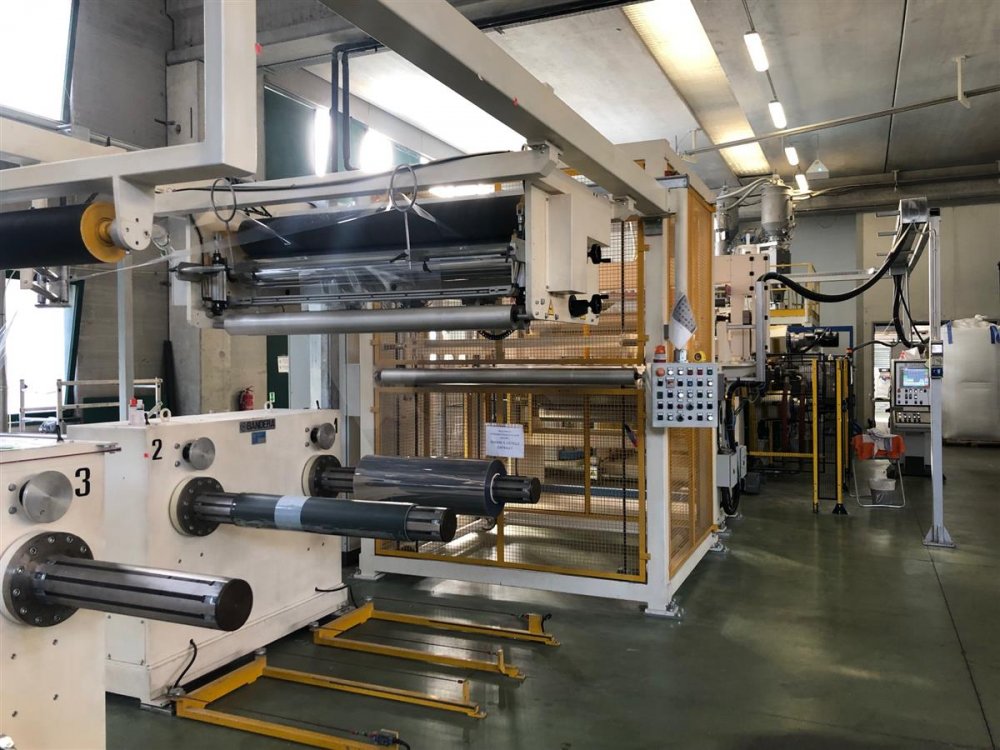

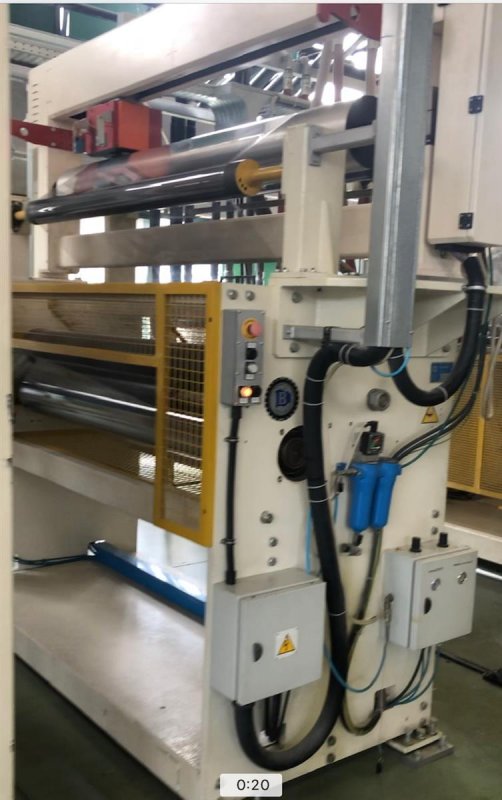

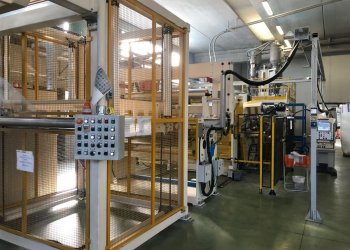

BANDERA plastic sheet extrusion machine
| Machine Code | PC31 |
| Manufacturer | BANDERA |
| Year | 2009 |
| Number of layers | 3 |
| Sheet/foil structure | ABA; AB; BBB |
| Material | PET, PLA, PP. PET is possible both as virgin or as recycled material. |
| Sheet width (mm) | 1310 |
| Extruder 1 Layer ref: | A |
| Screw diam | 50mm |
| Description | Model TR50 30 D ; L/D 30; Resin drying, Macguire dosing and blending unit 2 component |
| Extruder 2 Layer ref: | B |
| Screw diam | 2x85mm Twin |
| Description | Twin co-rotating screw.model 2C 85 HTS 42D. Thanks to twin screw system, no need of polymer drying, 4 components gravimetric system, melt pump, 4 plate screen changer |
| Head description | Internal deckling system, flex lip with manual adjustment |
| Die width (mm) | 1600 |
| Thisckness controll system | Elecgronic system (air cushion type) |
| Polishing stack/ calender lines unit | 3 driven calanders, staggerd lay out, diam of calanders: 450,600,450mm |
| Rewinder description | In line slitting, pulling calander, 4 winding shafts, max reel diam 1000mmm |
| Additional information | - Chiller included - Grinder 800 kg. /hour |
