7 layers KIEFEL KIRION W2200 PLUS 2 film blowing machine ** SOLD ** Ask more informations about a similar one
In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.
Machine Code | EX276 |
Manufacturer | KIEFEL |
Model | KIRION W2200 PLUS 2 |
Year | 2006 |
Number of layers | 7 |
Film structure | ABCDEFG |
Material | LDPE, PP, Barrier Film (Evoh, PA) |
Film Width (mm) | 2200 |
Output (Kg/h) | 350 Kg/h |
Extruder 1 Layer ref: | A |
Screw diam | 70 |
Description | Kirion 30 L/D;for the processing PE,PP EVA, PA and other non heat sensitive materials for maximum output. 4 heating zones;78 kw main drive size; 3 Gravimetric Dosing of an additional component for extruder A |
Extruder 2 Layer ref: | B |
Screw diam | 50 |
Description | Kirion 30 L/D;for the processing PE,PP EVA, PA and other non heat sensitive materials for maximum output. 4 heating zones;31 kw main drive size; 2 Gravimetric Dosing of an additional component for extruder B |
Extruder 3 Layer ref: | C |
Screw diam | 60 |
Description | Kirion 30 L/D;for the processing PE,PP EVA, PA and other non heat sensitive materials for maximum output. 4 heating zones;56 kw main drive size; 2 Gravimetric Dosing of an additional component for extruder C |
Extruder 4 Layer ref: | D |
Screw diam | 50 |
Description | Kirion 30 L/D;for the processing PP, PS ,PA, EVOH and polyolefins with medium to high output; 4 heating zones;31 kw main drive size; 2 Gravimetric Dosing of an additional component for extruder D |
Extruder 5 Layer ref: | E |
Screw diam | 60 |
Description | Kirion 30 L/D;for the processing PE,PP EVA, PA and other non heat sensitive materials for maximum output. 4 heating zones;56 kw main drive size; 2 Gravimetric Dosing of an additional component for extruder E |
Extruder 6 Layer ref: | F |
Screw diam | 50 |
Description | Kirion 30 L/D;for the processing PE,PP EVA, PA and other non heat sensitive materials for maximum output. 4 heating zones;31 kw main drive size; 2 Gravimetric Dosing of an additional component for extruder F |
Extruder 7 Layer ref: | G |
Screw diam | 70 |
Description | Kirion 30 L/D;for the processing PE,PP EVA, PA and other non heat sensitive materials for maximum output. 4 heating zones;78 kw main drive size;3 Gravimetric Dosing of an additional component for extruder G |
Head description | 1 Kirion 450/550-7; 7 layer die head for die diameters from 450mm - 550mm prepared for IBC installation; temperature controls with wear-free solid state relays; 10 heating zones; 1 Die Insert Set for die diameter of 500mm ; for Kirion 450/550-7 die gap 1.7 - 2.5 mm decompressive; 1 Gap Ring for die diameter of 500mm; |
Die diam (mm) | 500 mm |
Thickness controll system | Yes |
Bubble cage | 1 Internal Bubble Cooling System, one supply blower and one exhaust air blower; Blower size 2x11kw (14.75HP ) ; 1 Ultrasonic Bubble Control; |
Panel for gussets | Yes |
Take off unit | 1 Take off Control Cabinet Cooling Device ; 1 Kirion T 2200 reversing Take off with AC Vector drive, motorized adjustement;manual adjustement at entrance to the nip rolls; Web turning bar system; |
Corona treatment | 1 Corona Treatment Type CMDS 2200 for single or two sided treatment of a tubular film; |
Web guide | 1 web guide 2200F including ultrasonic sensors and motorized adjustement of the sensors with mounting parts, oscilation +/- 4mm, maximum layflat width 2200mm; 7 Idle rolls 200 for web guidance between draw roller and winder diam 120mm |
Rewinder max reel diameter | 1200 |
Rewinder description | Each winder includes : linear knife; winding shaft magazine for 2 winding shafts; banana spread roll; AC vector drives; roll lay-down ramp for automatic changes; Maximum layflat width 2200mm, Max winding speed : 200m/min; web tension range : 40-250N; Suitable for winding shafts : 76 & 152mm;Max weight for winding shafts including core : 100kg; |
Additional information | - water cooled gear boxes with integral thrust bearings; heating/cooling combination with ceramic heating bands and blowers; material feeding with magnetic separator, flat side valve and level control; temperature control with heating circuit control/monitoring with wear-free solid state relays; AC Vector direct drives; - 3 Pivoting Screen Changer Type Kiefel for Kirion 50; 2 Pivoting screen changer type Kiefel for Kirion 60; 2 Pivoting Screen Changer Type Kiefel for Kirion 70; - 7 Melt Temperature Measurement Instruments; 7 Melt Pressure Measurement Instruments prior to screen changer with over-pressure interlock; 7 Melt pressure measurement instruments after screen changer; - 1 adapter; 3 Sound insulation plate for blower Kirion 50; 2 Sound insulation box Kirion 60; 2 Sound insulation box Kirion 70; 7 Heat Exchanger for Extruder Drive; - 1 Moveable Die cart; 1 preparation of Profile Control for the installation of heating cartdges in the centering ring or air ring; 1 Frequency Control for IBC supply and exhaust air blowers;1 IBC for low stalk production for die diameter 500mm; 1 High Capacity Air Ring HL 500/600; 1 Profile Control C2 equipped with 64 heating inserts for control of cooling ring air temperature with cooling ring HL 500/600;1 Air Ring Insert 500S dual lip Venturi insert for LLDPE/ lDPE low stalk production for die diameter 500mm;1 Extra Piping for blowes located on intermediate tower platform, operator controls located at floor level; 1 Twin Chiller; 1 Calibration Cage; - 1 Brush rolls with spread Effect 2200; 1 aluminium side guides 2200; 1 package for friction control; 1 Driven banana Spreader roll 2200; - 1 edge Fold Slitter 2200; 1 Edge Trim Slitting Station 2200; 1 Linear and Horizontal Blade Oscillation 2200; 2 Antistatic System; 2 Edge Trim and Multi-Web sliting Station; 4 additional twin blade holders; 2 horizontal oscillation; 4 pneumatic winding shaft; 2 winder control cabinet cooling device; 2 electric roll shaft hoists with frames; 1 edge trim guide fingers; Vacuum Suction System;1 Control of average Layer Thikness; - Accessories : Reversing haul--off, back to back winder; - Auxiliary Equipments : Corona Treater Softal (4-sided treatment);Electronic Systems Radiometric thickness control system; WaterBath for the Asymmetric Barrier Structures;Plastcontrol gravimetric dosing unit,running meter control, including material feeding.Gusset Boards for producing gusseted film; 1 main and 3 dosing components for the skin layers (Layer A&G), 1+2 dosing components for the core layers ( Layer B,C,D,E,F ). Thickness range: 20-250µ Thickness variation: +/- %5 |
** SOLD **
You may also be interested in:

BANDERA Coex3
Category: Film extrusion lines
Subcategory: Blown film
Film Width (mm): 1300
Year: 2011

WINDMOLLER & HOLSCHER Only extrusion die
Category: Film extrusion lines
Subcategory: Blown film
Year: 2000

ZOCCHI 55-1.200-RD
Category: Film extrusion lines
Subcategory: Blown film
Film Width (mm): 1200
Year: 1996

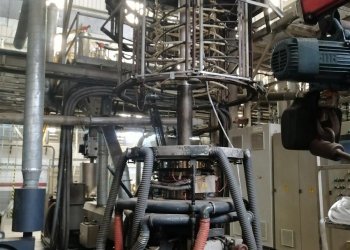

DOLCI MONO120
