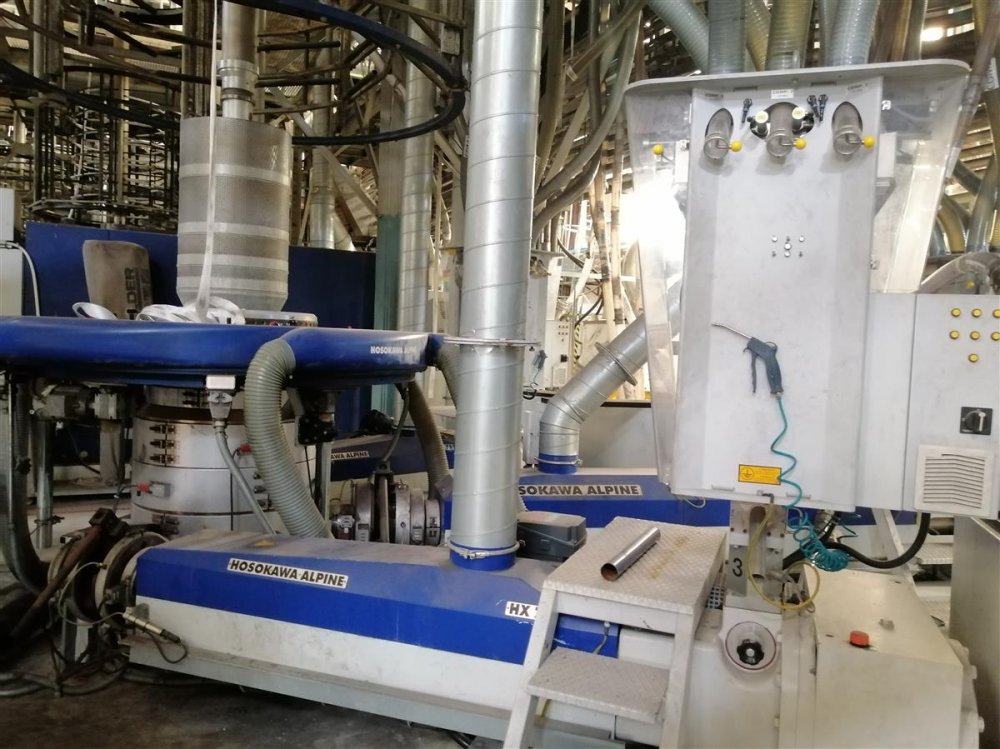

3 layers ALPINE HX 75/105/75 blown film extruder ** SOLD ** Ask more informations about a similar one

In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.

Machine Code EX666
Manufacturer ALPINE
Model HX 75/105/75
Year 2015
Number of layers 3
Film structure ABC
Material PE
Film Width (mm) 2700
Output (Kg/h) 800
Extruder 1 Layer ref: A
Screw diam 75
Description Gravimetric dosing system
Extruder 2 Layer ref: B
Screw diam 105
Description Gravimetric dosing system
Extruder 3 Layer ref: C
Screw diam 75
Description Gravimetric dosing system

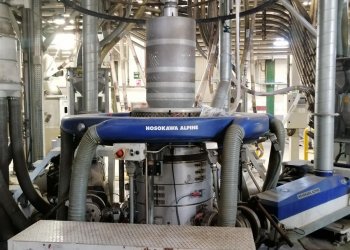

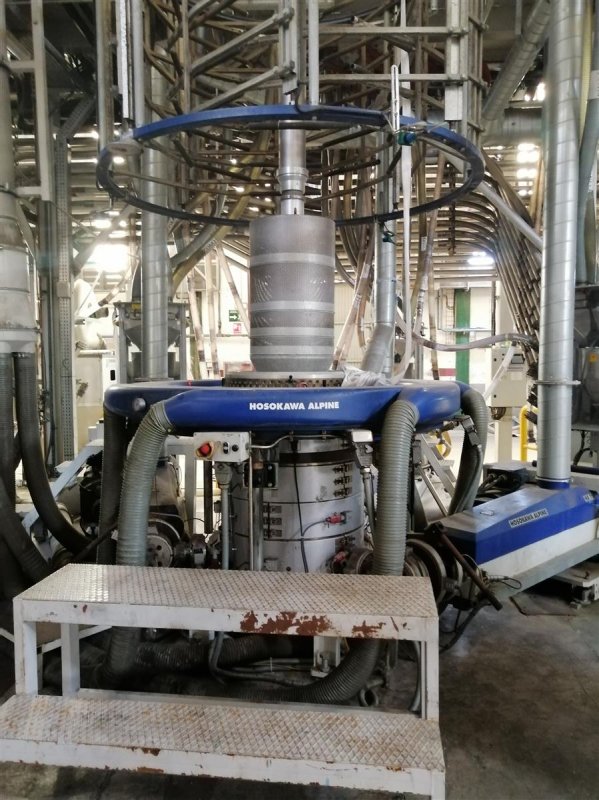

Head description 3 layer, with IBC, air ring with automatic thickness prifile regulation, dual flow air ring
Die diam (mm) 350 mm gap 1mm
Thickness controll system automatic
Bubble cage yes
Take off unit Rotating
Web guide Yes

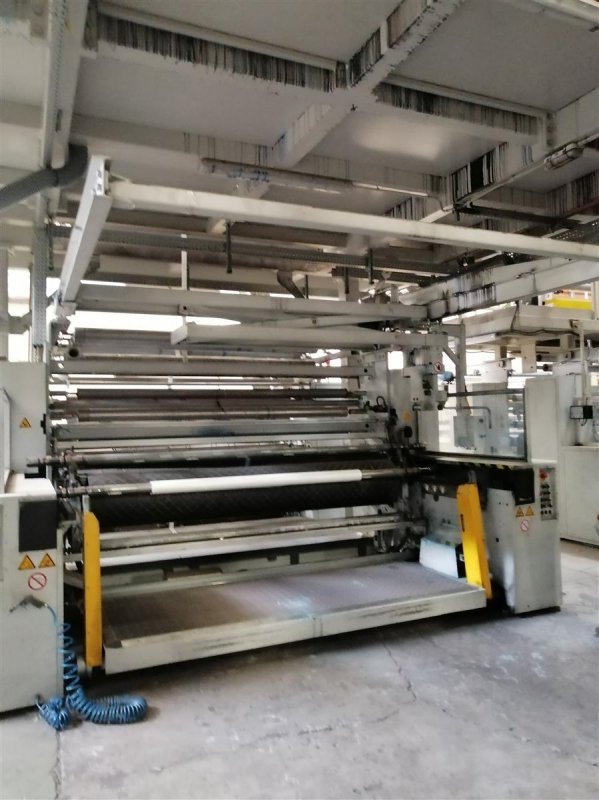

Rewinder max reel diameter 800
Rewinder description hoist for reels

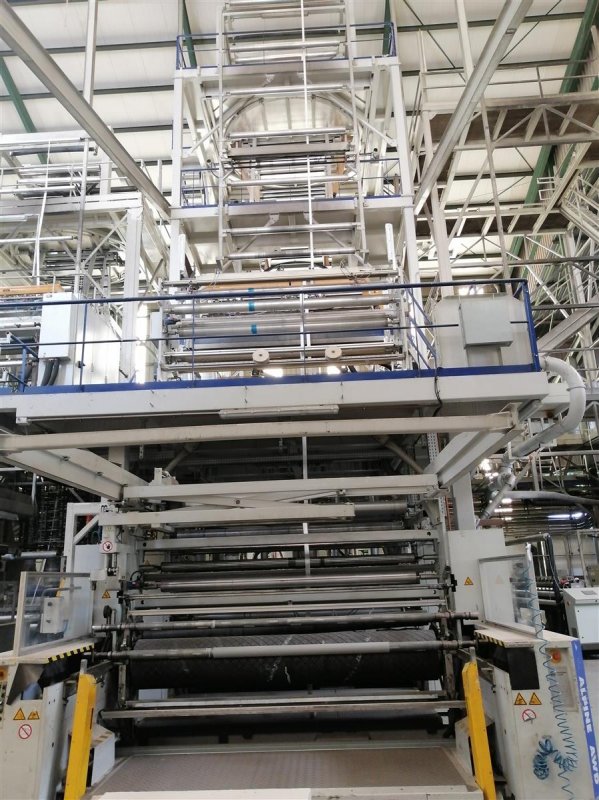

Additional information Steel contruction/Tower : included

** SOLD **
