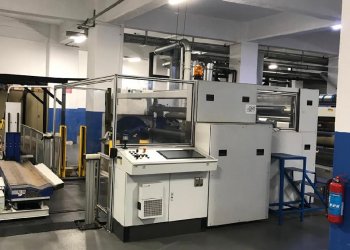

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
- Machine Code
- CA278
- Manufacturer
- REIFENHAUSER
- Modello
- Midex 3000
- Year
- 2024
- Number of layers
- 3
- Material
- CPP and CPE
- Film width (mm)
- 2550
- Speed (m/min)
- 350m/min
- Output (Kg/h)
- PP-1000kg/h, PE - 800kg/h
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 80mm
- Description 1
- Barrier screw diameter 80mm - 30L/D, Manual screen changer, type HS-080/300, 3-component batch dosing system 250/3 HT
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 150mm
- Description 2
- arrier screw diameter 150mm - 30L/D,Intermittent hydraulic screen changer EBS/a 148-1 with 1 screen, 3-component batch dosing system 500/3 HT
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 80mm
- Description 3
- Barrier screw Ø 80mm - 30L/D, Manual screen changer, type HS-080/300, 3-component batch dosing system 250/3 HT
- Head description

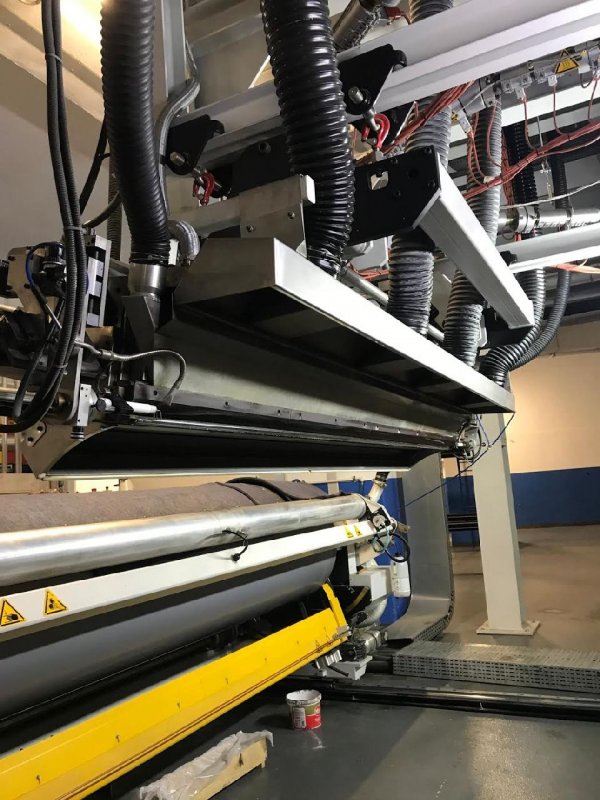

- Edge pinning by means of air nozzles
- Die width (mm)
- 2650mm
- Thickness controll system
- Yes, with beta source
- Note
- Ash Slitter rewinder included
| Machine Code | CA278 |
| Manufacturer | REIFENHAUSER |
| Modello | Midex 3000 |
| Year | 2024 |
| Number of layers | 3 |
| Material | CPP and CPE |
| Film width (mm) | 2550 |
| Speed (m/min) | 350m/min |
| Output (Kg/h) | PP-1000kg/h, PE - 800kg/h |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 80mm |
| Description 1 | Barrier screw diameter 80mm - 30L/D, Manual screen changer, type HS-080/300, 3-component batch dosing system 250/3 HT |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 150mm |
| Description 2 | arrier screw diameter 150mm - 30L/D,Intermittent hydraulic screen changer EBS/a 148-1 with 1 screen, 3-component batch dosing system 500/3 HT |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 80mm |
| Description 3 | Barrier screw Ø 80mm - 30L/D, Manual screen changer, type HS-080/300, 3-component batch dosing system 250/3 HT |
| Head description | Edge pinning by means of air nozzles |
| Die width (mm) | 2650mm |
| Thickness controll system | Yes, with beta source |
| Note | Ash Slitter rewinder included |
