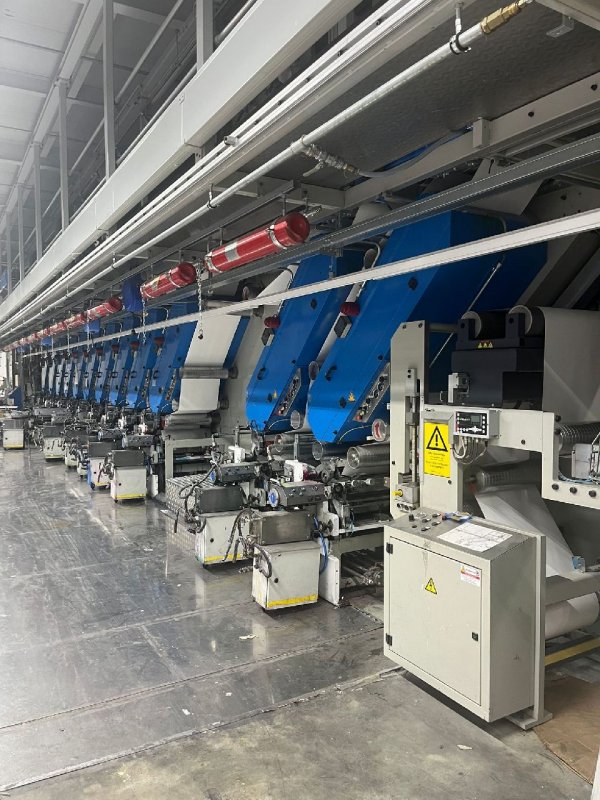

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
- Machine Code
- RO278
- Manufacturer
- RCL
- Year
- 2013

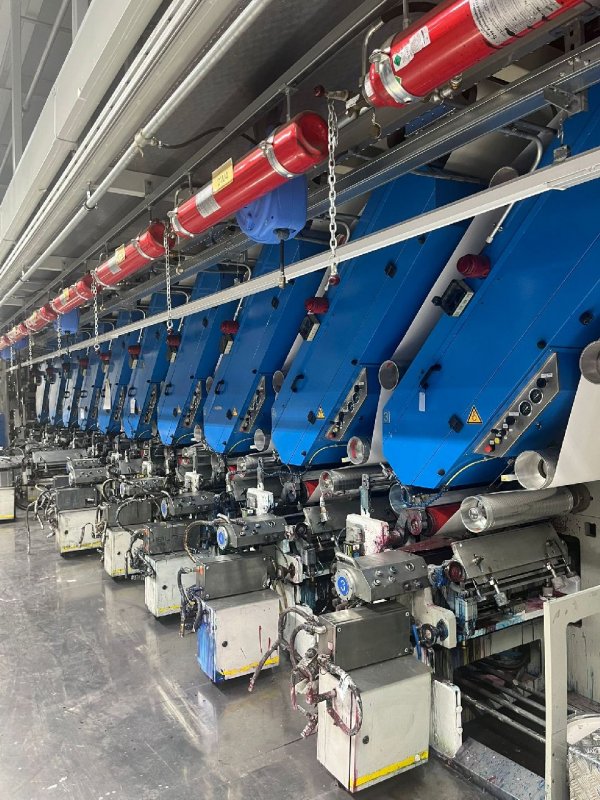

- Number of colors
- 12
- Drive
- Electronic shaft
- Trolley system
- No
- Web width (mm)
- 550
- Print width (mm)
- 530
- Print repeat range (mm)
- 380 -760
- Drying specifications
- -10 units (2 m each) -2 units (3 m each) -Chill rollers: 12 (after each drying section) -UV system: 3 UV lamps (Lamo)

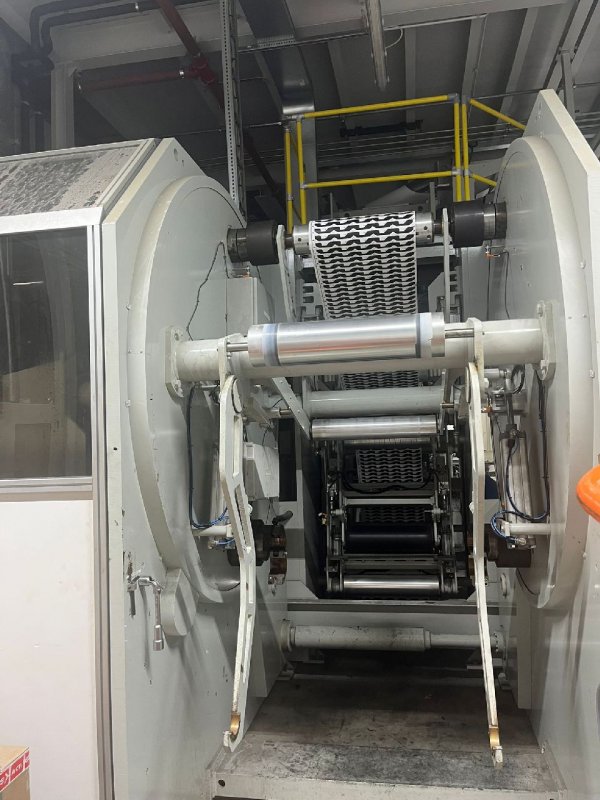

- Unwinder type
- Turret Monomatic
- Rewinder type
- Turret Monomatic

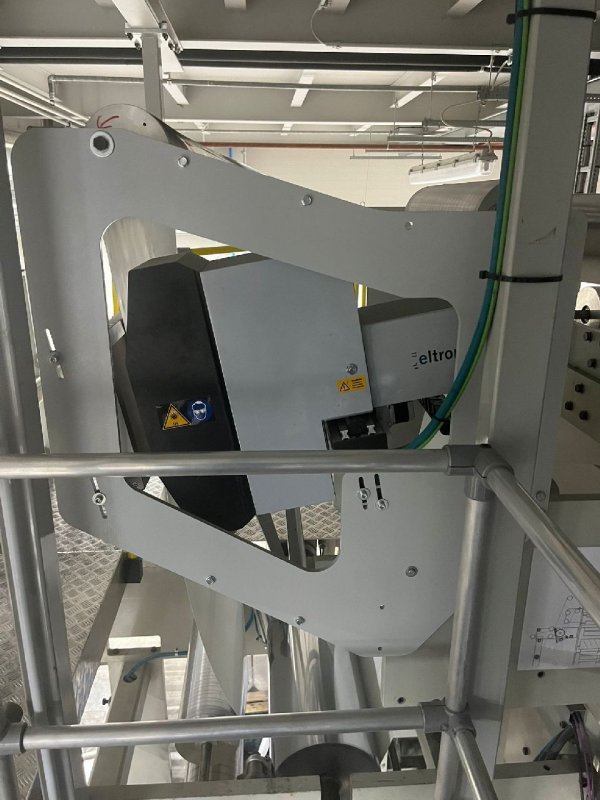

- Register controll
- Eltromat Registar
- Note
- -Mechanical speed: up to 350 m/min -Web tension range: 50–500 N Material: Paper-80 g/m² Board-up to 300 g/m² PET film- 12–40 µm -Web cleaning system: ACE -Infeed pulling unit: included -Outfeed pulling unit: included -Turnbars: 1 standard turnbar, 1 additional 90° turnbar
| Machine Code | RO278 |
| Manufacturer | RCL |
| Year | 2013 |
| Number of colors | 12 |
| Drive | Electronic shaft |
| Trolley system | No |
| Web width (mm) | 550 |
| Print width (mm) | 530 |
| Print repeat range (mm) | 380 -760 |
| Drying specifications | -10 units (2 m each) -2 units (3 m each) -Chill rollers: 12 (after each drying section) -UV system: 3 UV lamps (Lamo) |
| Unwinder type | Turret Monomatic |
| Rewinder type | Turret Monomatic |
| Register controll | Eltromat Registar |
| Note | -Mechanical speed: up to 350 m/min -Web tension range: 50–500 N Material: Paper-80 g/m² Board-up to 300 g/m² PET film- 12–40 µm -Web cleaning system: ACE -Infeed pulling unit: included -Outfeed pulling unit: included -Turnbars: 1 standard turnbar, 1 additional 90° turnbar |
