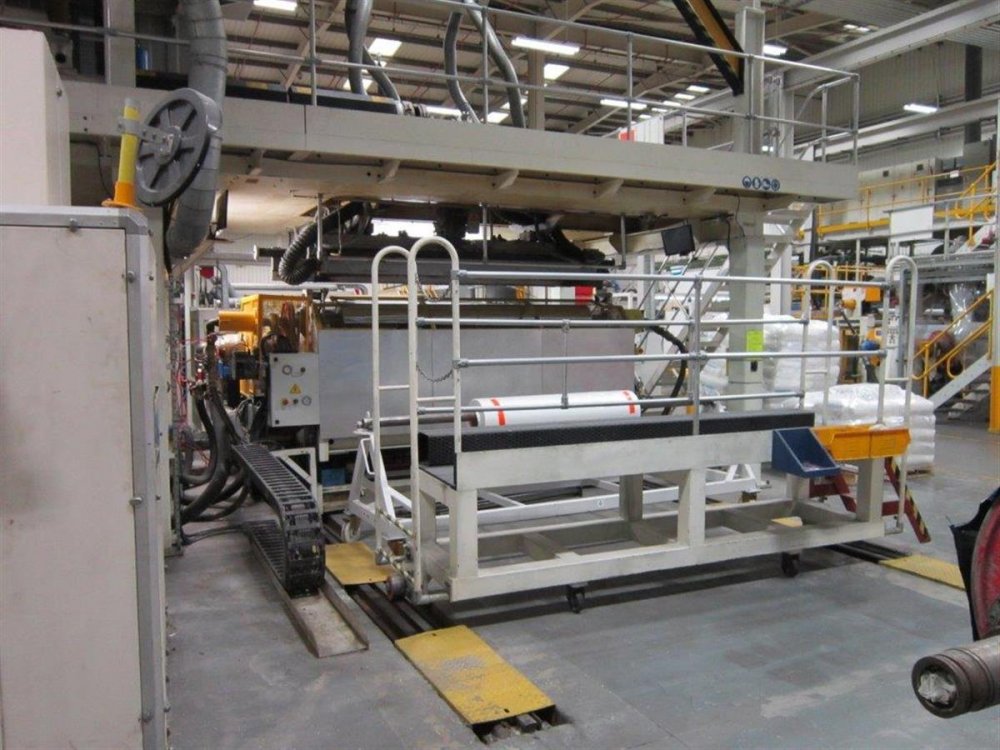

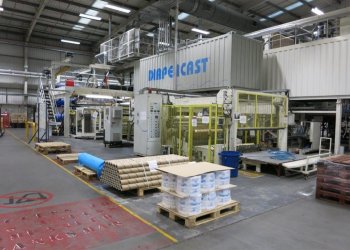

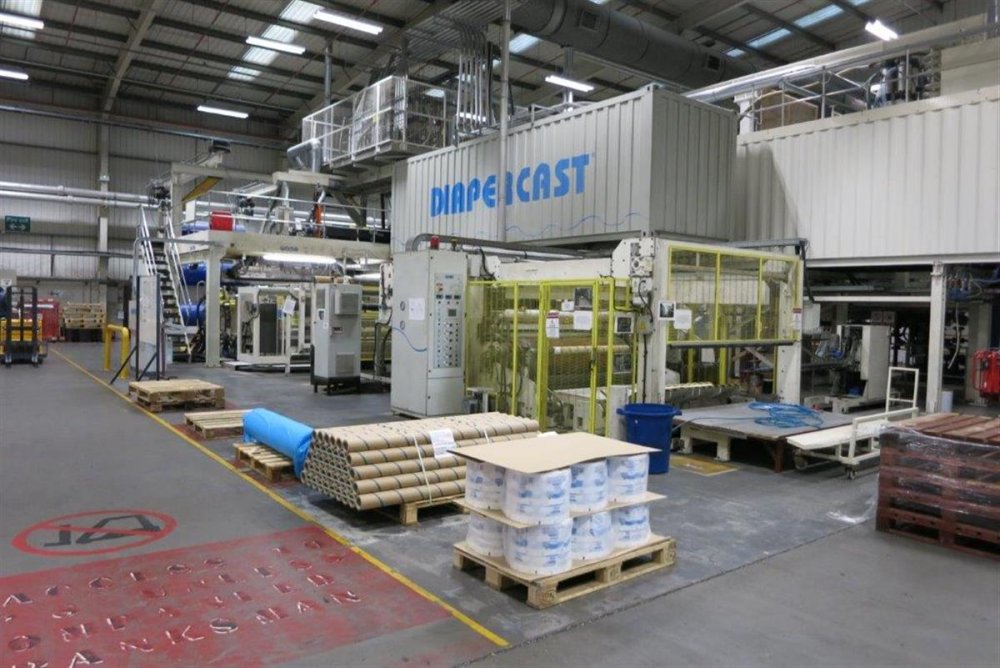

5 layers COLINES EMB Diaper film Cast film extruder

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).

Machine Code CA183
Manufacturer COLINES
Model EMB Diaper film
Year 2009
Number of layers 5
Film structure ACBCA
Material Diapers backsheet LDPE,
Film width (mm) 2000

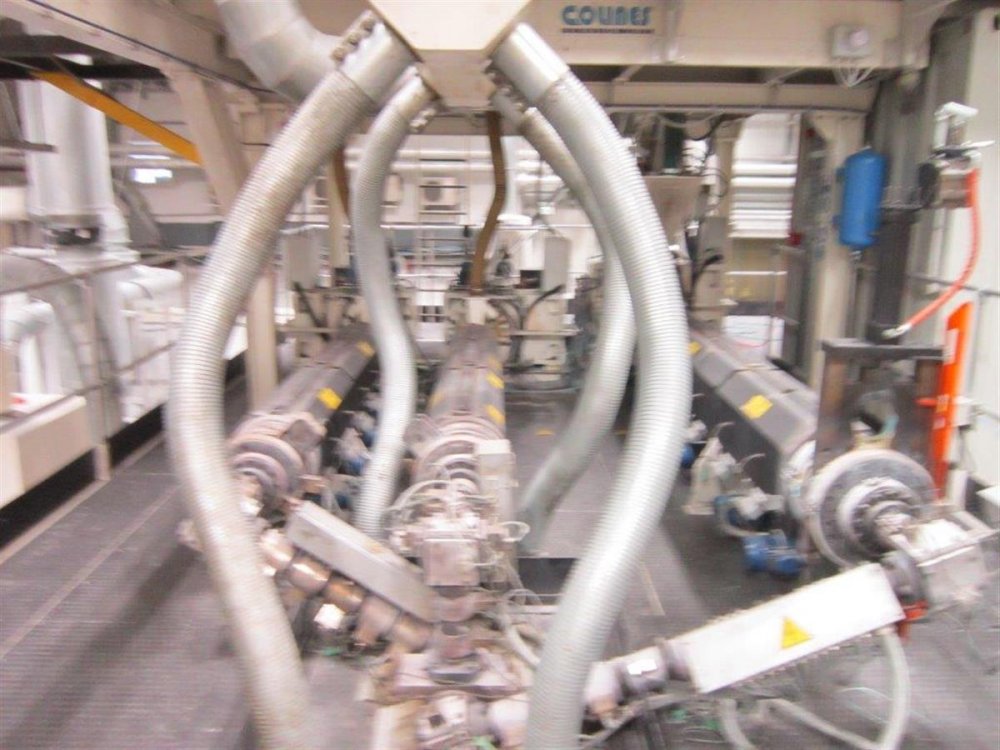

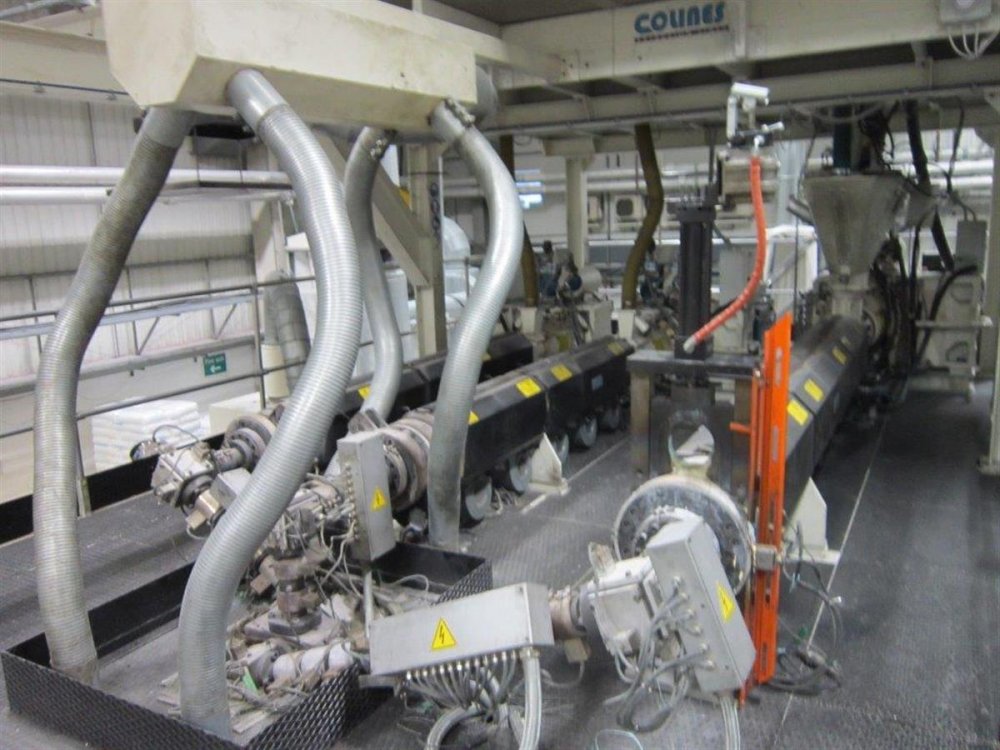

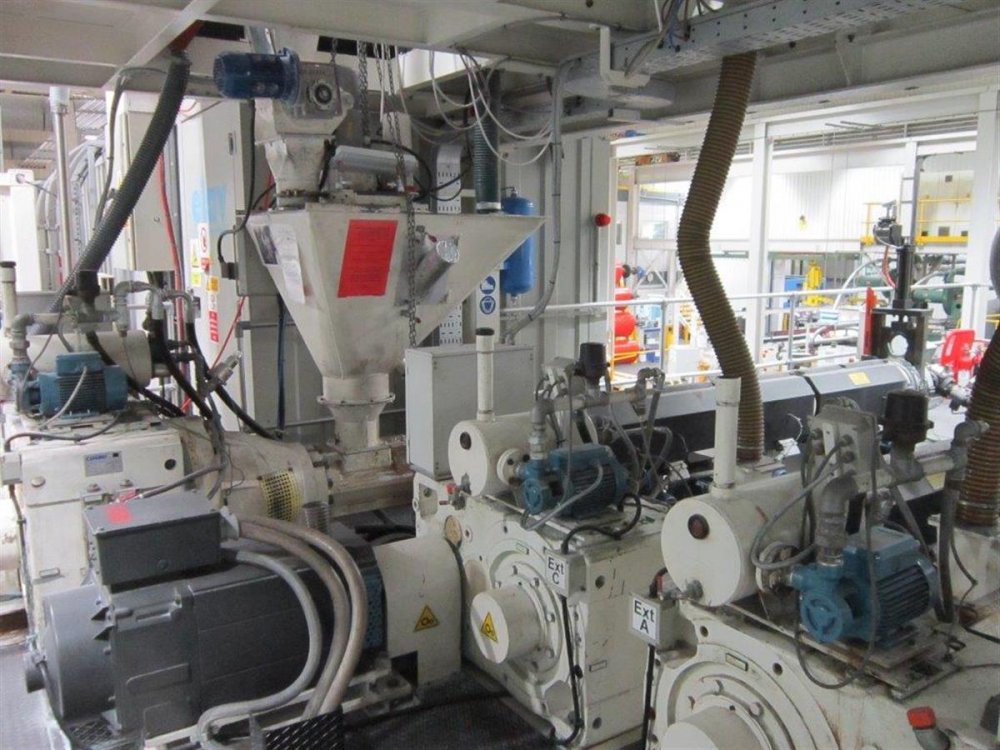

Extruder 1 Layer ref: 130
Screw diam 130mm
Extruder 2 Layer ref: 90
Screw diam 90mm
Extruder 3 Layer ref: 90
Screw diam 90mm
Head description CLOEREN with 250mm internal deckling and 5 layer CLOEREN feed block.
Die width (mm) 2400

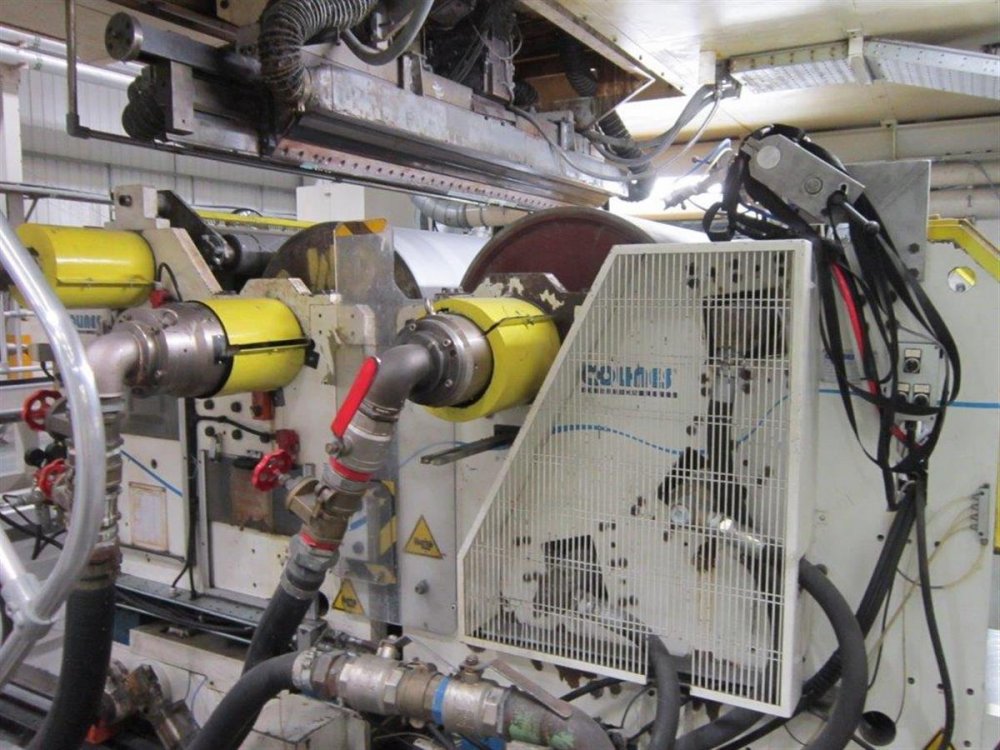

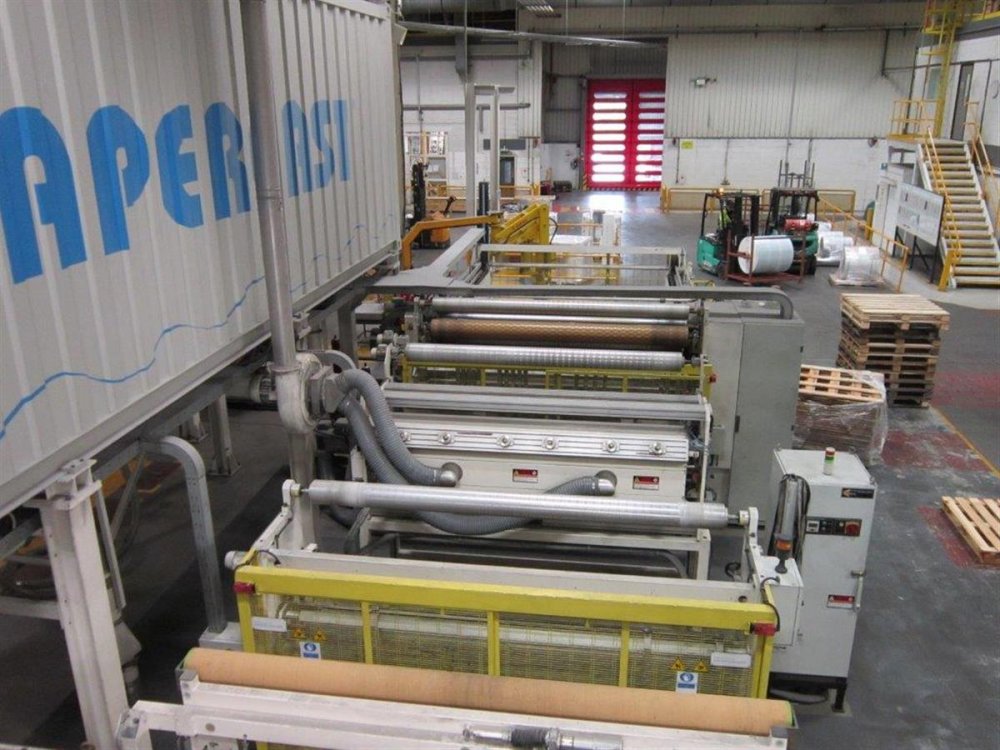

Chill roll unit 1x D800, 1xD350mm
Web guide Yes

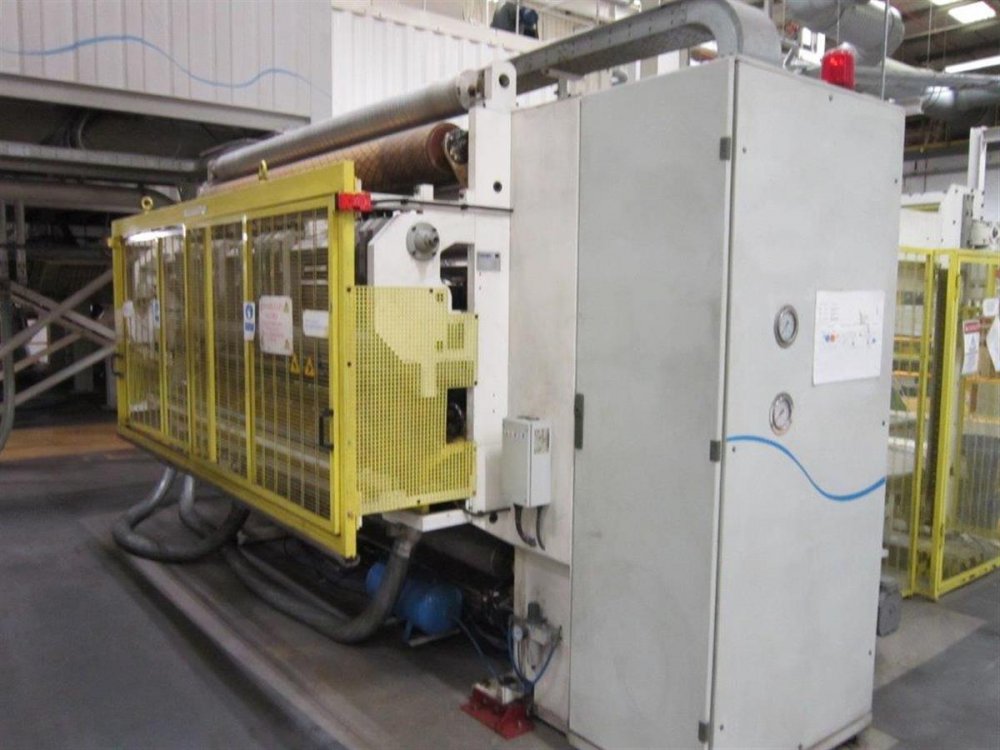

Rewinder max reel diameter (mm) 600
Rewinder description Fully automatic
Additional information Suction device for trimmed edges complete with grinding mill soundproof cab, fan, piping and re-feeding hopper placed in the main extruder diam.130 mm, and haul-off unit to unwind scrap reels
