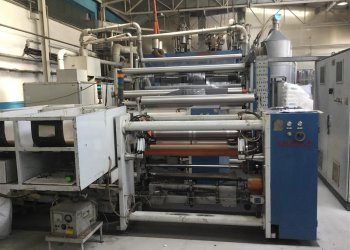

3 layers DOLCI EXTRUSION Cast film extrusion line

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).

Machine Code CA176
Manufacturer DOLCI EXTRUSION
Year 2007
Number of layers 3
Film structure ABC
Material STRETCH FILM
Film width (mm) 2000
Speed (m/min) 600 m/min
Output (Kg/h) 990 kg/h
Extruder 1 Layer ref: A
Description Innoplast dosing unit
Extruder 2 Layer ref: B
Description Innoplast dosing unit
Extruder 3 Layer ref: C
Description Innoplast dosing unit
Head description CLOEREN with internal deckling
Die width (mm) 2950
Thickness controll system NDC
Web guide Yes
Rewinder max reel diameter (mm) 200 on 50 and 76mm cores. 3 shafts each winder. 21 sec/cycle
Rewinder description Double 1000mm wide for hand and automatic rolls. Max roll weight 17 Kg.
Additional information Layer Distribution 25/50/25, 20/60/20, 15/70/15 with continuous adjustment Water Pumping unit with 2000 l tank
