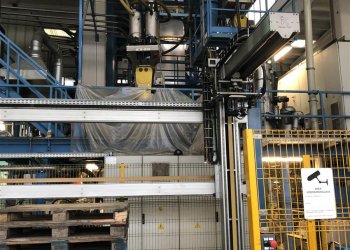

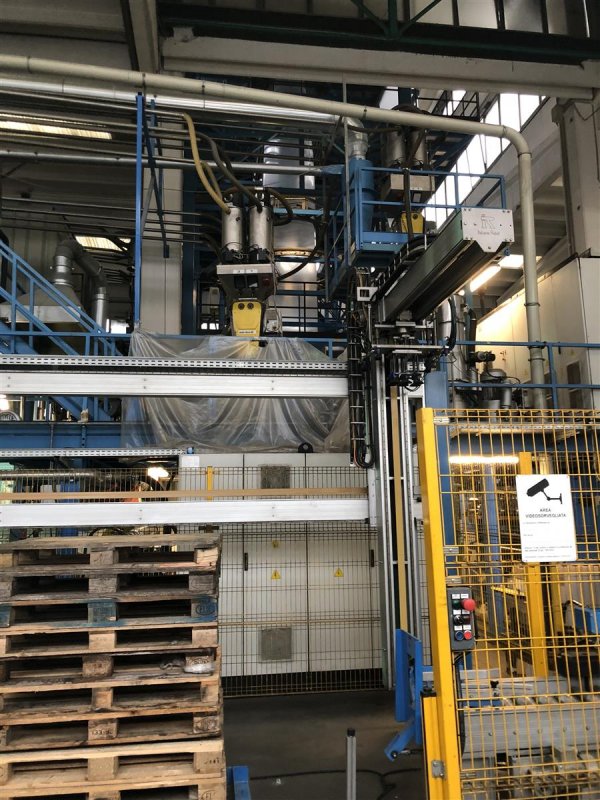

3 layers TCE Cast film machine
Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
| Machine Code | CA173 |
| Manufacturer | TCE |
| Year | 2012 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | STRETCH FILM |
| Film width (mm) | 1500 |
| Output (Kg/h) | 700 |

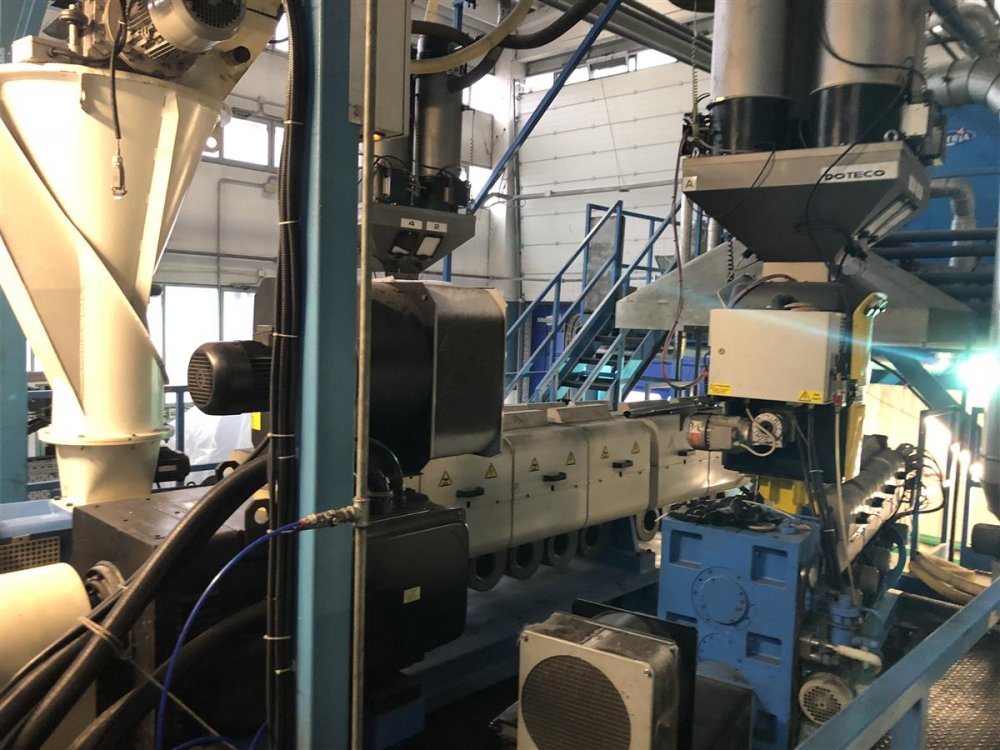

| Extruder 1 Layer ref: | A |
| Screw diam | 65mm |
| Description | Gravimetric dosing mixer Doteco, AC motor |
| Extruder 2 Layer ref: | B |
| Screw diam | 120mm |
| Description | Gravimetric dosing mixer Doteco, AC motor |
| Extruder 3 Layer ref: | C |
| Screw diam | 65mm |
| Description | Gravimetric dosing mixer Doteco, AC motor |

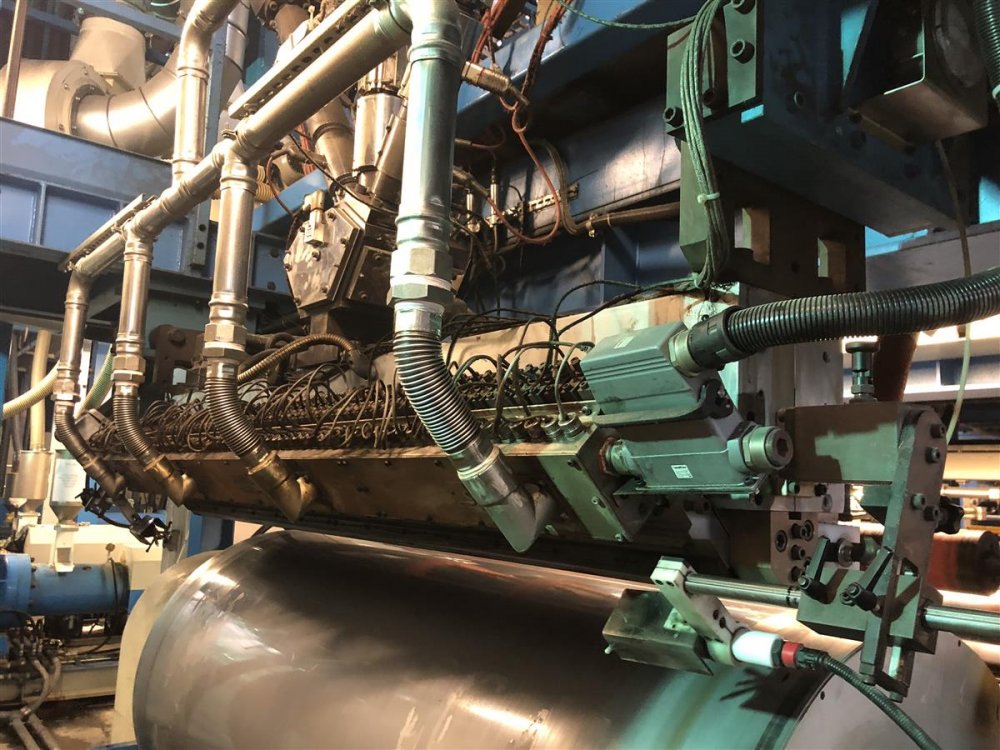

| Head description | EDI, flex lip with automatic thicknes control via thermal bolts, vacuum box |
| Die width (mm) | 2050 |

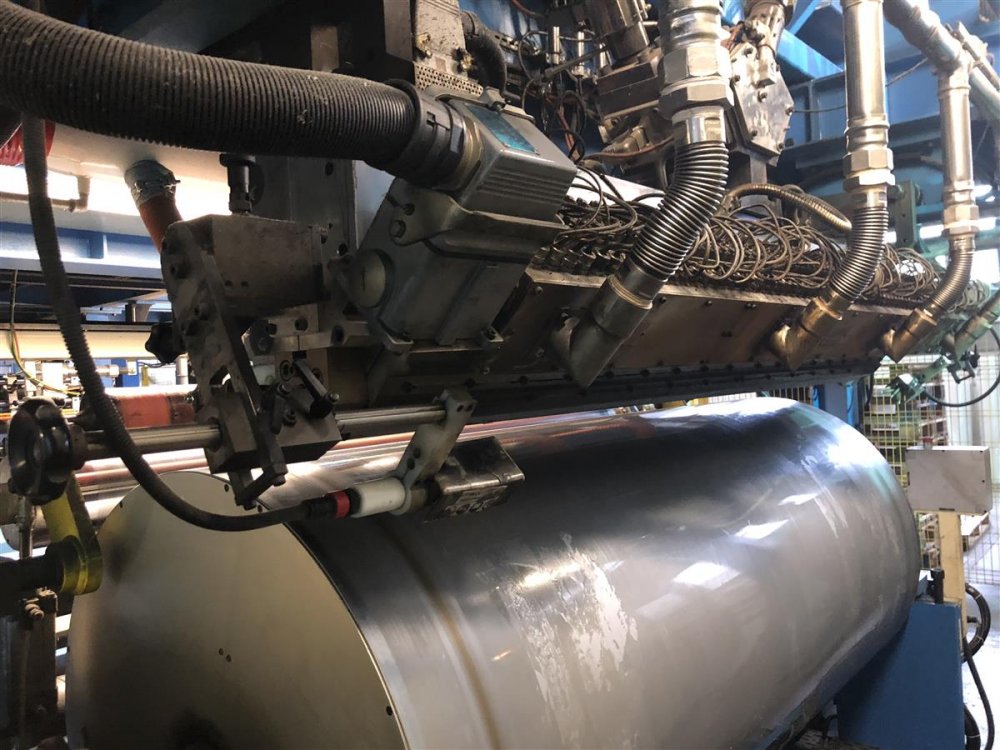

| Chill roll unit | diam 1000mm |
| Thickness controll system | Automafic, by Electronic system |
| Rewinder max reel diameter (mm) | 400 |

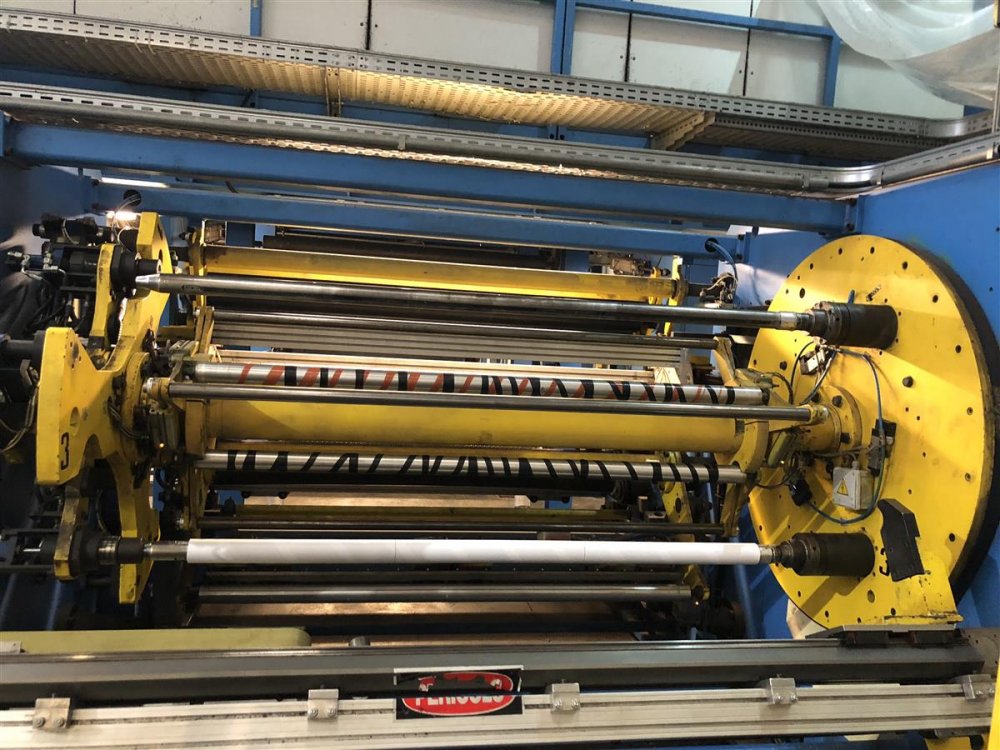

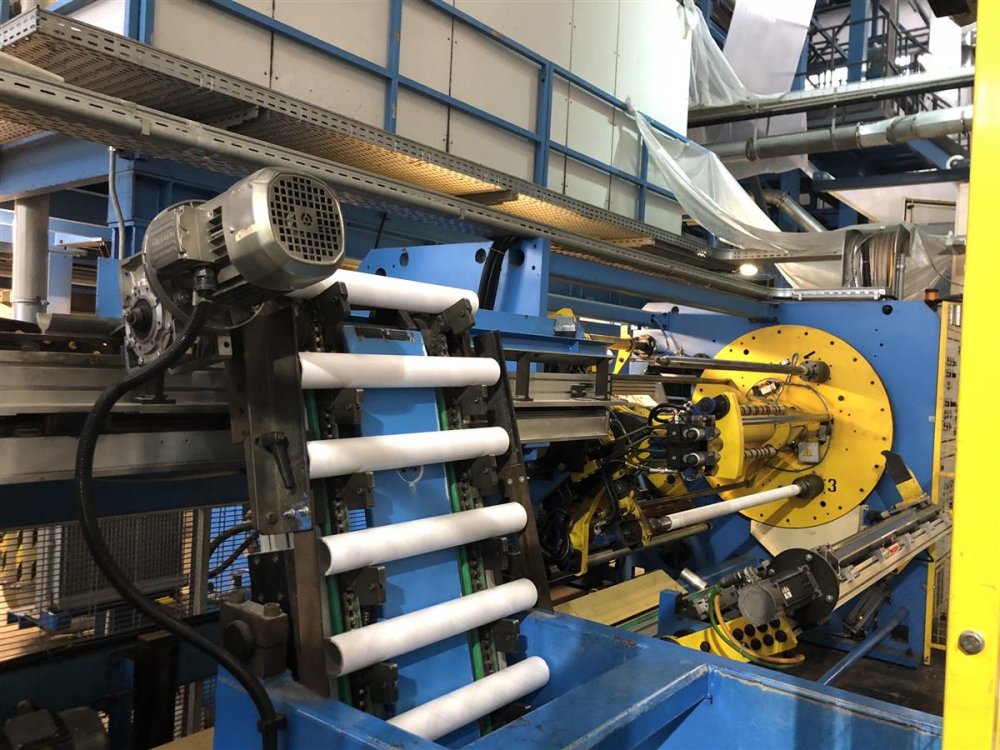

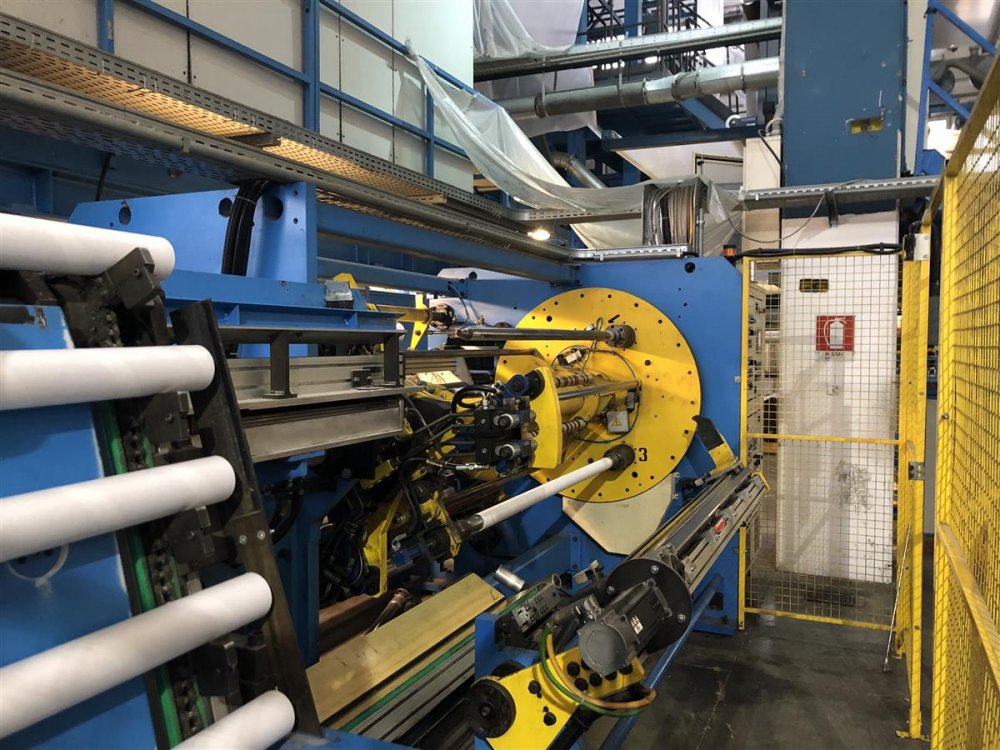

| Rewinder description | Turret winder. For Jumbo, machine reels, hand reels |
| Additional information | edge recycling system tria |
