3 layers SML Cast film extrusion line ** SOLD ** Ask more informations about a similar one

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).

Machine Code CA164
Manufacturer SML
Year 2015
Number of layers 3
Film structure BAAAC
Material STRETCH FILM (LLDPE, VLDPE)
Film width (mm) 1500
Speed (m/min) max 650m/min

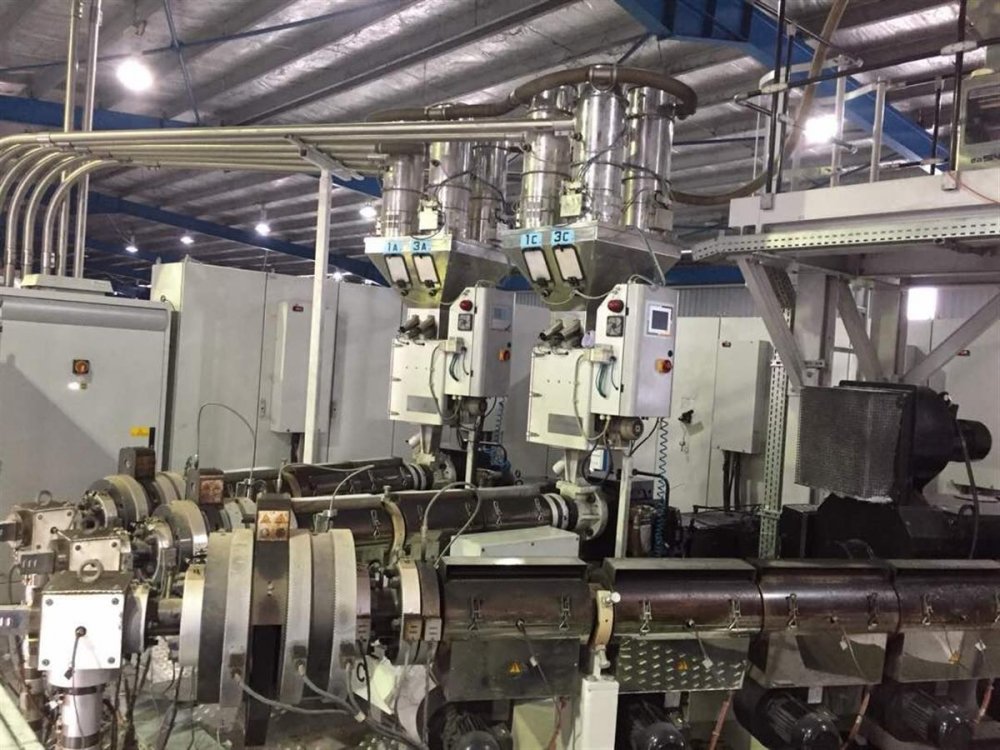

Extruder 1 Layer ref: A
Screw diam 60mm
Description Output max : 190 kg/h ,Size : 60/28 L/D
Extruder 2 Layer ref: B
Screw diam 90mm
Description Output max : 800 kg/h ,Size : 90/33 L/D
Extruder 3 Layer ref: C
Screw diam 60mm
Description Output max : 190 kg/h ,Size : 60/28 L/D

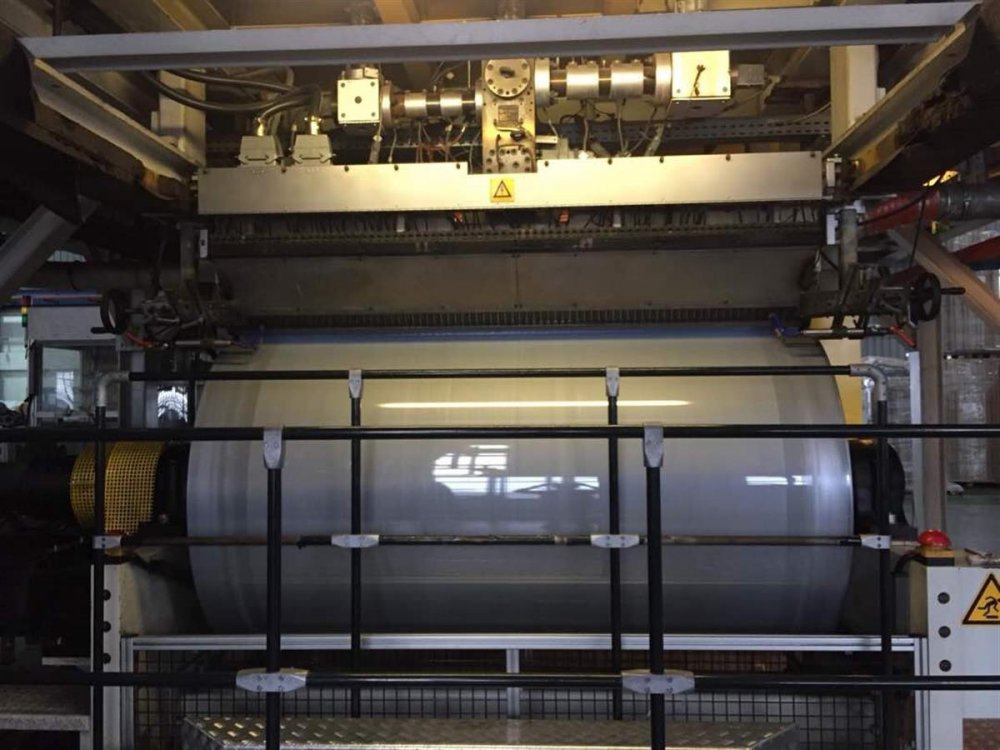

Chill roll unit Chill roll : 1200mm

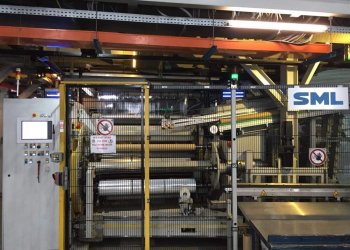

Rewinder description Winder Type L 4000 – 4 winding stations .Winder mechanical speed : max 650m/min
Additional information for handy, machine & jumbo rolls production. For 2” hand roll + 3” machine/ jumbo rolls Products : Stretch Wrap Roll Film Thickness range : 8 - 45um Final film width : 3 X 500mm / 2 X 750mm

** SOLD **
