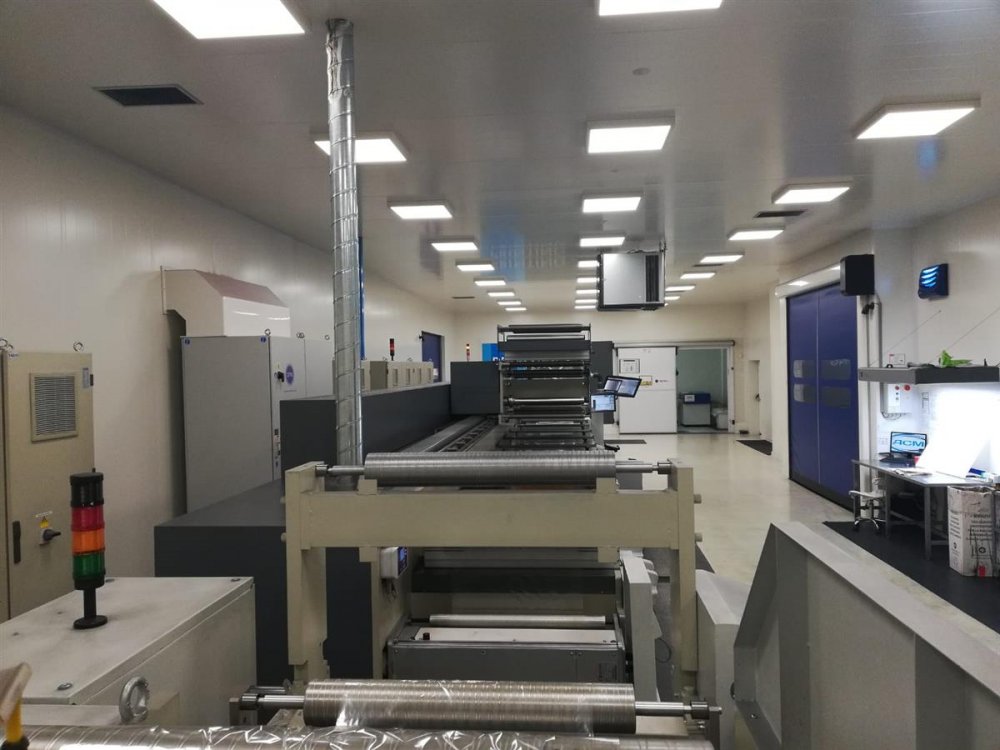

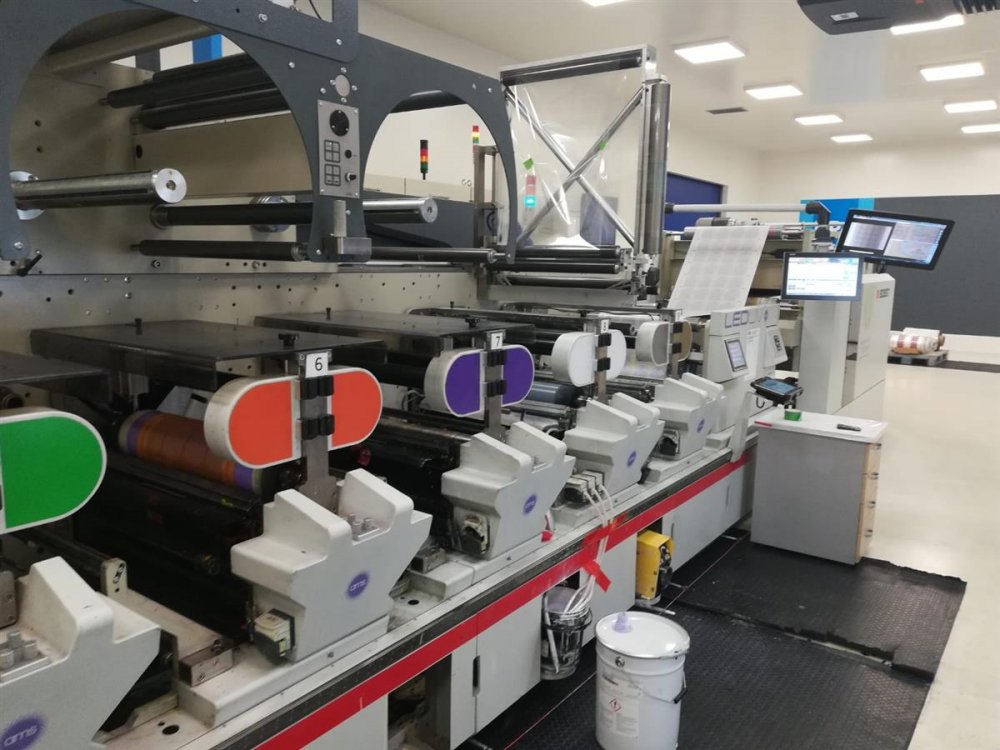

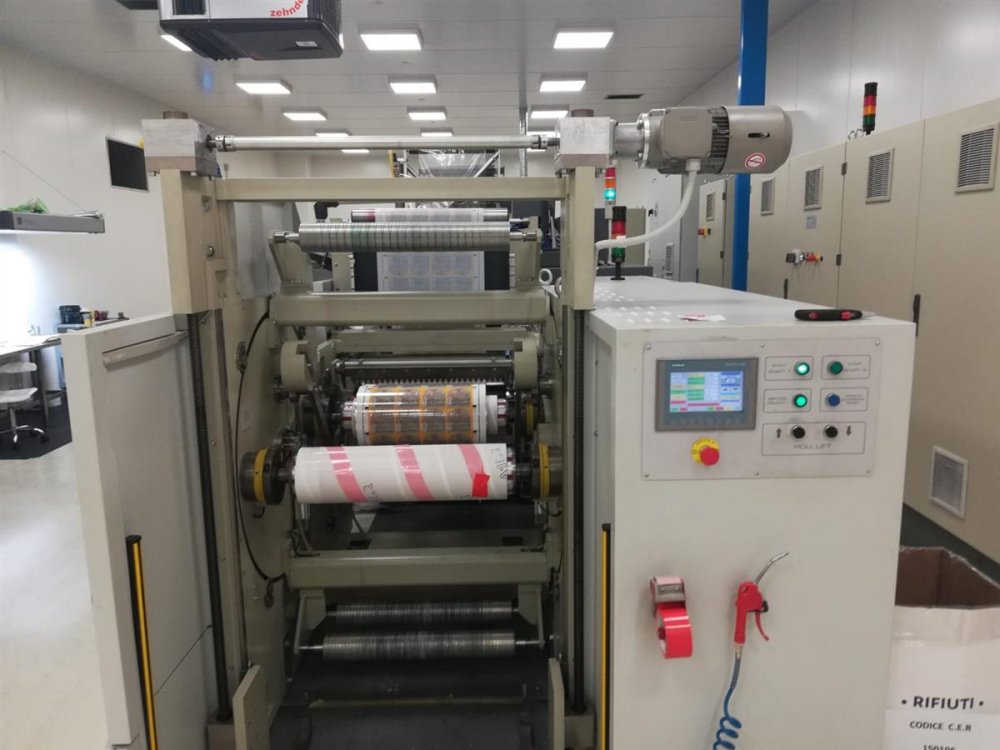

BOBST M6 narrow web flexo printing machine

Flexographic printing machines (often abbreviated as flexo printer) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Ask more informations
Machine Code
LAB202
Manufacturer
BOBST
Modello
M6
Year
2015
Number of colors
9
Web width (mm)
670
Print width (mm)
660
Print repeat range (mm)
304,8 - 609,6
Drying
9 UV new AMS lamps
Unwinder
Turret non stop, max diameter 1000mm
Rewinder
Turret non stop, max diameter 1000mm
Note
Suitable for food industry white chamber conditions. 1.Min and max thickness: 12my PET films upto 250my films and 400gsm paper BST Powerscope 4000 + AVT HELIOS II 1.23 1.24 Tools Single side corona F&B Single side web cleaner 9UV flexo stations with V-Flower technology Auto pressure setting Auto sleeve change with job preparation while the machine is printing Industrial chiller Longitudinal register control 9 flexo pumps 3 web break detectors 100% quality control and inspection system AVT Helios II 9 print tutor: one smart camera on each print head for longitudinal and side register control. The same camera controls also the print pressure through AVT Helios II camera. Web Turn Bar slidable on rails Cold Foil unit, movable on rails 162 printing sleeves 24 APEX anilox rolls (some GTT for REVO) Plate mounter with video
Machine Code LAB202
Manufacturer BOBST
Modello M6
Year 2015
Number of colors 9
Web width (mm) 670
Print width (mm) 660
Print repeat range (mm) 304,8 - 609,6
Drying 9 UV new AMS lamps
Unwinder Turret non stop, max diameter 1000mm
Rewinder Turret non stop, max diameter 1000mm
Note Suitable for food industry white chamber conditions. 1.Min and max thickness: 12my PET films upto 250my films and 400gsm paper BST Powerscope 4000 + AVT HELIOS II 1.23 1.24 Tools Single side corona F&B Single side web cleaner 9UV flexo stations with V-Flower technology Auto pressure setting Auto sleeve change with job preparation while the machine is printing Industrial chiller Longitudinal register control 9 flexo pumps 3 web break detectors 100% quality control and inspection system AVT Helios II 9 print tutor: one smart camera on each print head for longitudinal and side register control. The same camera controls also the print pressure through AVT Helios II camera. Web Turn Bar slidable on rails Cold Foil unit, movable on rails 162 printing sleeves 24 APEX anilox rolls (some GTT for REVO) Plate mounter with video
ARSOMA EM410
OMET Iflex
NILPETER FA-4
ETI Metronome 1308

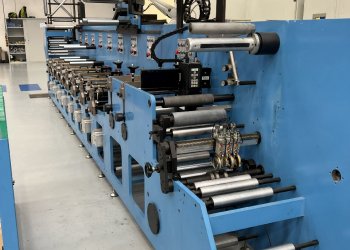

LOMBARDI FLEXOLINE 330
