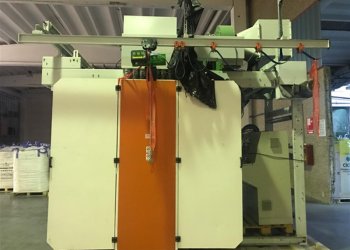

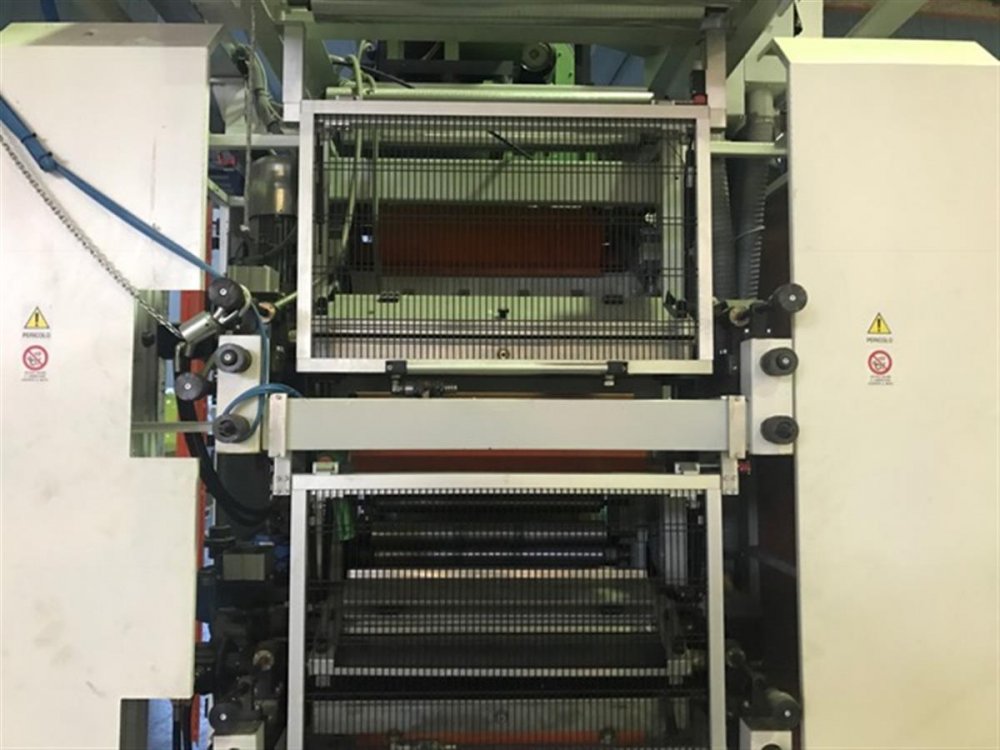

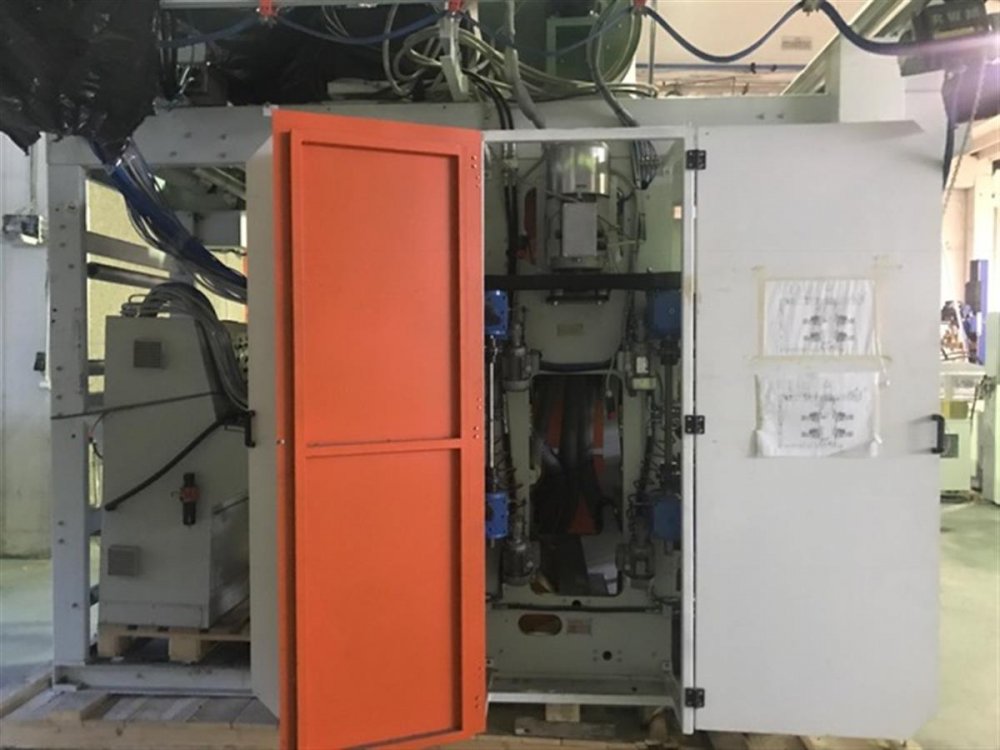

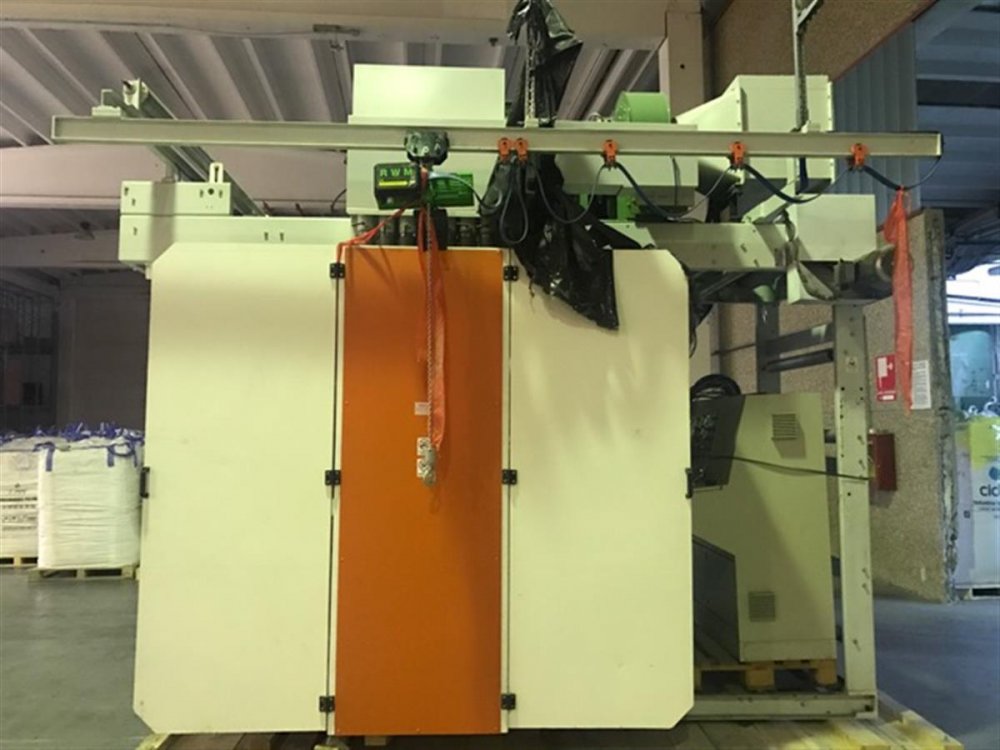

RAFLEX 4 SLE80 Flexo stack printing machine
Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
| Machine Code | ST239 |
| Manufacturer | RAFLEX |
| Model | 4 SLE80 |
| Year | 2009 |
| Number of colors | 4 |
| Print possibilities | 4+0, 3+1, 2+2 |
| Type | In line with extruder |
| Web width (mm) | 900 |
| Print width (mm) | 800 |
| Print repeat (mm) | 400-1100 |
| Drying | Electric 4x15 KW |
| Inking sysytem | rubber roller + metal anilox |
| Anilox | 4x 100linee x 14-16 trasporto |
| Print cylinders | Yes |
| Additional information | Max mech speed: 130m/min Plate+ sticky back 3mm Materials HDPE, LDPE tubular 180my |
