** SOLD **
Gravure presses are used to print on different supports: plastic films, paper and aluminium foil.
Ask more informations
about a similar one
- Machine Code
- RO262
- Manufacturer

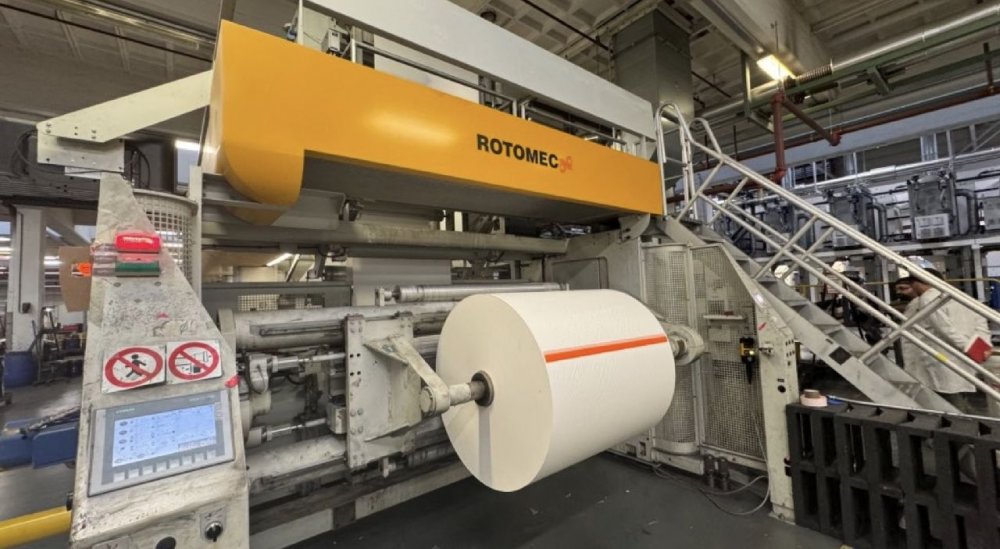

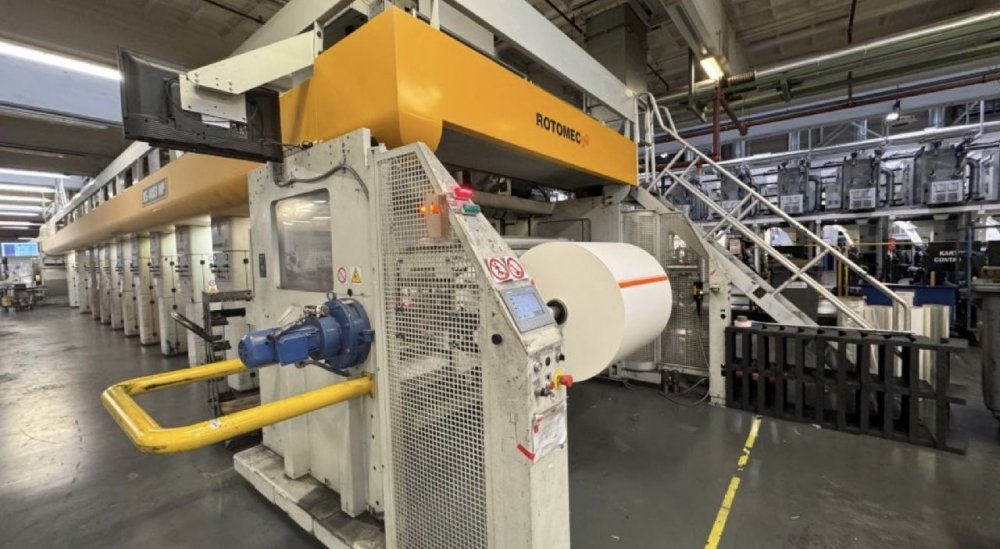

- ROTOMEC
- Modello

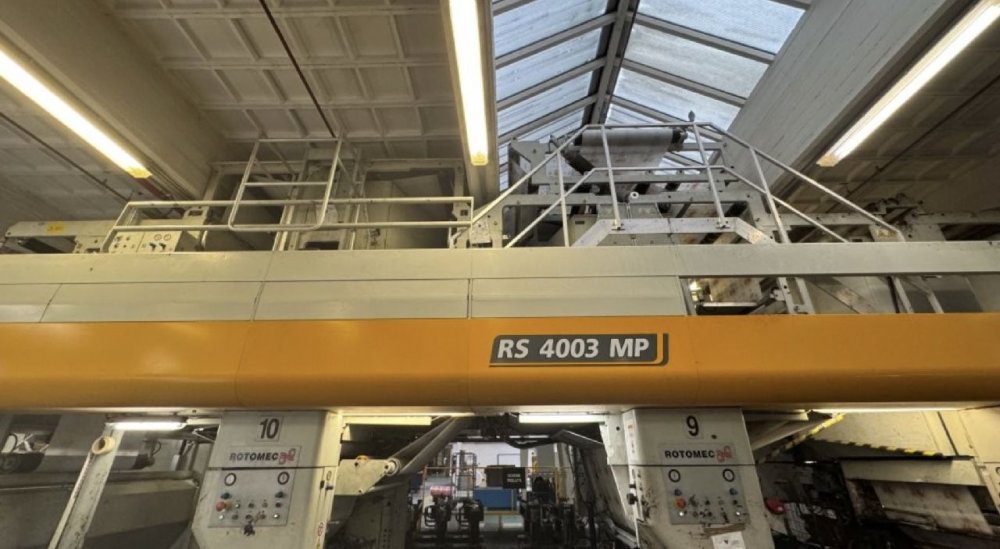

- RS4003 MP
- Year
- 2007
- Number of colors
- 10
- Print possibilities
- 10+0. 9+1
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1100
- Print width (mm)
- 1130
- Print repeat range (mm)
- 400 - 850
- Drying specifications

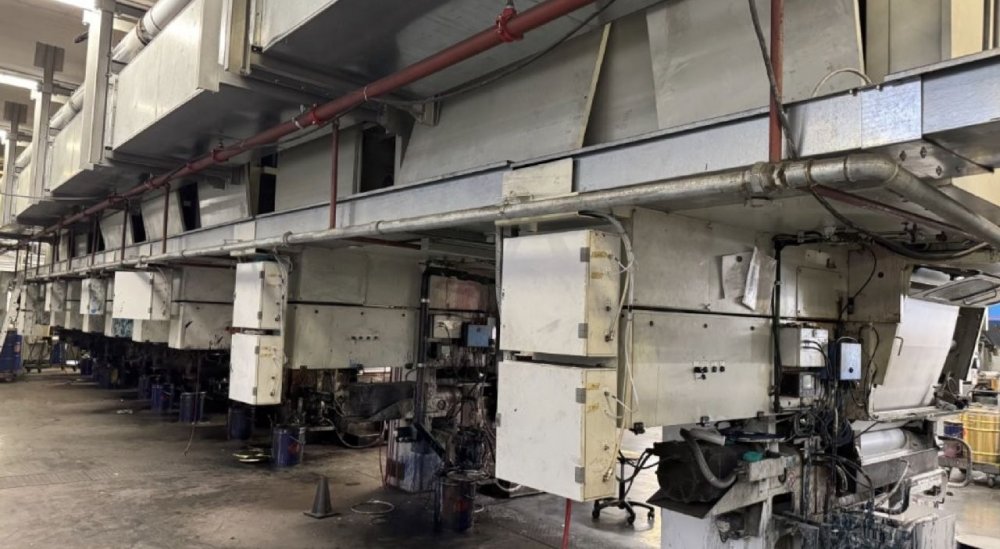

- UNITS 1- 8 One blowing fan, single drying hood 2,7 mt , Unit 9 - 2 blowing fan , one exhaust fan Double drying hood 2x 3,2 mt Unit 10 - 2 blowing fan , one exhaust fan Double drying hood 2x 3,5mt . Thermo oil heat exchangers Automatic air recirculation system with LEL control by Honeywell
- Drying heat surce
- tHERMO OIL HEAT EXCHANGERS

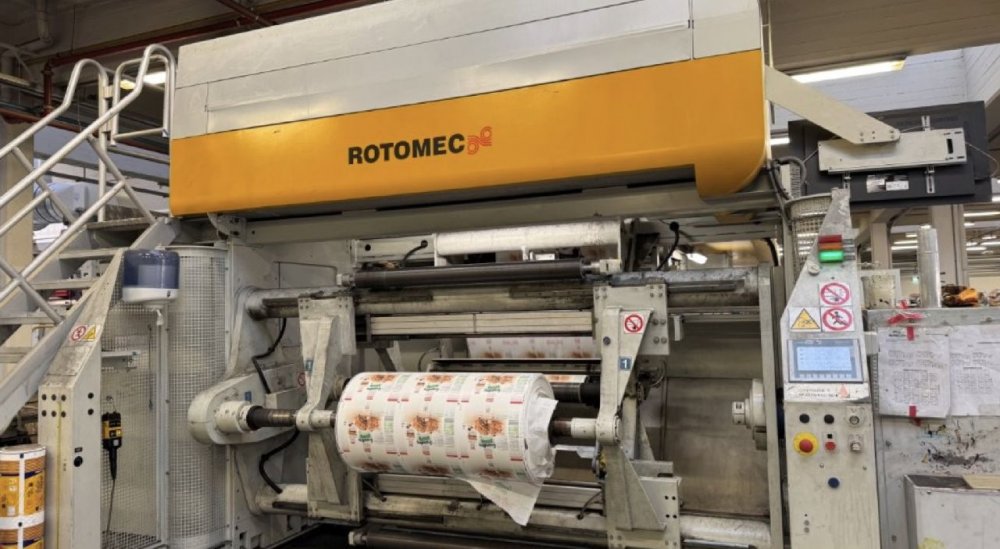

- Unwinder type
- Turret Automatic non stop 1000 mm
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic non stop
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- Yes 2 Video cameras by BST
- Register controll
- YES BOBST Registron
- Vyscosity control
- YES by NEW CELIO
- Print cylinders
- 250 cylinders
| Machine Code | RO262 |
| Manufacturer | ROTOMEC |
| Modello | RS4003 MP |
| Year | 2007 |
| Number of colors | 10 |
| Print possibilities | 10+0. 9+1 |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 1100 |
| Print width (mm) | 1130 |
| Print repeat range (mm) | 400 - 850 |
| Drying specifications | UNITS 1- 8 One blowing fan, single drying hood 2,7 mt , Unit 9 - 2 blowing fan , one exhaust fan Double drying hood 2x 3,2 mt Unit 10 - 2 blowing fan , one exhaust fan Double drying hood 2x 3,5mt . Thermo oil heat exchangers Automatic air recirculation system with LEL control by Honeywell |
| Drying heat surce | tHERMO OIL HEAT EXCHANGERS |
| Unwinder type | Turret Automatic non stop 1000 mm |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic non stop |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | Yes 2 Video cameras by BST |
| Register controll | YES BOBST Registron |
| Vyscosity control | YES by NEW CELIO |
| Print cylinders | 250 cylinders |
