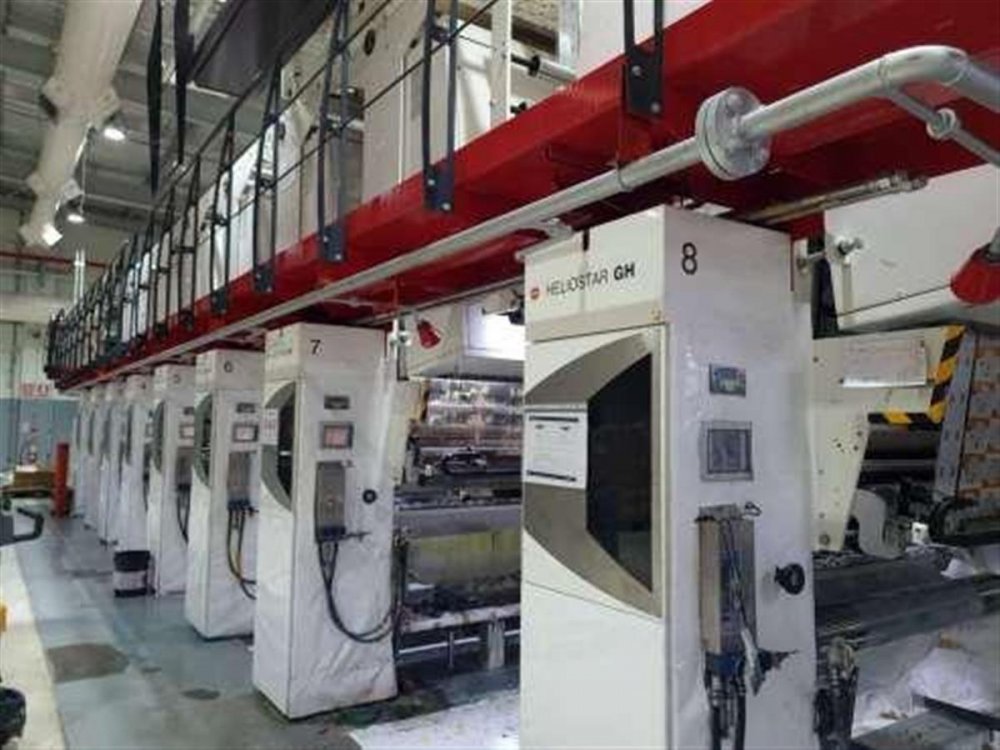

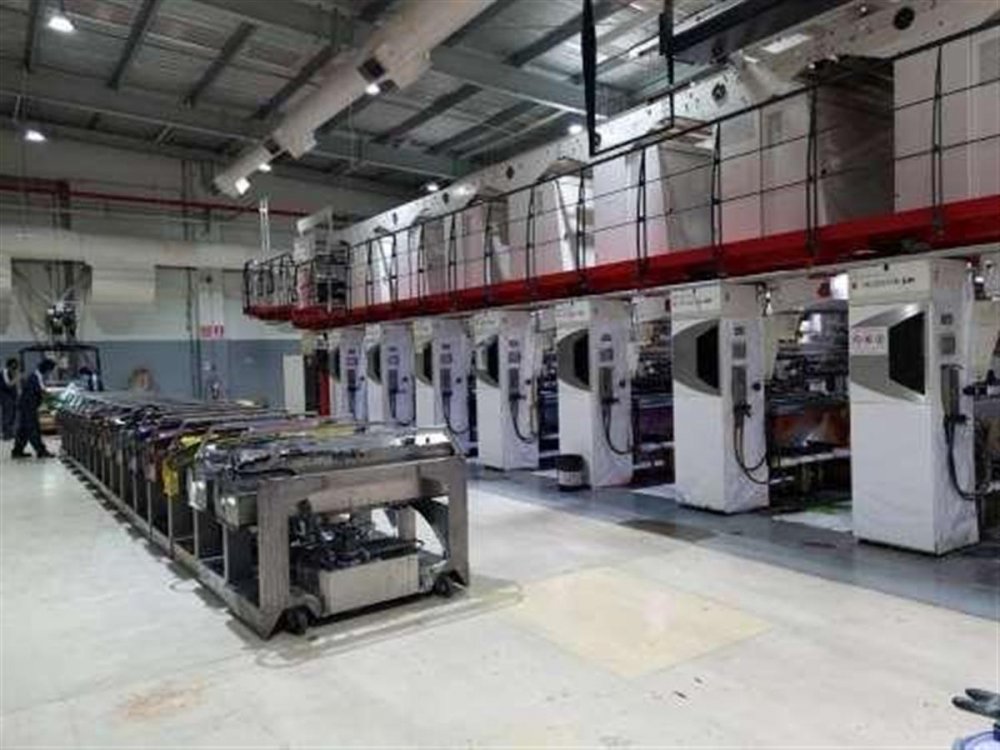

WINDMÖLLER & HÖLSCHER Heliostar G Rotogravure printing machine 8 colors

** SOLD **

Rotogravure presses allow high and stable print quality. Recent technical improvements also allowed to reduce set up times.

Ask more informations
about a similar one
Machine Code
RO224
Manufacturer
WINDMÖLLER & HÖLSCHER
Modello
Heliostar G
Year
2007
Number of colors
8
Print possibilities
8+0 , 7+1 , 6+2
Drive
Electronic shaft
Trolley system
Yes
Web width (mm)
1220
Print width (mm)
1200
Print repeat range (mm)
450 -900
Drying specifications
Unit 1 and 8 Double hood, units 2 to 7 single hood Automatic air recirculation system with LEL control
Drying heat surce
Thermo oil heat exchangers
Unwinder type
Turret automatic
Max reel diameter unwinder (mm)
800
Rewinder type
Turret automatic with slitter attachment
Max reel diameter rewinder (mm)
800
Videocamera
Grafycontrol 100 % inspection system
Register controll
Yes Grafykontrol Automatic Longitudinal and side
Vyscosity control
Yes
Corona treatment
yes
Note
Turning bar 8 antistatic bars ESA ( Electrostatic printing assist ) Web guides Procontrol Operator terminal totally 16 trolleys ( 8 in the machien + 8 spare )
Machine Code RO224
Manufacturer WINDMÖLLER & HÖLSCHER
Modello Heliostar G
Year 2007
Number of colors 8
Print possibilities 8+0 , 7+1 , 6+2
Drive Electronic shaft
Trolley system Yes
Web width (mm) 1220
Print width (mm) 1200
Print repeat range (mm) 450 -900
Drying specifications Unit 1 and 8 Double hood, units 2 to 7 single hood Automatic air recirculation system with LEL control
Drying heat surce Thermo oil heat exchangers
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic with slitter attachment
Max reel diameter rewinder (mm) 800
Videocamera Grafycontrol 100 % inspection system
Register controll Yes Grafykontrol Automatic Longitudinal and side
Vyscosity control Yes
Corona treatment yes
Note Turning bar 8 antistatic bars ESA ( Electrostatic printing assist ) Web guides Procontrol Operator terminal totally 16 trolleys ( 8 in the machien + 8 spare )
