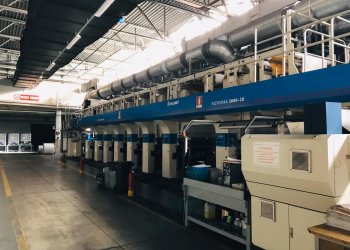

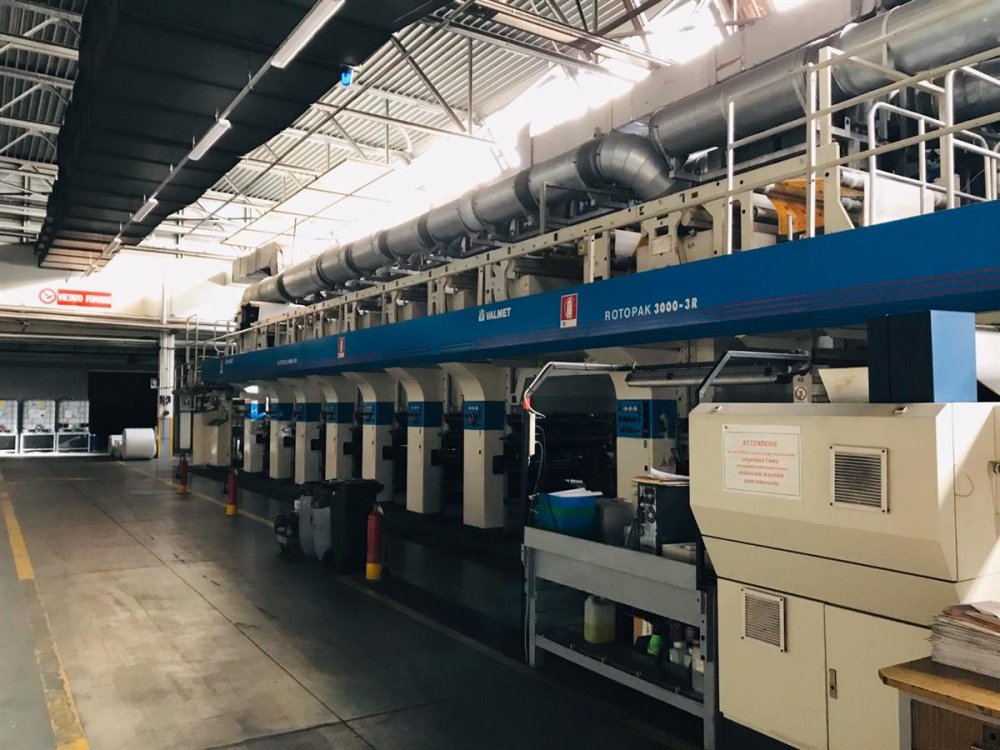

ROTOMEC 3000-3 R Rotogravure printing machine 8 colors

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.

Ask more informations
Machine Code
RO201
Manufacturer
ROTOMEC
Modello
3000-3 R
Year
2001
Number of colors
8
Print possibilities
8+0, 7+1
Drive
Cardan
Trolley system
Yes
Web width (mm)
1320
Print width (mm)
1300
Print repeat range (mm)
400 - 900
Drying specifications
units 1 double hood with one blowing and one ehaust fan , units 2 to 7 to 7 single hood one blowing fan each unit - one general exhaust fan -Unit 8 double extended hood independent ventilation one blowing and one exhaust
Drying heat surce
Thermo oil
Unwinder type
Turret automatic
Max reel diameter unwinder (mm)
1250
Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
1250
Videocamera
Yes
Register controll

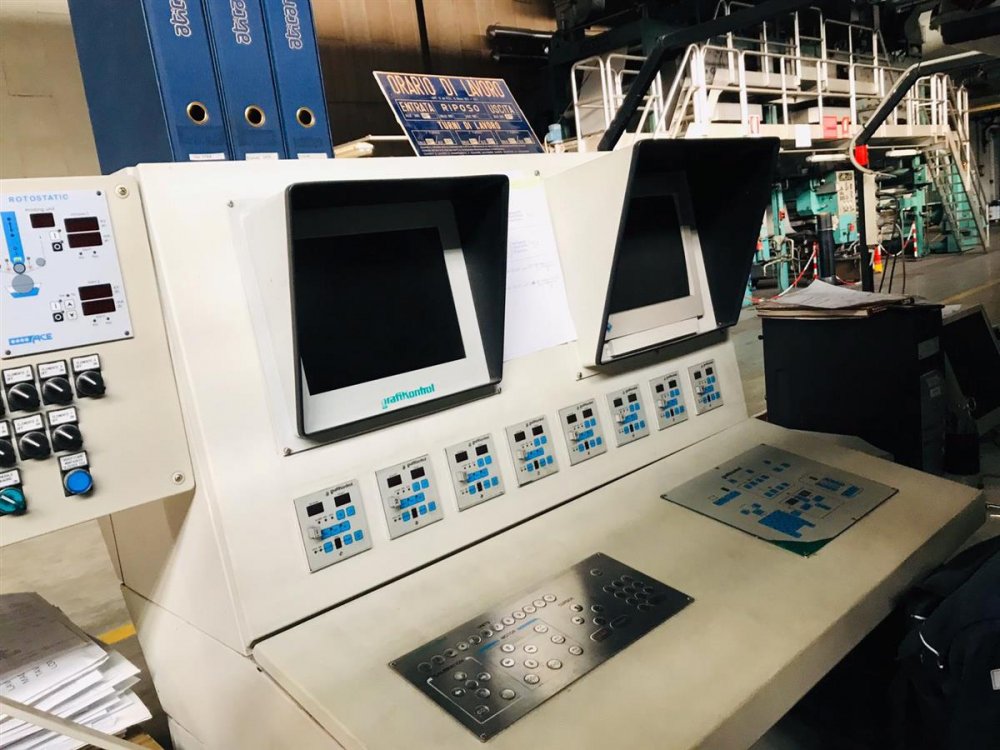

Grafykontrol CR 13
Vyscosity control

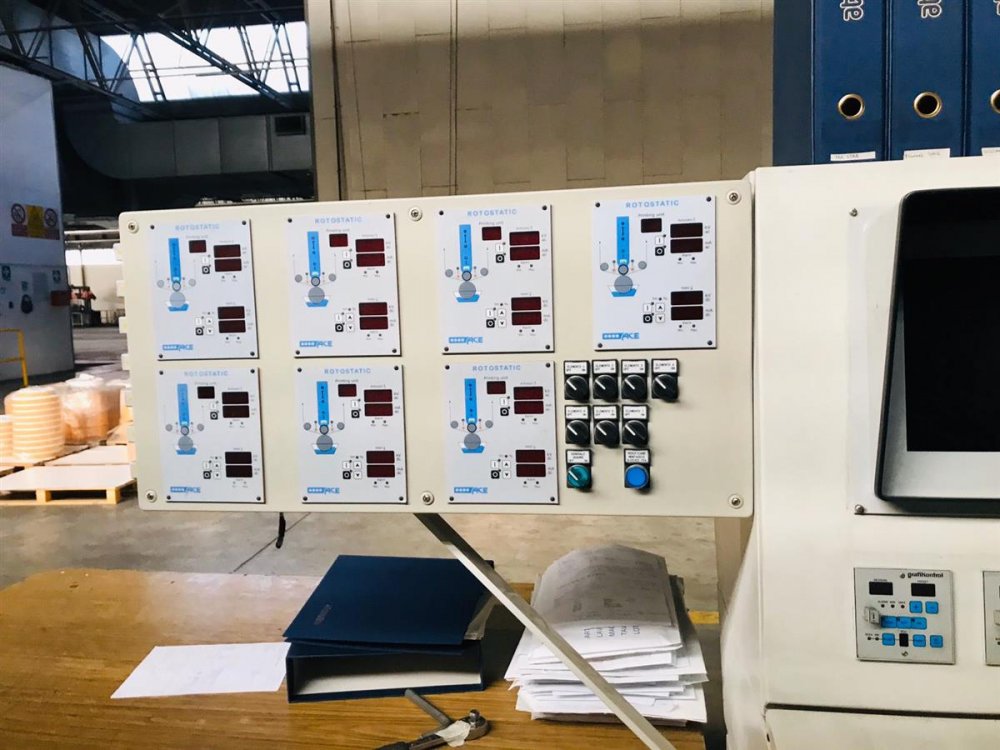

Grafykontrol Covistat
Print cylinders
200 included - option additional 800 available
Note
ACE electrostatic assistance units 1- 7 machine overall dimensions: Length: 26 mt Overall Width: 5,30 mt (3,80 mt) Height: 6,00 mt (including drying tunnel) Materials paper and board
Machine Code RO201
Manufacturer ROTOMEC
Modello 3000-3 R
Year 2001
Number of colors 8
Print possibilities 8+0, 7+1
Drive Cardan
Trolley system Yes
Web width (mm) 1320
Print width (mm) 1300
Print repeat range (mm) 400 - 900
Drying specifications units 1 double hood with one blowing and one ehaust fan , units 2 to 7 to 7 single hood one blowing fan each unit - one general exhaust fan -Unit 8 double extended hood independent ventilation one blowing and one exhaust
Drying heat surce Thermo oil
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 1250
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 1250
Videocamera Yes
Register controll Grafykontrol CR 13
Vyscosity control Grafykontrol Covistat
Print cylinders 200 included - option additional 800 available
Note ACE electrostatic assistance units 1- 7 machine overall dimensions: Length: 26 mt Overall Width: 5,30 mt (3,80 mt) Height: 6,00 mt (including drying tunnel) Materials paper and board
