** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL648
- Manufacturer

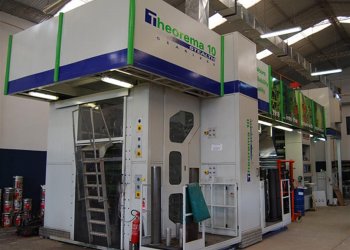

- BIELLONI
- Modello
- THEOREMA
- Year
- 2004
- Number of colors
- 10
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- No
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 340
- Max print repeat (mm)
- 700
- Unwinder type
- SEMI AUTOMATIC
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- AUTOMATIC TURRET
- Max reel diameter rewinder (mm)
- 800
- Drying
- ELECTRICAL
- Videocamera
- Yes, BST GENIUS 3 chips with flaw detection system and automatic register
- Web guides
- Yes, before and after printing
- Inking system
- 10 Pneumatic ink pumps
- Anilox
- 15 ceramic anylox; Lineatures /BCM 650/2.45;4X750/2.58;300/3,87;2X300/6.45; 250/7.74; 250/9.03;250/9.03; 22/10.32
- Print Sleeves
- 250 printing sleeves: 10x 340;18 x 350;10 x 365/ 1,14;10 x 390;10 x 395/ 1,14;18 x 410;10 x 440;8 x 450;16 x 450;8x 470;10 x 480;10 x 490/ 1,14;16 x 490;8 x 500;8 x 510;10 x 520;11 x 540;18 x 570;10 x 620;10 x 630;10 x 660;8 x 370;10 x 340;8 x 640
| Machine Code | FL648 |
| Manufacturer | BIELLONI |
| Modello | THEOREMA |
| Year | 2004 |
| Number of colors | 10 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | No |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 340 |
| Max print repeat (mm) | 700 |
| Unwinder type | SEMI AUTOMATIC |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | AUTOMATIC TURRET |
| Max reel diameter rewinder (mm) | 800 |
| Drying | ELECTRICAL |
| Videocamera | Yes, BST GENIUS 3 chips with flaw detection system and automatic register |
| Web guides | Yes, before and after printing |
| Inking system | 10 Pneumatic ink pumps |
| Anilox | 15 ceramic anylox; Lineatures /BCM 650/2.45;4X750/2.58;300/3,87;2X300/6.45; 250/7.74; 250/9.03;250/9.03; 22/10.32 |
| Print Sleeves | 250 printing sleeves: 10x 340;18 x 350;10 x 365/ 1,14;10 x 390;10 x 395/ 1,14;18 x 410;10 x 440;8 x 450;16 x 450;8x 470;10 x 480;10 x 490/ 1,14;16 x 490;8 x 500;8 x 510;10 x 520;11 x 540;18 x 570;10 x 620;10 x 630;10 x 660;8 x 370;10 x 340;8 x 640 |
