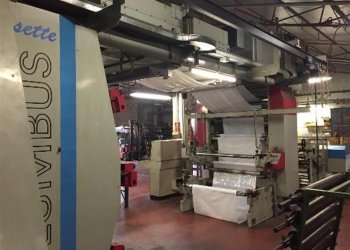

OFEM COLUMBUS 7/906 flexo press 6 colors ** SOLD ** Ask more informations about a similar one

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL647
Manufacturer OFEM
Model COLUMBUS 7/906
Year 2000
Number of colors 6
Print possibilities 6+0
Gearless No
Fast sleeve change No
Web width (mm) 1270
Print width (mm) 1200
Min print repeat (mm) 300
Max print repeat (mm) 900
Unwinder type DOUBLE AXIS DROP SLICE
Max reel diameter unwinder (mm) 800
Rewinder type DOUBLE AXIS TURRET FLYING SLICE
Max reel diameter rewinder (mm) 800
Drying HOT AIR
Videocamera YES
Web guides YES, 1 before print and 1 before rewind
Inking system 4 Printing units (stations 2-3-4-5) equipped with enclosed doctor blade chambers with ceramic anilox rollers;2 Printing units (stations 1 and 6) equipped with fountain rubber roller (machine prepared for application of enclosed doctor blades as the other units)
Anilox 5 anilox roller ceramic coated and laser engraved to 120 lines/cm; • 2 anilox roller mechanically engraved (for fountain roller system) to 100 lines/cm.
Print cylinders complete with gears as follows:6 repeat length 320 mm.;6 repeat length 350 mm ;6 repeat length 370 mm ;6 repeat length 400 mm; 6 repeat length 430 mm;6 repeat length 460 mm ;6 repeat length 480 mm ;6 repeat length 500 mm.;6 repeat length 550 mm.;6 repeat length 600 mm.;6 repeat length 620 mm.;6 repeat length 650 mm.;6 repeat length 700 mm.;6 repeat length 750 mm.
Additional information Material : plastic webs; Transmission type: bull-gear; Length registers: motorized remote controlled; Side registers: manual; Decks positioning system: automatic with microprocessor, 1 motor each deck; Locking system of the printing units: manual; Hoisting system: double electric hoists for printing rollers handling;

** SOLD **
