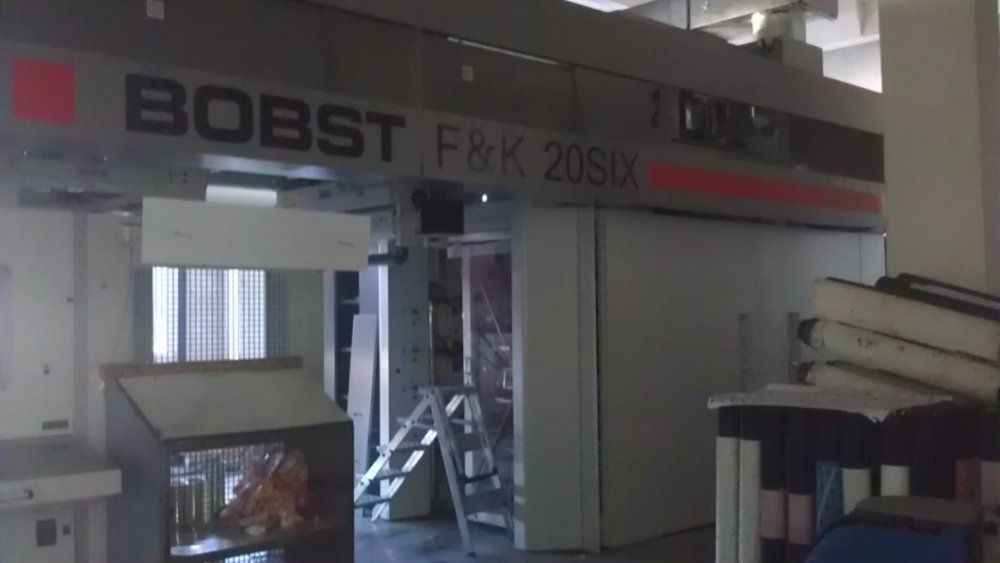

FISCHER & KRECKE 20 SIX (GEARLESS) Flexo central drum printing press 8 colors

** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Ask more informations
about a similar one
Machine Code
FL629
Manufacturer
FISCHER & KRECKE
Model
20 SIX (GEARLESS)
Year
2013
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1100
Print width (mm)
1050
Min print repeat (mm)
320
Max print repeat (mm)
800
Unwinder type
Non stop
Max reel diameter unwinder (mm)
1020
Rewinder type
Non stop
Max reel diameter rewinder (mm)
1020
Drying
electric
Videocamera
Yes
Corona treatment
AFS
Web guides
Yes
Vyscosity control
Yes
Washing system
Automatic inking and cleaning system for 8 flexo printing units and designed for the use of solvent based.
Inking system
4 carrier for doctor blade for print decks inside the CI. 4 carrier for doctor blade for print decks outside the CI. 8 doctor blade chamber with quick change system.
Anilox
15 anilox 1X 120L 14,0 CM ; 140L 9,5 CM; 160L 11,0 CM; 180L 8,0 CM; 180 L 23,0 CM; 2X 260 L 5,0 CM ; 360 L 4,5 CM; 360 L 5,5 CM; 1 X400L 3,5 CM; GGT M 5,0 , GTT S 2,5 CM ; GTT XS 1, 5 CM
Print Sleeves
Plate cylinders as follows: 28 sets (270 pcs) 340 mm – 8 pcs ; 350 mm – 12 pcs; 360 mm – 12 pcs ;370 mm – 8 pcs ;380 mm - 16 pcs ;400 mm – 16 pcs;410 mm – 8 pcs;420 mm - 16 pcs;430 mm – 8 pcs;440 mm – 8 pcs ;450 mm – 8 pcs;460 mm – 8 pcs; 470 mm – 8 pcs;480 mm – 16 pcs ;500 mm - 8 pcs;520 mm - 8 pcs;530 mm – 8 pcs;540 mm – 8 pcs;550 mm – 8 pcs;560 mm – 8 pcs;570 mm – 8 pcs;580 mm – 8 pcs;600 mm - 8 pcs;610 mm - 8 pcs;620 mm – 14 pcs;640 mm – 8 pcs;650 mm - 8 pcs;660 mm – 8 pcs
Additional information

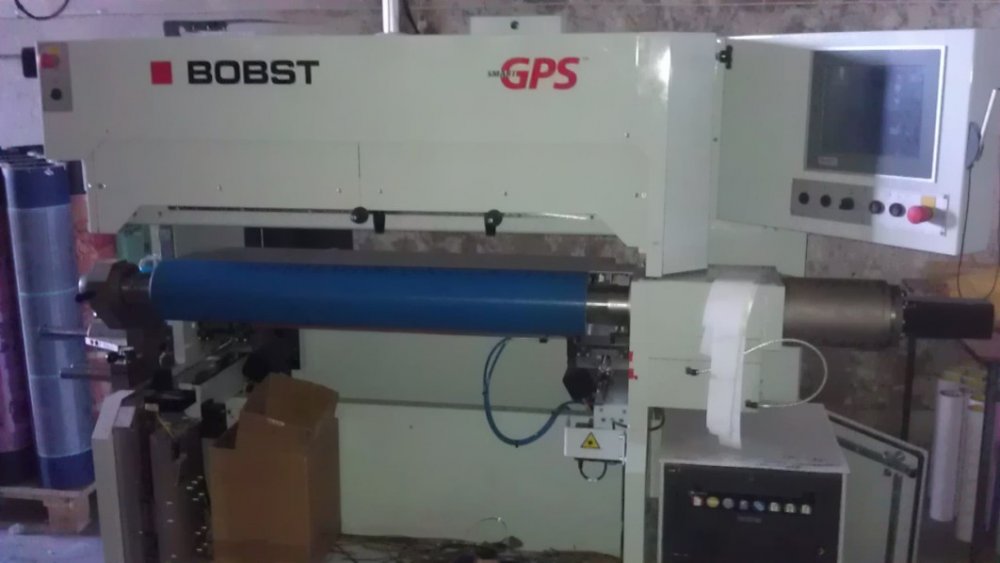

Mechanical speed max 400m/min Web break detector system Antistatic unit with 2 antistatic bars in front of CI unit Gearless water cooled CI torque drive Plate mounting system SMART GPS LEL monitoring system Web threading system Chill roll unit with nip roll UPS System (Uninterrupted Power supply ) Smart Graphic positioning system 8 pneumatic pumps; Dimentions (mm): L – 15787, W – 5500 (with open doors), H – 4980 Weight (kg): 57000
