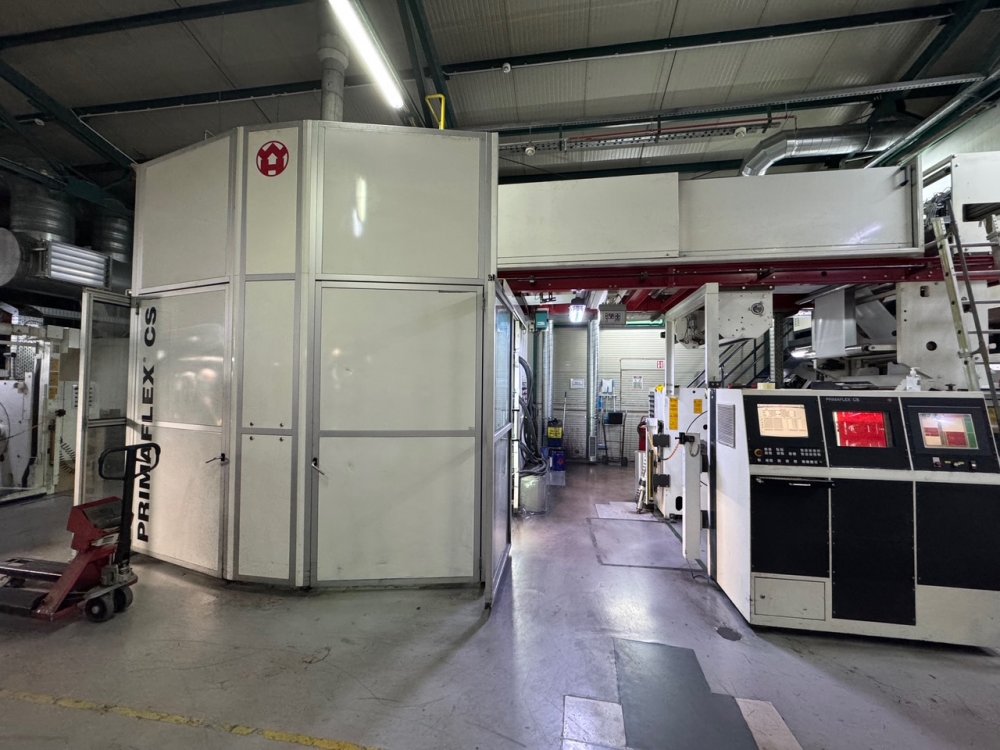

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1207
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- Primaflex
- Year
- 2005
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 870
- Print width (mm)
- 820
- Min print repeat (mm)
- 250
- Max print repeat (mm)
- 800

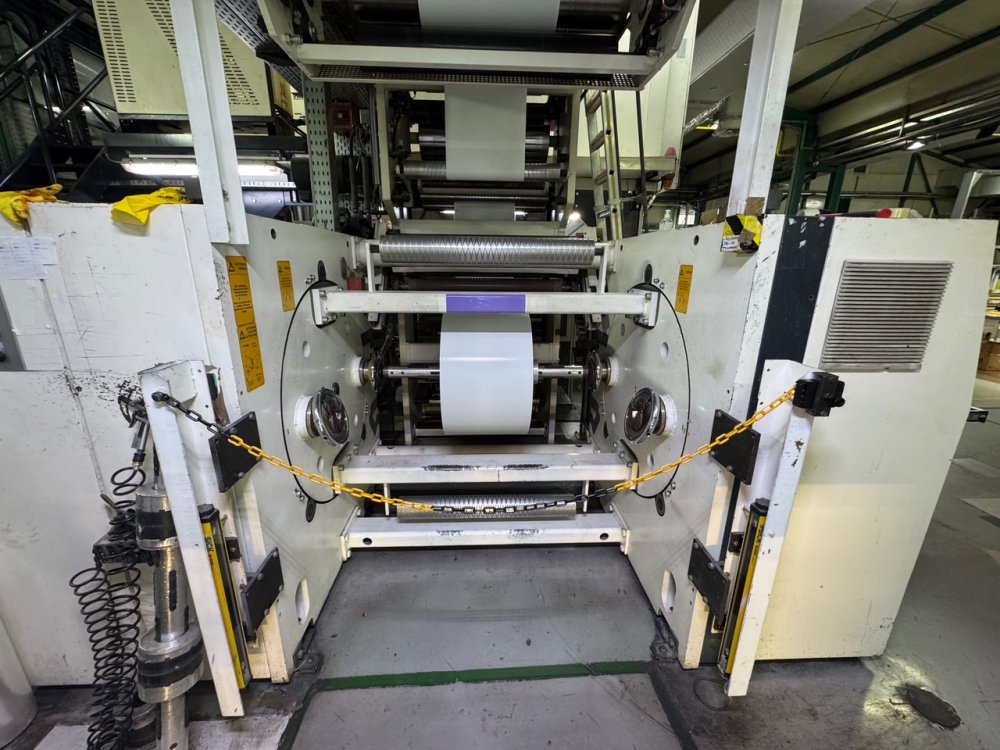

- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 800

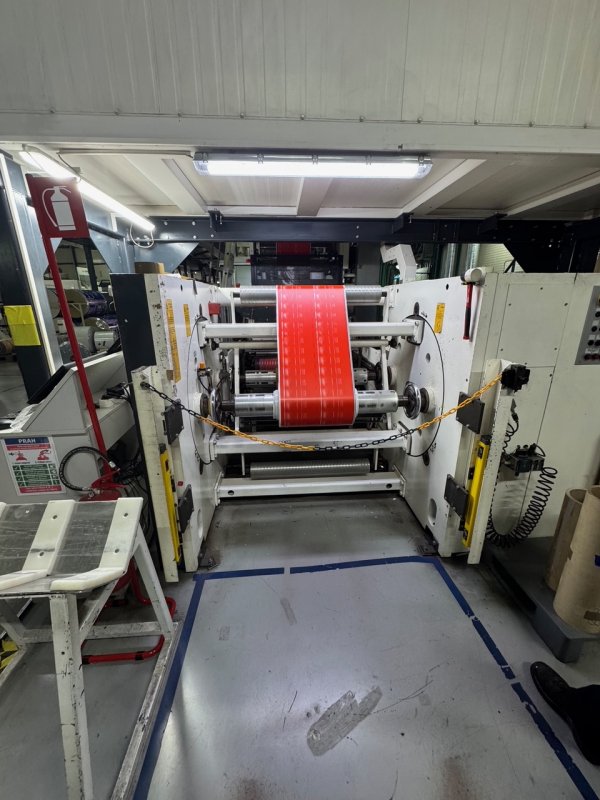

- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones, 4 fans , final tunnel, Gas burners
- Videocamera
- BST Premius
- Web guides
- 2 web guides

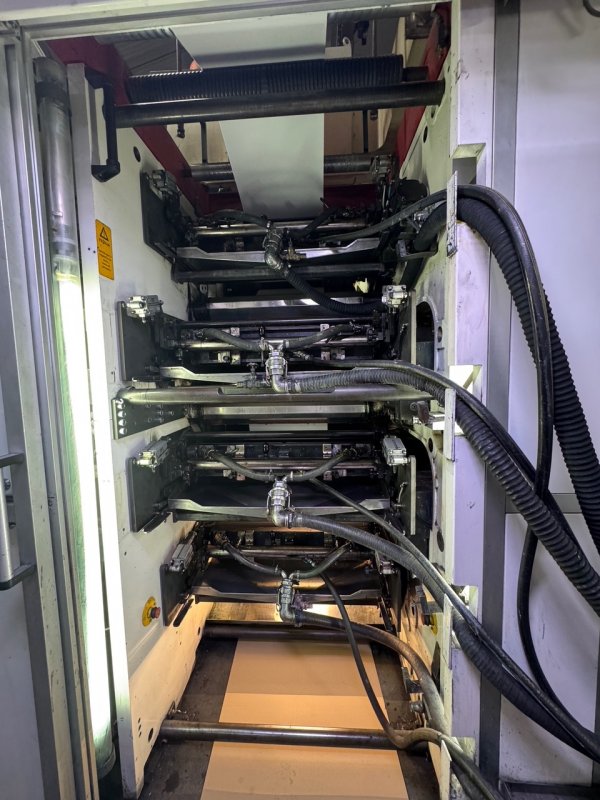

- Inking system
- Closed chamber doctor blades
- Anilox
- 22 aniloxes : 1 x 120 lines 12, 8 cm³/m², 1 x 140 lines 13, 5 , 1 x 140 lines 16,5 , 1 x 140 lines 13,4 cm³/m², 1 x 160 lines 12, 3 , 1 x 160 lines 11 cm³/m² 1 x 200 lines 9,5 , 1 x 200 lines 10 , 1 x 200 lines 9,5 cm³/m² 1 x 280 lines 10 cm³/m² 1 x 300 lines 7, 3 cm³/m², 1 x 360 lines 4, 8 , 1 x 360 lines 5 cm, 2 x 360 lines 4, 9 , 1 x 360 lines 8 cm³/m² 3 x 400 lines 4, 5 cm³/m², 1 x 400 lines 4, 6 cm³/m², 1 x 460 lines 5 cm³/m², 1 x 580 lines 4 cm³/m²,
- Print Sleeves
- 378 sleeves, 16 x 250mm, 16 x 260mm, 8 x 270mm, 8 x 280mm, 8 x 290mm, 8 x 300mm, 8 x 310mm, 8 x 320mm, 8 x 330mm, 8 x 340mm, 8 x 345mm, 16 x 350mm, 8 x 360mm, 8 x 375mm, 8 x 380mm, 16 x 390mm, 16 x 400mm, 8 x 410mm, 16 x 420mm, 16 x 430mm, 8 x 440mm, 8 x 450mm, 8 x 460mm, 8 x 470mm, 8 x 480mm, 8 x 490mm, 8 x 500mm, 8 x 520mm, 8 x 560mm, 8 x 580mm, 10 x 600mm, 8 x 610mm, 8 x 620mm, 8 x 640mm, 8 x 650mm, 8 x 680mm, 8 x 700mm, 8 x 730mm, 8 x 750mm
| Machine Code | FL1207 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | Primaflex |
| Year | 2005 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 870 |
| Print width (mm) | 820 |
| Min print repeat (mm) | 250 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones, 4 fans , final tunnel, Gas burners |
| Videocamera | BST Premius |
| Web guides | 2 web guides |
| Inking system | Closed chamber doctor blades |
| Anilox | 22 aniloxes : 1 x 120 lines 12, 8 cm³/m², 1 x 140 lines 13, 5 , 1 x 140 lines 16,5 , 1 x 140 lines 13,4 cm³/m², 1 x 160 lines 12, 3 , 1 x 160 lines 11 cm³/m² 1 x 200 lines 9,5 , 1 x 200 lines 10 , 1 x 200 lines 9,5 cm³/m² 1 x 280 lines 10 cm³/m² 1 x 300 lines 7, 3 cm³/m², 1 x 360 lines 4, 8 , 1 x 360 lines 5 cm, 2 x 360 lines 4, 9 , 1 x 360 lines 8 cm³/m² 3 x 400 lines 4, 5 cm³/m², 1 x 400 lines 4, 6 cm³/m², 1 x 460 lines 5 cm³/m², 1 x 580 lines 4 cm³/m², |
| Print Sleeves | 378 sleeves, 16 x 250mm, 16 x 260mm, 8 x 270mm, 8 x 280mm, 8 x 290mm, 8 x 300mm, 8 x 310mm, 8 x 320mm, 8 x 330mm, 8 x 340mm, 8 x 345mm, 16 x 350mm, 8 x 360mm, 8 x 375mm, 8 x 380mm, 16 x 390mm, 16 x 400mm, 8 x 410mm, 16 x 420mm, 16 x 430mm, 8 x 440mm, 8 x 450mm, 8 x 460mm, 8 x 470mm, 8 x 480mm, 8 x 490mm, 8 x 500mm, 8 x 520mm, 8 x 560mm, 8 x 580mm, 10 x 600mm, 8 x 610mm, 8 x 620mm, 8 x 640mm, 8 x 650mm, 8 x 680mm, 8 x 700mm, 8 x 730mm, 8 x 750mm |
