Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1195
- Manufacturer
- UTECO
- Modello

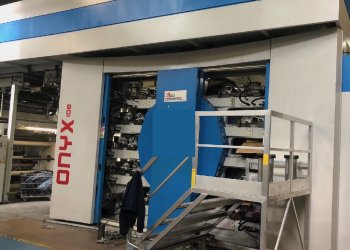

- ONYX 108 GL
- Year
- 2014
- Number of colors
- 10
- Print possibilityes
- 10+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1320
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , final tunnel 6 mt length, gas burners

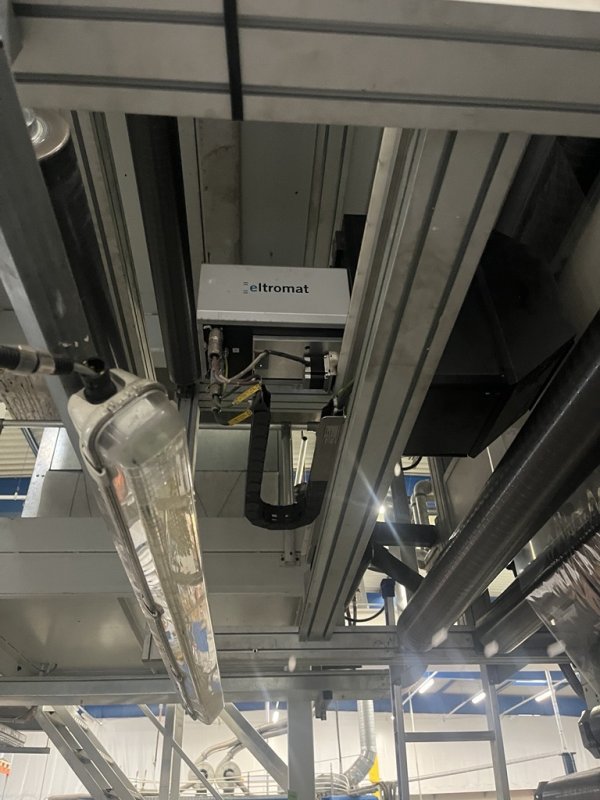

- Videocamera
- Eltromat, with defect control

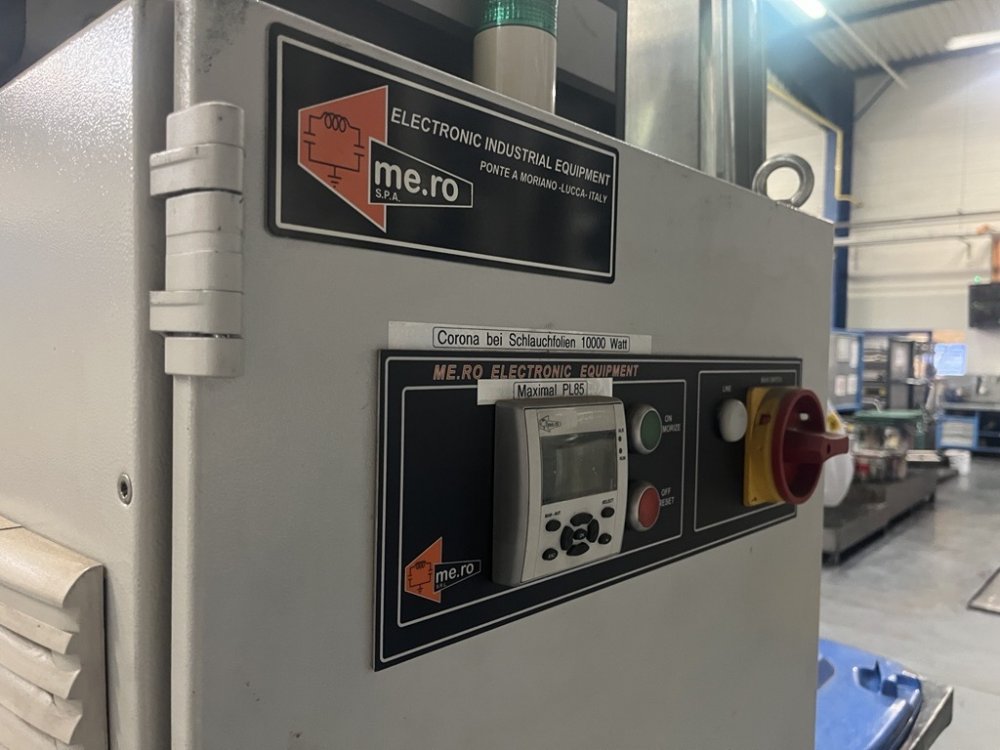

- Corona treatment
- Me.ro

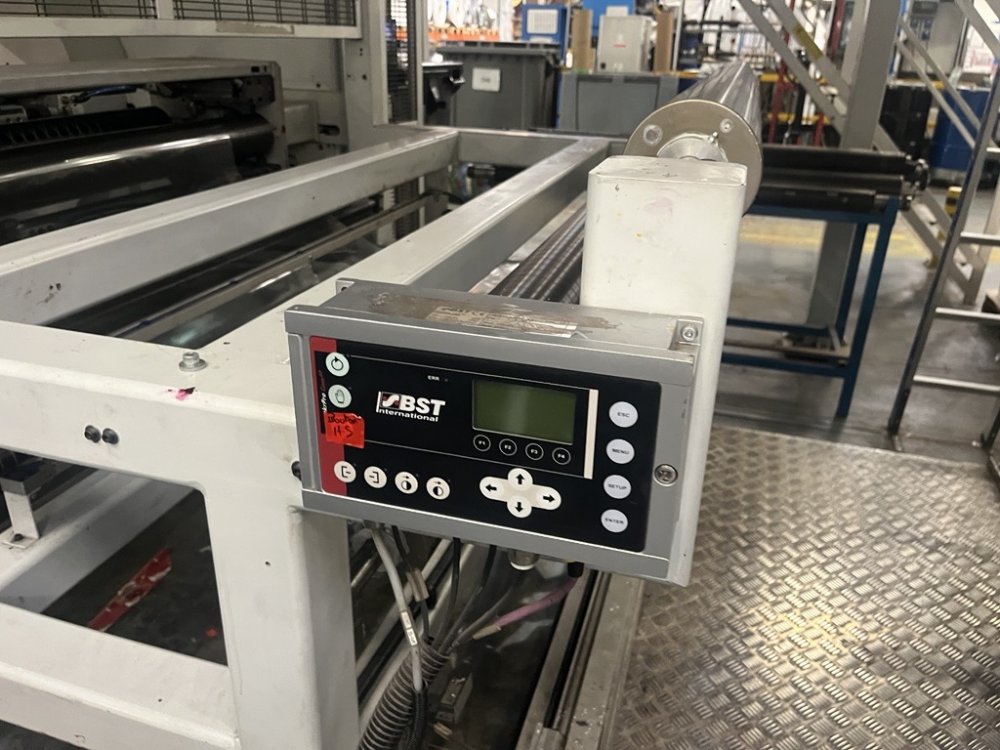

- Web guides
- BST

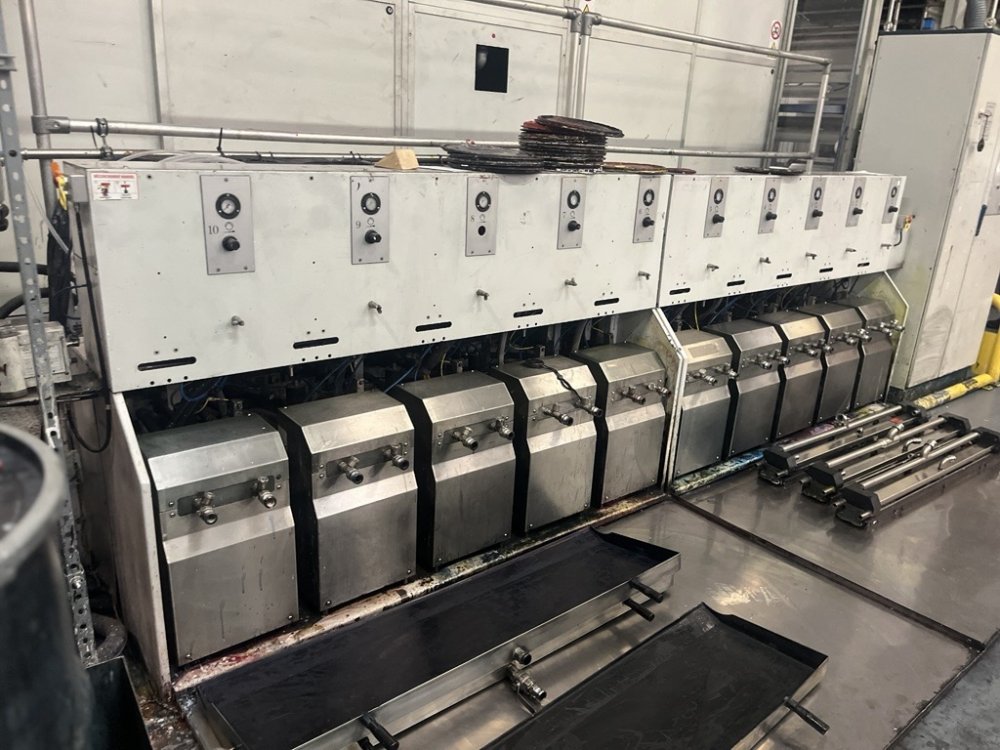

- Vyscosity control
- automatic
- Washing system
- automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 22 anilox sleeves: 7x420 L/cm, 5x280 L/cm, 3x160 L/cm, 4x140 L/cm, 1x120 L/cm, 2x100 L/cm
- Print Sleeves
- 24 adaptor/Bridge/carrier sleeves. 357 sleeves- 9x350mm, 10x360mm, 10x370mm, 8x380mm, 15x400mm, 16x410mm, 19x420mm, 10x430mm, 10x440mm, 10x450mm, 9x460mm, 10x470mm, 9x480mm, 10x490mm, 10x500mm, 20x510mm, 20x520mm, 10x530mm, 10x540mm, 10x550mm, 10x560mm, 20x570mm, 20x580mm, 12x600mm, 10x620mm, 10x640mm, 10x650mm, 10x660mm, 10x670mm, 10x680mm
- Note
- max speed 400 m/min Kiss and Go: Automatic printing deck position system (automatic print pressure control)
| Machine Code | FL1195 |
| Manufacturer | UTECO |
| Modello | ONYX 108 GL |
| Year | 2014 |
| Number of colors | 10 |
| Print possibilityes | 10+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1320 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , final tunnel 6 mt length, gas burners |
| Videocamera | Eltromat, with defect control |
| Corona treatment | Me.ro |
| Web guides | BST |
| Vyscosity control | automatic |
| Washing system | automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 22 anilox sleeves: 7x420 L/cm, 5x280 L/cm, 3x160 L/cm, 4x140 L/cm, 1x120 L/cm, 2x100 L/cm |
| Print Sleeves | 24 adaptor/Bridge/carrier sleeves. 357 sleeves- 9x350mm, 10x360mm, 10x370mm, 8x380mm, 15x400mm, 16x410mm, 19x420mm, 10x430mm, 10x440mm, 10x450mm, 9x460mm, 10x470mm, 9x480mm, 10x490mm, 10x500mm, 20x510mm, 20x520mm, 10x530mm, 10x540mm, 10x550mm, 10x560mm, 20x570mm, 20x580mm, 12x600mm, 10x620mm, 10x640mm, 10x650mm, 10x660mm, 10x670mm, 10x680mm |
| Note | max speed 400 m/min Kiss and Go: Automatic printing deck position system (automatic print pressure control) |
