Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- FL1170
- Manufacturer
- BOBST FISCHER & KRECKE
- Modello
- FK 15 S
- Year
- 2011
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1285
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 880
- Unwinder type

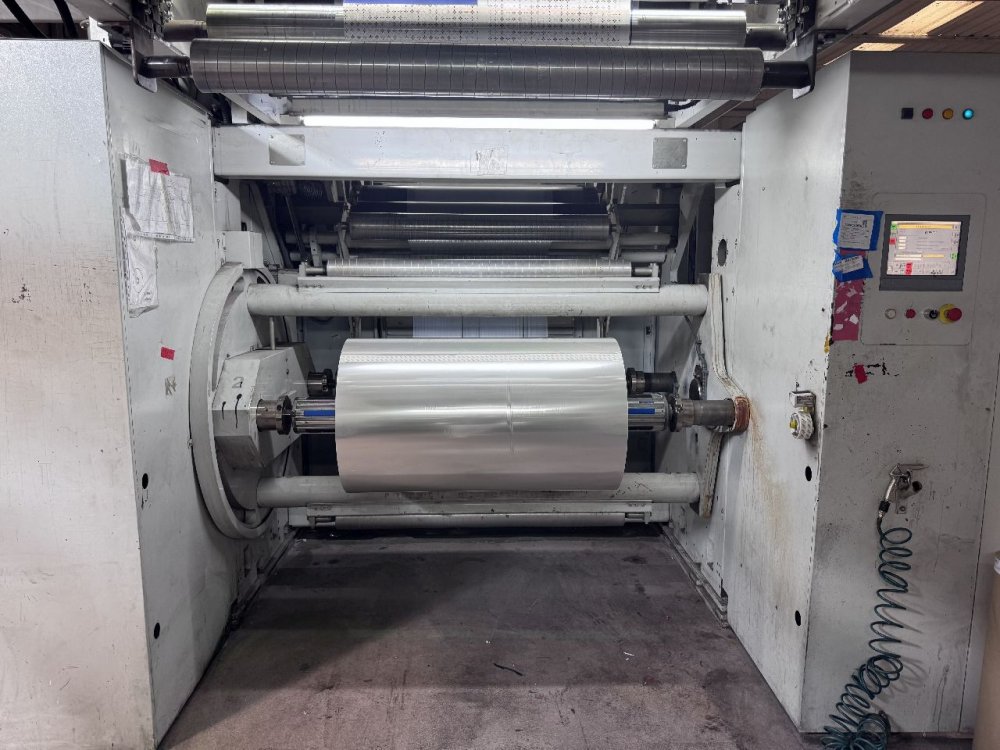

- Turret Automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , final tunnel 4 mt , 2 Gas burners
- Videocamera
- BST - 100% inspection and defect control system
- Corona treatment
- Yes, Me.ro
- Web guides
- Yes in and out
- Vyscosity control
- Yes
- Washing system
- Yes automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 4 anilox 340 L/cm -Vol.5 ; 1x 120 L/cm-vol.8.5 ; 2x 240 L/cm-vol. 8 , 1x120 L/cm-vol.12
- Print Sleeves
- 1set
- Note
- Plate mounter with Smart GPS system Automatic register control Automatic printing pressure setting
| Machine Code | FL1170 |
| Manufacturer | BOBST FISCHER & KRECKE |
| Modello | FK 15 S |
| Year | 2011 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1285 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 880 |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , final tunnel 4 mt , 2 Gas burners |
| Videocamera | BST - 100% inspection and defect control system |
| Corona treatment | Yes, Me.ro |
| Web guides | Yes in and out |
| Vyscosity control | Yes |
| Washing system | Yes automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 4 anilox 340 L/cm -Vol.5 ; 1x 120 L/cm-vol.8.5 ; 2x 240 L/cm-vol. 8 , 1x120 L/cm-vol.12 |
| Print Sleeves | 1set |
| Note | Plate mounter with Smart GPS system Automatic register control Automatic printing pressure setting |
