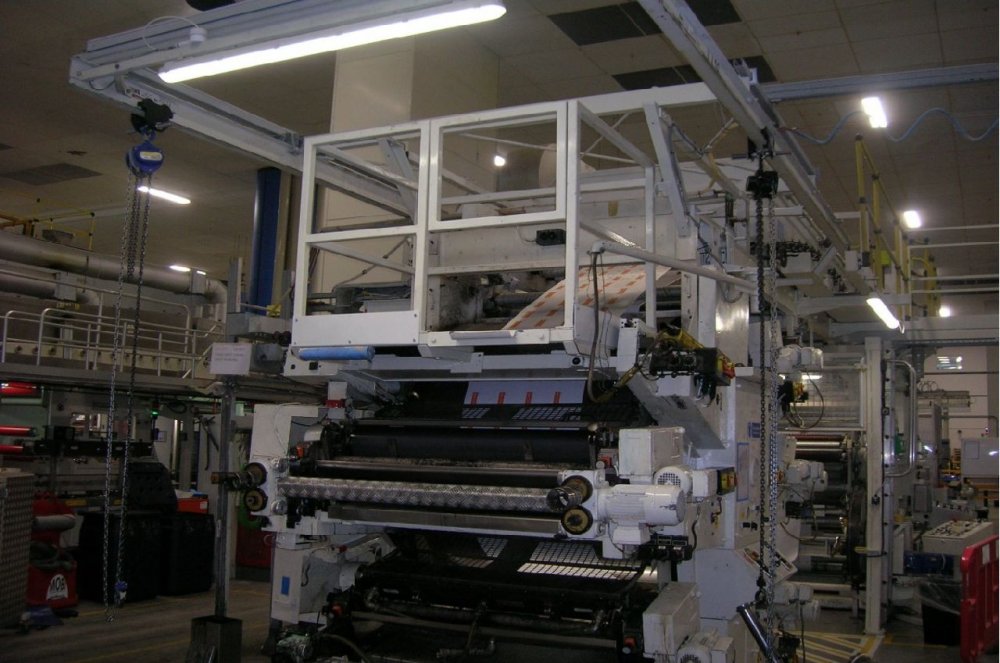

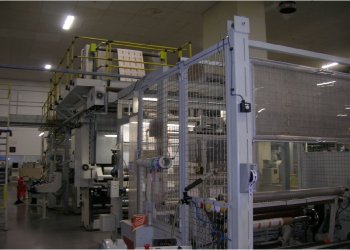

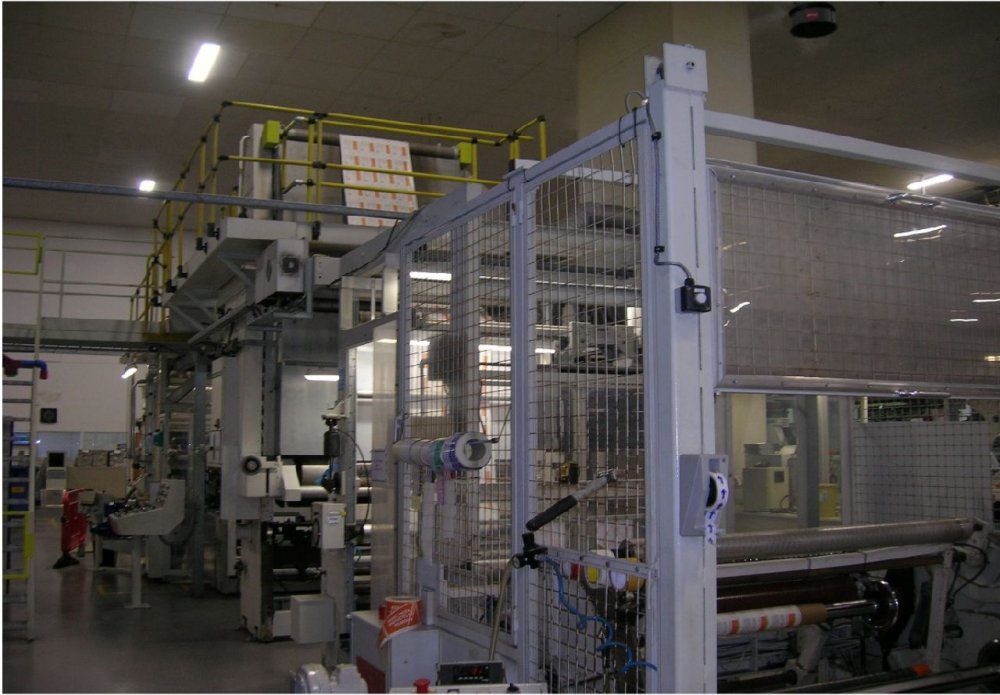

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1120
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- Olympia
- Year
- 1982
- Number of colors
- 6
- Print possibilityes
- 5 flexo +1 gravure
- Overhaul/renovation
- Yes, in 1999. Several upgrded parts (e.g. web inspection)
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- No
- Computer supervision
- No
- Web width (mm)
- 1135
- Print width (mm)
- 1080
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 4 hot air drying hoods up to 150 degrees
- Videocamera
- FUTEC auto print inspection
- Print Sleeves
- 67 thou x 127 - 112 thou x 22
- Note
- 5mm gear pitch Print Viewing -webscope scanner Oil manderel system 7 Air Manderels 3 Spare Air sleeves 7 Pneumatic Pumps Available as optional for additional price: Microdot Mounter Heaford (2011) Plate Making Equipment - UV developer and plate washer
| Machine Code | FL1120 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | Olympia |
| Year | 1982 |
| Number of colors | 6 |
| Print possibilityes | 5 flexo +1 gravure |
| Overhaul/renovation | Yes, in 1999. Several upgrded parts (e.g. web inspection) |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | No |
| Computer supervision | No |
| Web width (mm) | 1135 |
| Print width (mm) | 1080 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 4 hot air drying hoods up to 150 degrees |
| Videocamera | FUTEC auto print inspection |
| Print Sleeves | 67 thou x 127 - 112 thou x 22 |
| Note | 5mm gear pitch Print Viewing -webscope scanner Oil manderel system 7 Air Manderels 3 Spare Air sleeves 7 Pneumatic Pumps Available as optional for additional price: Microdot Mounter Heaford (2011) Plate Making Equipment - UV developer and plate washer |
