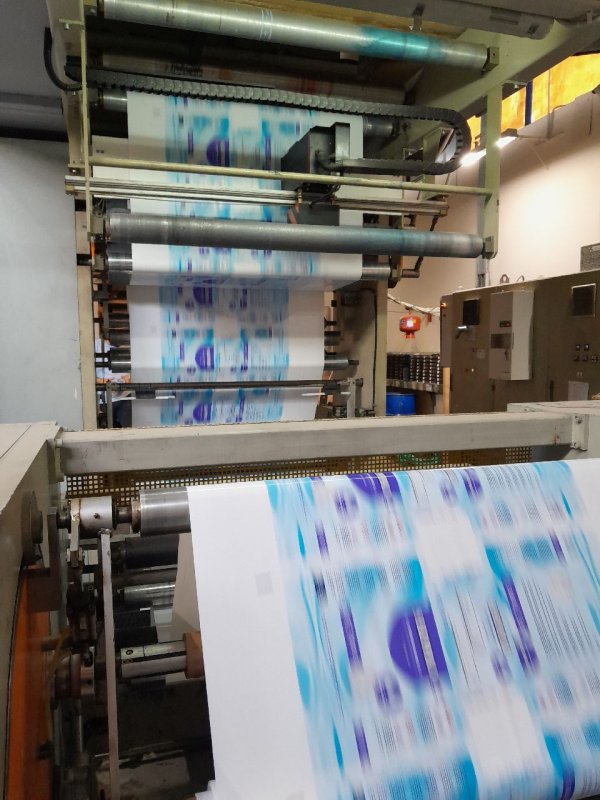

COMIFLEX CI8 flexo printing machine 8 colors

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Ask more informations
Machine Code
FL1098
Manufacturer
COMIFLEX
Modello
CI8
Year
2006
Number of colors
8
Overhaul/renovation
mechanical and software upgrading in 2013
Gearless
No
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1280
Print width (mm)
1200
Min print repeat (mm)
340
Max print repeat (mm)
800

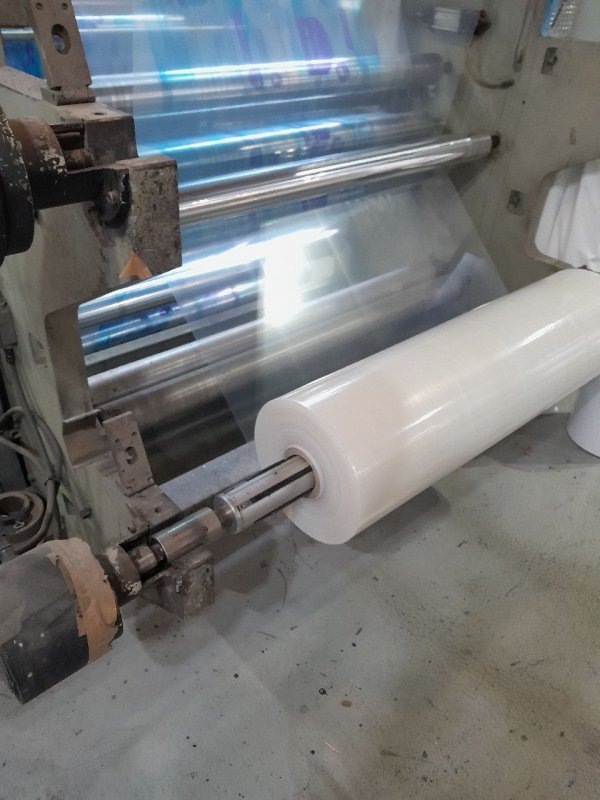

Unwinder type
Double bracket
Max reel diameter unwinder (mm)
800
Rewinder type
Double automatic turret rewinder
Max reel diameter rewinder (mm)
800

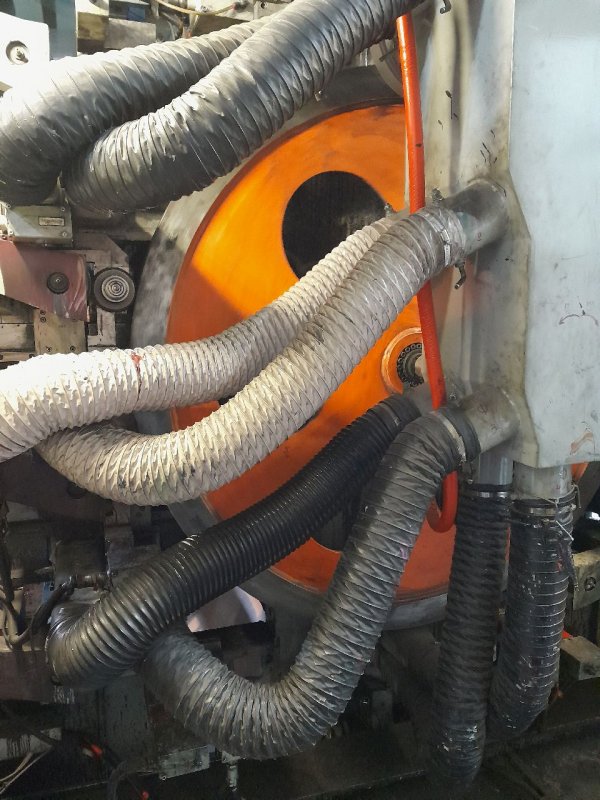

Drying
two separate stations for drying with electric resistance, drum and drying tube
Videocamera
Yes
Web guides
Yes, IN and OUT
Anilox
15 Anilox
Note
mechanical speed 300m/min Cast iron frame 120mm thickness CI diam 1700mm double walls type clishe 1,14mm
Machine Code FL1098
Manufacturer COMIFLEX
Modello CI8
Year 2006
Number of colors 8
Overhaul/renovation mechanical and software upgrading in 2013
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1280
Print width (mm) 1200
Min print repeat (mm) 340
Max print repeat (mm) 800
Unwinder type Double bracket
Max reel diameter unwinder (mm) 800
Rewinder type Double automatic turret rewinder
Max reel diameter rewinder (mm) 800
Drying two separate stations for drying with electric resistance, drum and drying tube
Videocamera Yes
Web guides Yes, IN and OUT
Anilox 15 Anilox
Note mechanical speed 300m/min Cast iron frame 120mm thickness CI diam 1700mm double walls type clishe 1,14mm
