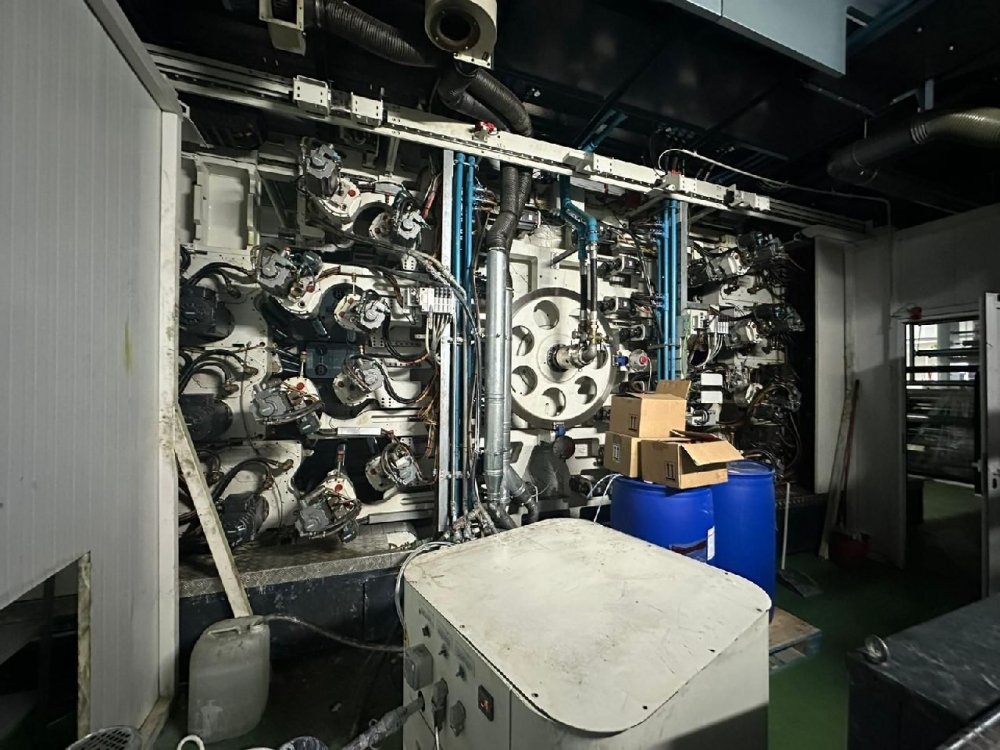

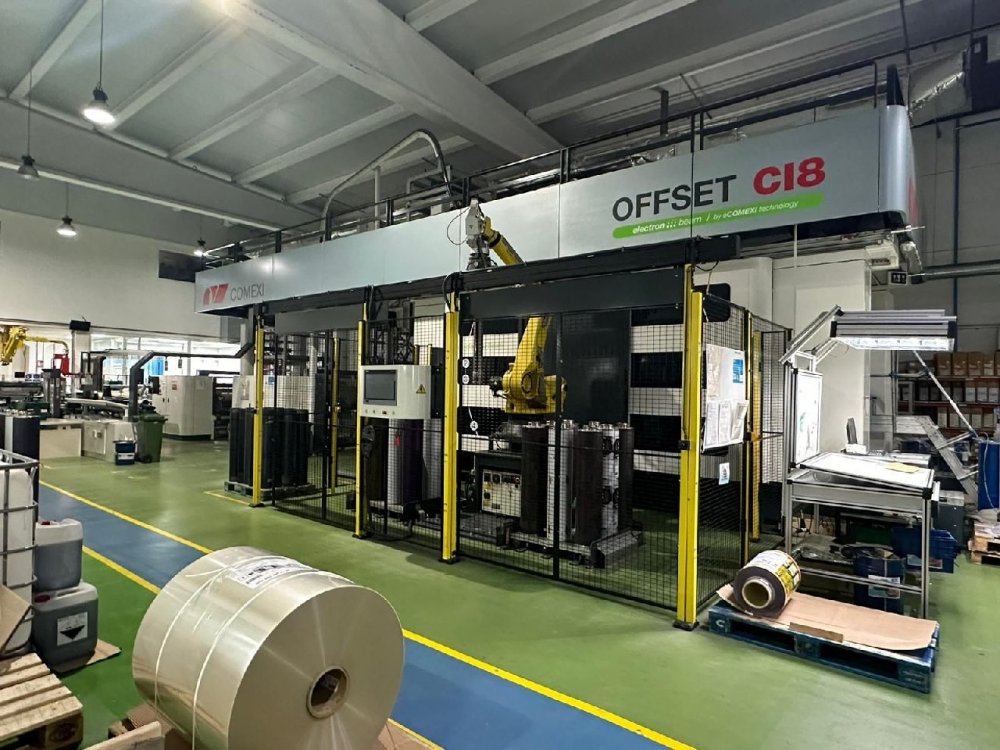

COMEXI OFFSET CI 8 flexographic printing machine 8 colors

COMEXI OFFSET  CI 8 flexographic printing machine 8 colors

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Ask more informations
Machine Code
FL1057
Manufacturer
COMEXI
Modello
OFFSET CI 8
Year
2014
Number of colors
8
Print possibilityes
8+0 ( 7 offset units + 1 flexo unit )
Gearless
Yes
Fast sleeve change
Yes
Computer supervision
Yes
Web width (mm)
1120
Print width (mm)
1050
Min print repeat (mm)
455
Max print repeat (mm)
930
Unwinder type
Turret automatic
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
1000
Drying
Electron Beam curing system
Videocamera
Web VIdeostar 2000
Corona treatment
yes
Web guides
yes BST type OPG
Note

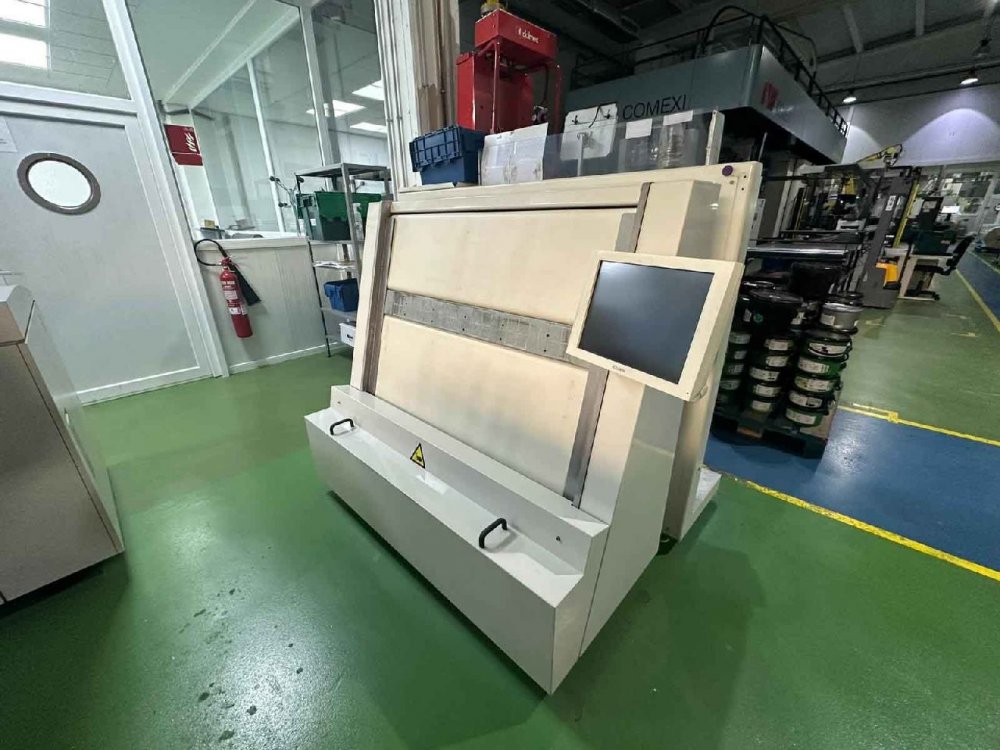

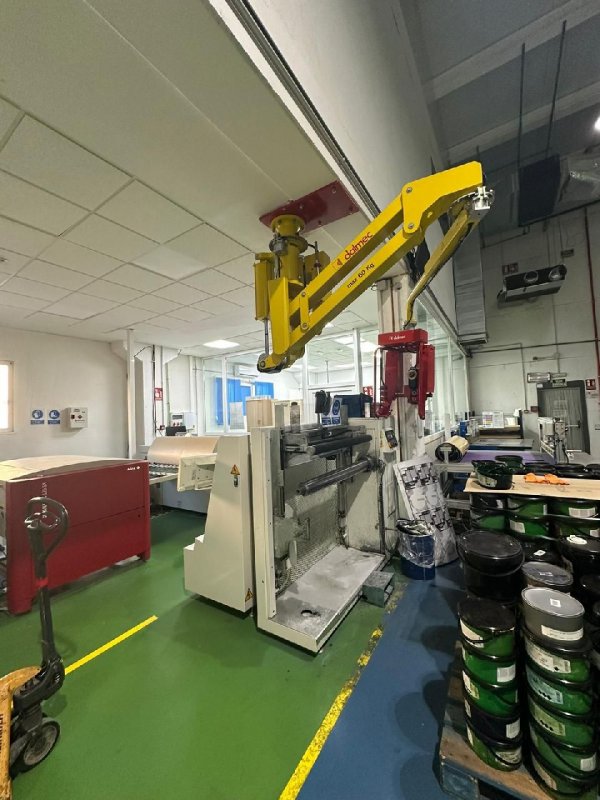

Including CTP and Plate PROCESSOR Materials: LDPE : 20-150 microns LLDPE : 12-100 microns HDPE : 20-150 microns BOPP : 12-60 microns PET : 12-50 microns Paper : 40-120 gr
Machine Code FL1057
Manufacturer COMEXI
Modello OFFSET CI 8
Year 2014
Number of colors 8
Print possibilityes 8+0 ( 7 offset units + 1 flexo unit )
Gearless Yes
Fast sleeve change Yes
Computer supervision Yes
Web width (mm) 1120
Print width (mm) 1050
Min print repeat (mm) 455
Max print repeat (mm) 930
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 1000
Drying Electron Beam curing system
Videocamera Web VIdeostar 2000
Corona treatment yes
Web guides yes BST type OPG
Note Including CTP and Plate PROCESSOR Materials: LDPE : 20-150 microns LLDPE : 12-100 microns HDPE : 20-150 microns BOPP : 12-60 microns PET : 12-50 microns Paper : 40-120 gr
KBA FLEXOTECNICA EVO XD
UTECO EMERALD 825 MOD 120
MULTIPRESS
OFEM COLUMBUS 10/806

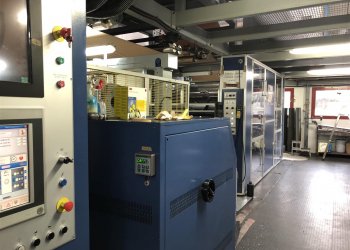

UTECO TOPAZ 608
