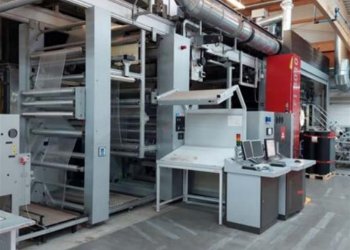

COMEXI FI 3010 flexo printing machine 10 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Photo Gallery

Ask more informations

about a similar one

Machine Code: FL1021
Manufacturer: COMEXI
Modello: FI 3010
Year: 2008
Number of colors: 10
Print possibilityes: 10+0
Gearless: Yes
Fast sleeve change: Yes
4 motor per deck CNC position system: Yes
Computer supervision: Yes
Web width (mm): 1320
Print width (mm): 1270
Min print repeat (mm): 400
Max print repeat (mm): 1250
Unwinder type: Turret shaftless automatic
Max reel diameter unwinder (mm): 1000
Rewinder type: Turret shaftless automatic
Max reel diameter rewinder (mm): 1000
Drying: 2 zones , four fans , final overhead tunnel , Steam heat exchangers , Boiler excluded
Videocamera: AVT Print Vision Jupiter
Corona treatment: Softal
Web guides: BST in and out
Vyscosity control: Yes automatic
Washing system: Yes Synchroclean
Inking system: Ceramic anilox + Chambered doctor blade
Anilox: 23 pieces from 80 to 420 lines/cm : 80 23,3 cm3/m2-120 14,0 cm3/m2-120 14,0 cm3/m2-140 17,0 cm3/m2-140 17,0 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-200 10,0 cm3/m2-200 10,1 cm3/m2-200 10,1 cm3/m2-285 7,5 cm3/m2-285 7,3 cm3/m2-340 5,4 cm3/m2-340 5,5 cm3/m2-340 5,7 cm3/m2-340 5,5 cm3/m2-340 5,5 cm3/m2-420 4,01cm3/m2-420 4,02cm3/m2-420 3,95cm3/m2-420 4,00cm3/m2-420 4,00cm3/m2
Print Sleeves: 400x24, 410x10, 420x9, 430x10, 440x10, 450x9, 460x10, 470x10, 480x10, 490x10, 500x10, 510x10, 820x10, 830x10, 840x10, 850x10, 860x10, 870x9, 880x9, 890x24, 900x10
Note: Lifting platforms for easy sleeve chanhge Mechanical printing speed: 400 m/min Installed power 425 Kw Machine after cleaning and drum polishing with certification.

Machine Code	FL1021
Manufacturer	COMEXI
Modello	FI 3010
Year	2008
Number of colors	10
Print possibilityes	10+0
Gearless	Yes
Fast sleeve change	Yes
4 motor per deck CNC position system	Yes
Computer supervision	Yes
Web width (mm)	1320
Print width (mm)	1270
Min print repeat (mm)	400
Max print repeat (mm)	1250
Unwinder type	Turret shaftless automatic
Max reel diameter unwinder (mm)	1000
Rewinder type	Turret shaftless automatic
Max reel diameter rewinder (mm)	1000
Drying	2 zones , four fans , final overhead tunnel , Steam heat exchangers , Boiler excluded
Videocamera	AVT Print Vision Jupiter
Corona treatment	Softal
Web guides	BST in and out
Vyscosity control	Yes automatic
Washing system	Yes Synchroclean
Inking system	Ceramic anilox + Chambered doctor blade
Anilox	23 pieces from 80 to 420 lines/cm : 80 23,3 cm3/m2-120 14,0 cm3/m2-120 14,0 cm3/m2-140 17,0 cm3/m2-140 17,0 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-200 10,0 cm3/m2-200 10,1 cm3/m2-200 10,1 cm3/m2-285 7,5 cm3/m2-285 7,3 cm3/m2-340 5,4 cm3/m2-340 5,5 cm3/m2-340 5,7 cm3/m2-340 5,5 cm3/m2-340 5,5 cm3/m2-420 4,01cm3/m2-420 4,02cm3/m2-420 3,95cm3/m2-420 4,00cm3/m2-420 4,00cm3/m2
Print Sleeves	400x24, 410x10, 420x9, 430x10, 440x10, 450x9, 460x10, 470x10, 480x10, 490x10, 500x10, 510x10, 820x10, 830x10, 840x10, 850x10, 860x10, 870x9, 880x9, 890x24, 900x10
Note	Lifting platforms for easy sleeve chanhge Mechanical printing speed: 400 m/min Installed power 425 Kw Machine after cleaning and drum polishing with certification.
