** SOLD **

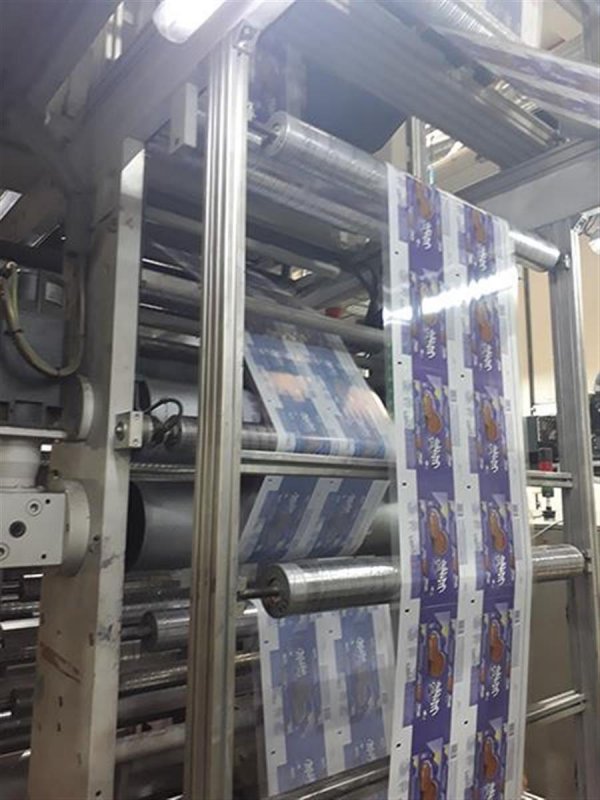

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.
Ask more informations
about a similar one
- Machine Code
- FL953
- Manufacturer
- COMEXI

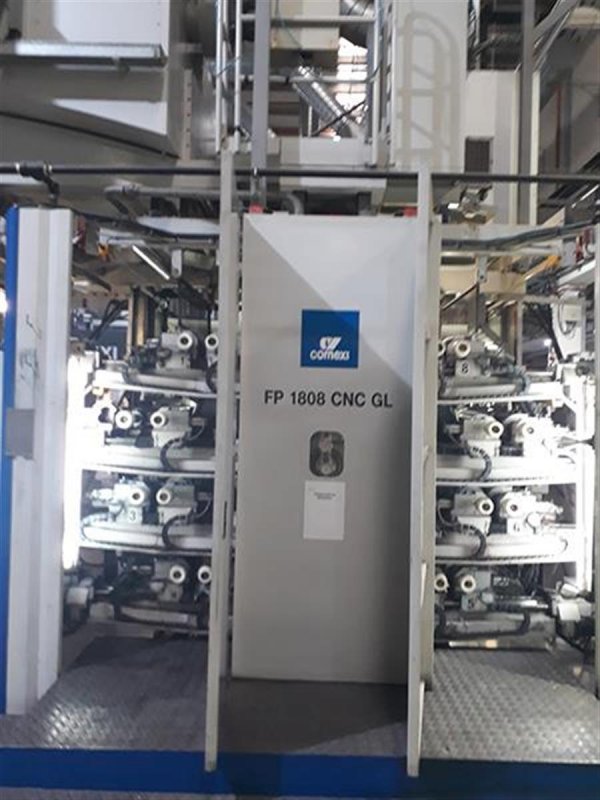

- Model
- FP 1808 CNC GL
- Year
- 2003
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

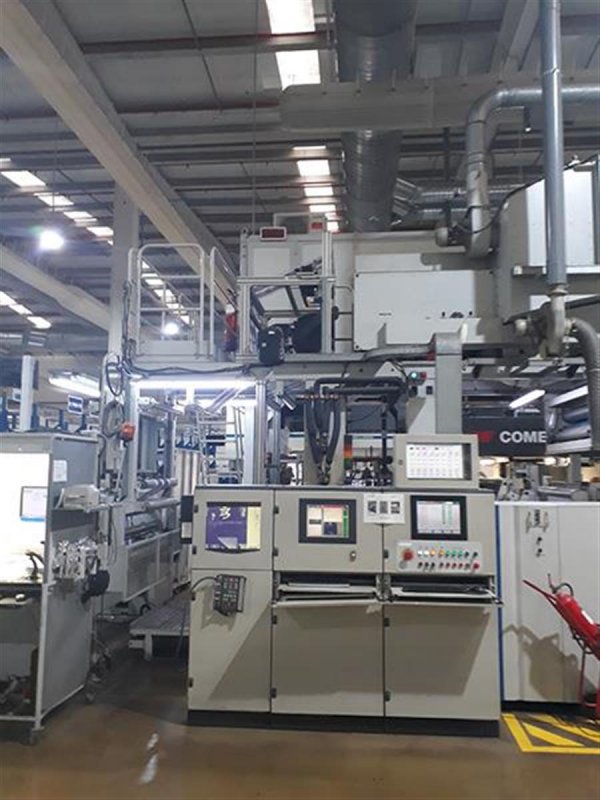

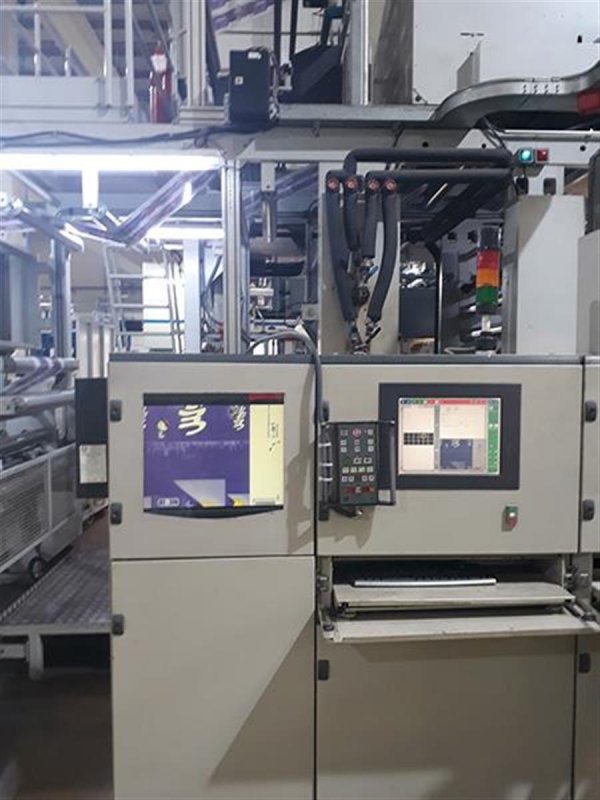

- Computer supervision
- Yes
- Web width (mm)
- 1070
- Print width (mm)
- 1020
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 680
- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 800

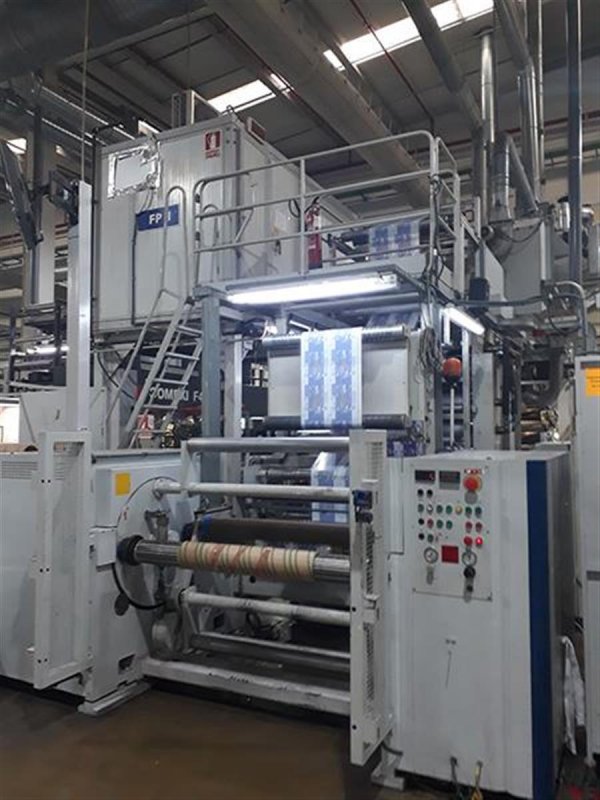

- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 800

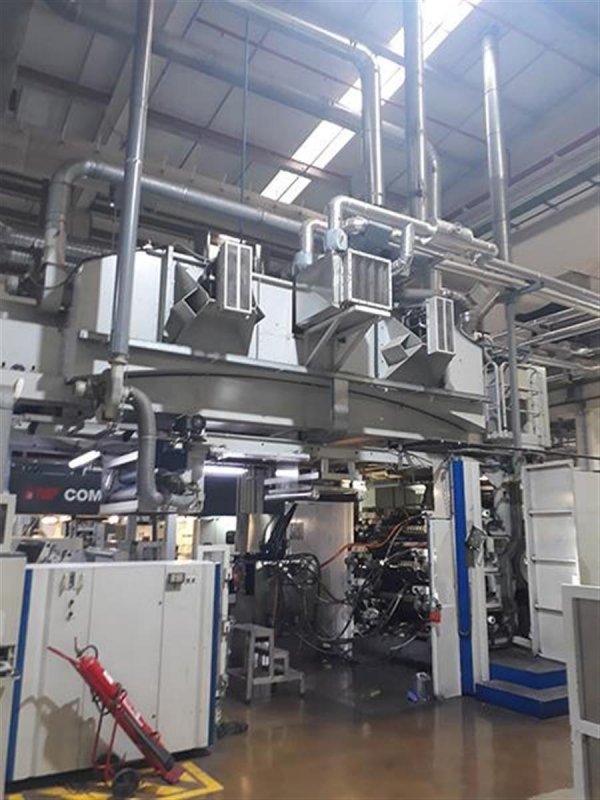

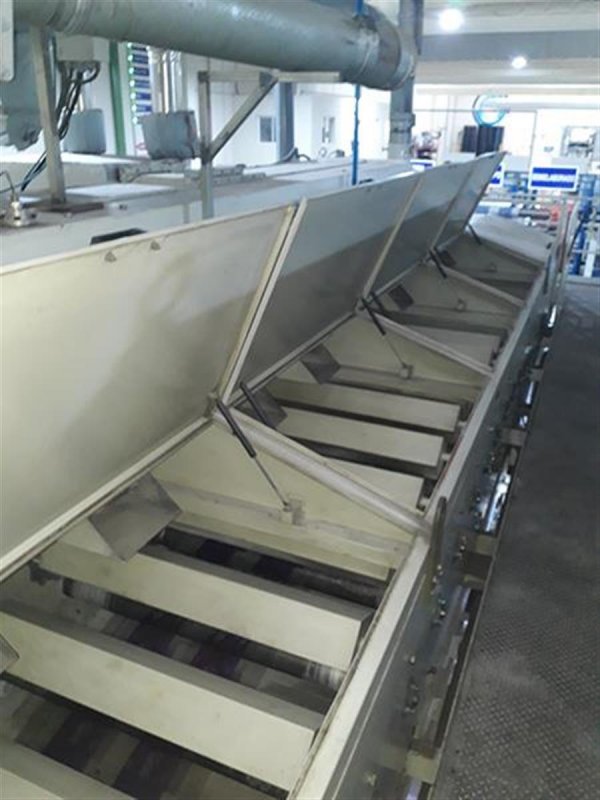

- Drying
- Termic Oil burners

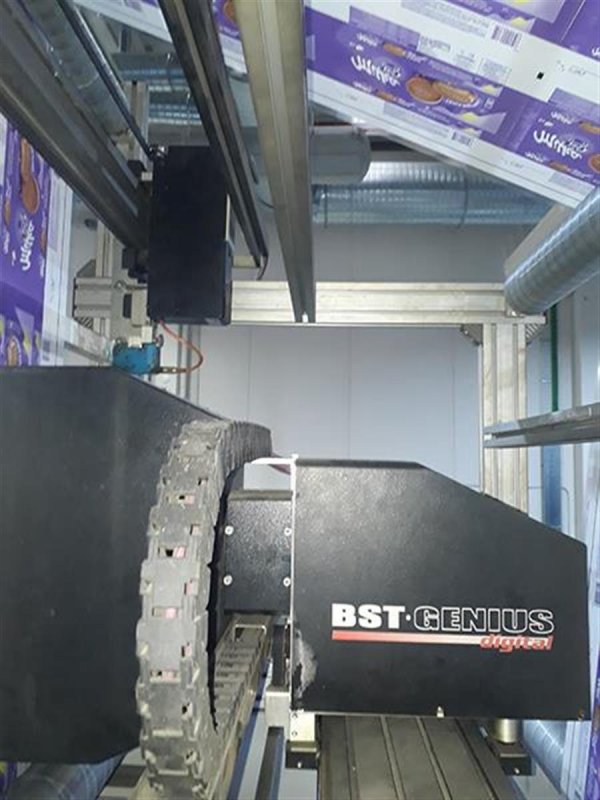

- Videocamera
- BST, model GENIUS
- Corona treatment
- Yes, SOFTAL

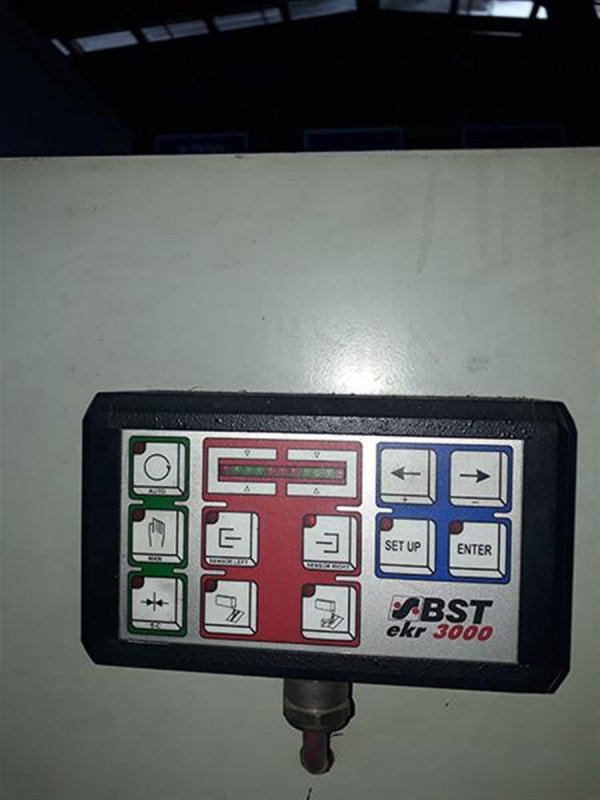

- Web guides
- BST type OPG before and after printing, ultrasonic sensor 2 Lel indicators.
- Vyscosity control
- Inelme viscosimeters
- Washing system
- Automatic device for individual or simultaneous cleaning of colors.

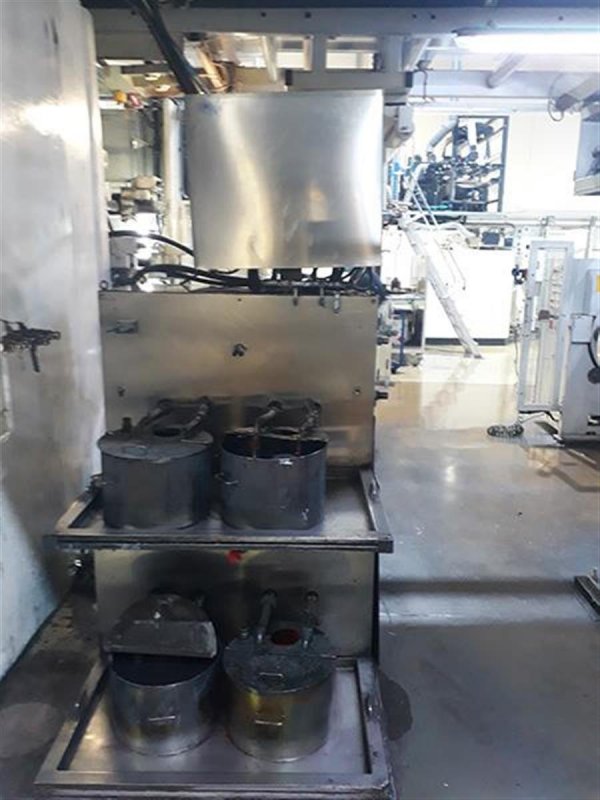

- Inking system
- Inks pumps + self cleaning including; pneumatic recirculating ink - pumps with reversible fluid flow system; ink tanks, stainless steel, 20 l.

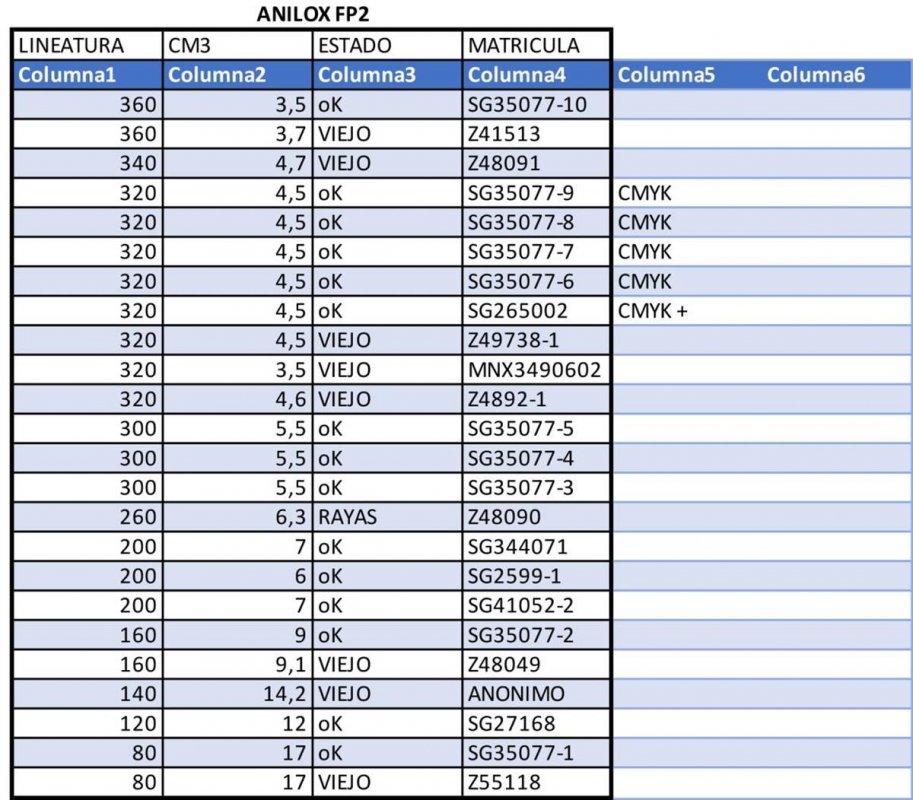

- Anilox
- 2x360, 1x340, 8x320, 3x300, 1x260, 3x200, 2x160, 1x140, 1x120, 2x80.

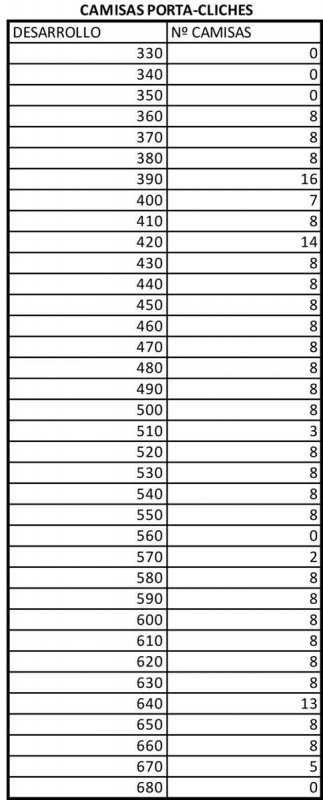

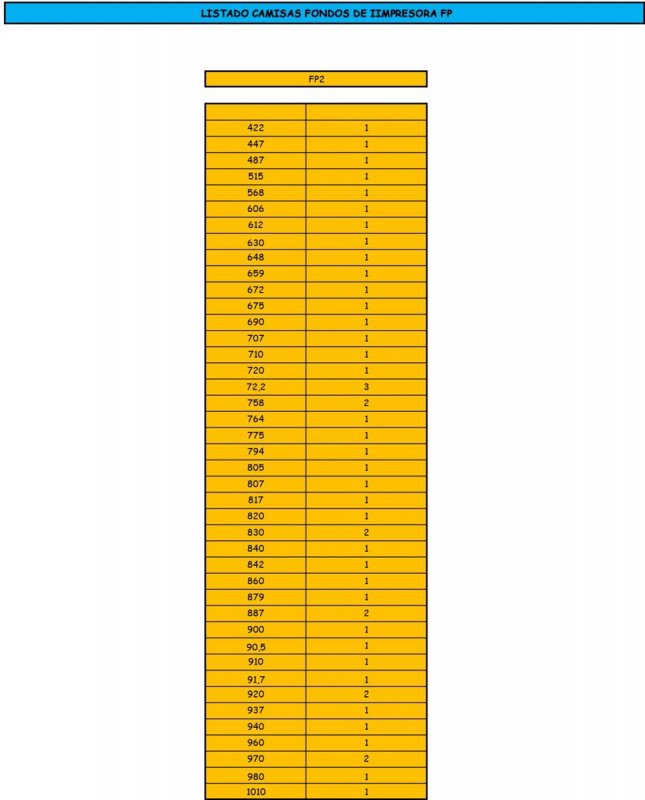

- Print Sleeves
- 330 - 680
- Additional information

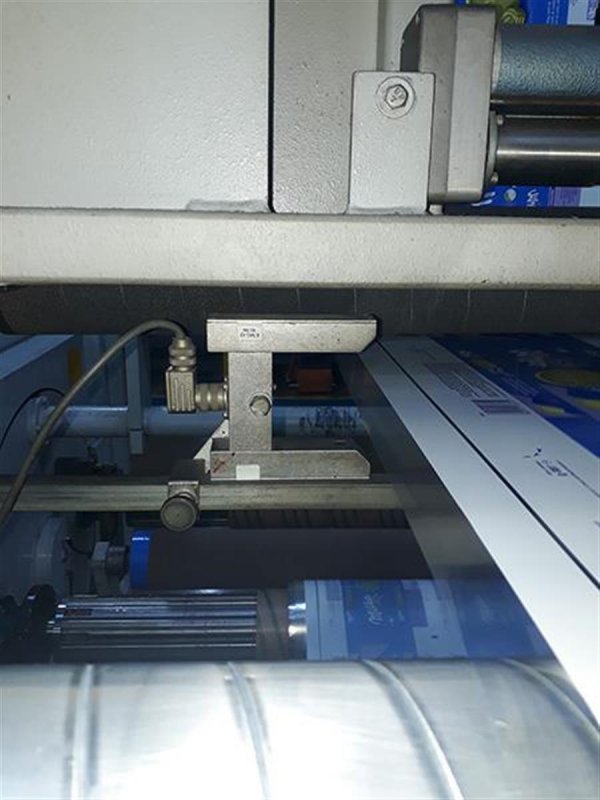

- Materials: Films PE, OPP and similar films. Thicknes: min 25 micras - max 100 micras Speed: 350 m/min Motorized lateral register; Core diam: Unwinder: 152 mm - Rewinder: 76 and 152 mm. Tension range: 2/30 Kgs. Inks pumps + self cleaning including: pneumatic recirculating ink-pumps with reversible fluid flow system Ink Tanks, stainless steel, 20 l. Electronic control, valves and pneumatic controls.
Machine Code | FL953 |
Manufacturer | COMEXI |
Model | FP 1808 CNC GL |
Year | 2003 |
Number of colors | 8 |
Print possibilityes | 8+0 |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1070 |
Print width (mm) | 1020 |
Min print repeat (mm) | 330 |
Max print repeat (mm) | 680 |
Unwinder type | Turret |
Max reel diameter unwinder (mm) | 800 |
Rewinder type | Turret |
Max reel diameter rewinder (mm) | 800 |
Drying | Termic Oil burners |
Videocamera | BST, model GENIUS |
Corona treatment | Yes, SOFTAL |
Web guides | BST type OPG before and after printing, ultrasonic sensor 2 Lel indicators. |
Vyscosity control | Inelme viscosimeters |
Washing system | Automatic device for individual or simultaneous cleaning of colors. |
Inking system | Inks pumps + self cleaning including; pneumatic recirculating ink - pumps with reversible fluid flow system; ink tanks, stainless steel, 20 l. |
Anilox | 2x360, 1x340, 8x320, 3x300, 1x260, 3x200, 2x160, 1x140, 1x120, 2x80. |
Print Sleeves | 330 - 680 |
Additional information | Materials: Films PE, OPP and similar films. Thicknes: min 25 micras - max 100 micras Speed: 350 m/min Motorized lateral register; Core diam: Unwinder: 152 mm - Rewinder: 76 and 152 mm. Tension range: 2/30 Kgs. Inks pumps + self cleaning including: pneumatic recirculating ink-pumps with reversible fluid flow system Ink Tanks, stainless steel, 20 l. Electronic control, valves and pneumatic controls. |
