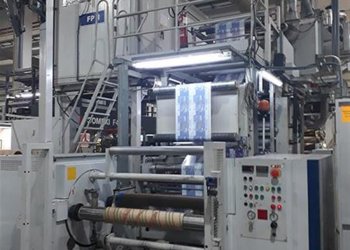

COMEXI FP 1808 CNC GL flexo press 8 colors

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Machine Code FL953
Manufacturer COMEXI
Model FP 1808 CNC GL
Year 2003
Number of colors 8
Print possibilities 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1070
Print width (mm) 1020
Min print repeat (mm) 330
Max print repeat (mm) 680
Unwinder type Turret
Max reel diameter unwinder (mm) 800
Rewinder type Turret
Max reel diameter rewinder (mm) 800
Drying Termic Oil burners
Videocamera BST, model GENIUS
Corona treatment Yes, SOFTAL
Web guides BST type OPG before and after printing, ultrasonic sensor 2 Lel indicators.
Vyscosity control Inelme viscosimeters
Washing system Automatic device for individual or simultaneous cleaning of colors.
Anilox 2x360, 1x340, 8x320, 3x300, 1x260, 3x200, 2x160, 1x140, 1x120, 2x80.
Print Sleeves 330 - 680
Additional information Materials: Films PE, OPP and similar films. Thicknes: min 25 micras - max 100 micras Speed: 350 m/min Motorized lateral register; Core diam: Unwinder: 152 mm - Rewinder: 76 and 152 mm. Tension range: 2/30 Kgs. Inks pumps + self cleaning including: pneumatic recirculating ink-pumps with reversible fluid flow system Ink Tanks, stainless steel, 20 l. Electronic control, valves and pneumatic controls.
