** SOLD **

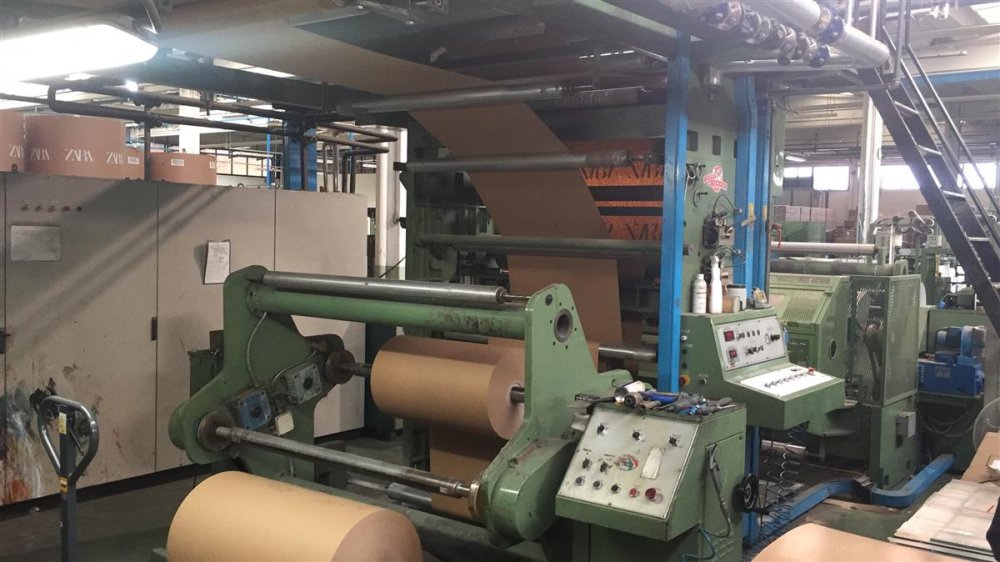

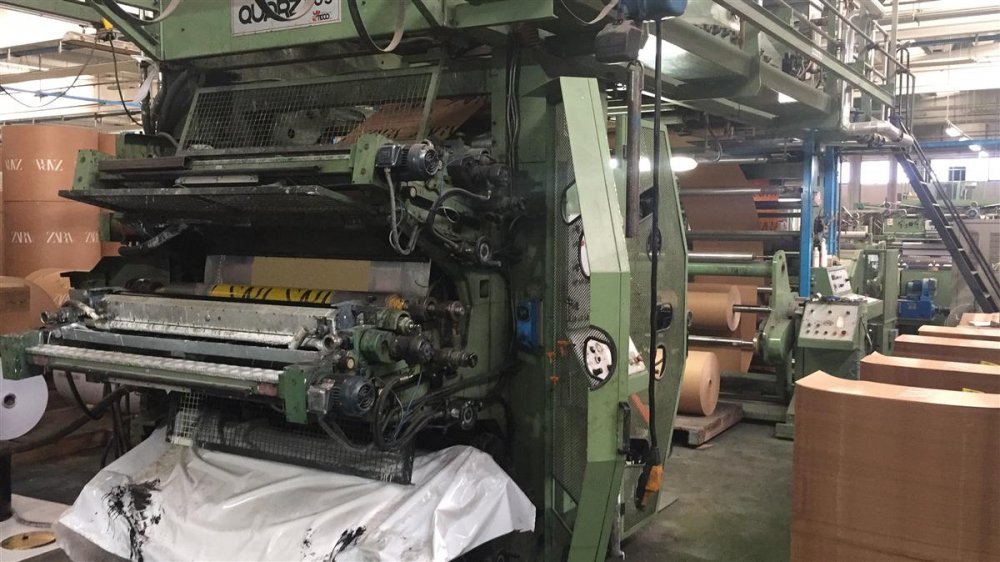

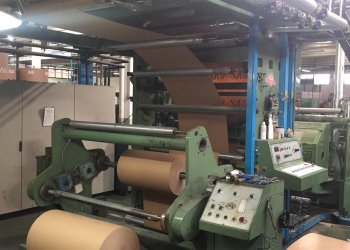

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- FL994
- Manufacturer
- UTECO
- Modello
- Quarz 603
- Year
- 1994
- Number of colors
- 6
- Print possibilityes
- 6+0
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- No
- Computer supervision
- Yes
- Web width (mm)
- 1450
- Print width (mm)
- 1400
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 1000

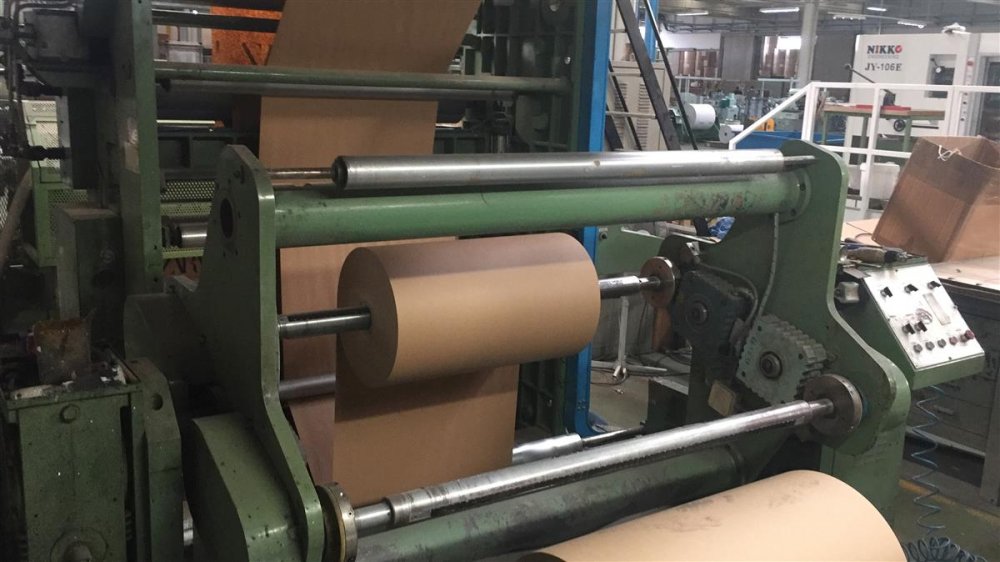

- Unwinder type
- Semiautomatic turret drop Slice
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Automatic turret non stop
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones 4 fans 3mt tunnel , Heating by steam with heat exchangers
- Videocamera
- BST
- Anilox
- 20 ceramic anilox rolelrs between 60 l/cm and 320 l/cm
- Print cylinders
- 10 x each of following repeats 35 cm, 38 , 40 , 45, 50 ,60 ; 6 for each following repeats 52cm, 54 , 65, 70 , 4 x 55 cm, and 65 ,
| Machine Code | FL994 |
| Manufacturer | UTECO |
| Modello | Quarz 603 |
| Year | 1994 |
| Number of colors | 6 |
| Print possibilityes | 6+0 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | No |
| Computer supervision | Yes |
| Web width (mm) | 1450 |
| Print width (mm) | 1400 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 1000 |
| Unwinder type | Semiautomatic turret drop Slice |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Automatic turret non stop |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones 4 fans 3mt tunnel , Heating by steam with heat exchangers |
| Videocamera | BST |
| Anilox | 20 ceramic anilox rolelrs between 60 l/cm and 320 l/cm |
| Print cylinders | 10 x each of following repeats 35 cm, 38 , 40 , 45, 50 ,60 ; 6 for each following repeats 52cm, 54 , 65, 70 , 4 x 55 cm, and 65 , |
