** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL975
- Manufacturer

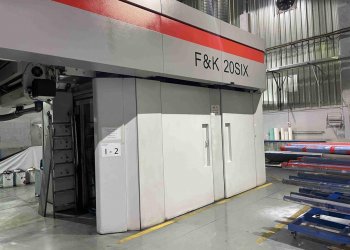

- BOBST
- Modello
- 20 SIX S
- Year
- 2014
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1300
- Print width (mm)
- 1250
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 800
- Unwinder type
- Double automatic
- Max reel diameter unwinder (mm)
- 1200

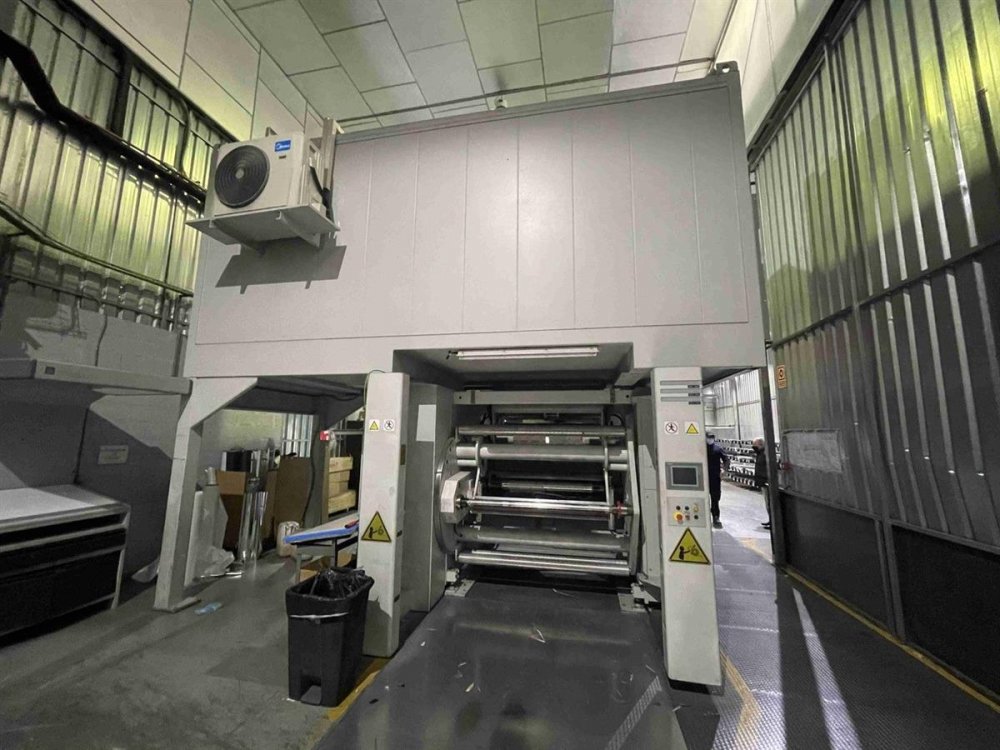

- Rewinder type
- Double automatic
- Max reel diameter rewinder (mm)
- 1020
- Drying
- Electric
- Videocamera
- Yes
- Web guides
- Yes
- Vyscosity control
- Yes
- Washing system
- Yes, automatic

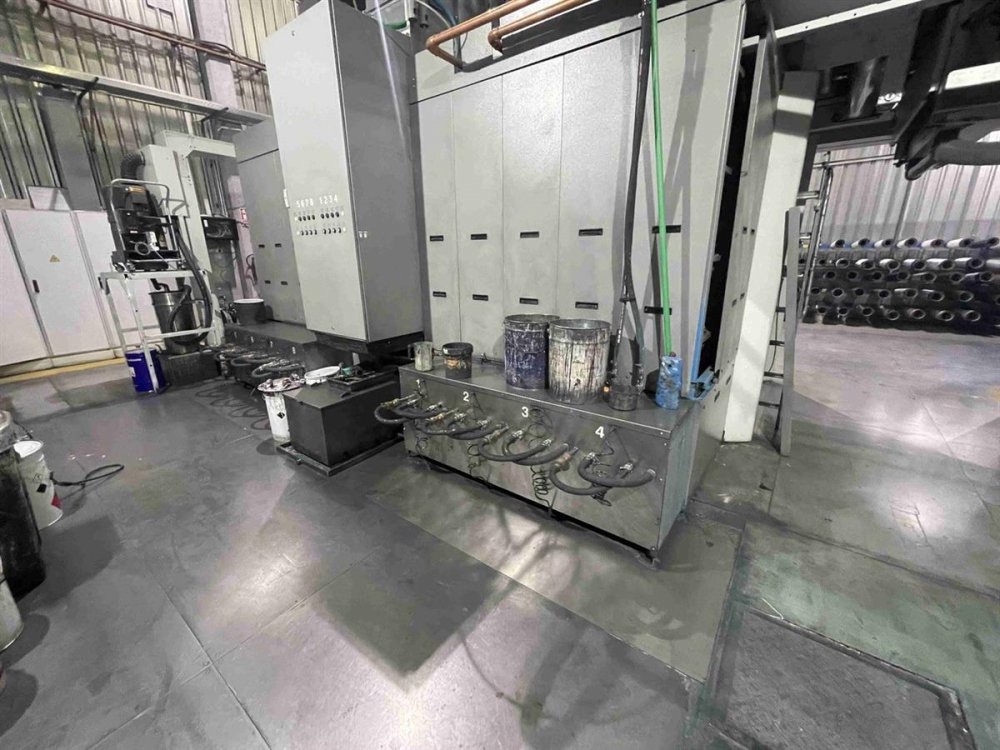

- Inking system
- Closed chamber doctor blades
- Anilox
- 20, ceramic anilox sleeves as follows 6x 400 L/cm-vol3,7 ; 1x 400 L/cm-vol.3,5; 2x 340 L/cm-vol.6,1 ; 1x 340 L/cm.-vol.4,9; 2x 280 L/cm-vol.7,2; 2x 200 L/cm-vol.9,0 ; 1x 200 L/cm-vol.8,5 ; 1x 180 L/cm-vol.10,7; 1x 160 L/cm-vol.11,6 ; 1x 140 L/cm-vol.16,8 ; 1x 100 L/cm-vol.15,0; 1x 80 L/cm-vol. 20,6 ;
- Print Sleeves
- 228 as follows 8 for each following repeat : 320mm, 330 , 340, 350 , 360 , 370 , 380 , 390 , 400 , 410 , 420 , 430 , 440 , 450 , 460 , 470 , 480 , 490 , 500 , 510 , 520 , 540 , 550 , 560 , 580 , 600 , 620 , 650
- Note

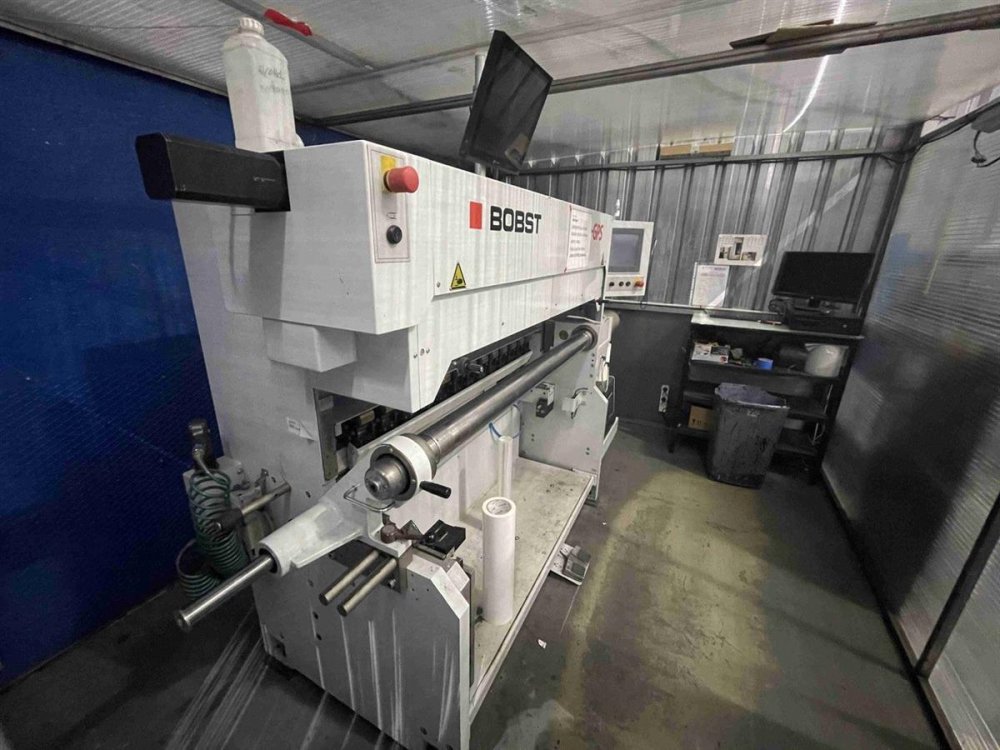

- Speed 500 mt/min Smart GPS register system including Plate Mounter
| Machine Code | FL975 |
| Manufacturer | BOBST |
| Modello | 20 SIX S |
| Year | 2014 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1300 |
| Print width (mm) | 1250 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 800 |
| Unwinder type | Double automatic |
| Max reel diameter unwinder (mm) | 1200 |
| Rewinder type | Double automatic |
| Max reel diameter rewinder (mm) | 1020 |
| Drying | Electric |
| Videocamera | Yes |
| Web guides | Yes |
| Vyscosity control | Yes |
| Washing system | Yes, automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 20, ceramic anilox sleeves as follows 6x 400 L/cm-vol3,7 ; 1x 400 L/cm-vol.3,5; 2x 340 L/cm-vol.6,1 ; 1x 340 L/cm.-vol.4,9; 2x 280 L/cm-vol.7,2; 2x 200 L/cm-vol.9,0 ; 1x 200 L/cm-vol.8,5 ; 1x 180 L/cm-vol.10,7; 1x 160 L/cm-vol.11,6 ; 1x 140 L/cm-vol.16,8 ; 1x 100 L/cm-vol.15,0; 1x 80 L/cm-vol. 20,6 ; |
| Print Sleeves | 228 as follows 8 for each following repeat : 320mm, 330 , 340, 350 , 360 , 370 , 380 , 390 , 400 , 410 , 420 , 430 , 440 , 450 , 460 , 470 , 480 , 490 , 500 , 510 , 520 , 540 , 550 , 560 , 580 , 600 , 620 , 650 |
| Note | Speed 500 mt/min Smart GPS register system including Plate Mounter |
