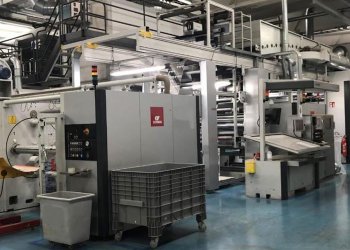

COMEXI FB2108 CNC GL Flexo printer 8 colors

** SOLD **

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Ask more informations
about a similar one
Machine Code
FL964
Manufacturer
COMEXI
Model
FB2108 CNC GL
Year
2004
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1270
Print width (mm)
1220
Min print repeat (mm)
350
Max print repeat (mm)
850
Unwinder type
TURRET AUTOMATIC NON STOP WITH ROLL LIFTING SYSTEM
Max reel diameter unwinder (mm)
800
Rewinder type
TURRET AUTOMATIC NON STOP WITH ROLL LIFTING SYSTEM
Max reel diameter rewinder (mm)
800
Drying
2 Zones 4 fans steam heat exchangesr
Videocamera
Yes
Corona treatment
Corona, AHLBRANDT type ASOH 21V- E
Web guides
Yes in and out BST OPG
Vyscosity control
8 automatic BLOSS
Washing system
Yes Automatic
Inking system
Closed chamber doctor blades
Anilox
over 20
Print Sleeves
10 x 440,10 x 480, 10 x 580, 7 x 580, 10 x 640 (plate thickness
Additional information
Slitting on rewinder (x5), banana roll, 4 x extra chamber doctor blades,
Machine Code FL964
Manufacturer COMEXI
Model FB2108 CNC GL
Year 2004
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1220
Min print repeat (mm) 350
Max print repeat (mm) 850
Unwinder type TURRET AUTOMATIC NON STOP WITH ROLL LIFTING SYSTEM
Max reel diameter unwinder (mm) 800
Rewinder type TURRET AUTOMATIC NON STOP WITH ROLL LIFTING SYSTEM
Max reel diameter rewinder (mm) 800
Drying 2 Zones 4 fans steam heat exchangesr
Videocamera Yes
Corona treatment Corona, AHLBRANDT type ASOH 21V- E
Web guides Yes in and out BST OPG
Vyscosity control 8 automatic BLOSS
Washing system Yes Automatic
Inking system Closed chamber doctor blades
Anilox over 20
Print Sleeves 10 x 440,10 x 480, 10 x 580, 7 x 580, 10 x 640 (plate thickness
Additional information Slitting on rewinder (x5), banana roll, 4 x extra chamber doctor blades,
** SOLD **
