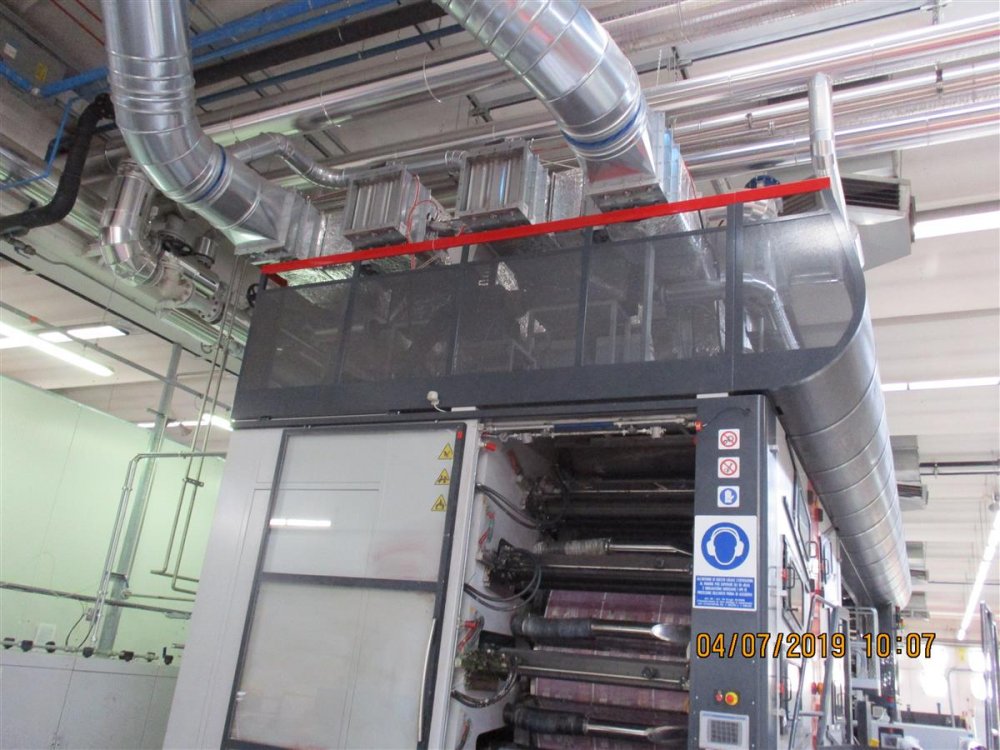

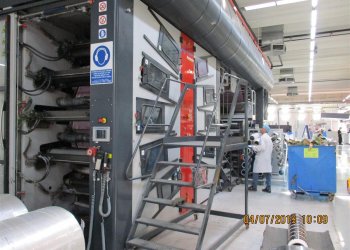

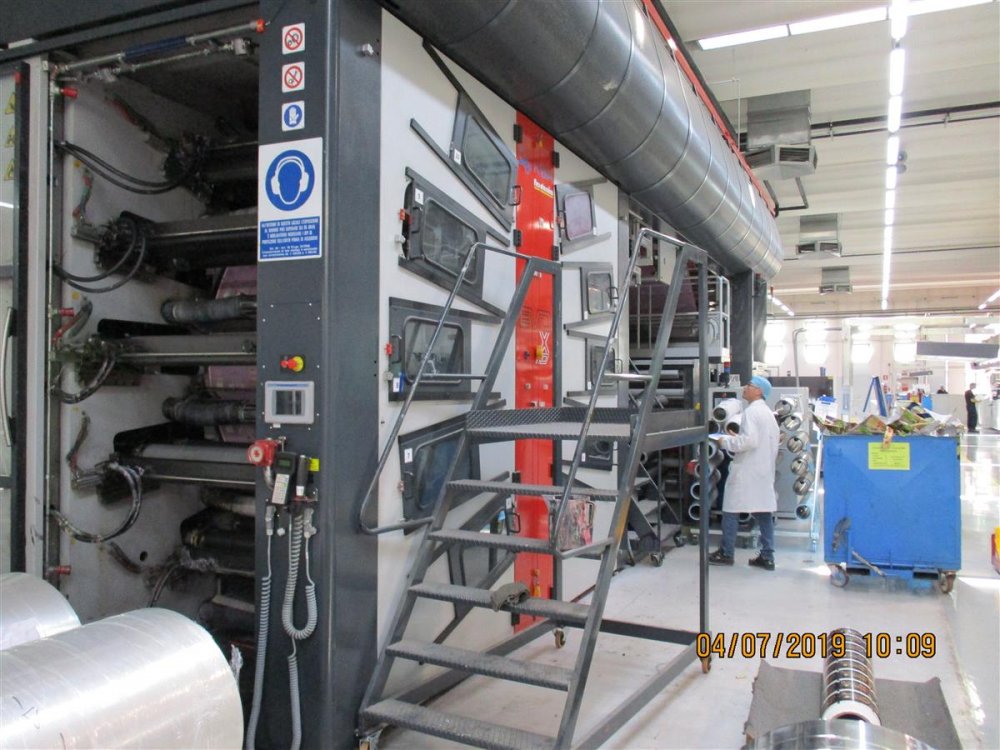

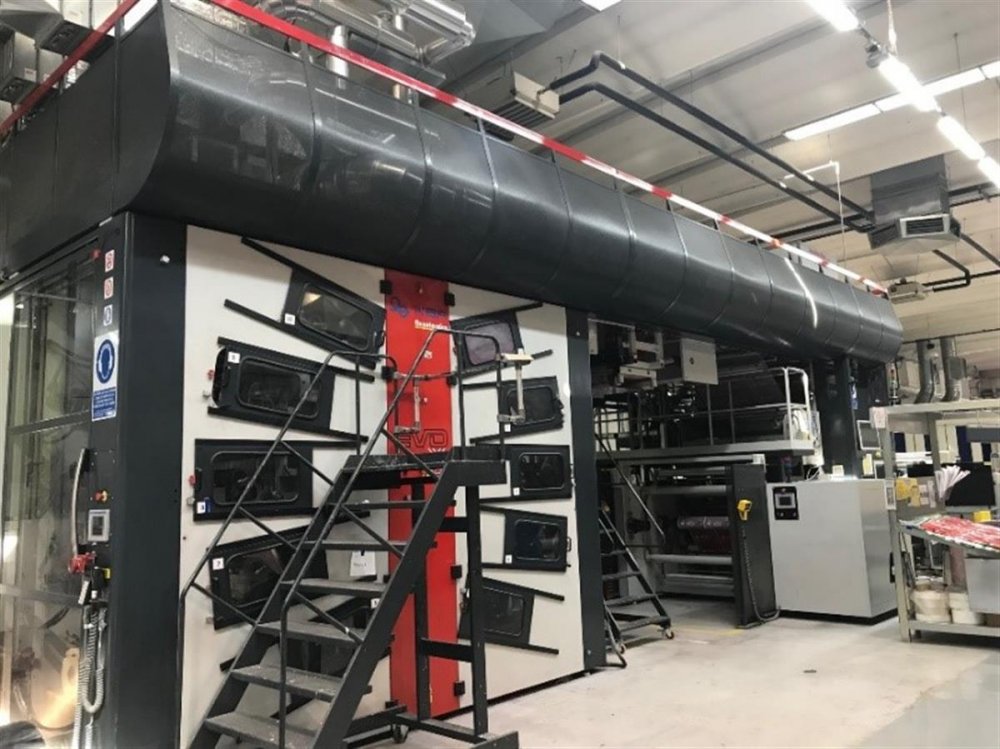

FLEXOTECNICA KBA EVOXD Flexo printer 10 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL874
Manufacturer
FLEXOTECNICA KBA
Modello
EVOXD
Year
2016
Number of colors
10
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1320
Print width (mm)
1270
Min print repeat (mm)
400
Max print repeat (mm)
800
Unwinder type
Turret shaftless
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret shaftless
Max reel diameter rewinder (mm)
1000
Drying
Oil burner
Videocamera
Graficontrol Progrex 500 ( system Matrix 500 statistical and Lznex 100% iquality inspection)
Corona treatment
ME.RO. power 12kW
Web guides
2
Vyscosity control
GAMA Mod. VISG26
Washing system
Automatic
Inking system
closed chambers doctor blades
Anilox
24 anilox n. 90 Vol.23 and n. 420 Vol.4,5
Print Sleeves
37 sleeves form 450mm to 1.230mm
Print cylinders
620 from 400mm to 790mm
Note
Speed: 500m/min Register control: Grafikontrol cr34 LEL system NIRA mod: Sagitttarius 5000 Plate mounter CAMIS IRISLEEVE 1303: Year: 2016 Width: 1300 mm Sleeve warehouse SIMBA - GAMA: Year: 2016 Blocks: 15 Manual
Machine Code FL874
Manufacturer FLEXOTECNICA KBA
Modello EVOXD
Year 2016
Number of colors 10
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1320
Print width (mm) 1270
Min print repeat (mm) 400
Max print repeat (mm) 800
Unwinder type Turret shaftless
Max reel diameter unwinder (mm) 1000
Rewinder type Turret shaftless
Max reel diameter rewinder (mm) 1000
Drying Oil burner
Videocamera Graficontrol Progrex 500 ( system Matrix 500 statistical and Lznex 100% iquality inspection)
Corona treatment ME.RO. power 12kW
Web guides 2
Vyscosity control GAMA Mod. VISG26
Washing system Automatic
Inking system closed chambers doctor blades
Anilox 24 anilox n. 90 Vol.23 and n. 420 Vol.4,5
Print Sleeves 37 sleeves form 450mm to 1.230mm
Print cylinders 620 from 400mm to 790mm
Note Speed: 500m/min Register control: Grafikontrol cr34 LEL system NIRA mod: Sagitttarius 5000 Plate mounter CAMIS IRISLEEVE 1303: Year: 2016 Width: 1300 mm Sleeve warehouse SIMBA - GAMA: Year: 2016 Blocks: 15 Manual
